FOBBRF1STDO - FFOB-144 Floor Box 1 Standard DGPO

FOBBRF1STDO - FFOB-144 Floor Box 1 Standard DGPO

Complete with Brass Flush Lid, 1 X Double GPO Outlet.



FOBBRF1STDO


Secure Payments are easier than ever! Stripe's payment solutions



Delivery Option’s, you choose from our list of delivery partners



Manufactures warranty on all Cableaway sold products.

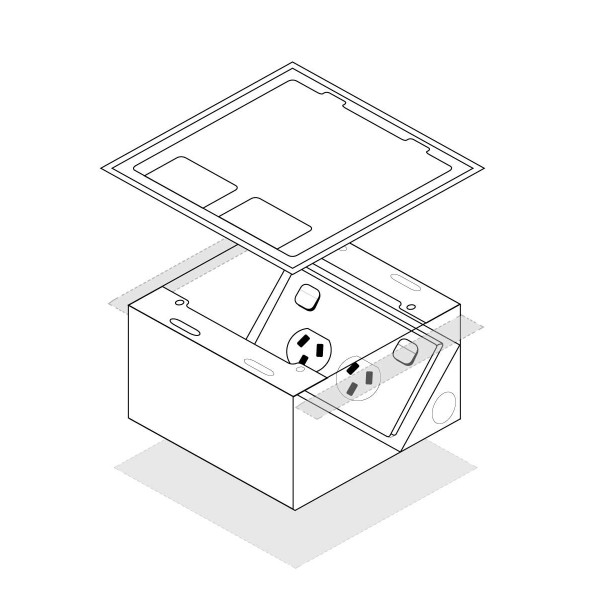

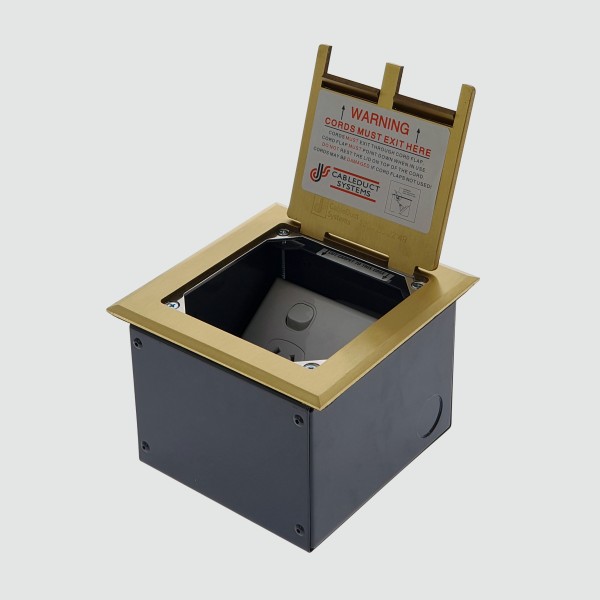

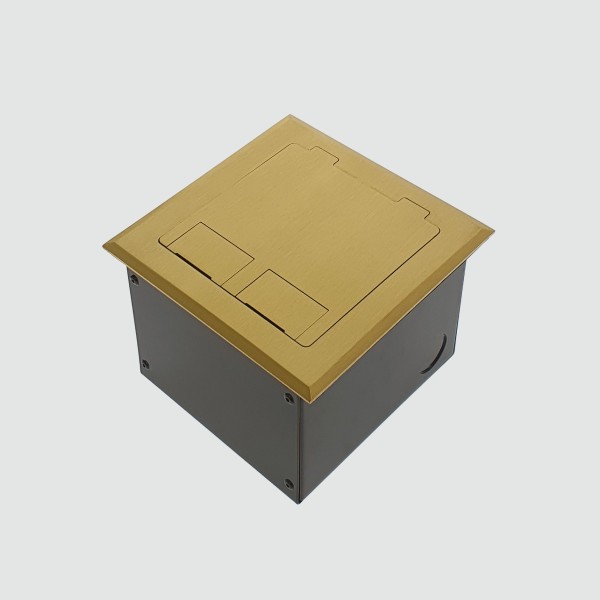

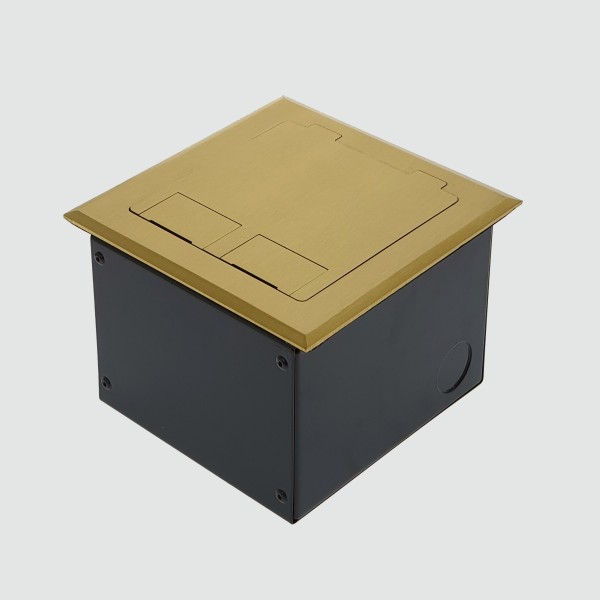

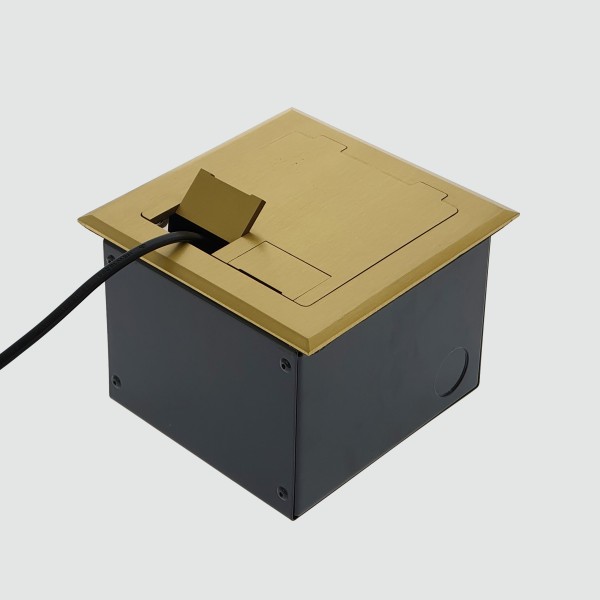

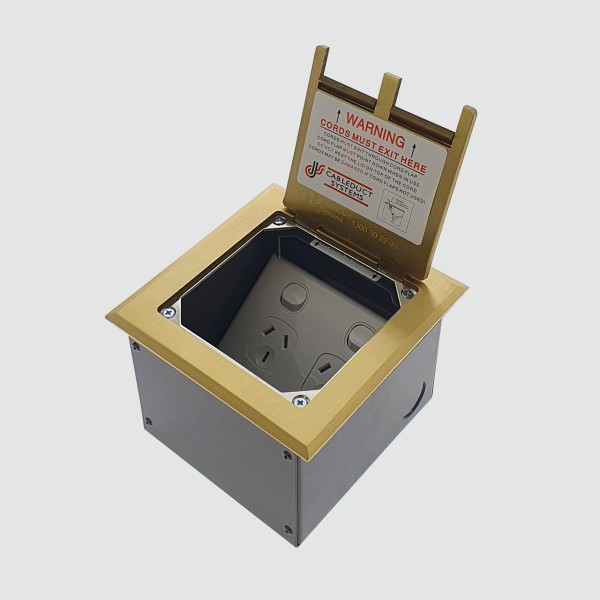

The FFOB-144 flush lid floor box features a Brass hinged lid, a Steel box body, and a bracket for 1 x Standard Series Power/Data/AV outlet.

Technical Specifications

Part Number FOBBRF1STDO
Series FFOB-144 Flush Lid Floor Box
Lid Material Brass Hinged Lid (145 x 145mm)
Body Material Steel
Outlet Configuration 1 x Standard Series Power/Data/AV Outlet Bracket

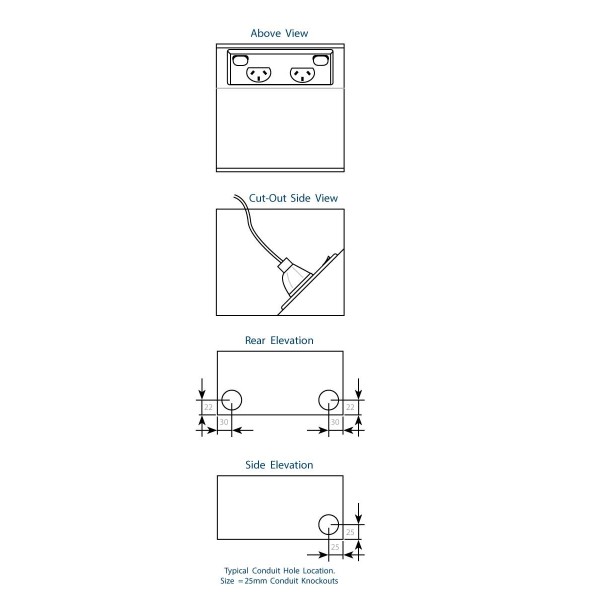

Conduit Entry 5 x 25mm Knockouts (4 side, 1 base)
Weight 2.1 kg (approx.)

Dimensions

Box Body
126 x 135 x 100 mm

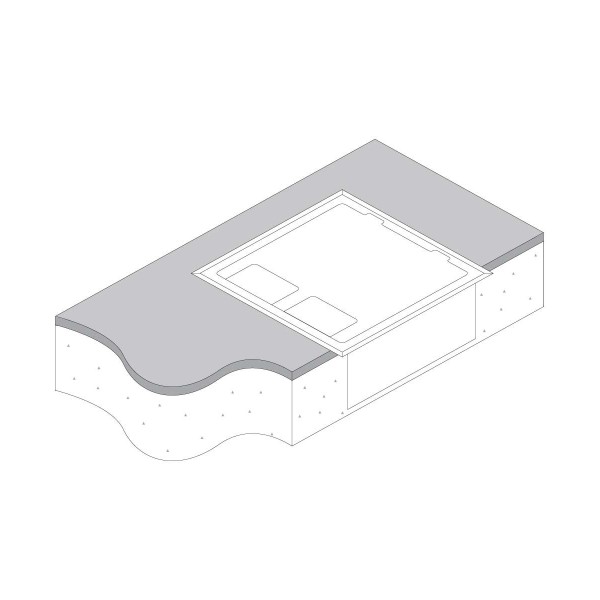

Block-out (Slab)
146 x 155 x 110 mm
Cut-out (Raised Floor)
128 x 137 mm

Key Features

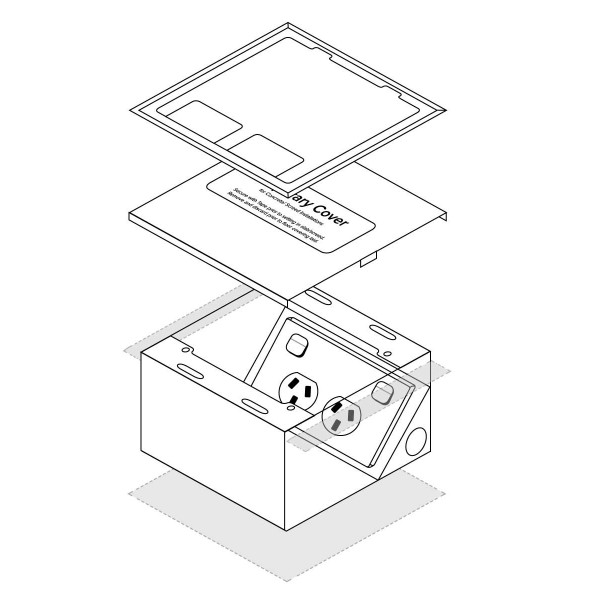

  • Brass hinged lid (145 x 145mm) screw-fixes to the steel box body

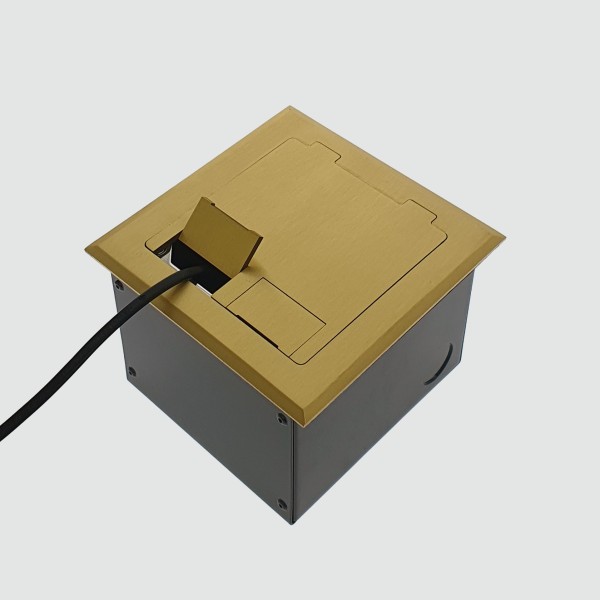

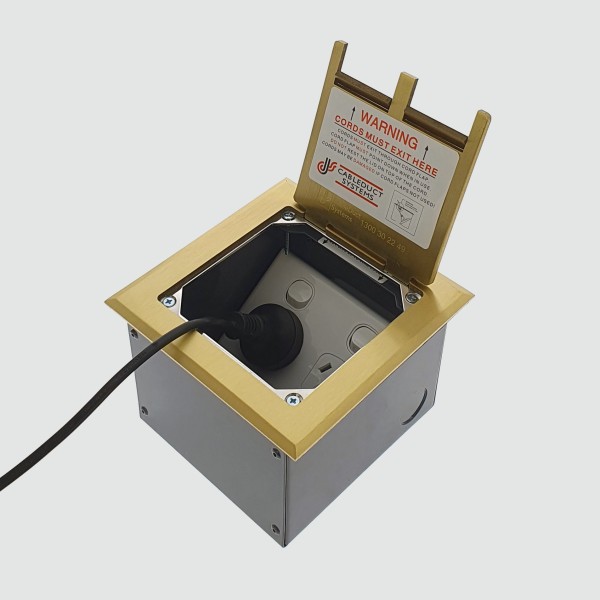

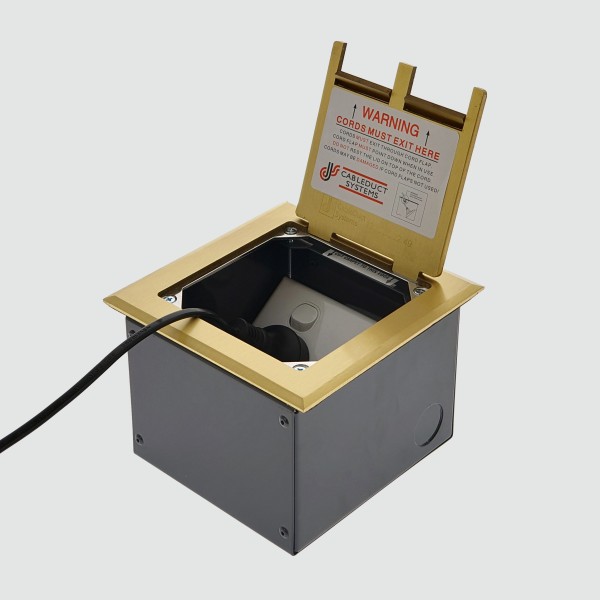

  • 2 x cord exit flaps allow cords out with the main cover closed

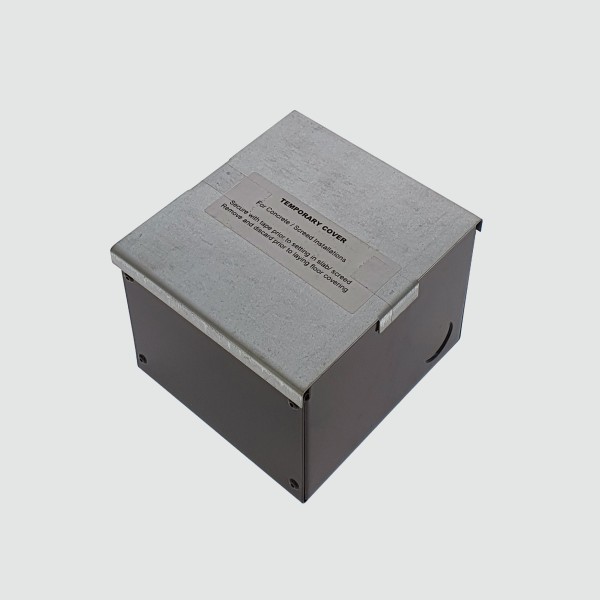

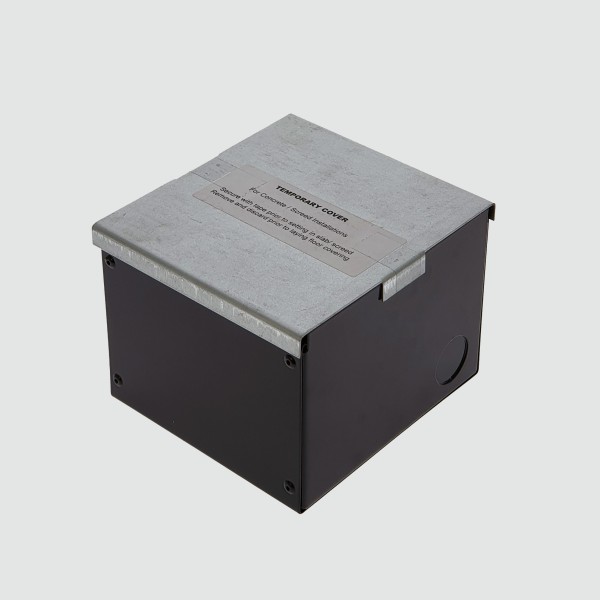

  • Temporary cover secures to the body during the concrete pour to prevent ingress of slurry

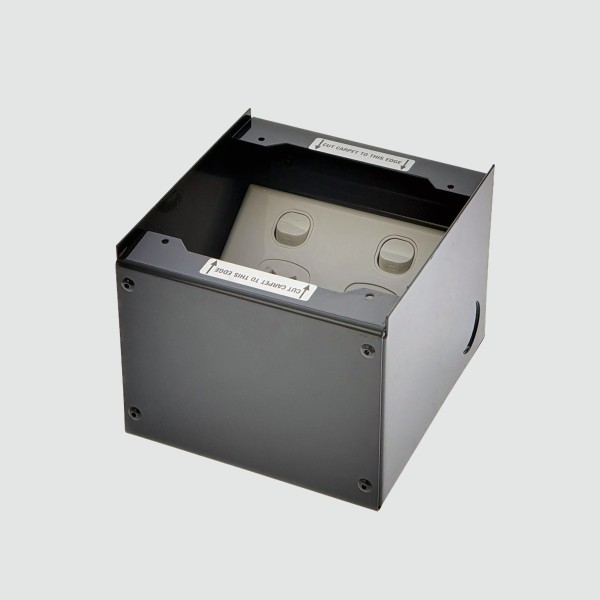

  • Steel box body, 126 x 135 x 100mm nominal depth
  • 5 x 25mm conduit knockouts (4 on the side of the box, 1 on the base)

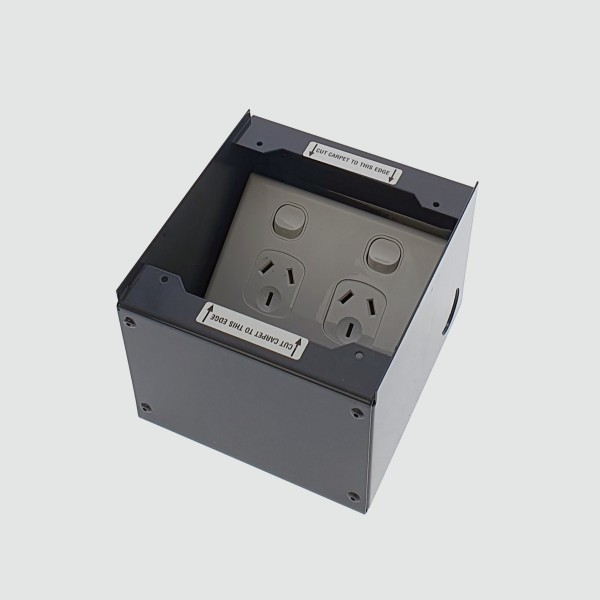

  • Outlet bracket to suit 1 x Standard Series style Power/Data/AV outlet
  • Floating floor brackets available upon request

Typical Applications

Commercial offices & open plan workspaces
Conference rooms & boardrooms
Retail & showroom fit-outs
Hospitality & hotels
Educational facilities
Residential installations

Ordering Information

Part Number FOBBRF1STDO
Series FFOB-144 Flush Lid Floor Box, Brass, 1 x Standard Series Outlet Bracket
Block-out in Concrete Slab 146 x 155 x 110mm nominal
Warranty Manufacturer's warranty
