FOBBRF1STDO3D - FFOB-147 Floor Box 1 x Standard DGPOs + 3 Data Provisions

Name: FOBBRF1STDO3D - FFOB-147 Floor Box 1 x Standard DGPOs + 3 Data Provisions
Brand: Cableduct Systems
SKU: FOBBRF1STDO3D

Complete with Brass Flush Lid, 1 x Double GPO Outlet, and Provision 3 x Data.

Reference: FOBBRF1STDO3D

Secure Payments are easier than ever! Stripe's payment solutions

Delivery Option’s, you choose from our list of delivery partners

Manufactures warranty on all Cableaway sold products.

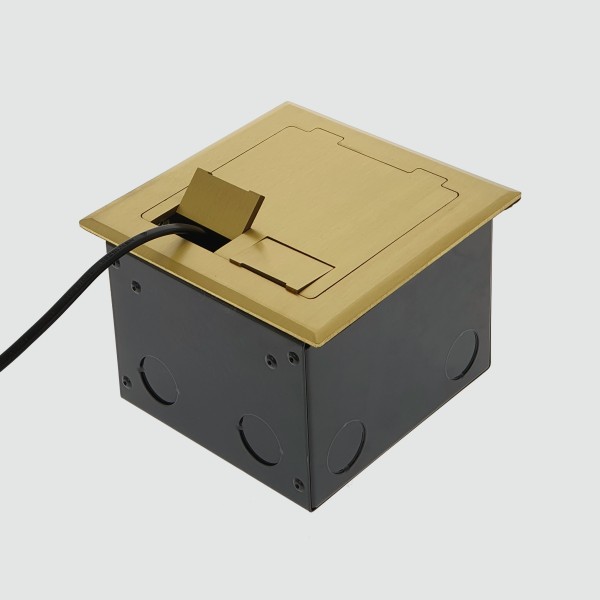

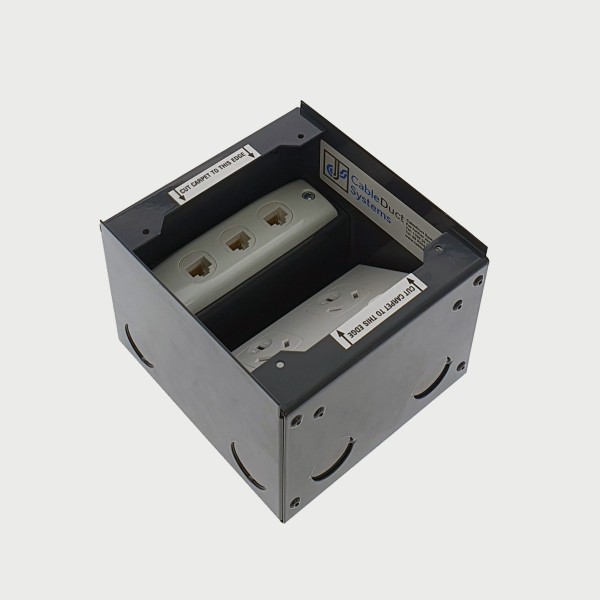

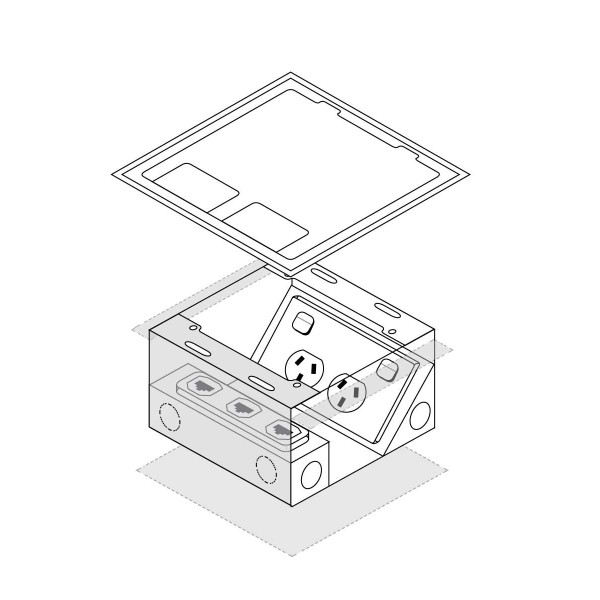

The FFOB-147 flush lid floor box features a Brass hinged lid, a Steel box body, and a bracket for 1 x Clipsal 2000 Series Power/Data/AV outlet with 3-gang data provision.

Technical Specifications

Part Number	FOBBRF1STDO3D
Series	FFOB-147 Flush Lid Floor Box
Lid Material	Brass Hinged Lid (145 x 145mm)
Body Material	Steel
Outlet Configuration	1 x Clipsal 2000 Series Outlet Bracket + 3-Gang Data Provision

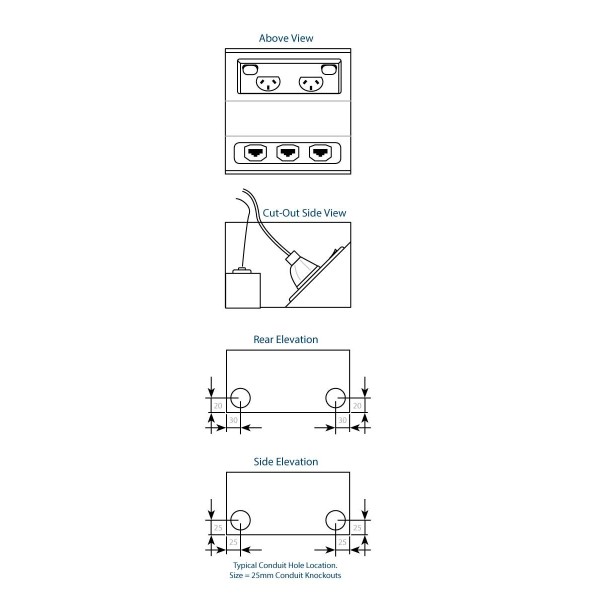

Conduit Entry	10 x 25mm Knockouts (2 each side, 2 base)
Weight	2.2 kg (approx.)

Dimensions

Box Body 126 x 135 x 100 mm	Block-out (Slab) 146 x 155 x 110 mm
Cut-out (Raised Floor) 128 x 137 mm

Key Features

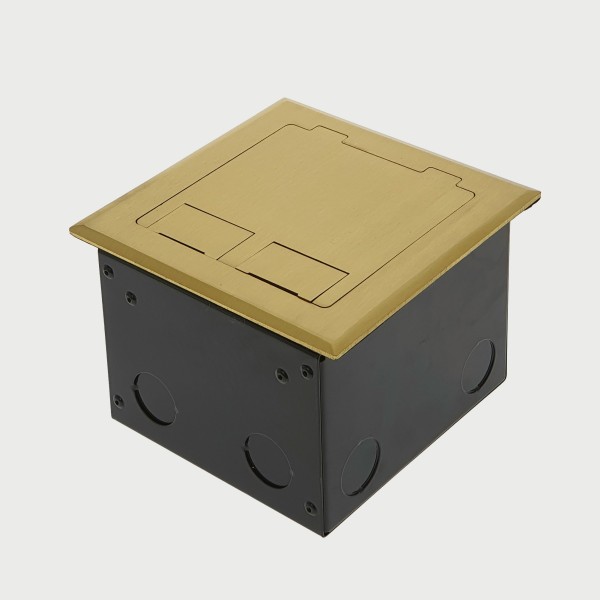

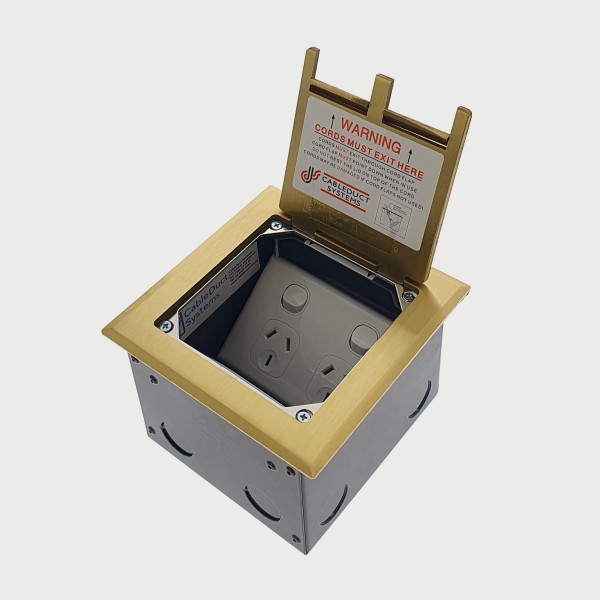

Brass hinged lid (145 x 145mm) screw-fixes to the steel box body

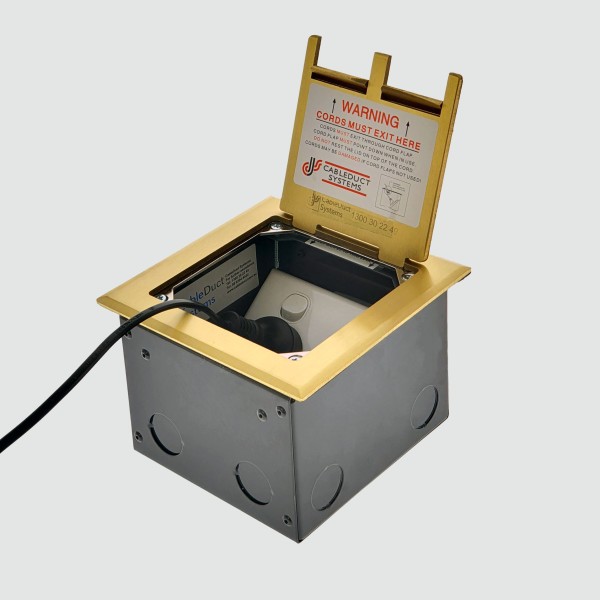

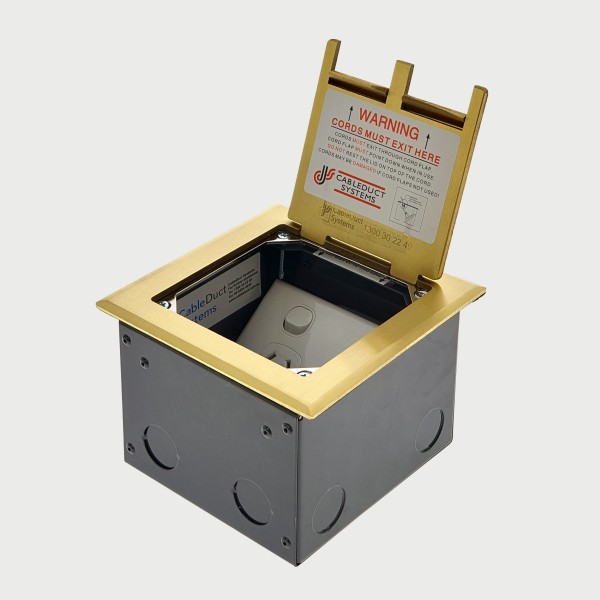

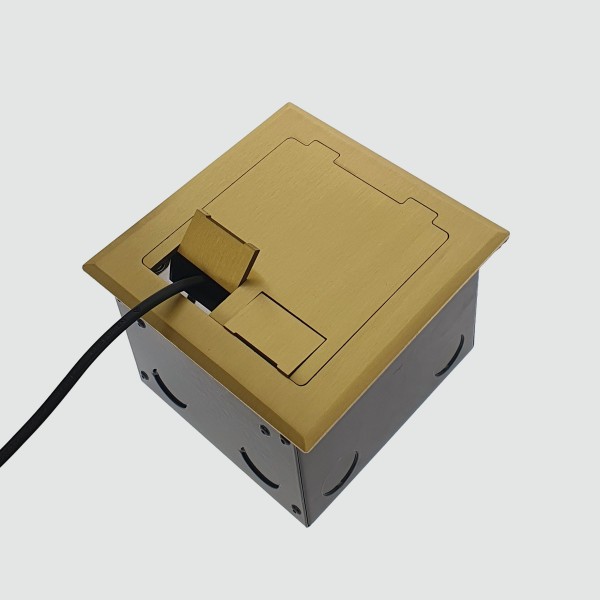

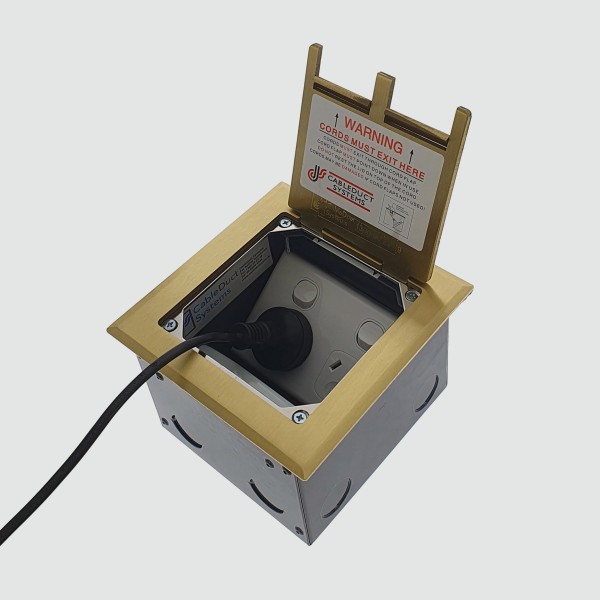

2 x cord exit flaps allow cords out with the main cover closed

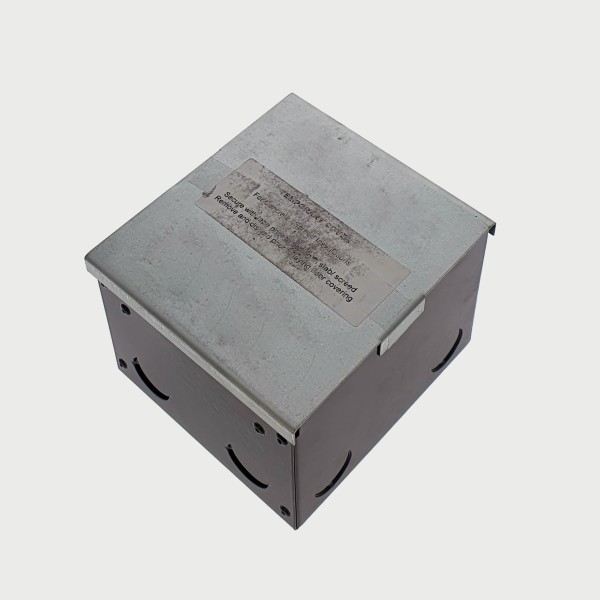

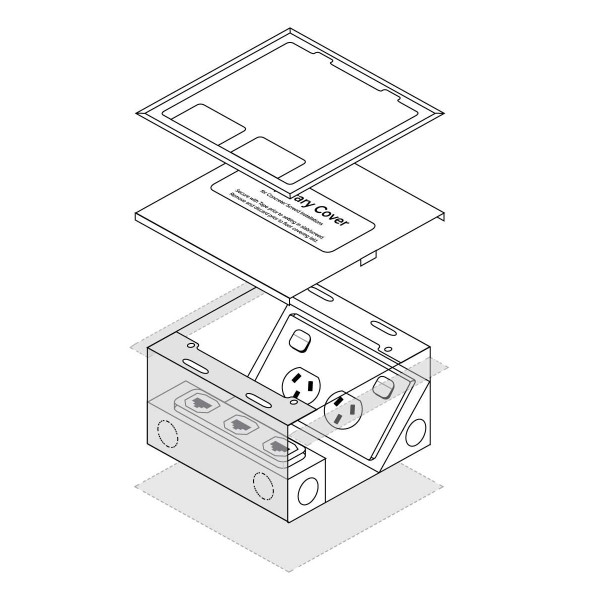

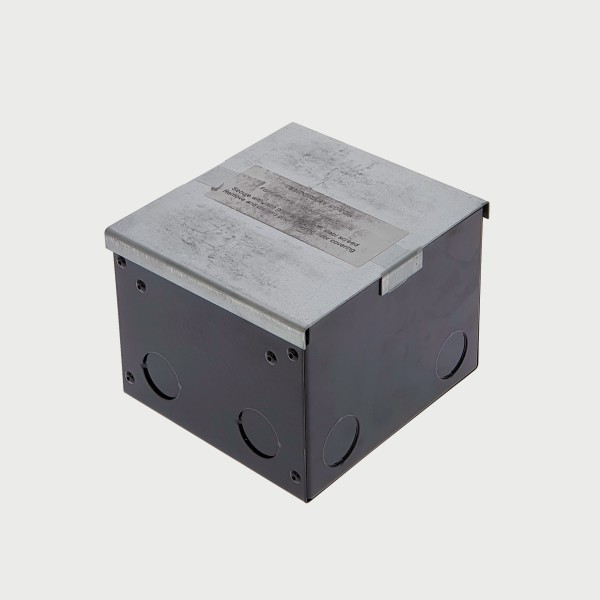

Temporary cover secures to the body during the concrete pour to prevent ingress of slurry

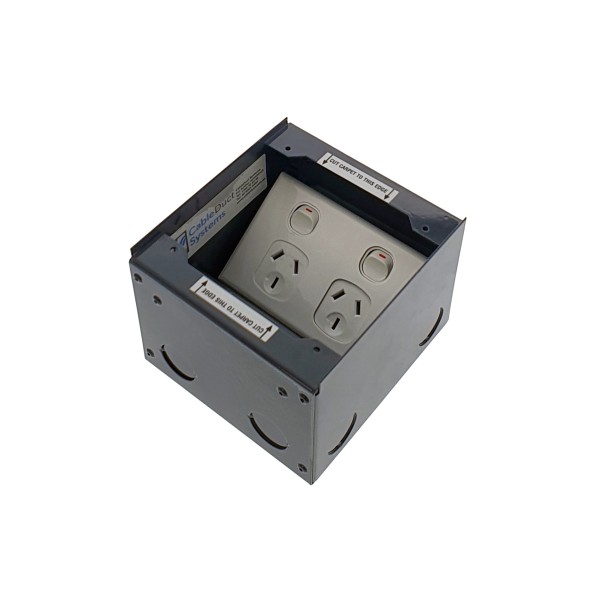

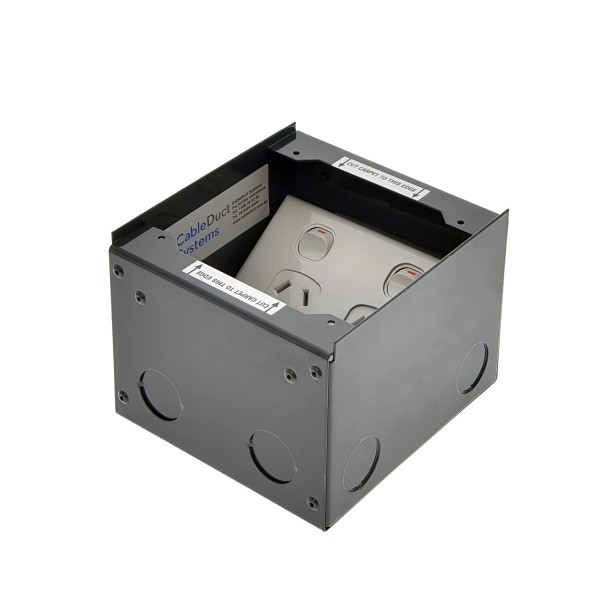

Steel box body, 126 x 135 x 100mm nominal depth
10 x 25mm conduit knockouts (2 on each side, 2 on the base)
Outlet bracket to suit 1 x Clipsal 2000 Series style Power/Data/AV outlet

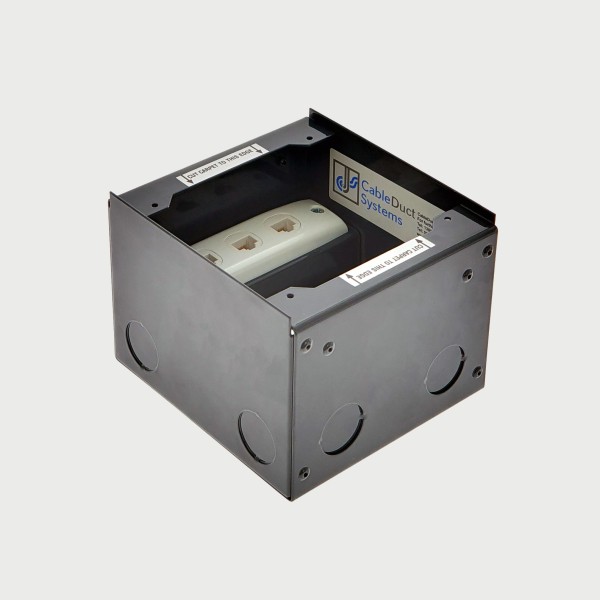

1 x 3-gang data outlet clip supplied
Floating floor brackets available upon request

Typical Applications

Commercial offices & open plan workspaces	Conference rooms & boardrooms
Retail & showroom fit-outs	Hospitality & hotels
Educational facilities	Residential installations

Ordering Information

Part Number	FOBBRF1STDO3D
Series	FFOB-147 Flush Lid Floor Box, Brass, Clipsal 2000 Series Outlet + 3-Gang Data

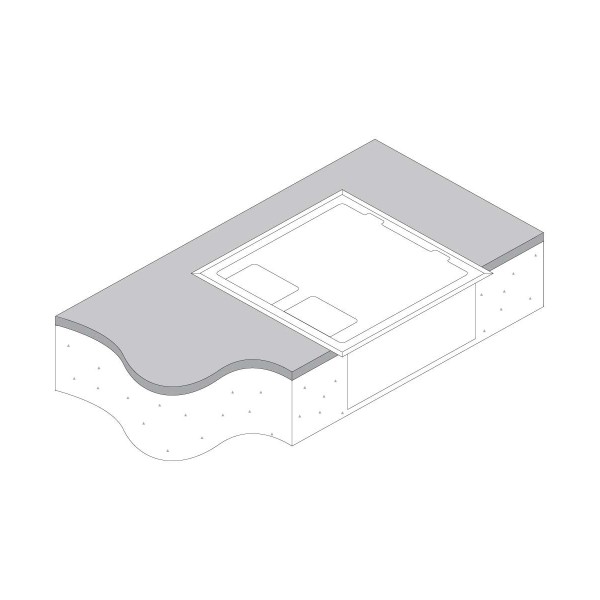

Block-out in Concrete Slab	146 x 155 x 110mm nominal
Warranty	Manufacturer's warranty
