FOBSSF1STDO3D - FFOB-148 Floor Box 1 x Double GPO Outlet + 3 Data Provisions

Name: FOBSSF1STDO3D - FFOB-148 Floor Box 1 x Double GPO Outlet + 3 Data Provisions
Brand: Cableduct Systems
SKU: FOBSSF1STDO3D

Complete with Stainless Steel Flush Lid 1 x Double GPO Outlet.

Reference: FOBSSF1STDO3D

Secure Payments are easier than ever! Stripe's payment solutions

Delivery Option’s, you choose from our list of delivery partners

Manufactures warranty on all Cableaway sold products.

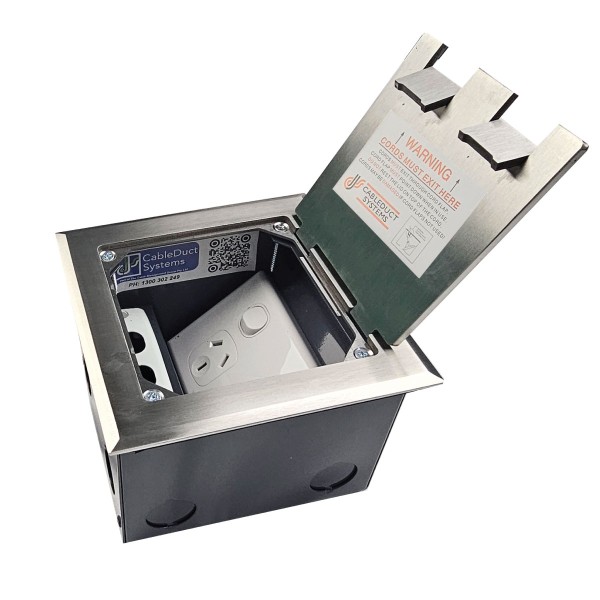

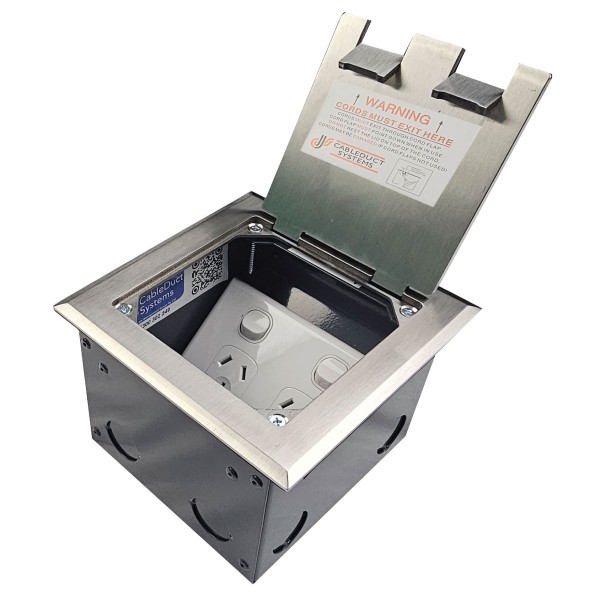

The FOBSSF1STDO3D flush lid floor box features a hinged Stainless Steel lid, a Steel box body, and 1 x Double GPO Outlet plus 3 x Data Provisions for reliable power and data connectivity.

Technical Specifications

Part Number	FOBSSF1STDO3D
Series	FFOB-148 Flush Lid Floor Box
Lid Material	Stainless Steel, Hinged
Body Material	Steel
Outlet Configuration	1 x Double GPO Outlet + 3 x Data Provisions
Conduit Entry	10 x 25mm Conduit Knockouts (8 side, 2 base)
Weight	2.2 kg (approx.)

Dimensions

Lid Size 145 x 145 mm	Box Body 126x135x100 mm

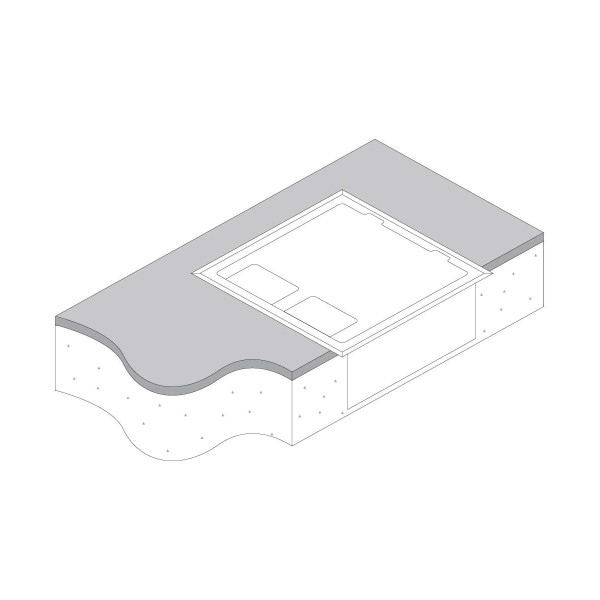

Block-out (Slab) 146x155x110 mm	Cut-out (Raised Floor) 128 x 137 mm

Key Features

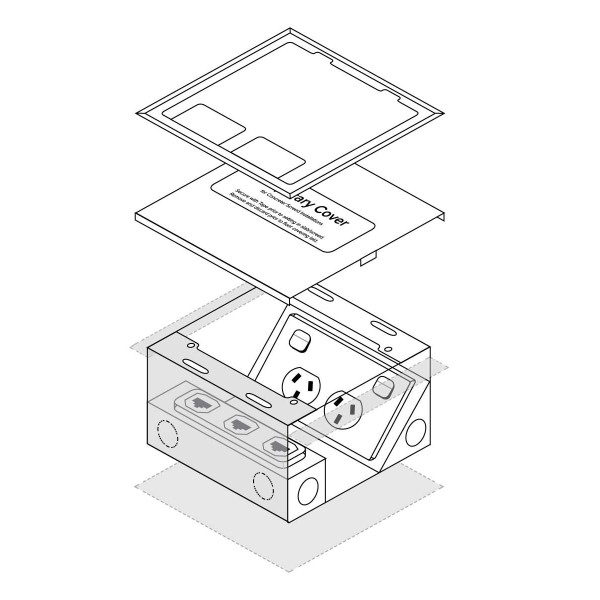

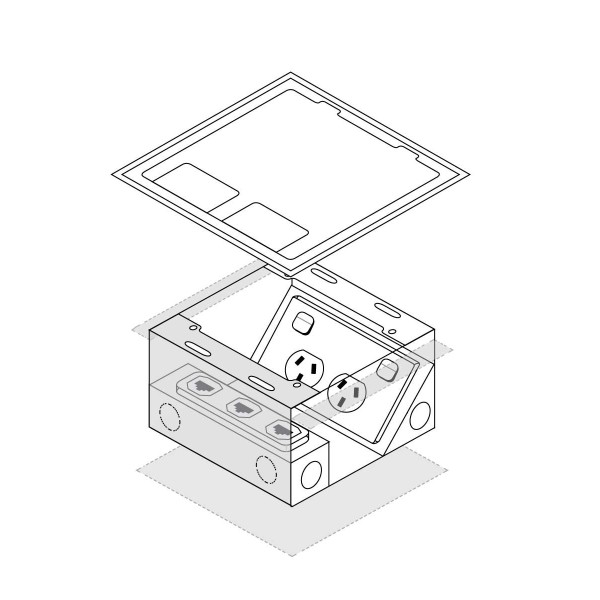

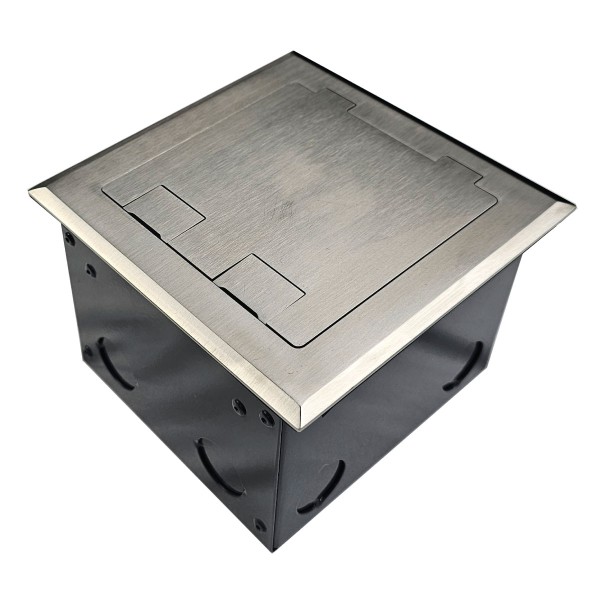

Hinged Stainless Steel lid (145 x 145mm) screw-fixes to the steel box body

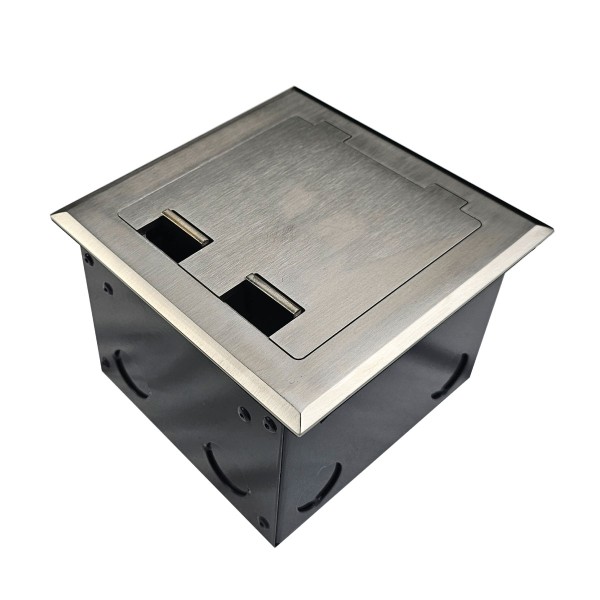

2 x cord exit flaps allow cords out with the main cover closed
Temporary cover secures to the body during the concrete pour to prevent ingress of slurry
Steel box body, 126 x 135 x 100mm nominal depth

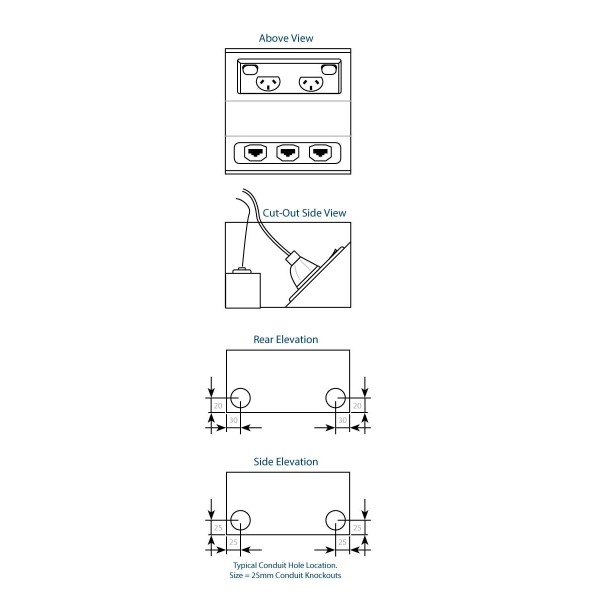

10 x 25mm conduit knockouts (8 side, 2 base)
1 x 3-Gang Data Outlet Clip (supplied)
Floating floor brackets available upon request

Typical Applications

Commercial offices & open plan workspaces	Conference rooms & boardrooms
Retail & showroom fit-outs	Hospitality & hotels
Educational facilities	Residential installations

Ordering Information

Part Number	FOBSSF1STDO3D
Series	FFOB-148 Flush Lid Floor Box (Stainless Steel, 1 x Double GPO + 3 Data)
Block-out in Concrete Slab	146 x 155 x 110mm nominal
Warranty	Manufacturer's warranty
