FOBSSBF1STDO3D - FFOB-148BLK Floor Box 1 x Standard DGPOs + 3 Data Provisions

Name: FOBSSBF1STDO3D - FFOB-148BLK Floor Box 1 x Standard DGPOs + 3 Data Provisions
Brand: Cableduct Systems
SKU: FOBSSBF1STDO3D

Complete with Stainless Steel Black Lid, 1 x Double GPO Outlet, and Provision 3 x Data.

Reference: FOBSSBF1STDO3D

Secure Payments are easier than ever! Stripe's payment solutions

Delivery Option’s, you choose from our list of delivery partners

Manufactures warranty on all Cableaway sold products.

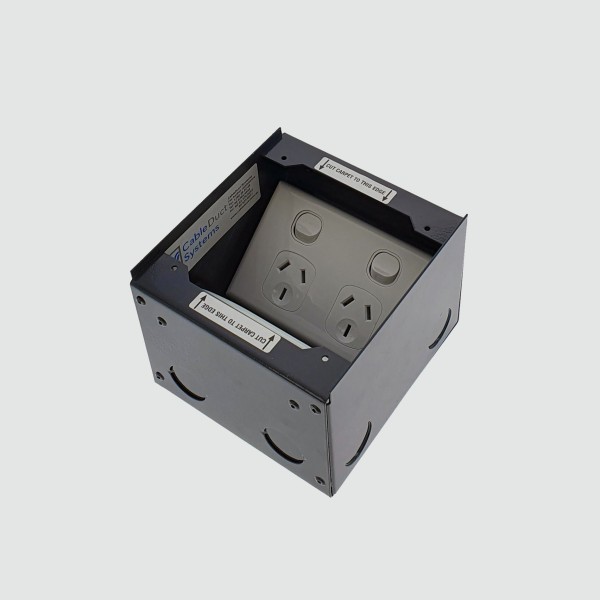

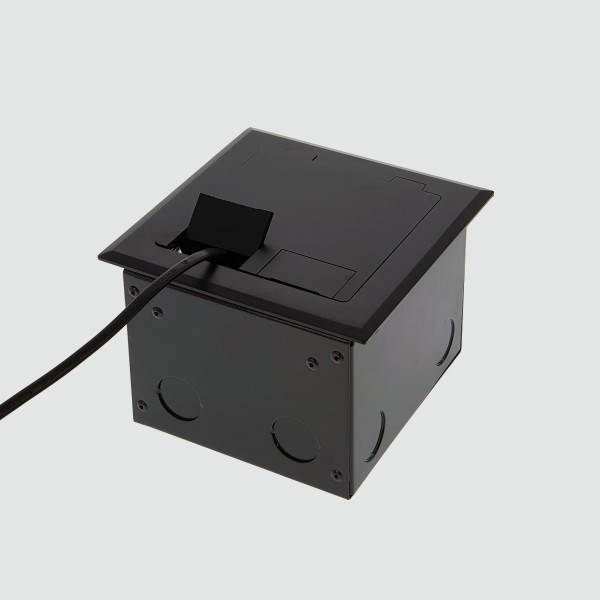

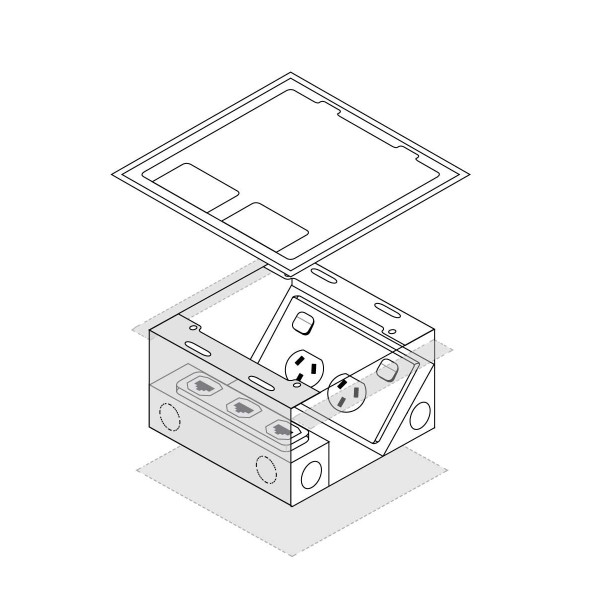

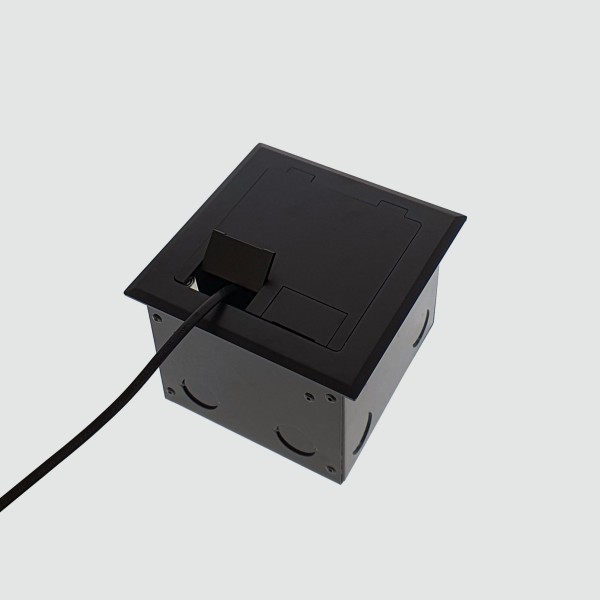

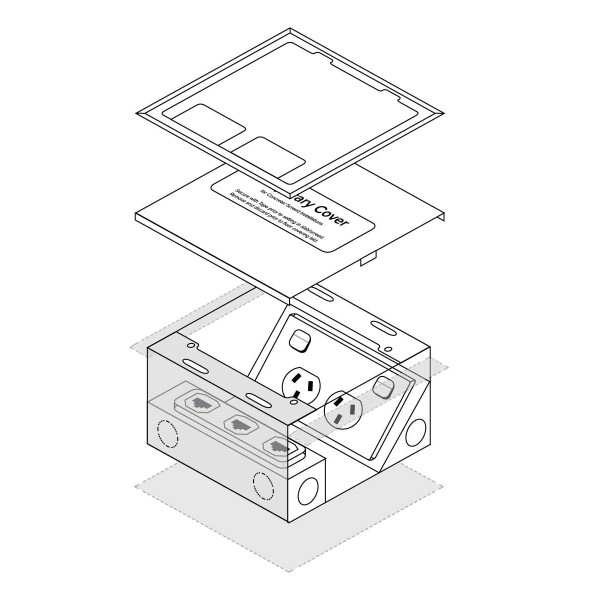

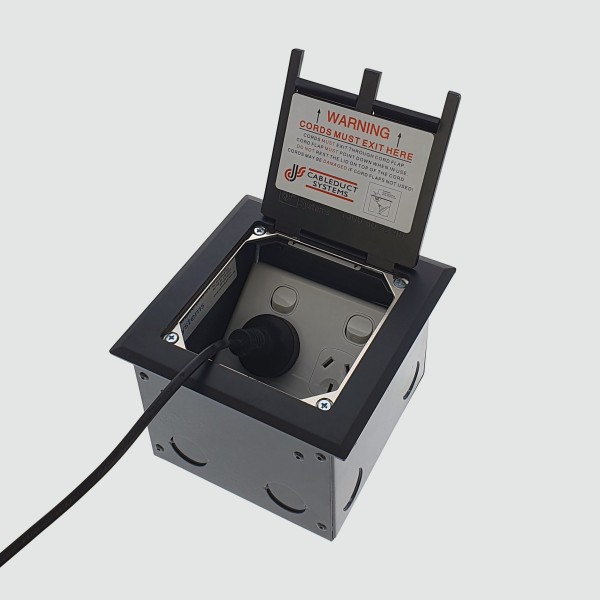

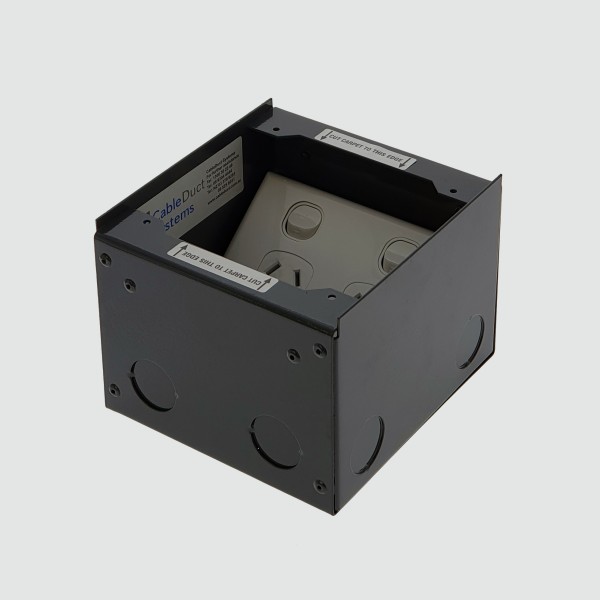

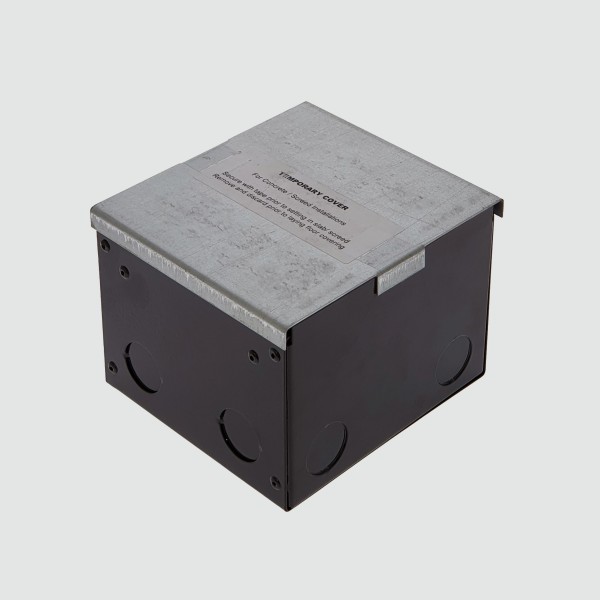

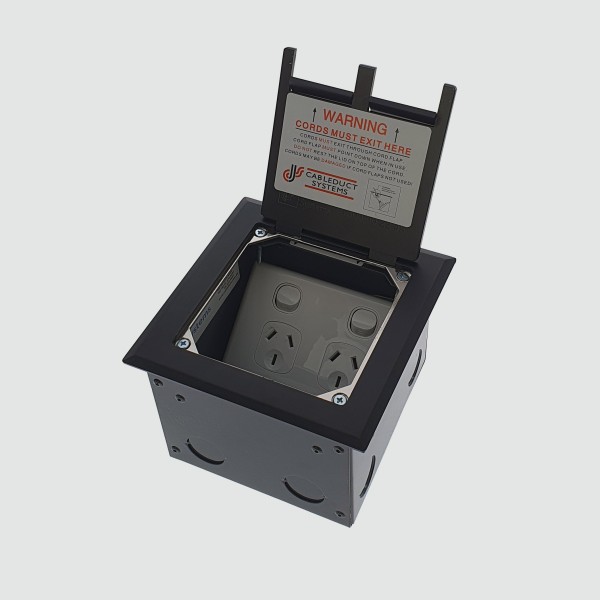

The FOBSSBF1STDO3D floor box comes complete with a black stainless steel hinged flush lid, 1 x Double GPO outlet, and provision for 3 x data outlets, providing a clean power and data outlet point in concrete or raised floors.

Technical Specifications

Part Number	FOBSSBF1STDO3D

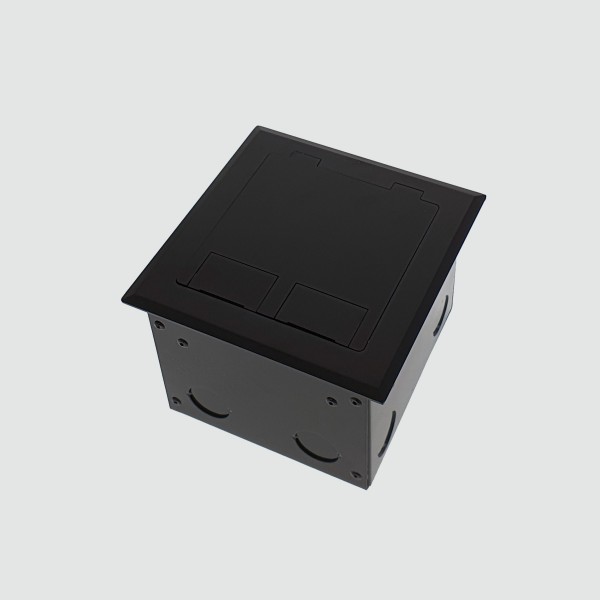

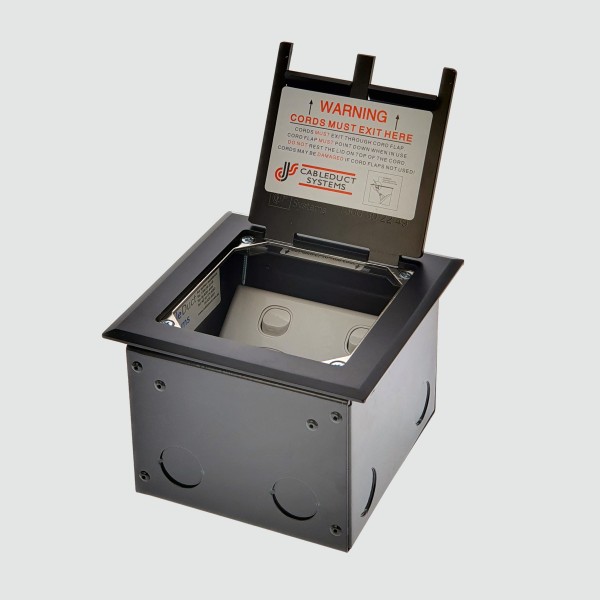

Lid Type	Hinged, Flush
Lid Finish	Stainless Steel, Black
Carcass Type	Standard Depth (100mm)
Outlet Configuration	1 x Double GPO Outlet, Provision for 3 x Data
Outlet Bracket	Suits 1 x Clipsal 2000 Series style Power/Data/AV outlet

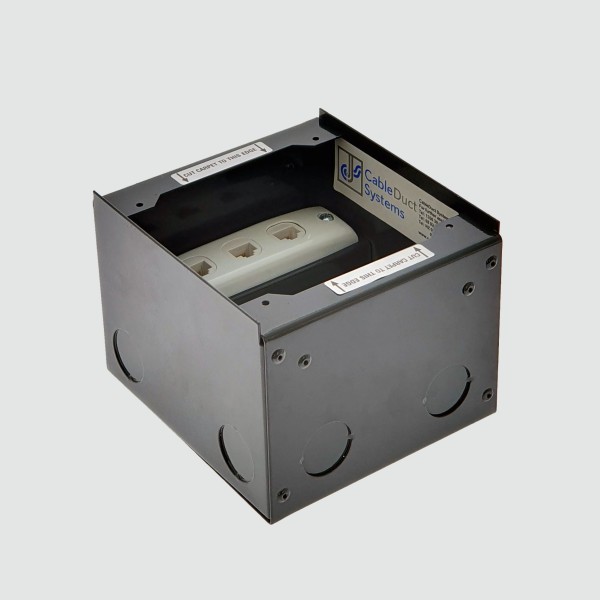

Data Outlet Clip	1 x 3-Gang data outlet clip (supplied)
Body Material	Steel

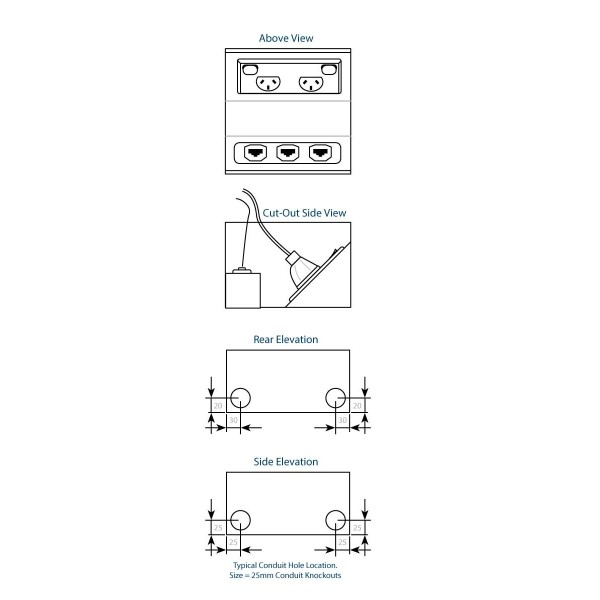

Conduit Knockouts	10 x 25mm (2 on each side, 2 on the base)

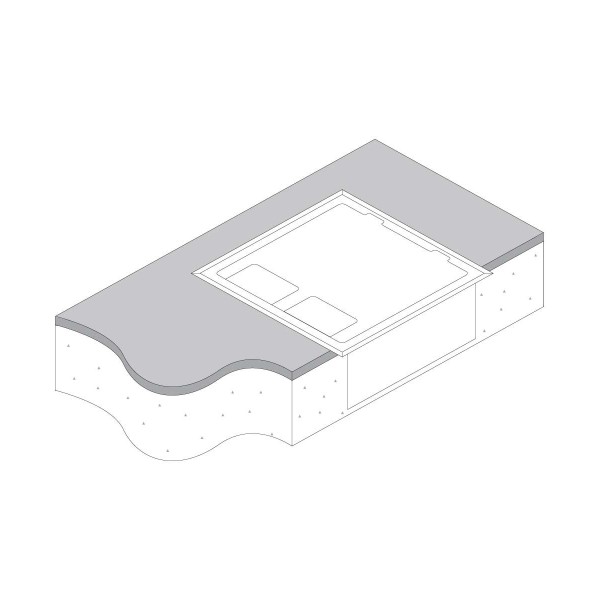

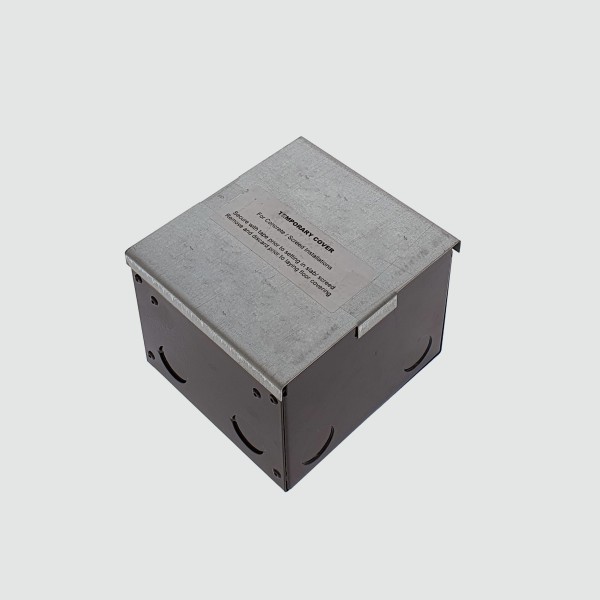

Block-out (Concrete Slab)	146mm x 155mm x 110mm nominal
Cut-out (Raised Floor)	128mm x 137mm nominal
Floating Floor Brackets	Available upon request

Dimensions

Lid Width 145 mm	Lid Length 145 mm
Box Width 126 mm	Box Length 135 mm
Box Depth 100 mm

Key Features

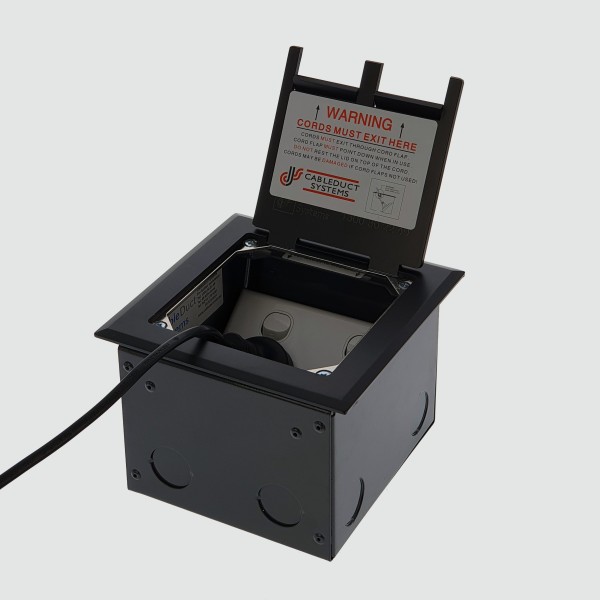

•	Hinged lid screw-fixes securely to the steel box body
•	Outlet bracket suits 1 x Clipsal 2000 Series style Power/Data/AV outlet

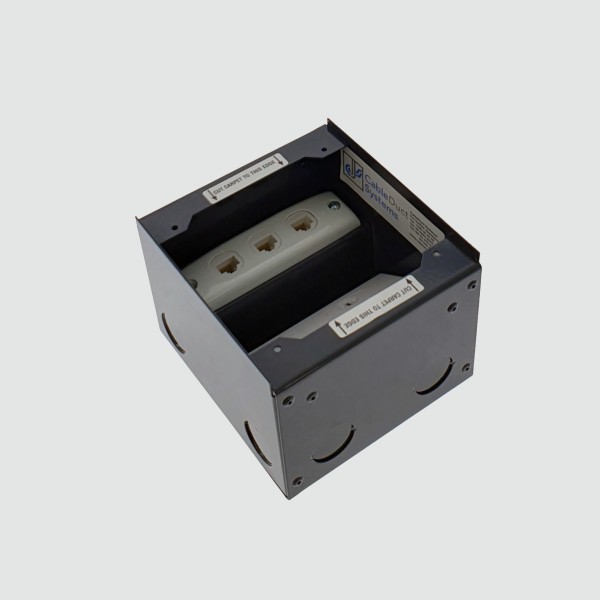

•	Supplied with a 3-gang data outlet clip for flexible data configuration
•	10 x 25mm conduit knockouts for flexible cable entry
•	Floating floor brackets available on request for raised floor installs

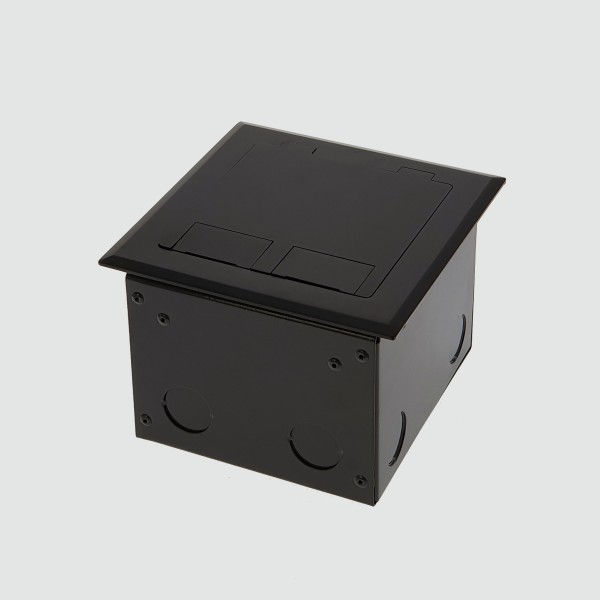

•	Black stainless steel lid finish

Typical Applications

Commercial Offices & Open Plan Workspaces	Boardrooms & Meeting Rooms
Retail & Showroom Fit-Outs	Raised Access Flooring Installations
Concrete Slab Installations	Retrofit & New-Build Projects

Ordering Information

Part Number	FOBSSBF1STDO3D
Series	Black Stainless Steel Lid Floor Box Range
Warranty	Manufacturer's warranty

Compliance & Certification

Standards	AS/NZS 3100, AS/NZS 3112, AS/NZS 3133, IEC 60670.23
Certification	RCM & SAA Approved
Installation	Must be installed by a licensed electrician in accordance with AS/NZS 3000 (Wiring Rules)
