FOBSSF1STDO3D-SE - FFOB-148F Floor Box 1 x Standard DGPOs + 3 Data Provisions

Name: FOBSSF1STDO3D-SE - FFOB-148F Floor Box 1 x Standard DGPOs + 3 Data Provisions
Brand: Cableduct Systems
SKU: FOBSSF1STDO3D-SE

Complete with Stainless Steel Flush Lid 1 x Double GPO Outlet 3 x Data Provisions.

Reference: FOBSSF1STDO3D-SE

Secure Payments are easier than ever! Stripe's payment solutions

Delivery Option’s, you choose from our list of delivery partners

Manufactures warranty on all Cableaway sold products.

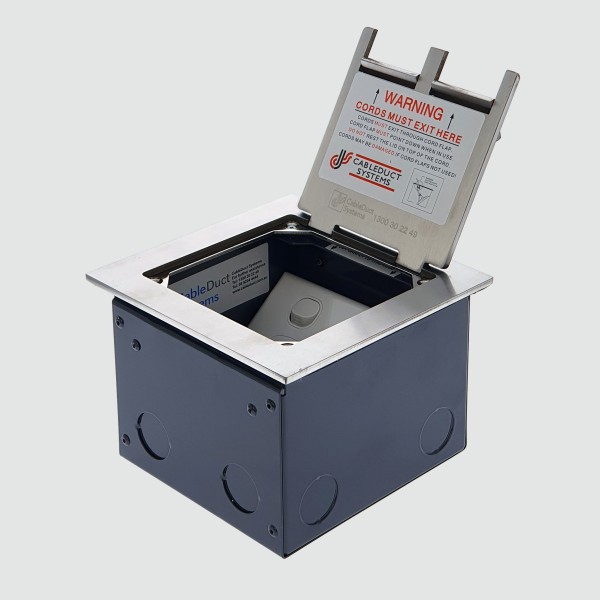

The FOBSSF1STDO3D-SE flush lid floor box features a hinged Stainless Steel lid, a Steel box body, and 1 x Double GPO Outlet plus 3 x Data Provisions for reliable power and data connectivity.

Technical Specifications

Part Number	FOBSSF1STDO3D-SE
Series	FFOB-148F Flush Lid Floor Box
Lid Material	Stainless Steel, Hinged
Body Material	Steel
Outlet Configuration	1 x Double GPO Outlet + 3 x Data Provisions

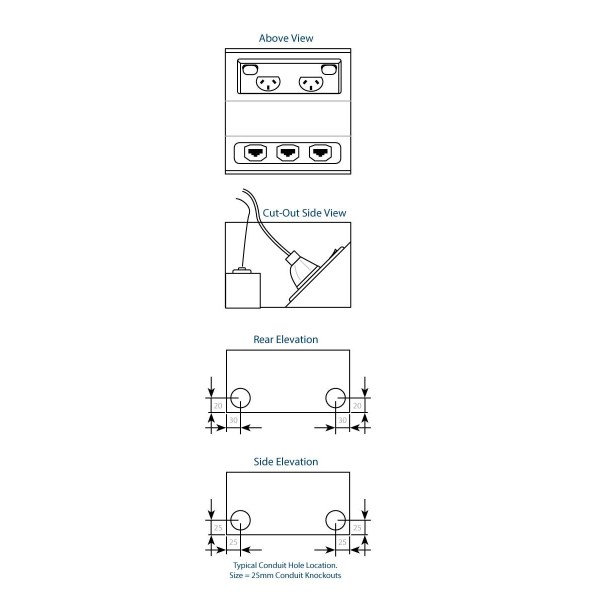

Conduit Entry	10 x 25mm Conduit Knockouts (8 side, 2 base)
Weight	2.2 kg (approx.)

Dimensions

Lid Size 145 x 145 mm	Box Body 126x135x100 mm
Block-out (Slab) 146x155x110 mm	Cut-out (Raised Floor) 128 x 137 mm

Key Features

Hinged Stainless Steel lid (145 x 145mm) screw-fixes to the steel box body
2 x cord exit flaps allow cords out with the main cover closed

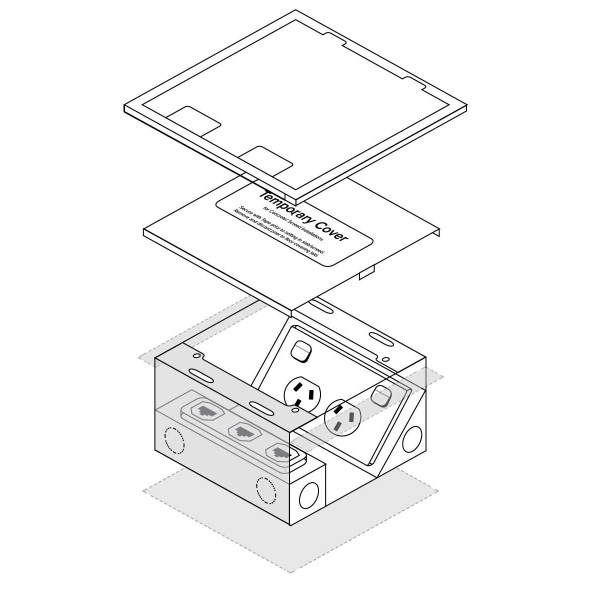

Temporary cover secures to the body during the concrete pour to prevent ingress of slurry
Steel box body, 126 x 135 x 100mm nominal depth
10 x 25mm conduit knockouts (8 side, 2 base)
1 x 3-Gang Data Outlet Clip (supplied)
Floating floor brackets available upon request

Typical Applications

Commercial offices & open plan workspaces	Conference rooms & boardrooms
Retail & showroom fit-outs	Hospitality & hotels
Educational facilities	Residential installations

Ordering Information

Part Number	FOBSSF1STDO3D-SE
Series	FFOB-148F Flush Lid Floor Box (Stainless Steel, 1 x Double GPO + 3 Data)
Block-out in Concrete Slab	146 x 155 x 110mm nominal
Warranty	Manufacturer's warranty
