FOBSS19R1STDO - FFOB-149/2P Floor Box 1 x Standard GPO Outlet

Name: FOBSS19R1STDO - FFOB-149/2P Floor Box 1 x Standard GPO Outlet
Brand: Cableduct Systems
SKU: FOBSS19R1STDO

Complete with Stainless Steel Flush Lid 1 x Standard GPO outlet

Reference: FOBSS19R1STDO

Secure Payments are easier than ever! Stripe's payment solutions

Delivery Option’s, you choose from our list of delivery partners

Manufactures warranty on all Cableaway sold products.

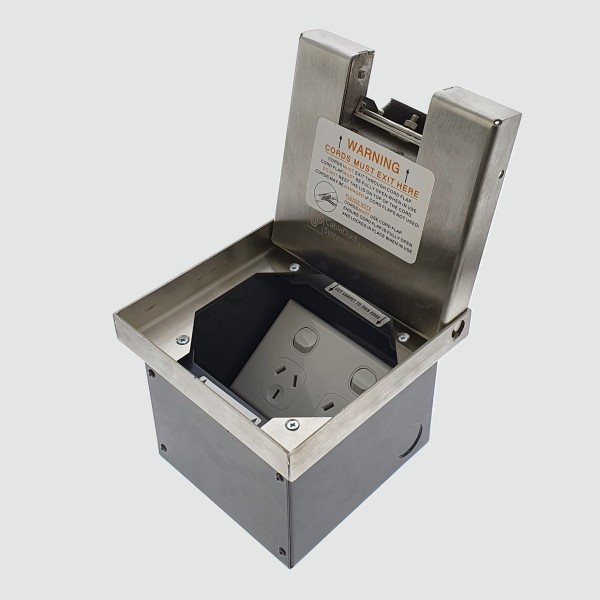

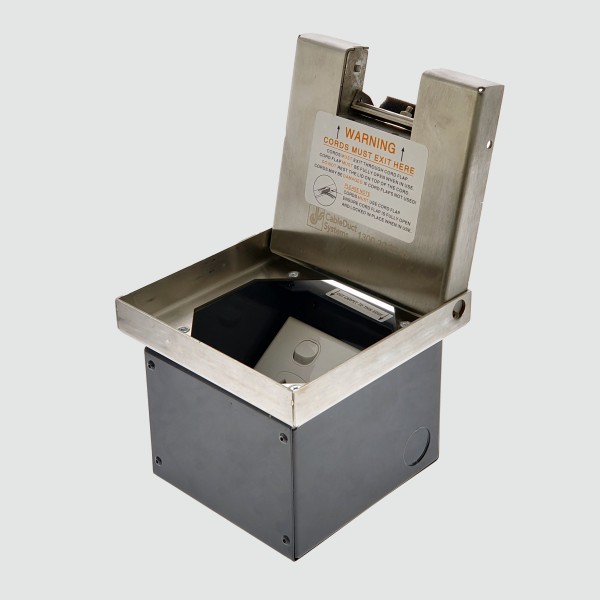

The FFOB-149/2P recessed lid floor box features a 19mm Stainless Steel recessed lid, a Steel box body, and 1 x Standard GPO Outlet for power connectivity.

Technical Specifications

Part Number	FOBSS19R1STDO
Series	FFOB-149/2P Recessed Lid Floor Box
Lid Material	Stainless Steel, 19mm Recessed
Body Material	Steel
Outlet Configuration	1 x Standard GPO Outlet
Conduit Entry	5 x 25mm Knockouts (4 side, 1 base)
Weight	2.0 kg (approx.)

Dimensions

Box Body 126 x 135 x 67 mm	Block-out (Slab) 146 x 155 x 101 mm
Cut-out (Raised Floor) 128 x 137 mm

Key Features

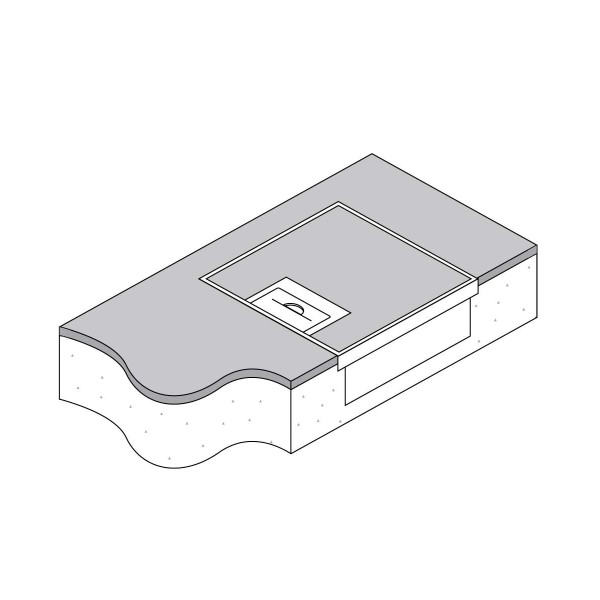

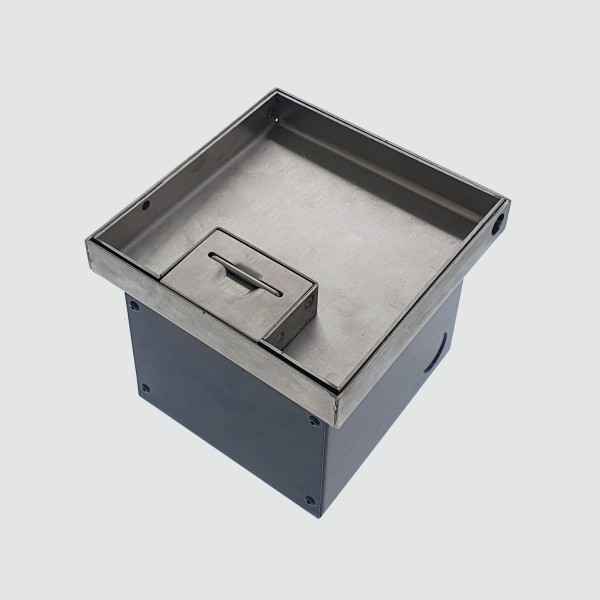

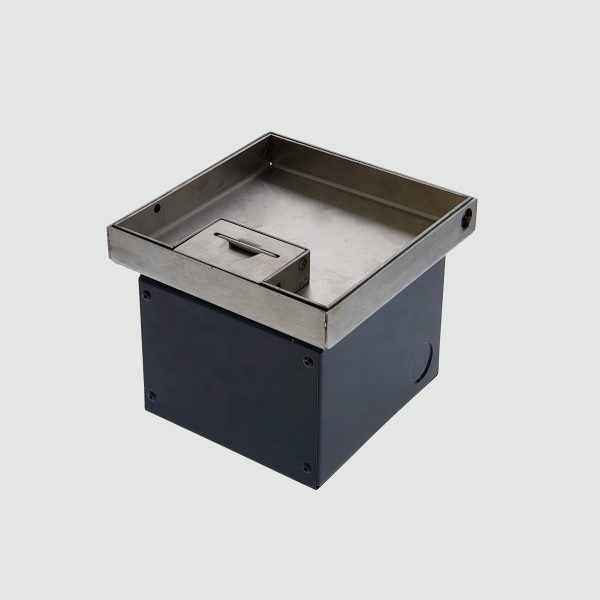

Stainless Steel recessed lid (19mm rebate) sits flush with the floor finish
Cord exit flap with dust guards and recessed handle allows cords out with the main cover closed

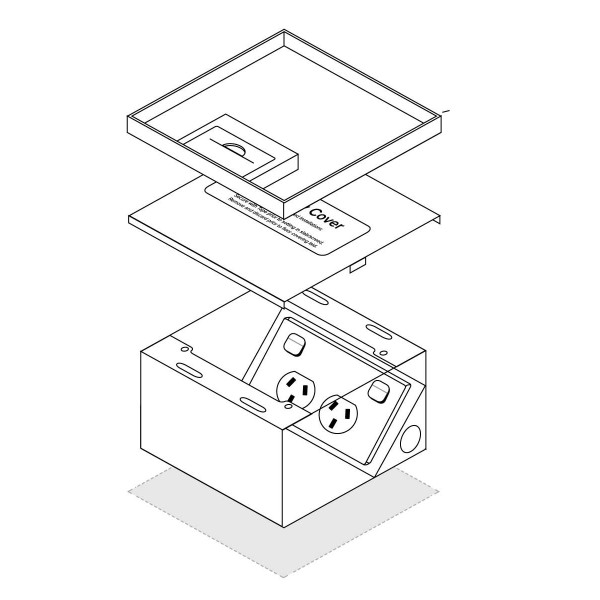

Temporary cover secures to the body during the concrete pour to prevent ingress of slurry

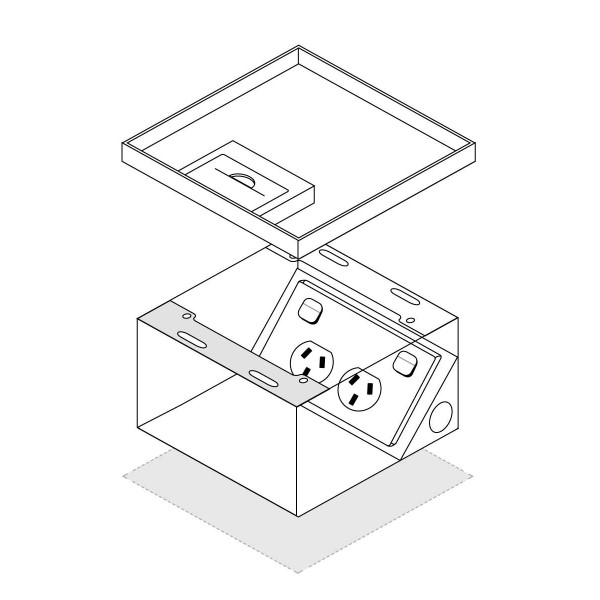

Steel box body, 126 x 135 x 67mm nominal depth

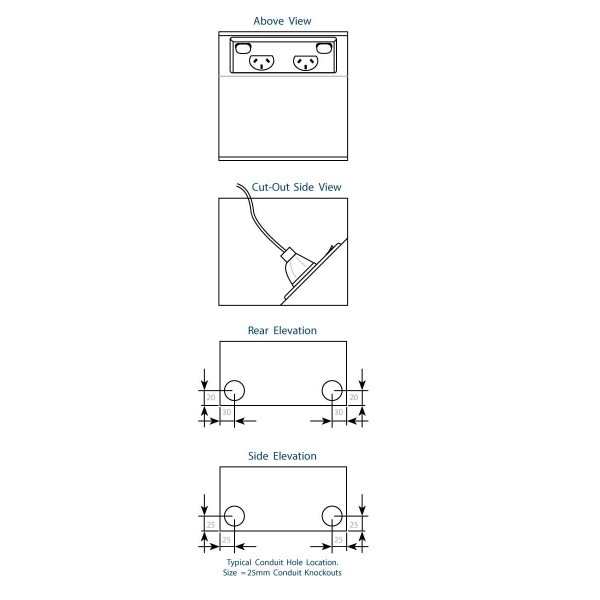

5 x 25mm conduit knockouts (4 on the side of the box, 1 on the base)
1 x Standard GPO Outlet

Typical Applications

Commercial offices & open plan workspaces	Conference rooms & boardrooms
Retail & showroom fit-outs	Hospitality & hotels
Educational facilities	Residential installations

Ordering Information

Part Number	FOBSS19R1STDO
Series	FFOB-149/2P Recessed Lid Floor Box, Stainless Steel, 1 x Standard GPO
Block-out in Concrete Slab	146 x 155 x 101mm nominal
Warranty	Manufacturer's warranty
