FOBSS19R1STDO3D - FFOB-149/2P3D Floor Box 1 x Standard Double GPO 3 x Gang Data

Name: FOBSS19R1STDO3D - FFOB-149/2P3D Floor Box 1 x Standard Double GPO 3 x Gang Data
Brand: Cableduct Systems
SKU: FOBSS19R1STDO3D

Complete with Stainless Steel 19mm Recessed Lid, 1 x Double GPO Outlet & 3 x Data Provisions.

Reference: FOBSS19R1STDO3D

Secure Payments are easier than ever! Stripe's payment solutions

Delivery Option’s, you choose from our list of delivery partners

Manufactures warranty on all Cableaway sold products.

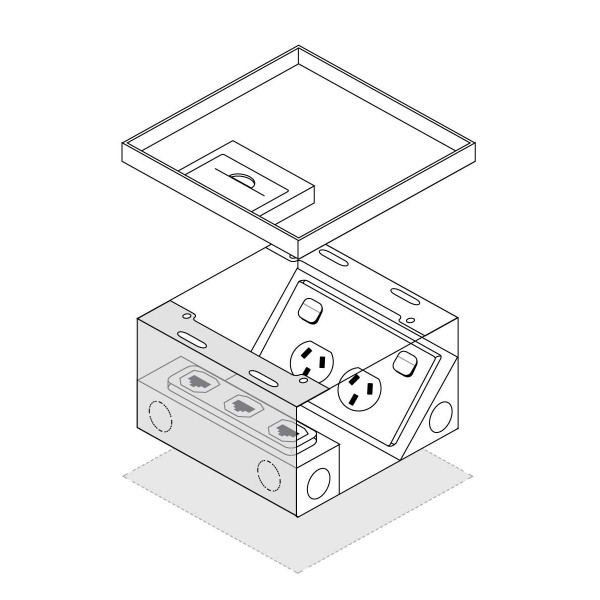

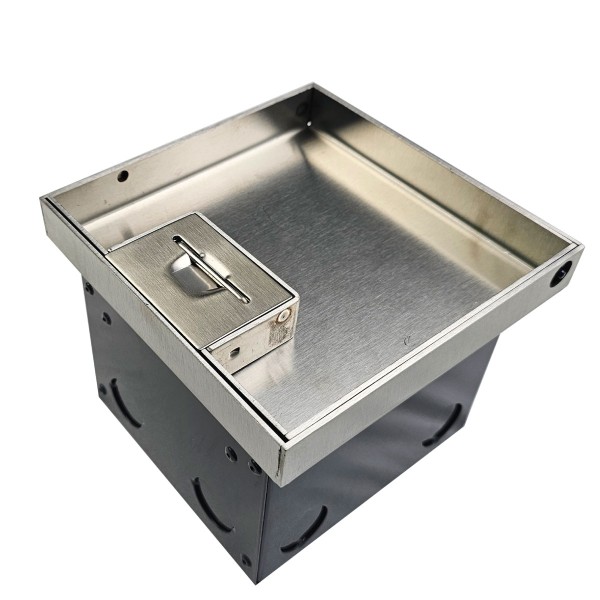

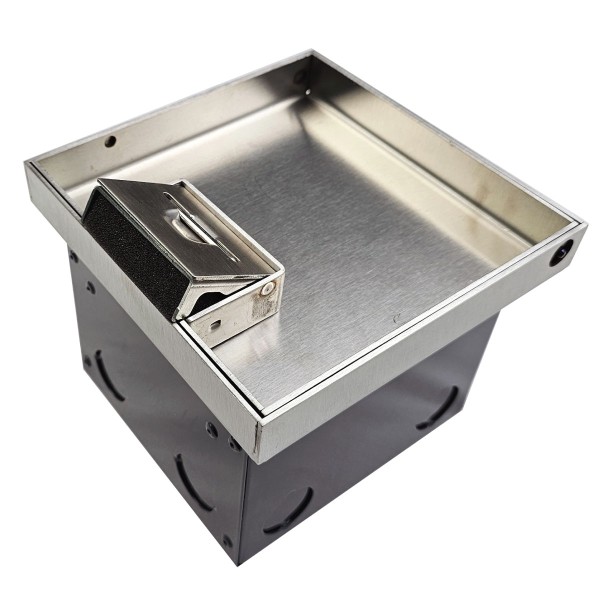

The FFOB-149/2P3D recessed lid floor box features a 19mm Stainless Steel recessed lid, a Steel box body, and 1 x Double GPO Outlet plus 3 x Data Provisions.

Technical Specifications

Part Number	FOBSS19R1STDO3D
Series	FFOB-149/2P3D Recessed Lid Floor Box
Lid Material	Stainless Steel, 19mm Recessed
Body Material	Steel
Outlet Configuration	1 x Double GPO Outlet + 3 x Data Provisions

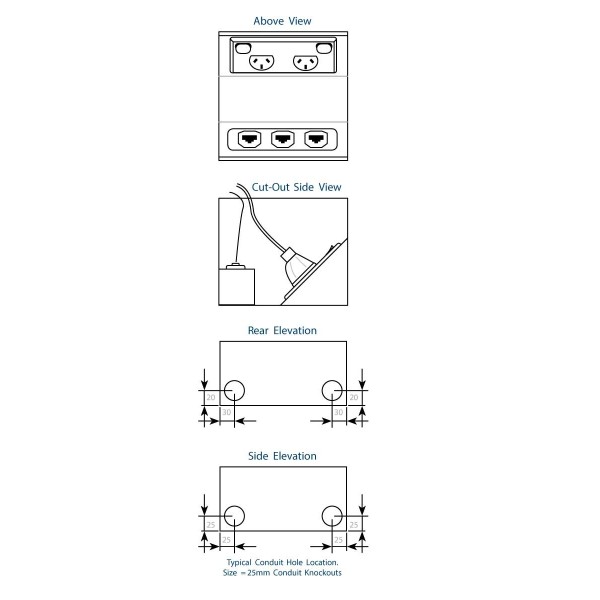

Conduit Entry	5 x 25mm Knockouts (4 side, 1 base)
Weight	2.0 kg (approx.)

Dimensions

Box Body 126 x 135 x 100 mm	Block-out (Slab) 146 x 155 x 101 mm
Cut-out (Raised Floor) 128 x 137 mm

Key Features

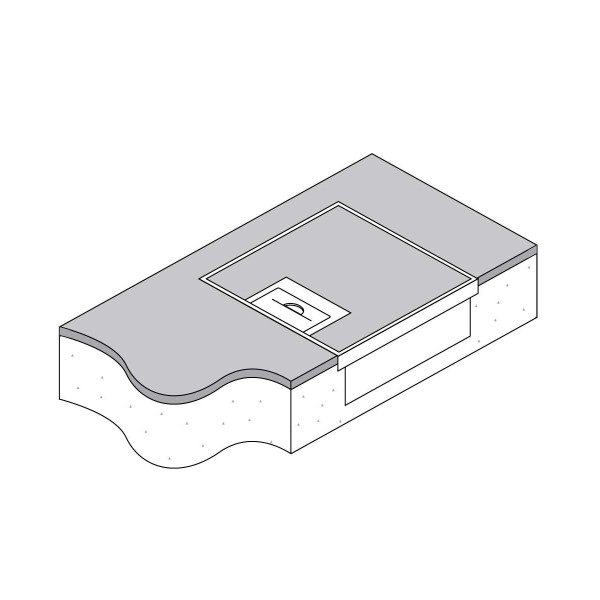

Stainless Steel recessed lid (19mm rebate) sits flush with the floor finish

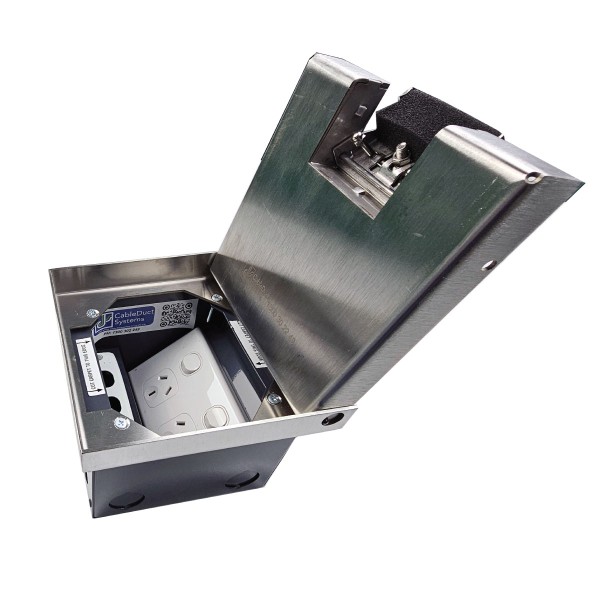

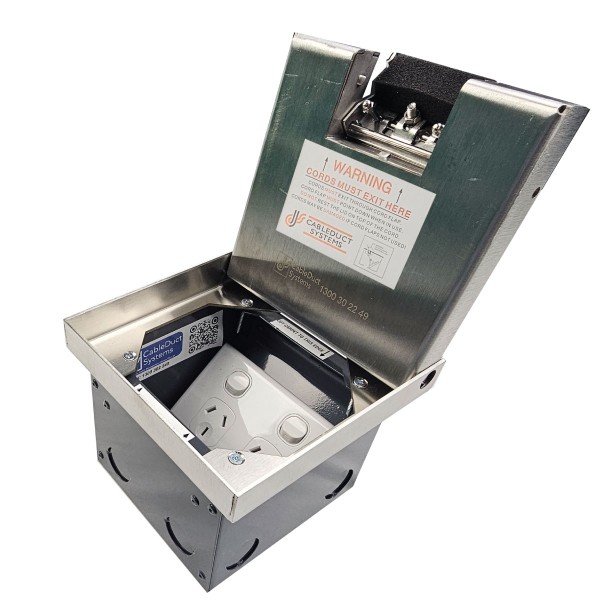

Cord exit flap with dust guards and recessed handle allows cords out with the main cover closed

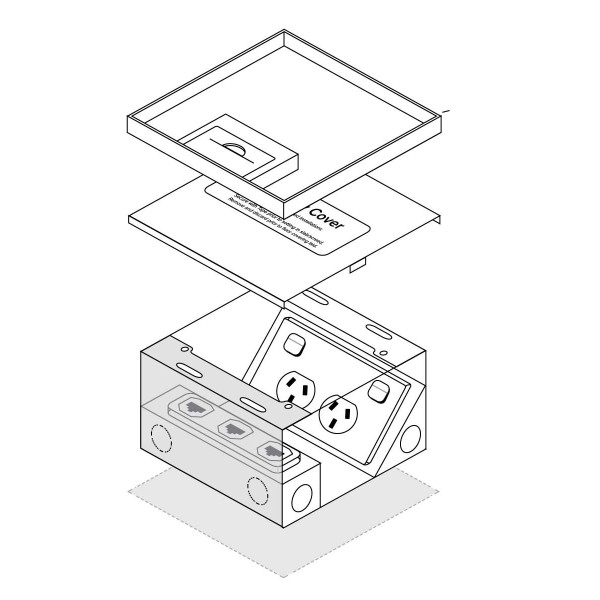

Temporary cover secures to the body during the concrete pour to prevent ingress of slurry
Steel box body, 126 x 135 x 100mm nominal depth
5 x 25mm conduit knockouts (4 on the side of the box, 1 on the base)
1 x Double GPO Outlet
3 x Data Provisions

Typical Applications

Commercial offices & open plan workspaces	Conference rooms & boardrooms
Retail & showroom fit-outs	Hospitality & hotels
Educational facilities	Residential installations

Ordering Information

Part Number	FOBSS19R1STDO3D
Series	FFOB-149/2P3D Recessed Lid Floor Box, Stainless Steel, 1 x Double GPO + 3 x Data
Block-out in Concrete Slab	146 x 155 x 101mm nominal
Warranty	Manufacturer's warranty
