FFOB-149B/2P3D Floor Box 2 x 10Amp Round Auto switched GPOs 3 Gang Data

FOBBR19R1STDO3D - FFOB-149B/2P3D Floor Box 1 x Standard GPO Outlet 3x Data

Complete with Brass 19mm Recessed Lid, 1 x Standard GPO Outlet, and provisions 3 x Data.

FOBBR19R1STDO3D


Secure Payments are easier than ever! Stripe's payment solutions



Delivery Option’s, you choose from our list of delivery partners



Manufactures warranty on all Cableaway sold products.

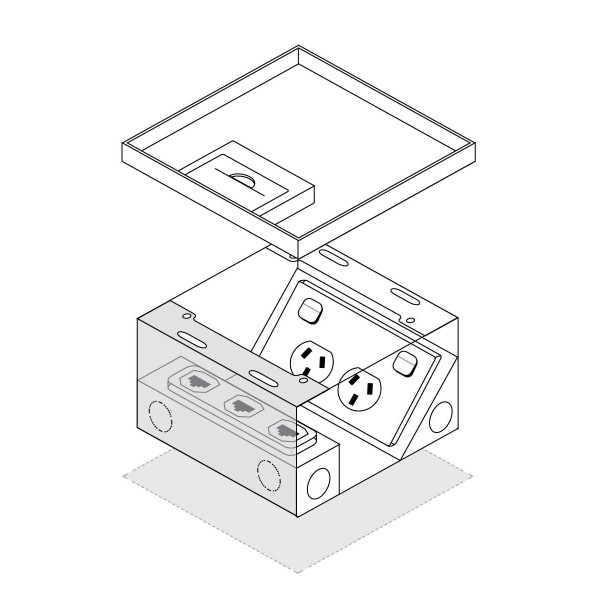

The FFOB-149B/2P3D recessed lid floor box features a 19mm Brass hinged lid, a Steel box body, and 1 x Standard GPO Outlet with provision for 3 x Data.

Technical Specifications

Part Number FOBBR19R1STDO3D
Series FFOB-149B/2P3D Recessed Lid Floor Box
Lid Material Brass Hinged Lid, 19mm Recessed
Body Material Steel
Outlet Configuration 1 x Standard GPO Outlet + 3 x Data Provisions
Conduit Entry 5 x 25mm Knockouts (4 side, 1 base)
Weight 2.0 kg (approx.)

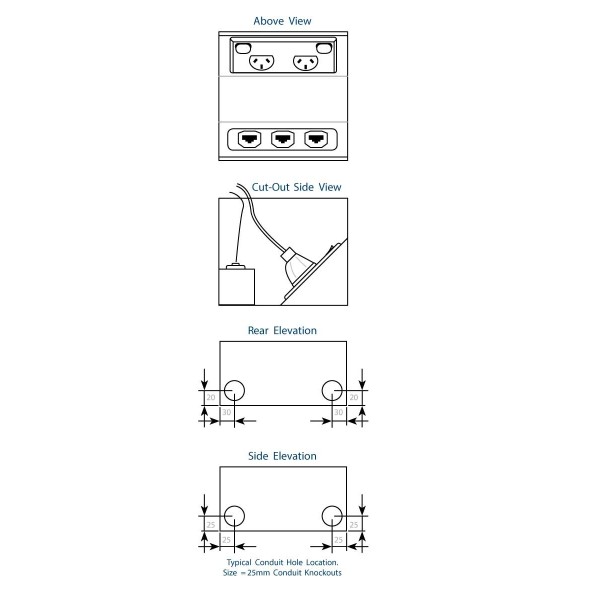

Dimensions

Box Body
126 x 135 x 67 mm

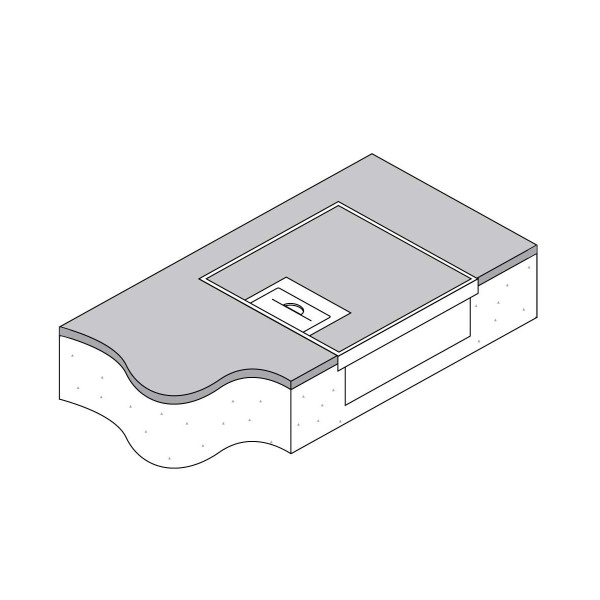

Block-out (Slab)
146 x 155 x 101 mm
Cut-out (Raised Floor)
128 x 137 mm

Key Features

  • Brass hinged lid, 19mm rebate, suits floor finish
  • Cord exit flap with dust guards and recessed handle

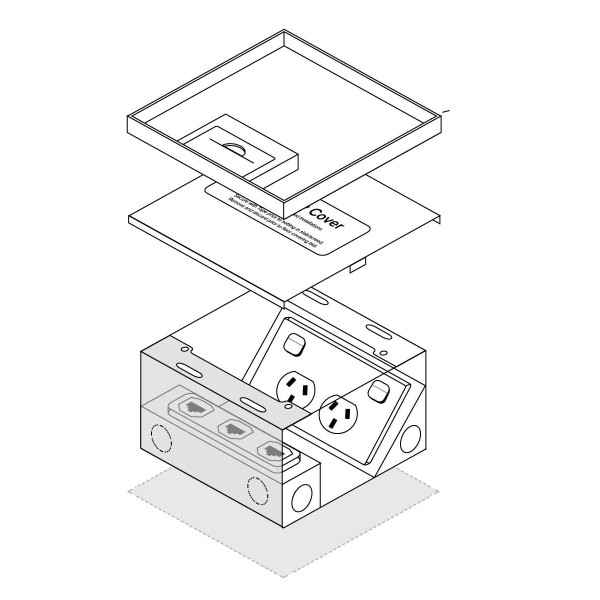

  • Temporary cover secures to the body during the concrete pour to prevent ingress of slurry
  • Steel box body, 126 x 135 x 67mm nominal depth
  • 5 x 25mm conduit knockouts (4 on the side of the box, 1 on the base)
  • 1 x Standard GPO outlet
  • 3 x data provisions

Typical Applications

Commercial offices & open plan workspaces
Conference rooms & boardrooms
Retail & showroom fit-outs
Hospitality & hotels
Educational facilities
Residential installations

Ordering Information

Part Number FOBBR19R1STDO3D
Series FFOB-149B/2P3D Recessed Lid Floor Box, Brass, 1 x Standard GPO + 3 x Data
Block-out in Concrete Slab 146 x 155 x 101mm nominal
Warranty Manufacturer's warranty
