FOBSSR1STDOXL - FFOB-185 1 STANDARD DGPO OUTLET

Name: FOBSSR1STDOXL - FFOB-185 1 STANDARD DGPO OUTLET
Brand: Cableduct Systems
SKU: FOBSSR1STDOXL

Complete with Stainless Steel 14mm Recessed Lid 1 x Double GPO Outlet.

Reference: FOBSSR1STDOXL

Secure Payments are easier than ever! Stripe's payment solutions

Delivery Option’s, you choose from our list of delivery partners

Manufactures warranty on all Cableaway sold products.

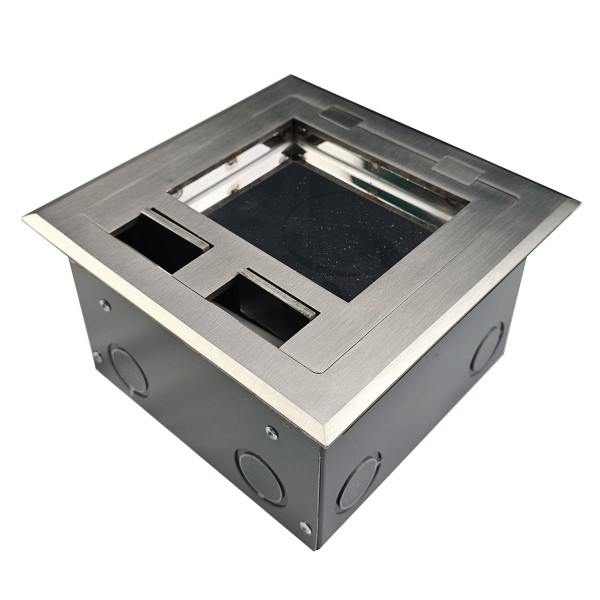

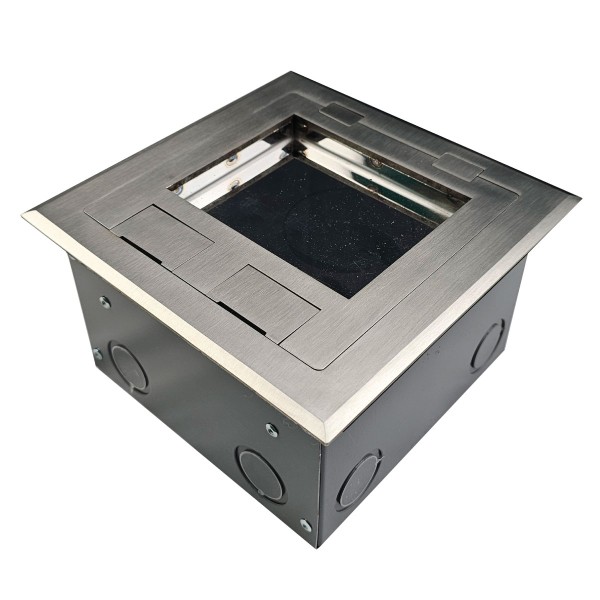

The FFOB-185 recessed lid floor box features a 14mm Stainless Steel hinged recessed lid, a Steel box body, and an outlet bracket for 1 x Clipsal 2000 Series style Double GPO Outlet.

Technical Specifications

Part Number	FOBSSR1STDOXL
Series	FFOB-185 Recessed Lid Floor Box
Lid Material	Stainless Steel Hinged Lid, 14mm Recessed (180 x 180mm)
Body Material	Steel
Outlet Configuration	1 x Double GPO Outlet (Clipsal 2000 Series compatible bracket)
Conduit Entry	10 x Combination 25/32mm Knockouts (2 each side, 2 base)
Weight	2.6 kg (approx.)

Dimensions

Box Body 157 x 157 x 102 mm	Block-out (Slab) 177 x 177 x 112 mm
Cut-out (Raised Floor) 159 x 159 mm

Key Features

Stainless Steel hinged lid (180 x 180mm, 14mm recessed rebate) screw-fixes to the steel box body

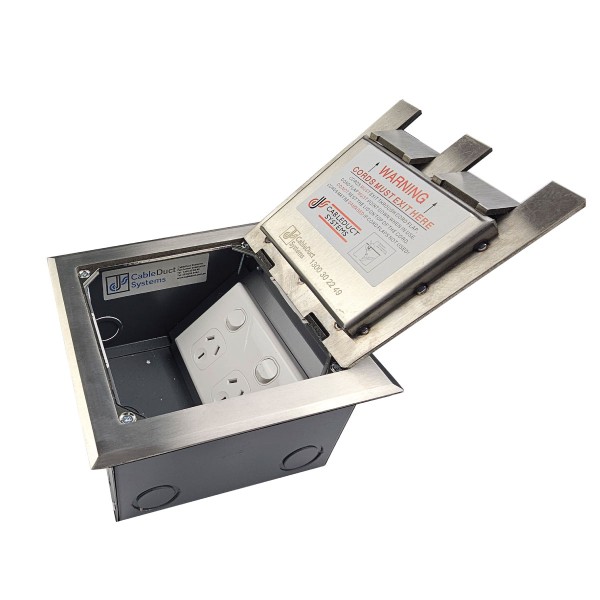

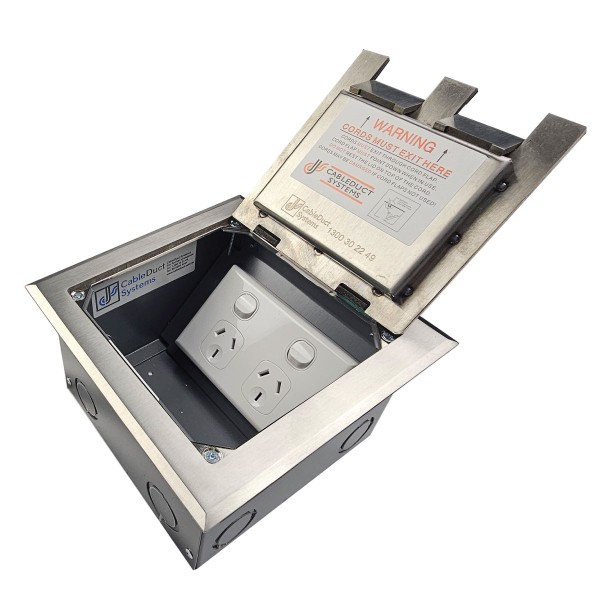

2 x cord exit flaps allow cords out with the main cover closed

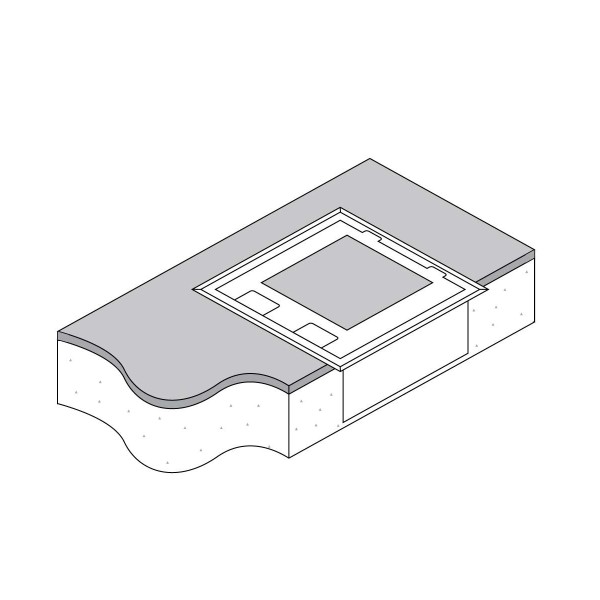

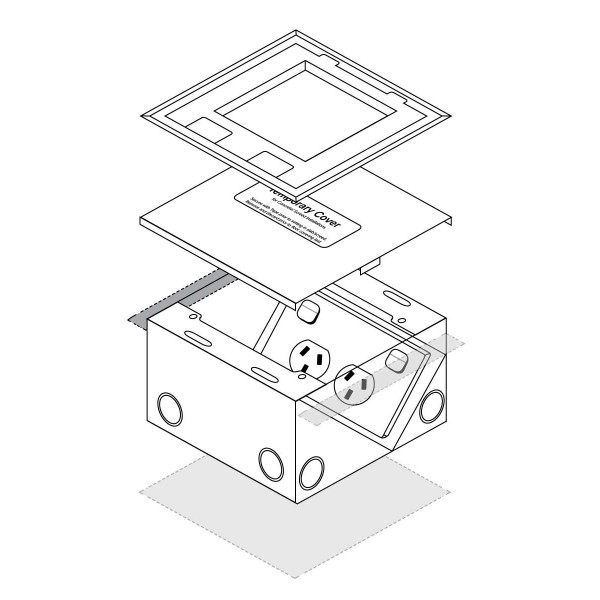

Temporary cover secures to the body during the concrete pour to prevent ingress of slurry
Steel box body, 157 x 157 x 102mm nominal depth

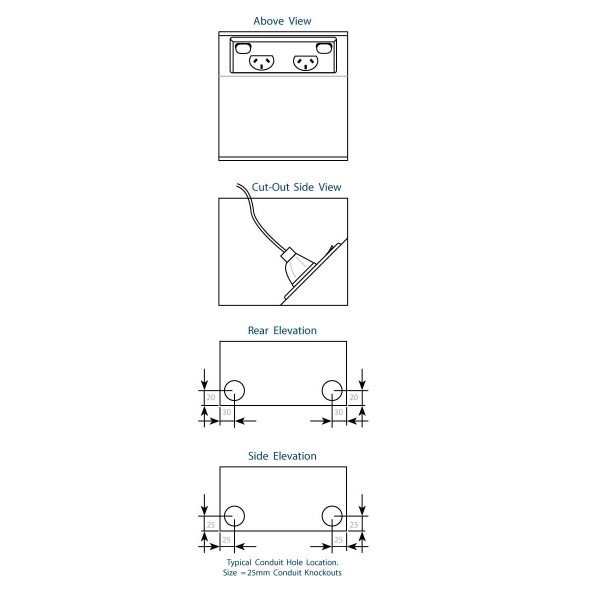

10 x combination 25/32mm conduit knockouts (2 on each side, 2 on the base)

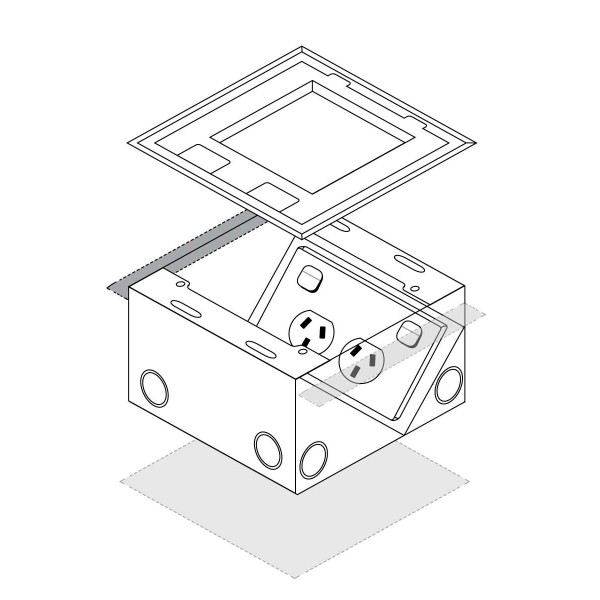

Outlet bracket to suit 1 x Clipsal 2000 Series style Power/Data/AV outlet; 1 x Double GPO Outlet supplied

Typical Applications

Commercial offices & open plan workspaces	Conference rooms & boardrooms
Retail & showroom fit-outs	Hospitality & hotels
Educational facilities	Residential installations

Ordering Information

Part Number	FOBSSR1STDOXL
Series	FFOB-185 Recessed Lid Floor Box, Stainless Steel, 1 x Double GPO Outlet
Block-out in Concrete Slab	177 x 177 x 112mm nominal
Warranty	Manufacturer's warranty
