FOBSSF1STDOXL - FFOB-185S 1 STANDARD DGPO OUTLET

Name: FOBSSF1STDOXL - FFOB-185S 1 STANDARD DGPO OUTLET
Brand: Cableduct Systems
SKU: FOBSSF1STDOXL

Complete with Stainless Steel Flush Lid 1 x Double GPO Outlet.

Reference: FOBSSF1STDOXL

Secure Payments are easier than ever! Stripe's payment solutions

Delivery Option’s, you choose from our list of delivery partners

Manufactures warranty on all Cableaway sold products.

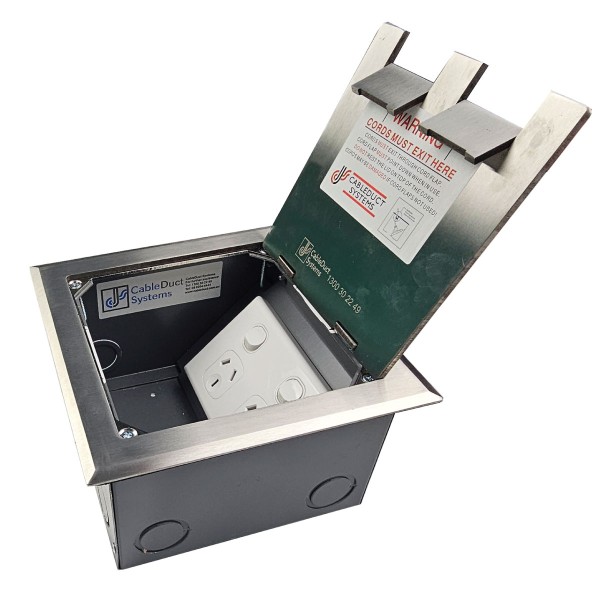

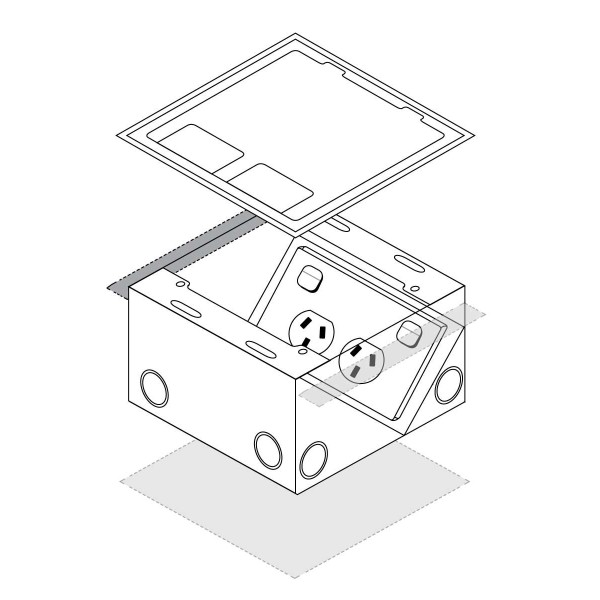

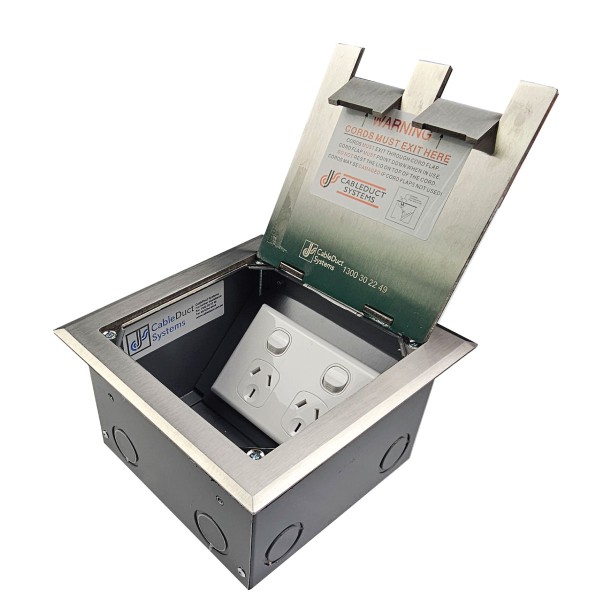

The FOBSSF1STDOXL flush lid floor box features a Stainless Steel flush lid, a Steel box body, and an outlet bracket configured to suit 1 x Standard Series Power/Data/AV outlet.

Technical Specifications

Part Number	FOBSSF1STDOXL
Series	FFOB-185S Flush Lid Floor Box
Lid Material	Stainless Steel
Body Material	Steel
Outlet Configuration	1 x Standard Series Outlet
Conduit Entry	10 x Combination 25/32mm Knockouts (2 each side, 2 base)
Cord Exit Flaps	2 x Included
Weight	2.6 kg (approx.)

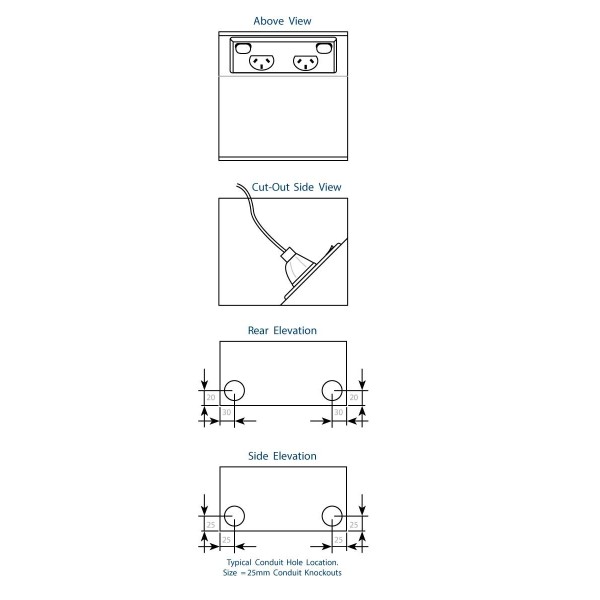

Dimensions

Box Body 157x157x102 mm	Block-out (Slab) 177x177x112 mm
Cut-out (Raised Floor) 159 x 159 mm	Conduit Knockouts 10 total

Key Features

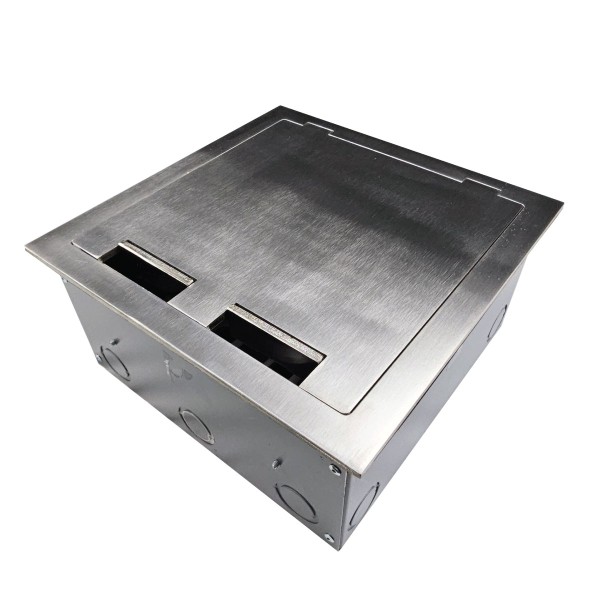

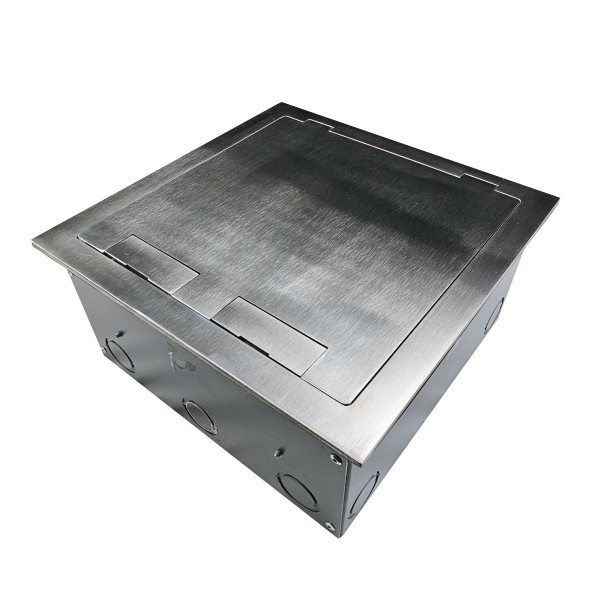

Stainless Steel flush lid secures to the steel box body
2 x cord exit flaps allow cords out with the main cover closed

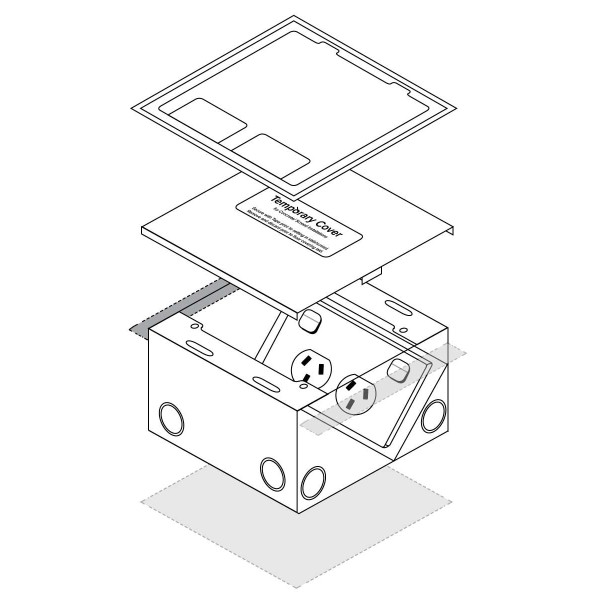

Temporary cover secures to the body during the concrete pour to prevent ingress of slurry
Steel box body, 157 x 157 x 102mm nominal depth
10 x combination 25mm/32mm conduit knockouts (2 on each side, 2 on the base)
Outlet bracket to suit 1 x Standard Series Power/Data/AV outlet
Floating floor brackets available upon request

Typical Applications

Commercial offices & open plan workspaces	Conference rooms & boardrooms
Retail & showroom fit-outs	Hospitality & hotels
Educational facilities	Residential installations

Ordering Information

Part Number	FOBSSF1STDOXL
Series	FFOB-185S Flush Lid Floor Boxes (Stainless Steel, 1 x Power/Data Outlet)

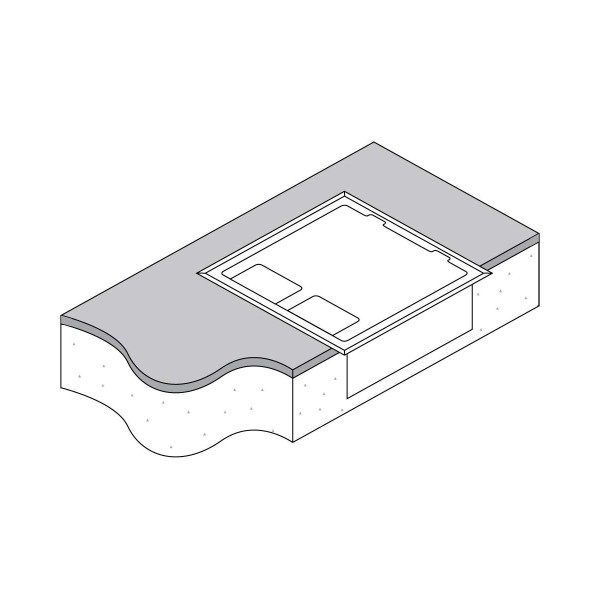

Block-out in Concrete Slab	177 x 177 x 112mm nominal
Warranty	Manufacturer's warranty
