Complete with Stainless Steel 14mm Recessed Lid, 1 x Double GPO Outlet 3 x Data Provisions.

FOBSSR1STDO3DXL


Secure Payments are easier than ever! Stripe's payment solutions



Delivery Option’s, you choose from our list of delivery partners



Manufactures warranty on all Cableaway sold products.

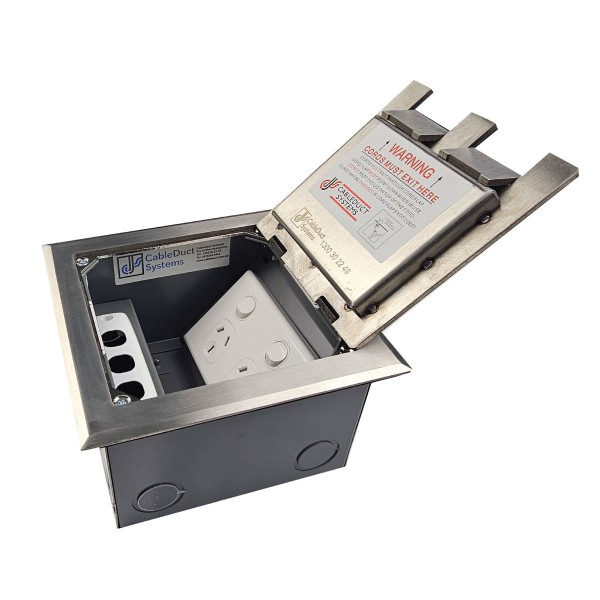

The FFOB-188 recessed lid floor box features a 14mm Stainless Steel hinged recessed lid, a Steel box body, and an outlet bracket for 1 x Double GPO Outlet plus 3 x Data Provisions.

Technical Specifications

Part Number FOBSSR1STDO3DXL
Series FFOB-188 Recessed Lid Floor Box
Lid Material Stainless Steel Hinged Lid, 14mm Recessed (180 x 180mm)
Body Material Steel
Outlet Configuration 1 x Double GPO Outlet + 3 x Data Provisions

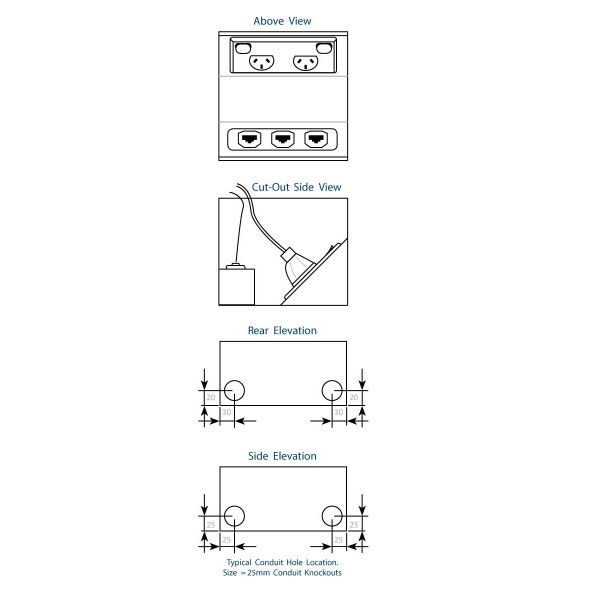

Conduit Entry 10 x Combination 25/32mm Knockouts (8 side, 2 base)
Weight 2.7 kg (approx.)

Dimensions

Box Body
157 x 157 x 102 mm

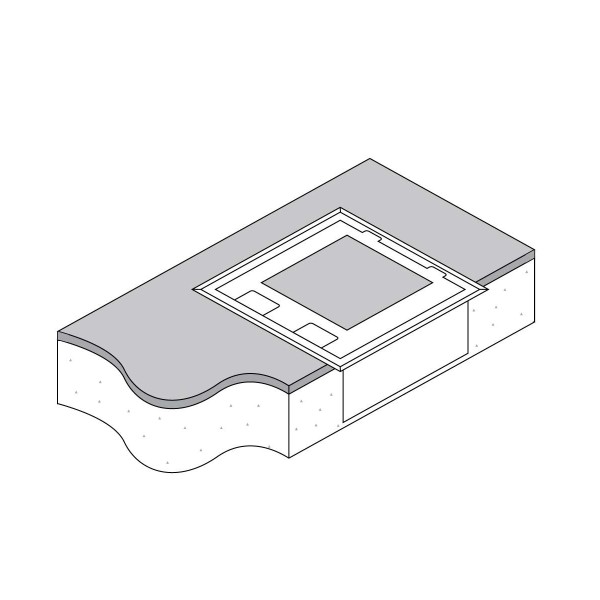

Block-out (Slab)
177 x 177 x 112 mm
Cut-out (Raised Floor)
159 x 159 mm

Key Features

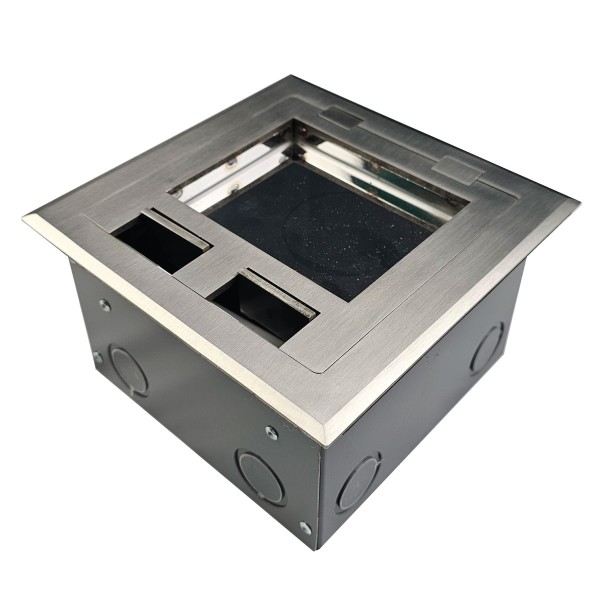

  • Stainless Steel hinged lid (180 x 180mm, 14mm recessed rebate) screw-fixes to the steel box body

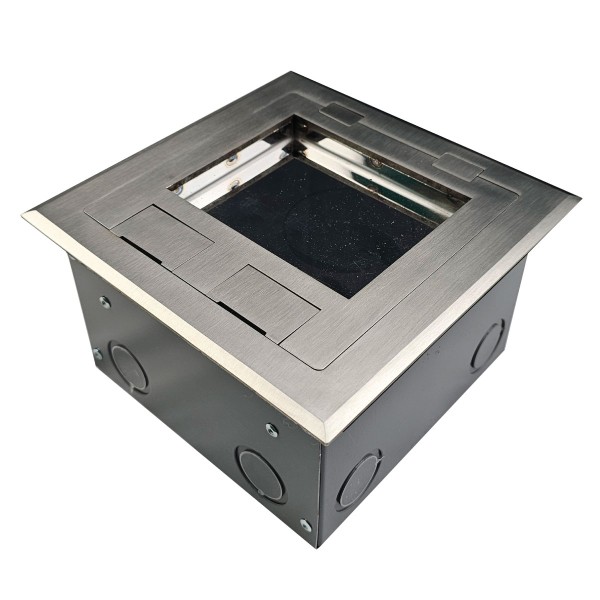

  • 2 x cord exit flaps allow cords out with the main cover closed

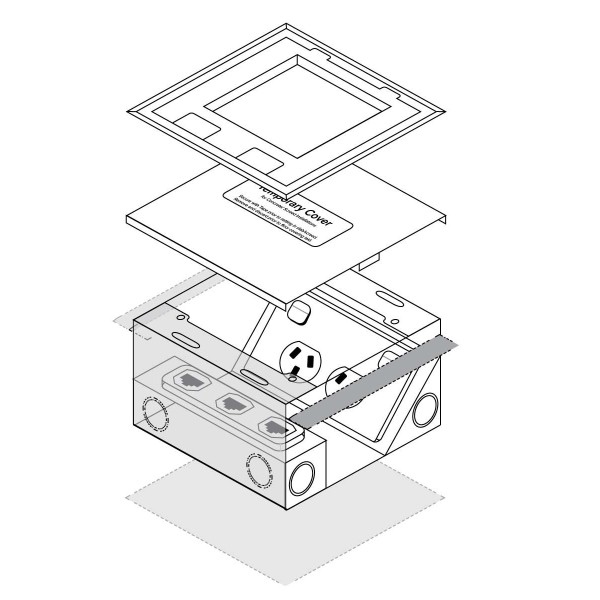

  • Temporary cover secures to the body during the concrete pour to prevent ingress of slurry
  • Steel box body, 157 x 157 x 102mm nominal depth
  • 10 x combination 25/32mm conduit knockouts (8 on the sides, 2 on the base)

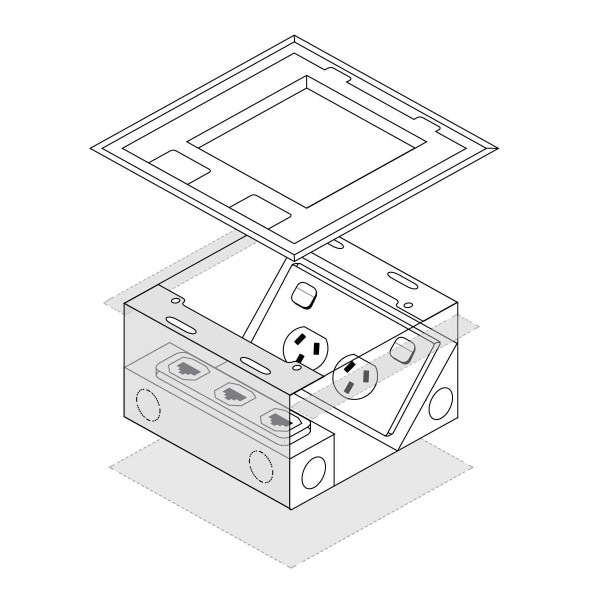

  • Outlet bracket to suit 1 x Standard Series style Power/Data/AV outlet, plus 1 x 3-Gang Data outlet clip
  • Floating floor brackets available upon request

Typical Applications

Commercial offices & open plan workspaces
Conference rooms & boardrooms
Retail & showroom fit-outs
Hospitality & hotels
Educational facilities
Residential installations

Ordering Information

Part Number FOBSSR1STDO3DXL
Series FFOB-188 Recessed Lid Floor Box, Stainless Steel, 1 x Double GPO + 3 x Data
Block-out in Concrete Slab 177 x 177 x 112mm nominal
Warranty Manufacturer's warranty
