Complete with Stainless Steel Flush Lid, 1 x Double GPO Outlet 3 x Data Provisions.

FOBSSF1STDO3DXL


Secure Payments are easier than ever! Stripe's payment solutions



Delivery Option’s, you choose from our list of delivery partners



Manufactures warranty on all Cableaway sold products.

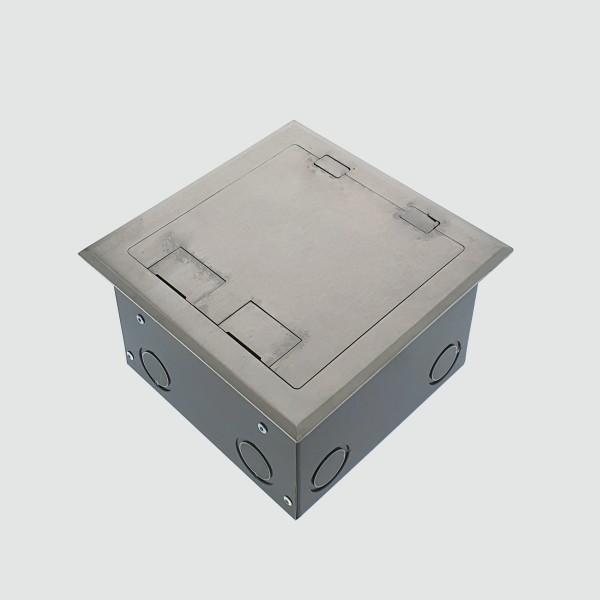

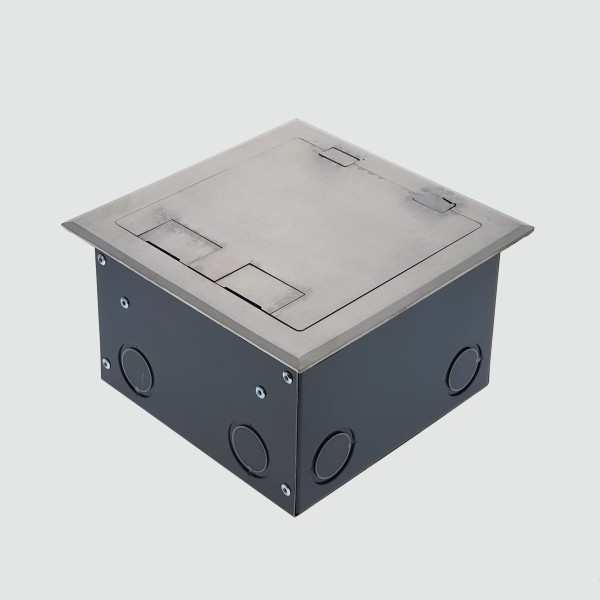

The FOBSSF1STDO3DXL flush lid floor box features a hinged Stainless Steel lid, a Steel box body, and an outlet bracket configured for 1 x Standard Series Power/Data/AV outlet plus 1 x 3-Gang Data outlet.

Technical Specifications

Part Number FOBSSF1STDO3DXL
Series FFOB-188S Flush Lid Floor Box
Lid Material Stainless Steel, Hinged
Body Material Steel
Outlet Configuration 1 x Standard Series Outlet + 1 x 3-Gang Data

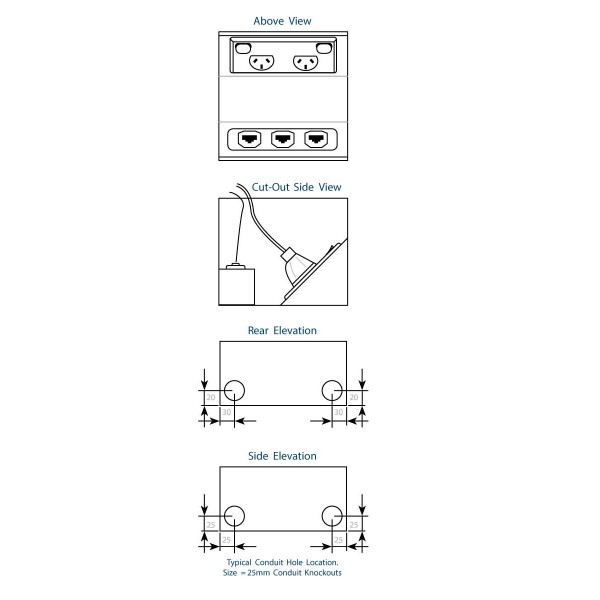

Conduit Entry 10 x Combination 25/32mm Knockouts (8 side, 2 base)
Cord Exit Flaps 2 x Included
Weight 2.7 kg (approx.)

Dimensions

Lid Size
180 x 180 mm
Box Body
157x157x102 mm

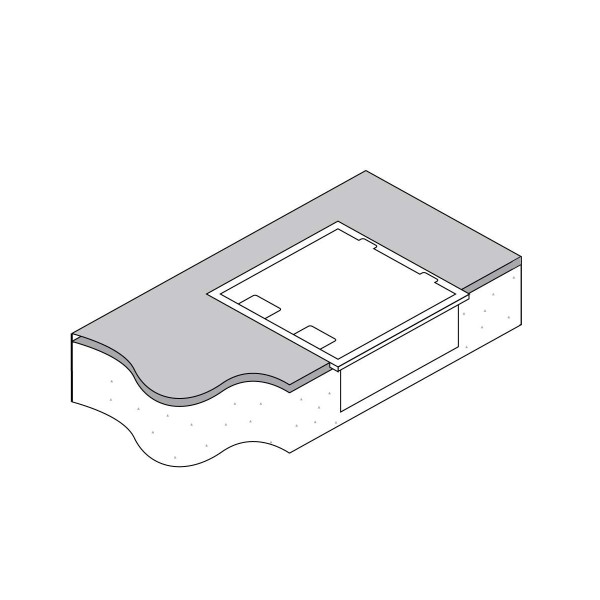

Block-out (Slab)
177x177x112 mm
Cut-out (Raised Floor)
159 x 159 mm

Key Features

  • Hinged Stainless Steel lid, 180 x 180mm, recessed screw fixing to the steel box body

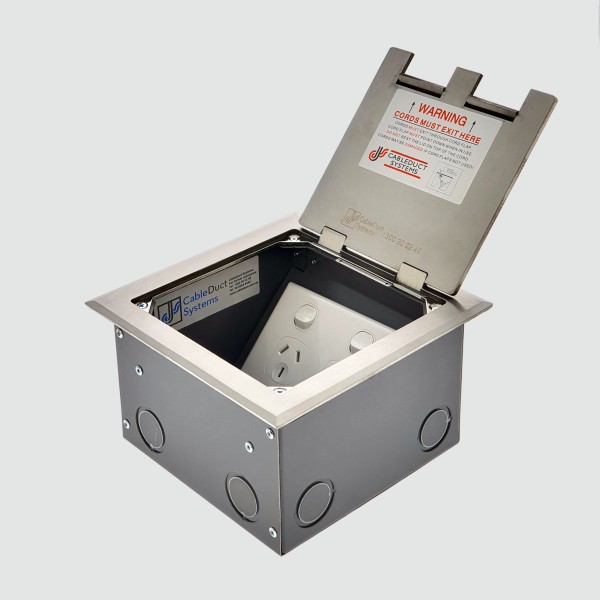

  • 2 x cord exit flaps allow cords out with the main cover closed

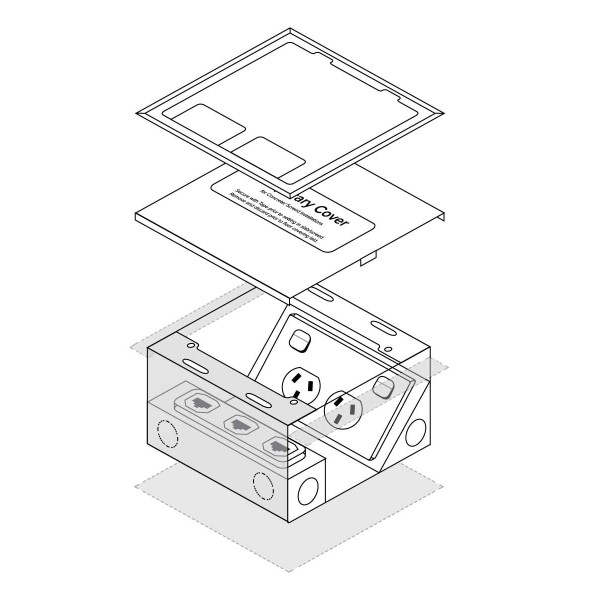

  • Temporary cover secures to the body during the concrete pour to prevent ingress of slurry
  • Steel box body, 157 x 157 x 102mm nominal depth
  • 10 x combination 25mm/32mm conduit knockouts (8 on the outside of the box, 2 on the base)

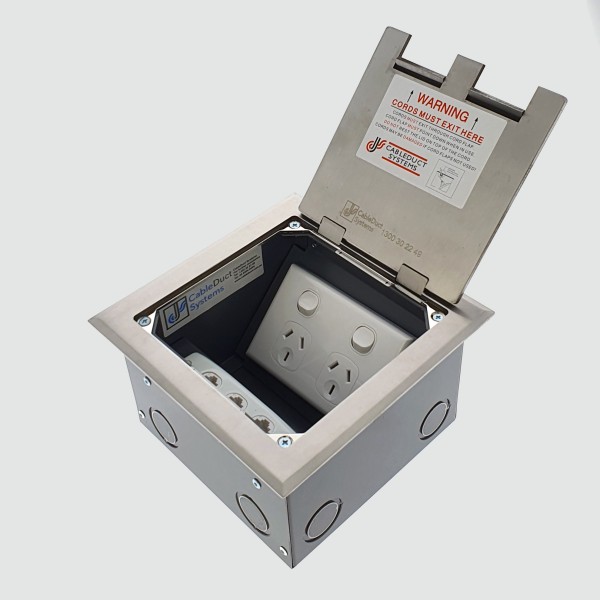

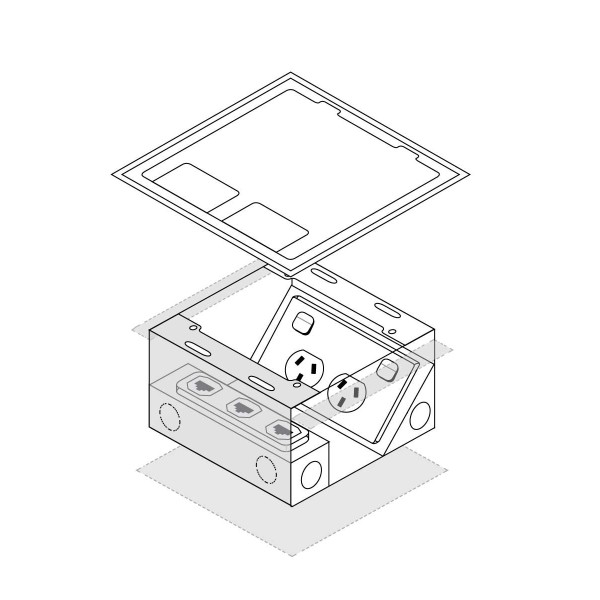

  • Outlet bracket to suit 1 x Standard Series Power/Data/AV outlet plus 1 x 3-Gang Data outlet clip
  • Floating floor brackets available upon request

Typical Applications

Commercial offices & open plan workspaces
Conference rooms & boardrooms
Retail & showroom fit-outs
Hospitality & hotels
Educational facilities
Residential installations

Ordering Information

Part Number FOBSSF1STDO3DXL
Series FFOB-188S Flush Lid Floor Boxes (Stainless Steel, 1 x Power + 3 x Data)
Block-out in Concrete Slab 177 x 177 x 112mm nominal
Warranty Manufacturer's warranty
