FOBSSF3STDO - FFOB-245 1 x QUAD GPO + 12 GANG DATA

Name: FOBSSF3STDO - FFOB-245 1 x QUAD GPO + 12 GANG DATA
Brand: Cableduct Systems
SKU: FOBSSF3STDO

Complete with Stainless Steel Flush lid, Provisions for 1 x QGPO or DGPO & Up to 12 Data.

Reference: FOBSSF3STDO

Secure Payments are easier than ever! Stripe's payment solutions

Delivery Option’s, you choose from our list of delivery partners

Manufactures warranty on all Cableaway sold products.

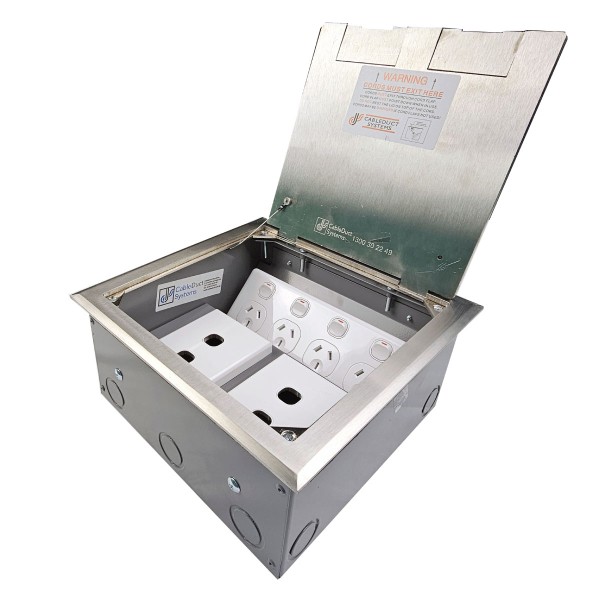

The FOBSSF3STDO flush lid floor box features a hinged Stainless Steel lid, a Steel box body, and an outlet bracket configured to suit 1 x Quad GPO (or Dual GPO) with up to 12 x Data.

Technical Specifications

Part Number	FOBSSF3STDO
Series	FFOB-245 Flush Lid Floor Box
Lid Material	Stainless Steel, Hinged
Body Material	Steel
Outlet Configuration	1 x Quad GPO (or Dual GPO) + Up to 12 x Data

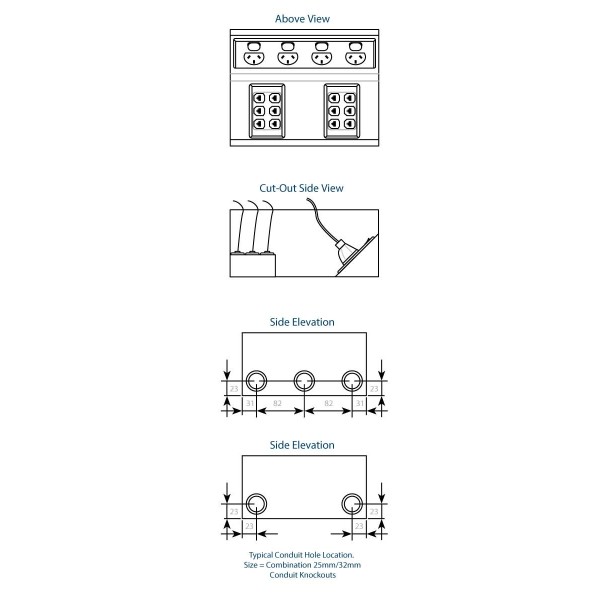

Conduit Entry	13 x Combination 25/32mm Knockouts (10 side, 3 base)
Weight	5.0 kg (approx.)

Dimensions

Lid Size 245 x 245 mm	Box Body 228x227x110 mm
Block-out (Slab) 248x247x120 mm	Cut-out (Raised Floor) 230 x 229 mm

Key Features

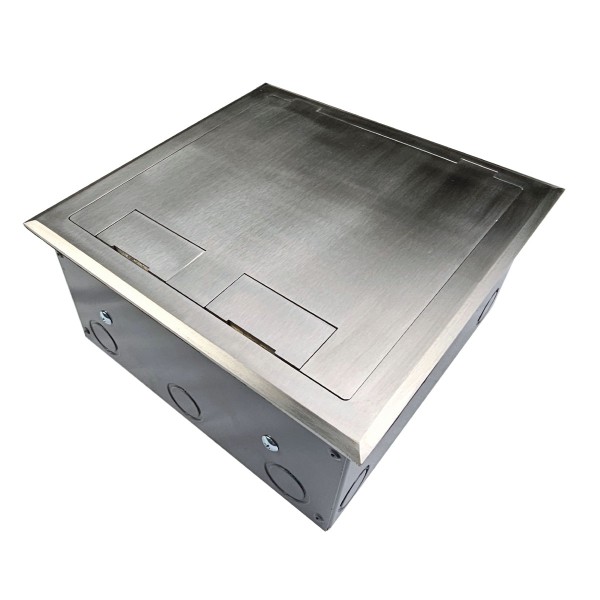

Hinged Stainless Steel lid (245 x 245mm) screw-fixes to the steel box body

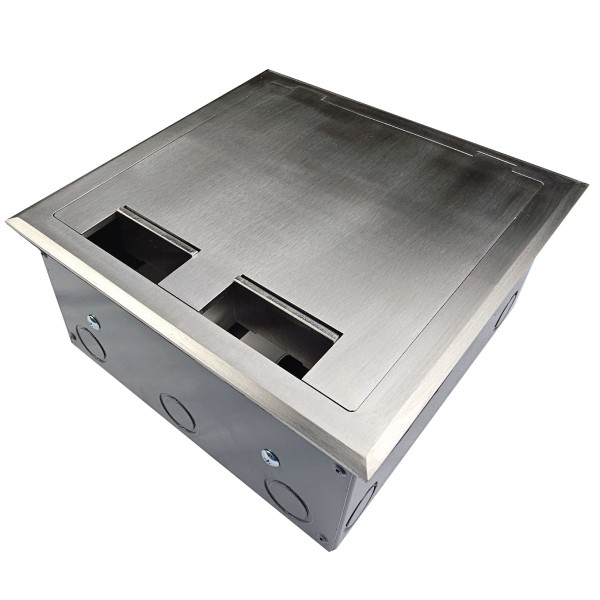

2 x cord exit flaps allow cords out with the main cover closed

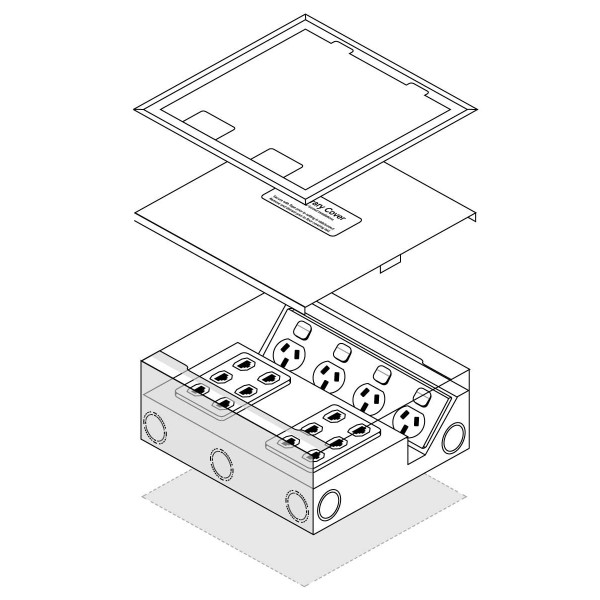

Temporary cover secures to the body during the concrete pour to prevent ingress of slurry
Steel box body, 228 x 227 x 110mm nominal depth
13 x combination 25mm/32mm conduit knockouts (10 side, 3 base)

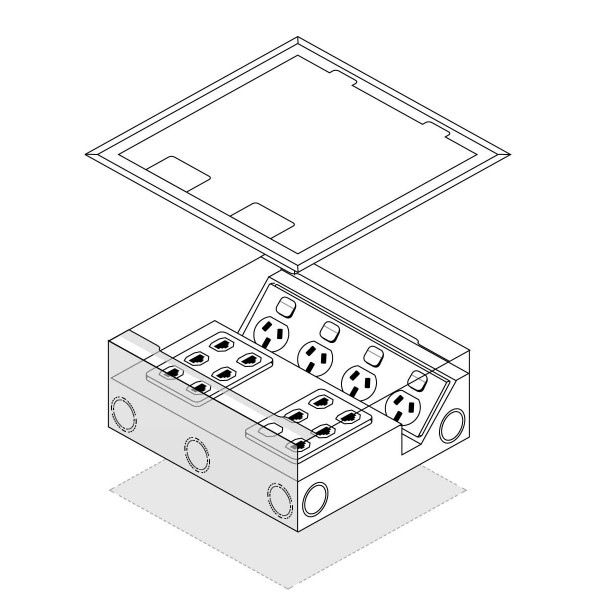

Outlet bracket to suit 1 x Quad GPO (or Dual GPO) & up to 12 x Data

Typical Applications

Commercial offices & open plan workspaces	Conference rooms & boardrooms
Retail & showroom fit-outs	Hospitality & hotels
Educational facilities	Residential installations

Ordering Information

Part Number	FOBSSF3STDO
Series	FFOB-245 Flush Lid Floor Box (Stainless Steel, 1 x Quad GPO + 12 Data)
Block-out in Concrete Slab	248 x 247 x 120mm nominal
Warranty	Manufacturer's warranty
