FFOB-248 1 x QUAD GPO + 12 GANG DATA

FOBBRF3STDO - FFOB-248B 1 x QUAD GPO + 12 GANG DATA

Complete with Brass Flush Lid, Provisions 1 x QGPO or DGPO, 12 x Data.

FOBBRF3STDO


Secure Payments are easier than ever! Stripe's payment solutions



Delivery Option’s, you choose from our list of delivery partners



Manufactures warranty on all Cableaway sold products.

The FFOB-248B recessed lid floor box features a 14mm Brass hinged recessed lid, a Steel box body, and provisions for 1 x Quad GPO or Double GPO plus 12 x Data outlets.

Technical Specifications

Part Number FOBBRF3STDO
Series FFOB-248B Recessed Lid Floor Box
Lid Material Brass Hinged Lid, 14mm Recessed (245 x 245mm)
Body Material Steel
Outlet Configuration 1 x Quad GPO or Double GPO Provision + 12 x Data Provisions

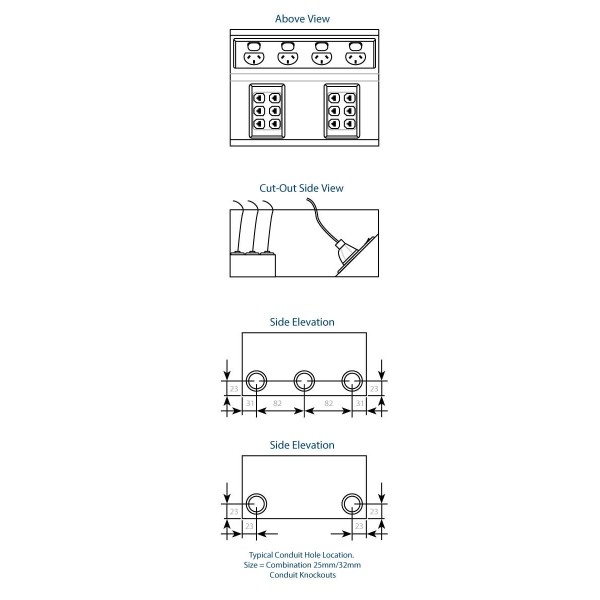

Conduit Entry 13 x Combination 25/32mm Knockouts (10 side, 3 base)
Weight 5.0 kg (approx.)

Dimensions

Box Body
228 x 227 x 110 mm

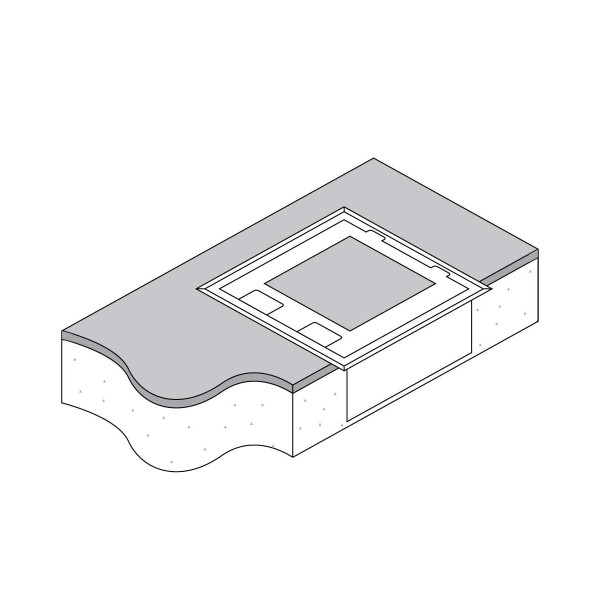

Block-out (Slab)
248 x 247 x 120 mm
Cut-out (Raised Floor)
230 x 229 mm

Key Features

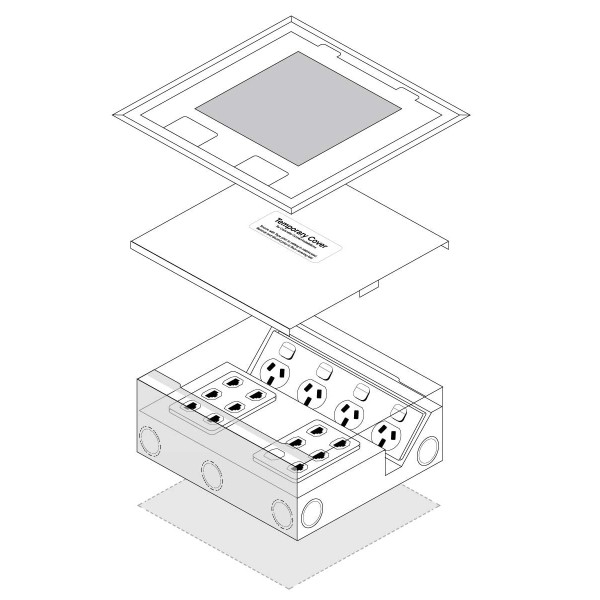

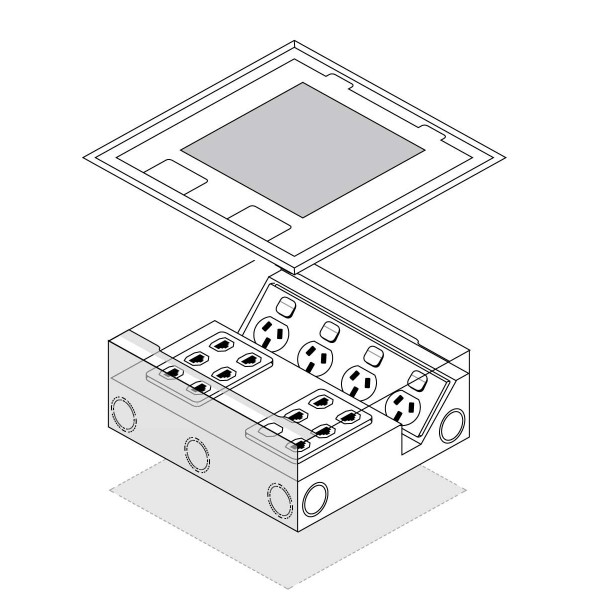

  • Brass hinged lid (245 x 245mm, 14mm recessed rebate) screw-fixes to the steel box body
  • 2 x cord exit flaps allow cords out with the main cover closed
  • Temporary cover secures to the body during the concrete pour to prevent ingress of slurry
  • Steel box body, 228 x 227 x 110mm nominal depth
  • 13 x combination 25/32mm conduit knockouts (10 on the outside of the box, 3 on the base)
  • Outlet bracket to suit 1 x Standard Series style Power/Data/AV outlet; provisions for 1 x Quad GPO or Double GPO plus 12 x Data outlets

Typical Applications

Commercial offices & open plan workspaces
Conference rooms & boardrooms
Retail & showroom fit-outs
Hospitality & hotels
Educational facilities
Residential installations

Ordering Information

Part Number FOBBRF3STDO
Series FFOB-248B Recessed Lid Floor Box, Brass, 1 x Quad/Double GPO + 12 x Data
Block-out in Concrete Slab 248 x 247 x 120mm nominal
Warranty Manufacturer's warranty
FOBBRF3STDO
