Complete with Stainless Steel 14mm Recessed Lid, 4 x Auto Switched Outlets, and 5 x Data Provisions.

FOBSSR4P5DS80


Secure Payments are easier than ever! Stripe's payment solutions



Delivery Option’s, you choose from our list of delivery partners



Manufactures warranty on all Cableaway sold products.

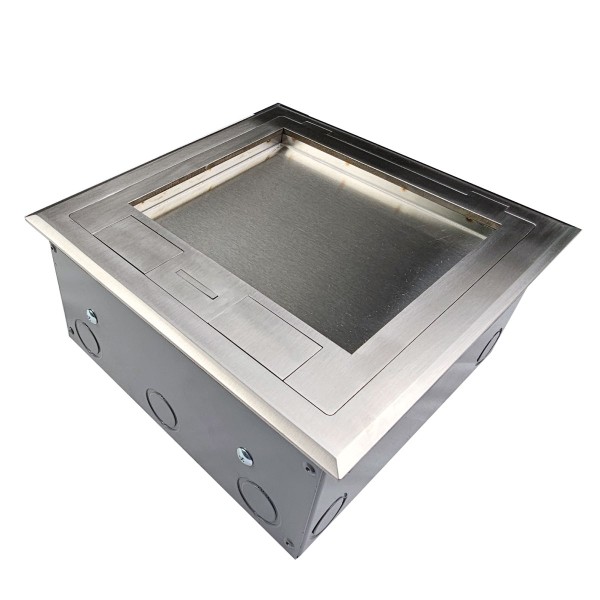

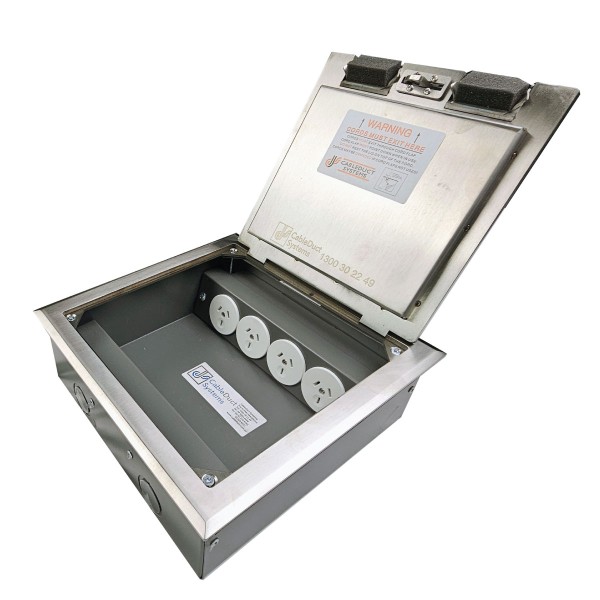

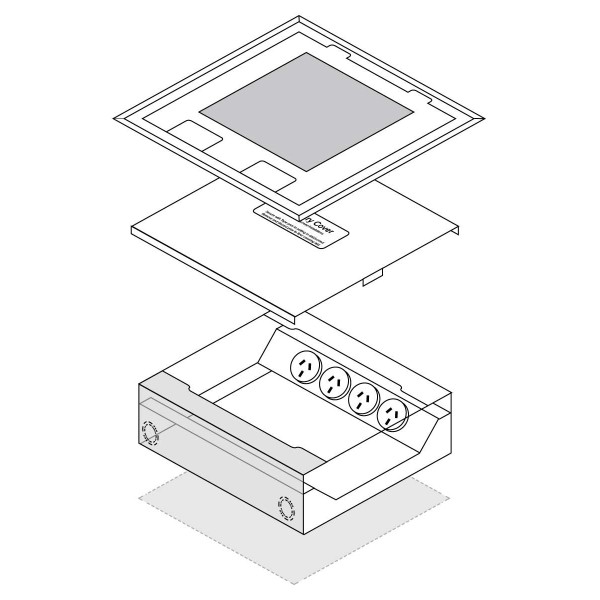

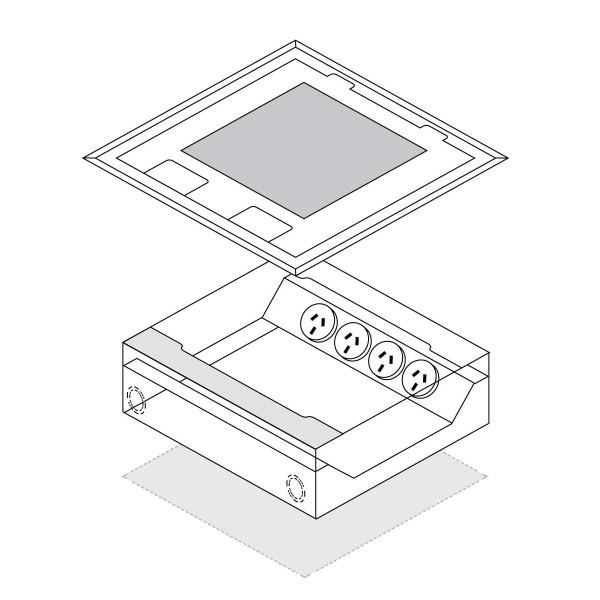

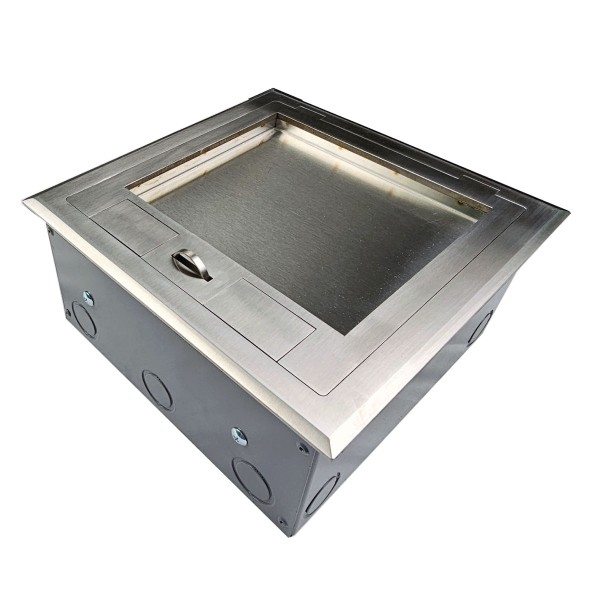

The FFOB-248/80 flush lid floor box features a hinged Stainless Steel lid with a 14mm recessed tile/carpet insert pocket, a shallow-depth Steel box body, and 4 x 10Amp Round Auto Switched GPOs plus 5 x Single Data Outlet Clips for power and data connectivity.

Technical Specifications

Part Number FOBSSR4P5DS80
Series FFOB-248/80 Flush Lid Floor Box
Lid Material Stainless Steel, Hinged, 14mm Recessed (Tile/Carpet Insert)
Body Material Steel
Outlet Configuration 4 x 10Amp Round Auto Switched GPOs + 5 x Single Data Outlet Clips
Conduit Entry 8 x Combination 25/32mm Knockouts (4 side, 4 base)
Weight 5.0 kg (approx.)

Dimensions

Lid Size
245 x 245 mm
Box Body
230x227x79 mm
Block-out (Slab)
250x247x89 mm
Cut-out (Raised Floor)
232 x 229 mm

Key Features

  • Hinged Stainless Steel lid (245 x 245mm) with 14mm recessed pocket for tile or carpet insert, screw-fixes to the steel box body

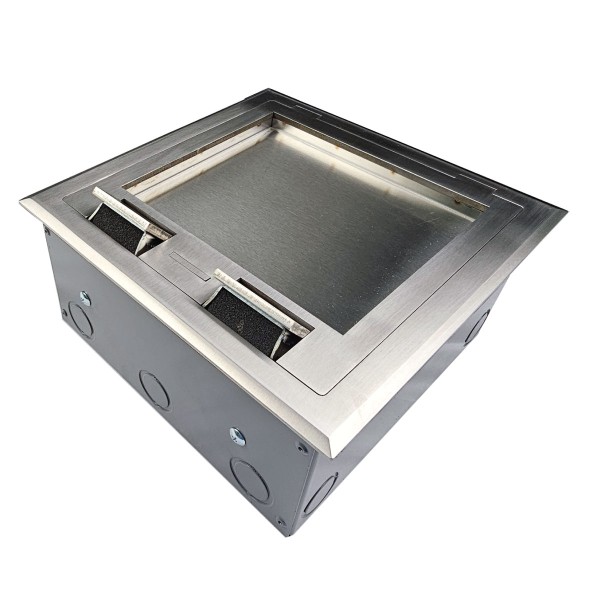

  • 2 x cord exit flaps allow cords out with the main cover closed

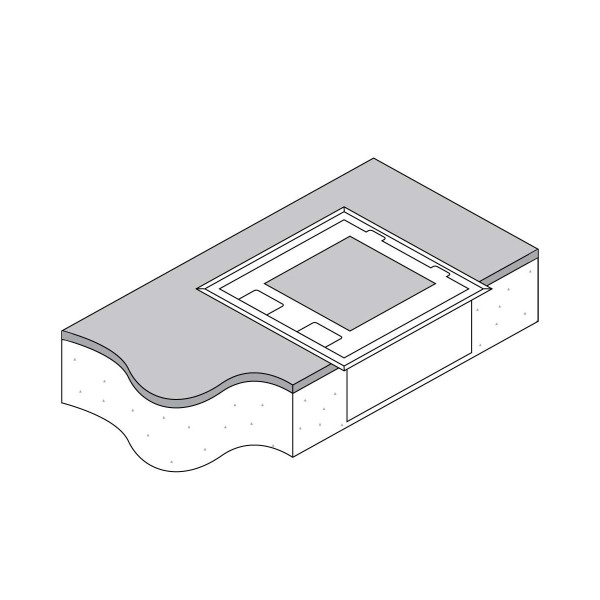

  • Temporary cover secures to the body during the concrete pour to prevent ingress of slurry
  • Steel box body, 230 x 227 x 79mm nominal depth (shallow 80mm carcass)

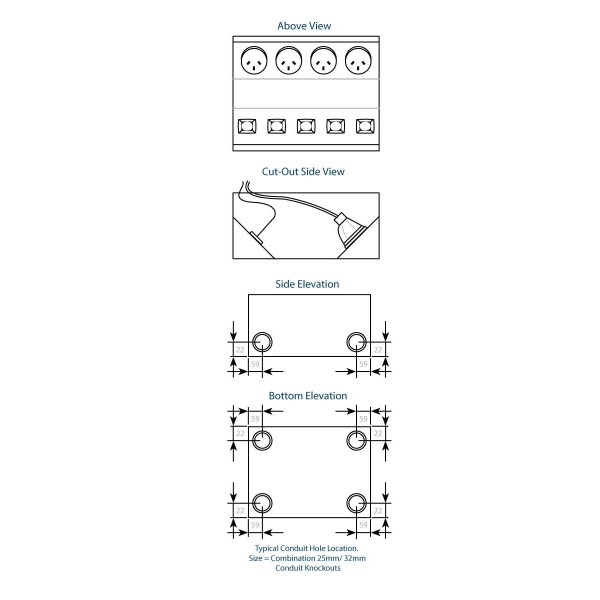

  • 8 x combination 25/32mm conduit knockouts (4 side, 4 base)
  • 4 x 10Amp Round Auto Switched GPOs (supplied)
  • 5 x Single Data Outlet Clips (supplied)

Typical Applications

Commercial offices & open plan workspaces
Conference rooms & boardrooms
Retail & showroom fit-outs
Hospitality & hotels
Educational facilities
Residential installations

Ordering Information

Part Number FOBSSR4P5DS80
Series FFOB-248/80 Flush Lid Floor Box (14mm Recessed, 4 x GPO + 5 x Data, Shallow 80mm)
Block-out in Concrete Slab 250 x 247 x 89mm nominal
Warranty Manufacturer's warranty
