FFOB-248/80 4 x AUTO SWITCHED GPO + 5 GANG DATA

FOBBRR4P5DS80 - FFOB-248B/80 4 x AUTO SWITCHED GPO + 5 GANG DATA

Name: FOBBRR4P5DS80 - FFOB-248B/80 4 x AUTO SWITCHED GPO + 5 GANG DATA
Brand: Cableduct Systems
SKU: FOBBRR4P5DS80

Complete with Brass 14mm Recessed Lid, 4 x Auto Switched Outlet, and 5 x Data Provision, Shallow 80mm.

Reference: FOBBRR4P5DS80

Secure Payments are easier than ever! Stripe's payment solutions

Delivery Option’s, you choose from our list of delivery partners

Manufactures warranty on all Cableaway sold products.

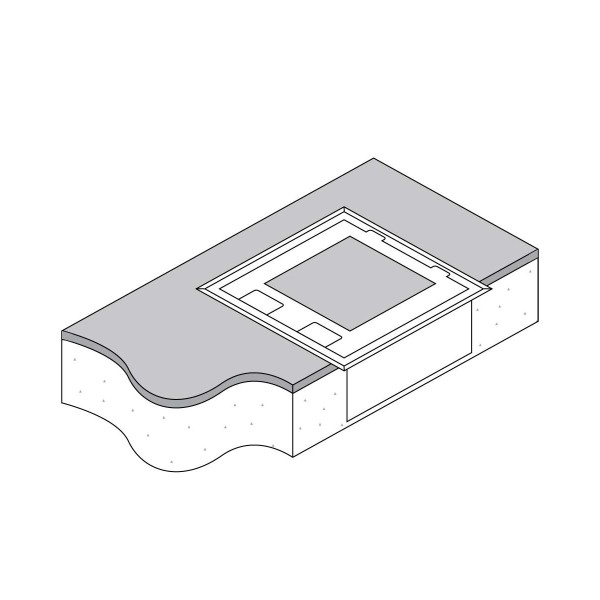

The FFOB-248B/80 flush lid floor box features a hinged Brass lid with a 14mm recessed tile/carpet insert pocket, a shallow-depth Steel box body, and 4 x 10Amp Round Auto Switched GPOs plus 5 x Single Data Outlet Clips for power and data connectivity.

Technical Specifications

Part Number	FOBBRR4P5DS80
Series	FFOB-248B/80 Flush Lid Floor Box
Lid Material	Brass, Hinged, 14mm Recessed (Tile/Carpet Insert)
Body Material	Steel
Outlet Configuration	4 x 10Amp Round Auto Switched GPOs + 5 x Single Data Outlet Clips
Conduit Entry	8 x Combination 25/32mm Knockouts (4 side, 4 base)
Weight	5.0 kg (approx.)

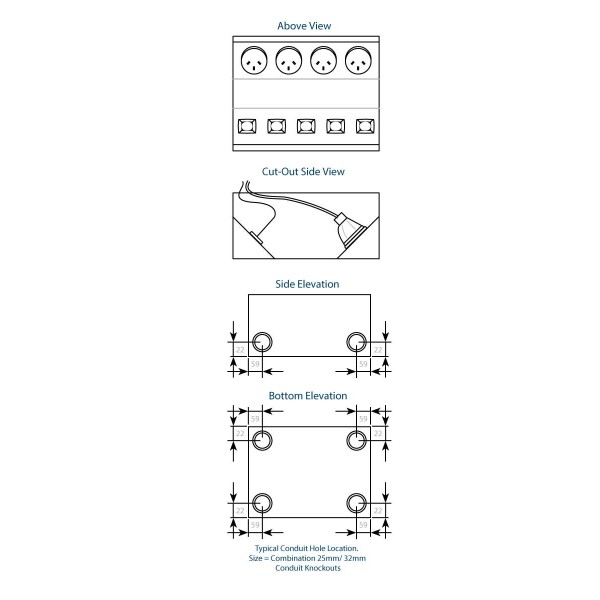

Dimensions

Lid Size 245 x 245 mm	Box Body 230x227x79 mm
Block-out (Slab) 250x247x89 mm	Cut-out (Raised Floor) 232 x 229 mm

Key Features

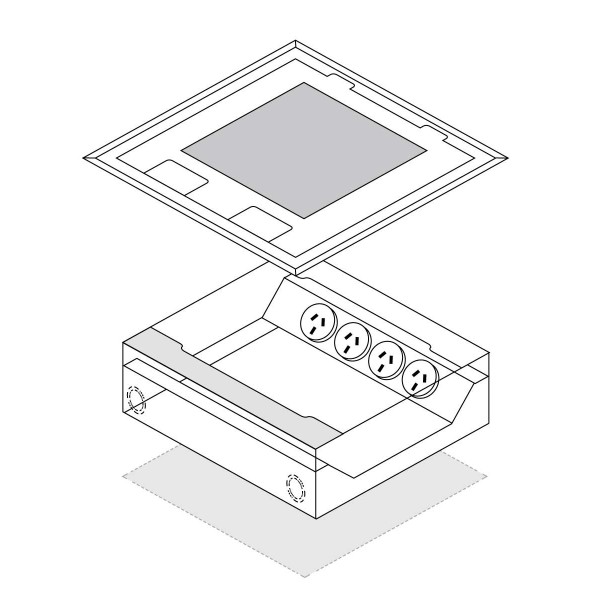

Hinged Brass lid (245 x 245mm) with 14mm recessed pocket for tile or carpet insert, screw-fixes to the steel box body
2 x cord exit flaps allow cords out with the main cover closed

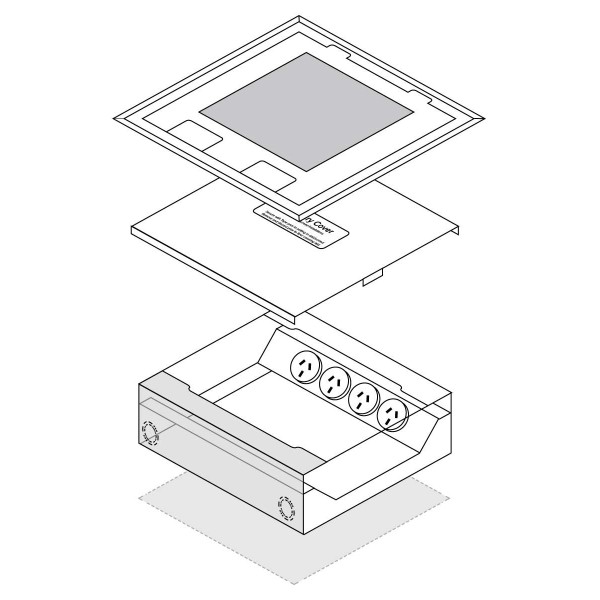

Temporary cover secures to the body during the concrete pour to prevent ingress of slurry
Steel box body, 230 x 227 x 79mm nominal depth (shallow 80mm carcass)
8 x combination 25/32mm conduit knockouts (4 side, 4 base)
4 x 10Amp Round Auto Switched GPOs (supplied)
5 x Single Data Outlet Clips (supplied)

Typical Applications

Commercial offices & open plan workspaces	Conference rooms & boardrooms
Retail & showroom fit-outs	Hospitality & hotels
Educational facilities	Residential installations

Ordering Information

Part Number	FOBBRR4P5DS80
Series	FFOB-248B/80 Flush Lid Floor Box (Brass, 14mm Recessed, 4 x GPO + 5 x Data, Shallow 80mm)
Block-out in Concrete Slab	250 x 247 x 89mm nominal
Warranty	Manufacturer's warranty
