FFOB-245B/8P8D 8 x AUTO SWITCHED GPO + 8 GANG DATA

FOBBRF3STDO-SE - FFOB-250B 8 x AUTO SWITCHED GPO + 8 GANG DATA

Name: FOBBRF3STDO-SE - FFOB-250B 8 x AUTO SWITCHED GPO + 8 GANG DATA
Brand: Cableduct Systems
SKU: FOBBRF3STDO-SE

Hinged Lid 245 x 245mm, Brass Lid Flush Edge screw fixes to Steel Box Body

Reference: FOBBRF3STDO-SE

Secure Payments are easier than ever! Stripe's payment solutions

Delivery Option’s, you choose from our list of delivery partners

Manufactures warranty on all Cableaway sold products.

The FFOB-250B flush lid floor box features a hinged, flush-edge Brass lid, a Steel box body, and 8 x 10Amp Round Auto Switched GPOs plus 8 x Single Data Outlet Clips for high-capacity power and data connectivity.

Technical Specifications

Part Number	FOBBRF3STDO-SE
Series	FFOB-250B Flush Lid Floor Box
Lid Material	Brass, Flush Edge, Hinged
Body Material	Steel
Outlet Configuration	8 x 10Amp Round Auto Switched GPOs + 8 x Single Data Outlet Clips
Conduit Entry	13 x Combination 25/32mm Knockouts (10 side, 3 base)
Weight	5.0 kg (approx.)

Dimensions

Lid Size 245 x 245 mm	Box Body 228x227x110 mm

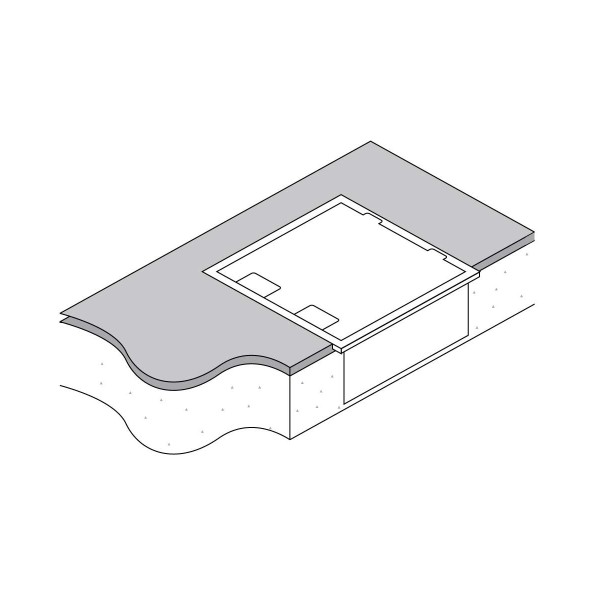

Block-out (Slab) 248x247x120 mm	Cut-out (Raised Floor) 230 x 229 mm

Key Features

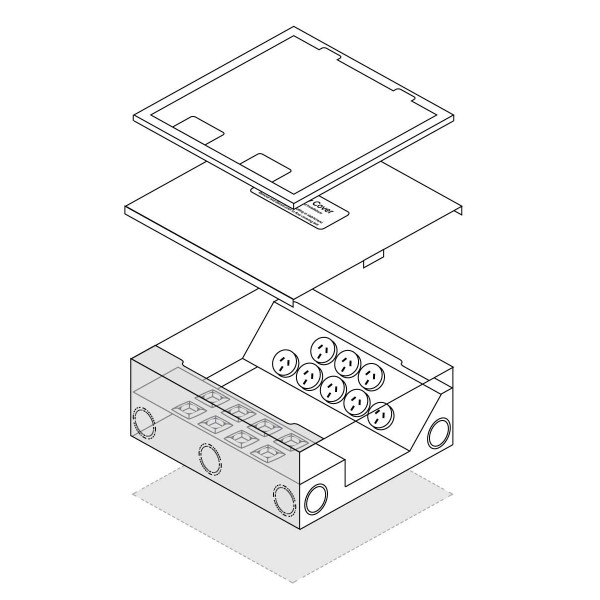

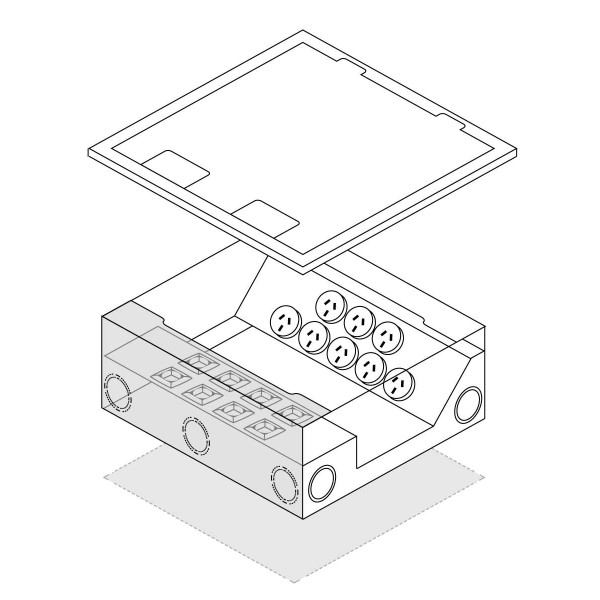

Hinged, flush-edge Brass lid (245 x 245mm) screw-fixes to the steel box body
2 x cord exit flaps allow cords out with the main cover closed
Temporary cover secures to the body during the concrete pour to prevent ingress of slurry
Steel box body, 228 x 227 x 110mm nominal depth

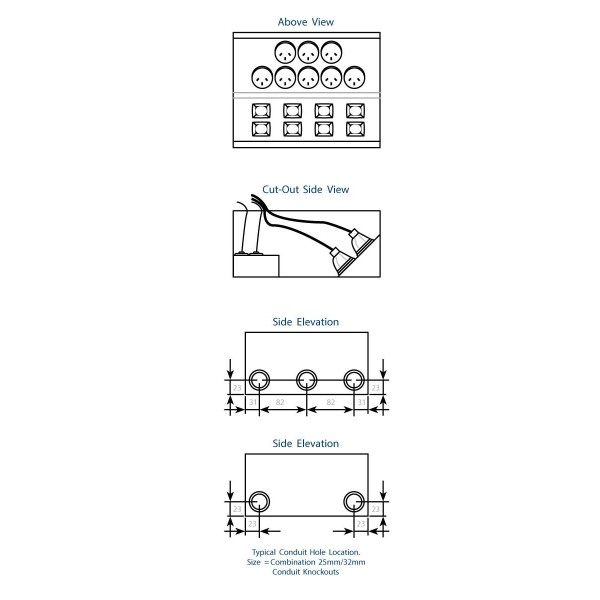

13 x combination 25/32mm conduit knockouts (10 side, 3 base)
8 x 10Amp Round Auto Switched GPOs (supplied)
8 x Single Data Outlet Clips (supplied)

Typical Applications

Commercial offices & open plan workspaces	Conference rooms & boardrooms
Retail & showroom fit-outs	Hospitality & hotels
Educational facilities	Residential installations

Ordering Information

Part Number	FOBBRF3STDO-SE
Series	FFOB-250B Flush Lid Floor Box (Flush Edge Brass, 8 x GPO + 8 x Data)
Block-out in Concrete Slab	248 x 247 x 120mm nominal
Warranty	Manufacturer's warranty
