FOBSSF8P8D-SE - FFOB-250/8P8D 8 x AUTO SWITCHED GPO + 8 GANG DATA

FOBSSF8P8D-SE - FFOB-250/8P8D 8 x AUTO SWITCHED GPO + 8 GANG DATA

Complete with Stainless Steel 14mm Recessed Lid, 8 x Auto Switched Outlets, and 8 X Data Provisions.

FOBSSF8P8D-SE


Secure Payments are easier than ever! Stripe's payment solutions



Delivery Option’s, you choose from our list of delivery partners



Manufactures warranty on all Cableaway sold products.

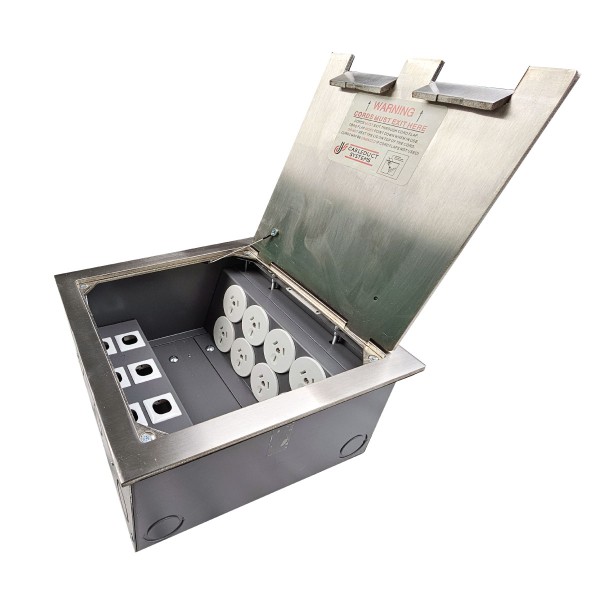

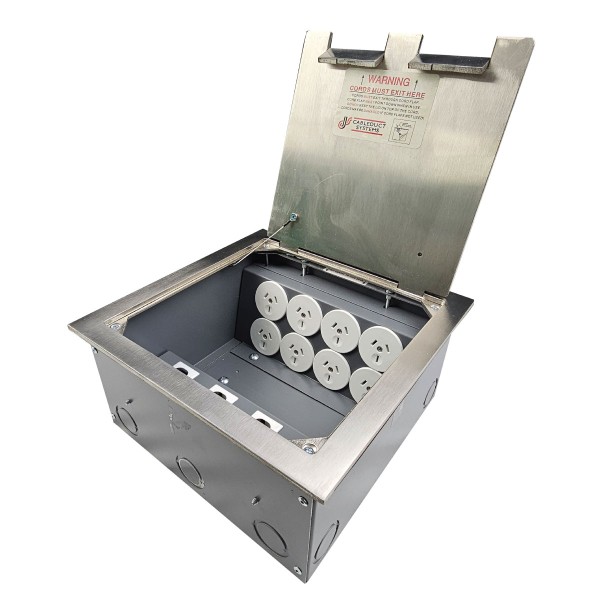

The FFOB-250/8P8D flush lid floor box features a hinged, 14mm recessed Stainless Steel lid for a tile or carpet insert, a Steel box body, and 8 x 10Amp Round Auto Switched GPOs plus 8 x Single Data Outlet Clips for high-capacity power and data connectivity.

Technical Specifications

Part Number FOBSSF8P8D-SE
Series FFOB-250/8P8D Flush Lid Floor Box
Lid Material Stainless Steel, Hinged, 14mm Recessed (Tile/Carpet Insert)
Body Material Steel
Outlet Configuration 8 x 10Amp Round Auto Switched GPOs + 8 x Single Data Outlet Clips

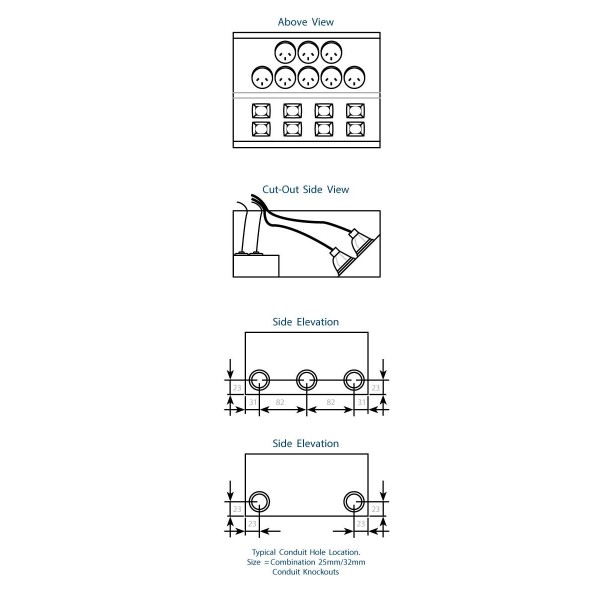

Conduit Entry 13 x Combination 25/32mm Knockouts (10 side, 3 base)
Weight 5.0 kg (approx.)

Dimensions

Lid Size
245 x 245 mm
Box Body
228 x 227 x 110 mm
Block-out (Slab)
248 x 247 x 120 mm
Cut-out (Raised Floor)
230 x 229 mm

Key Features

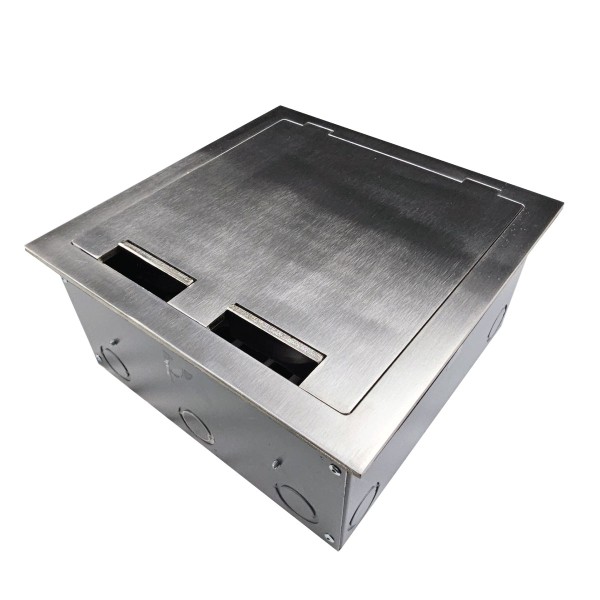

  • Hinged, Stainless Steel lid (245 x 245mm) with 14mm recessed insert for tile or carpet, screw-fixes to the steel box body

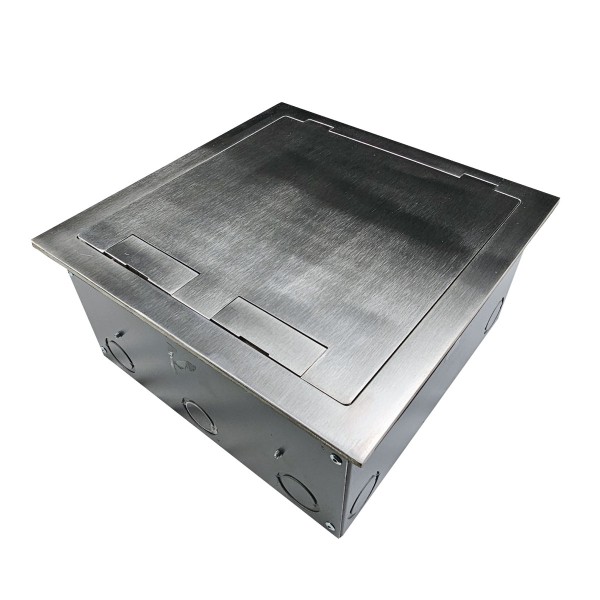

  • 2 x cord exit flaps allow cords out with the main cover closed

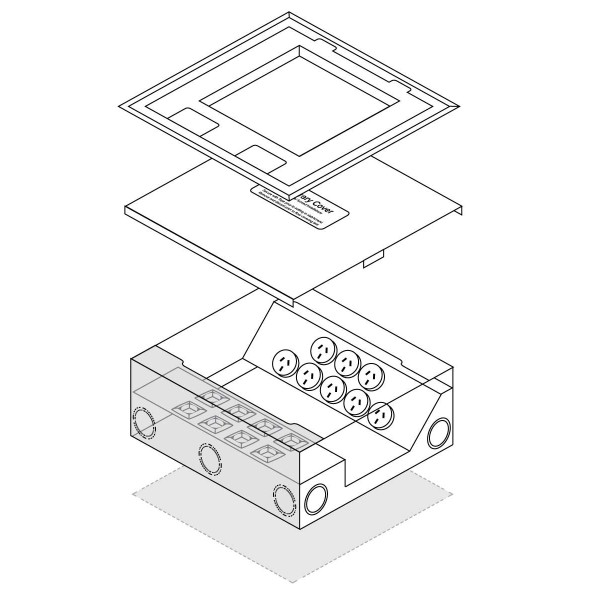

  • Temporary cover secures to the body during the concrete pour to prevent ingress of slurry
  • Steel box body, 228 x 227 x 110mm nominal depth
  • 13 x combination 25/32mm conduit knockouts (10 side, 3 base)
  • 8 x 10Amp Round Auto Switched GPOs (supplied)
  • 8 x Single Data Outlet Clips (supplied)

Typical Applications

Commercial offices & open plan workspaces
Conference rooms & boardrooms
Retail & showroom fit-outs
Hospitality & hotels
Educational facilities
Residential installations

Ordering Information

FOBSSF8P8D-SE FFOB-250/8P8D Flush Lid Floor Box, Stainless Steel 14mm Recessed, 8 x Auto Switched GPO + 8 x Data
FOBSSF8P8D-SE
