FOBSSR3STDO-SE - FFOB-250 1 x QUAD GPO + 12 GANG DATA

Name: FOBSSR3STDO-SE - FFOB-250 1 x QUAD GPO + 12 GANG DATA
Brand: Cableduct Systems
SKU: FOBSSR3STDO-SE

Complete with Stainless Steel 14mm Recessed Lid, Provision for 1 x QGPO or DGPO and Upto 12 Data.

Reference: FOBSSR3STDO-SE

Secure Payments are easier than ever! Stripe's payment solutions

Delivery Option’s, you choose from our list of delivery partners

Manufactures warranty on all Cableaway sold products.

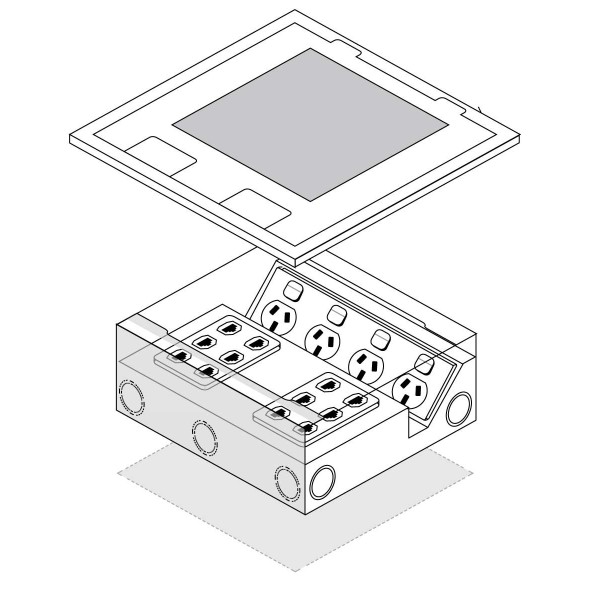

The FFOB-250 recessed lid floor box features a 14mm Stainless Steel hinged recessed lid, a Steel box body, and provisions for 1 x Quad GPO or Double GPO plus 12 x Data outlets, with brackets suited to Clipsal 2000 Series outlets.

Technical Specifications

Part Number	FOBSSR3STDO-SE
Series	FFOB-250 Recessed Lid Floor Box
Lid Material	Stainless Steel Hinged Lid, 14mm Recessed (245 x 245mm)
Body Material	Steel
Outlet Configuration	1 x Quad GPO or Double GPO Provision + 12 x Data Provisions
Conduit Entry	13 x Combination 25/32mm Knockouts (10 side, 3 base)
Weight	5.0 kg (approx.)

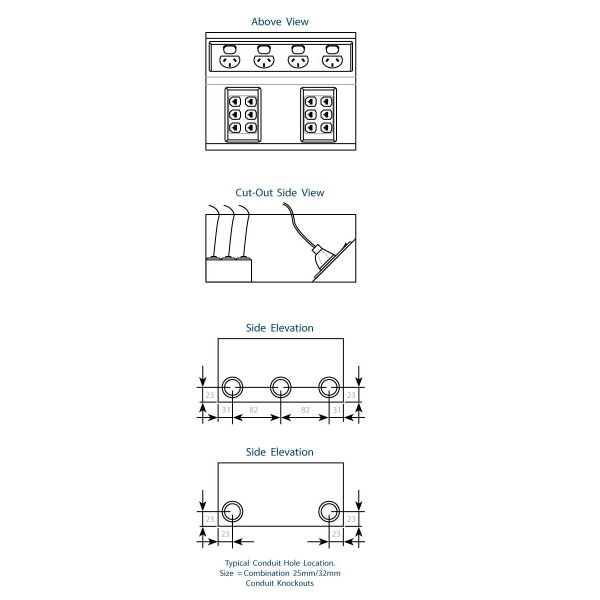

Dimensions

Box Body 228 x 227 x 110 mm	Block-out (Slab) 248 x 247 x 125 mm
Cut-out (Raised Floor) 230 x 229 mm

Key Features

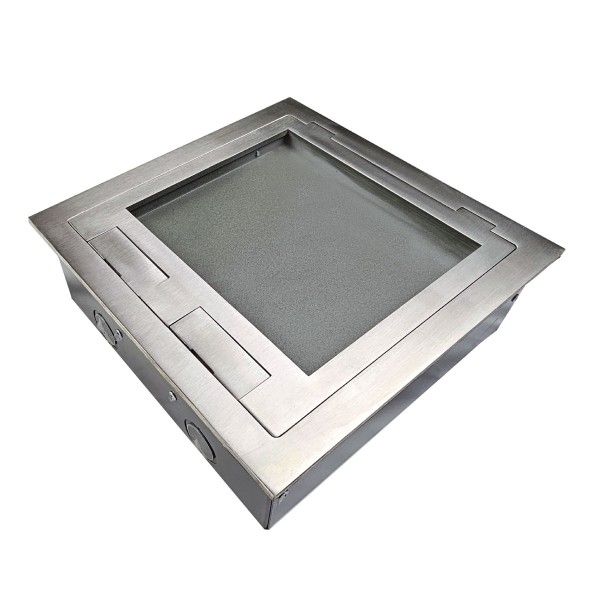

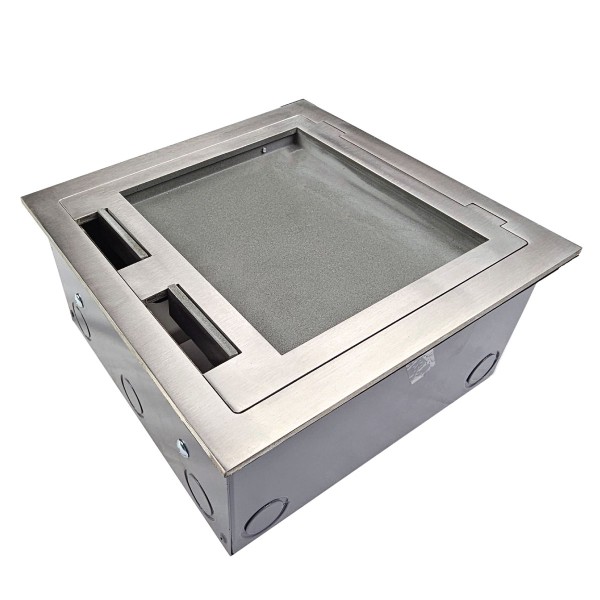

Stainless Steel hinged lid (245 x 245mm, 14mm recessed rebate) screw-fixes to the steel box body

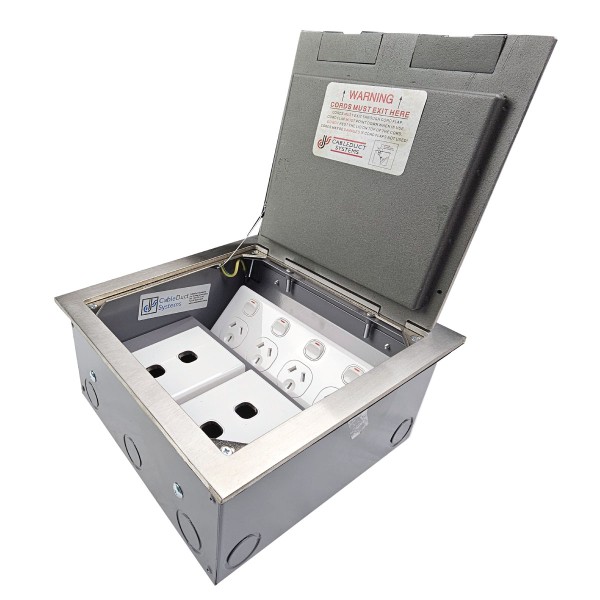

2 x cord exit flaps allow cords out with the main cover closed

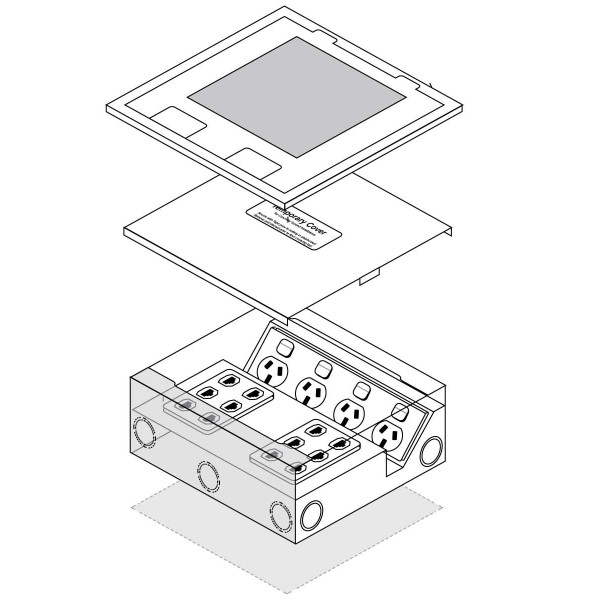

Temporary cover secures to the body during the concrete pour to prevent ingress of slurry
Steel box body, 228 x 227 x 110mm nominal depth
13 x combination 25/32mm conduit knockouts (10 on the outside of the box, 3 on the base)
Outlet bracket to suit 1 x Clipsal 2000 Gangbusters Series style Power/Data/AV outlet
Outlet bracket to suit 2 x Clipsal 2000 Series style Power/Data/AV outlets

Typical Applications

Commercial offices & open plan workspaces	Conference rooms & boardrooms
Retail & showroom fit-outs	Hospitality & hotels
Educational facilities	Residential installations

Ordering Information

Part Number	FOBSSR3STDO-SE
Series	FFOB-250 Recessed Lid Floor Box, Stainless Steel, 1 x Quad/Double GPO + 12 x Data

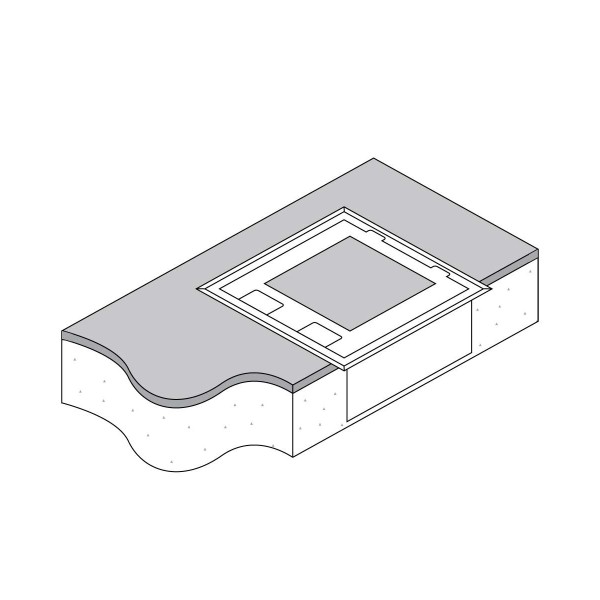

Block-out in Concrete Slab	248 x 247 x 125mm nominal
Warranty	Manufacturer's warranty
