FOBBRF3STDO-SE - FFOB-255B 1 x QUAD GPO + 12 GANG DATA

Name: FOBBRF3STDO-SE - FFOB-255B 1 x QUAD GPO + 12 GANG DATA
Brand: Cableduct Systems
SKU: FOBBRF3STDO-SE

Complete with Brass Flush Lid, Provision 1 x QGPO or DGPO, and 12 x Data, Square Edge Lid.

Reference: FOBBRF3STDO-SE

Secure Payments are easier than ever! Stripe's payment solutions

Delivery Option’s, you choose from our list of delivery partners

Manufactures warranty on all Cableaway sold products.

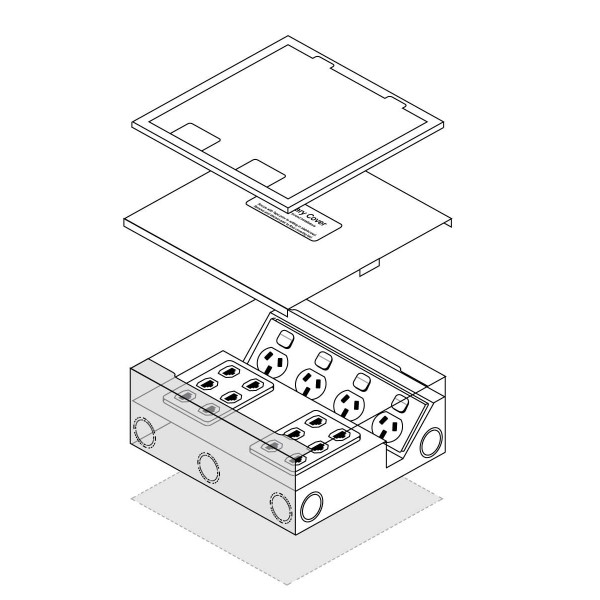

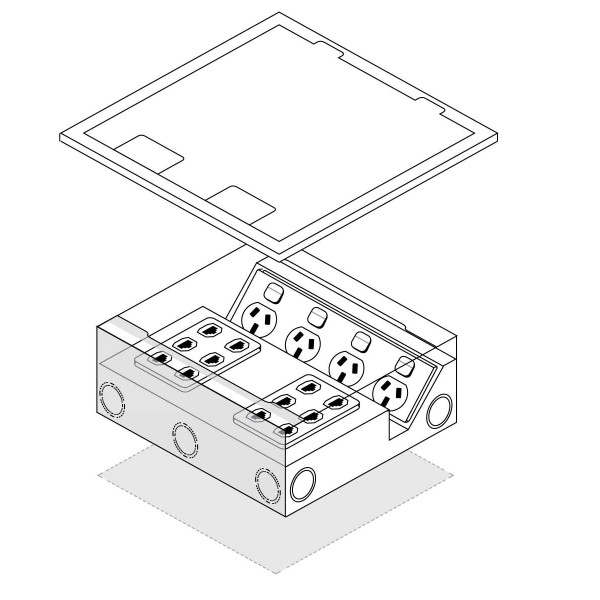

The FFOB-255B flush lid floor box features a hinged, square edge Brass lid, a Steel box body, and an outlet bracket to suit 3 x Standard or Gangbusters Series style Power/Data/AV outlets, with provision for 1 x Quad GPO or DGPO plus up to 12 x Data.

Technical Specifications

Part Number	FOBBRF3STDO-SE
Series	FFOB-255B Flush Lid Floor Box
Lid Material	Brass, Hinged, Square Edge
Body Material	Steel
Outlet Configuration	Outlet Bracket to suit 3 x Standard or Gangbusters Series Power/Data/AV Outlets (1 x Quad GPO or DGPO + up to 12 x Data)

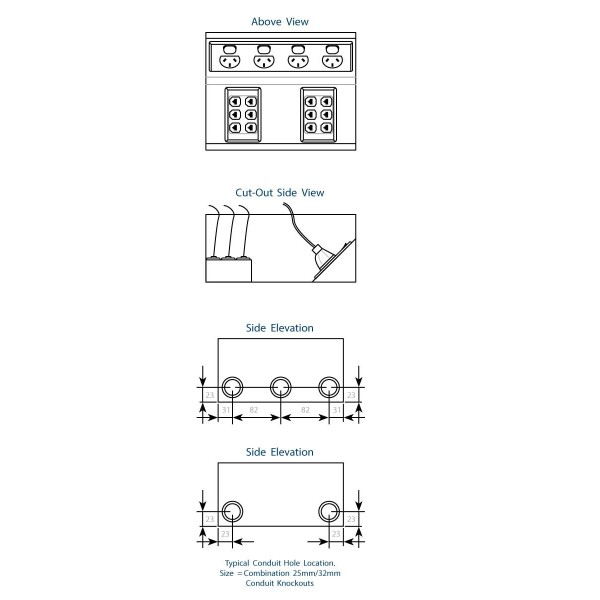

Conduit Entry	13 x Combination 25/32mm Knockouts (10 side, 3 base)
Weight	5.0 kg (approx.)

Dimensions

Lid Size 245 x 245 mm	Box Body 228 x 227 x 110 mm
Block-out (Slab) 248 x 247 x 125 mm	Cut-out (Raised Floor) 230 x 229 mm

Key Features

Hinged, square edge Brass lid (245 x 245mm) screw-fixes to the steel box body
2 x cord exit flaps allow cords out with the main cover closed

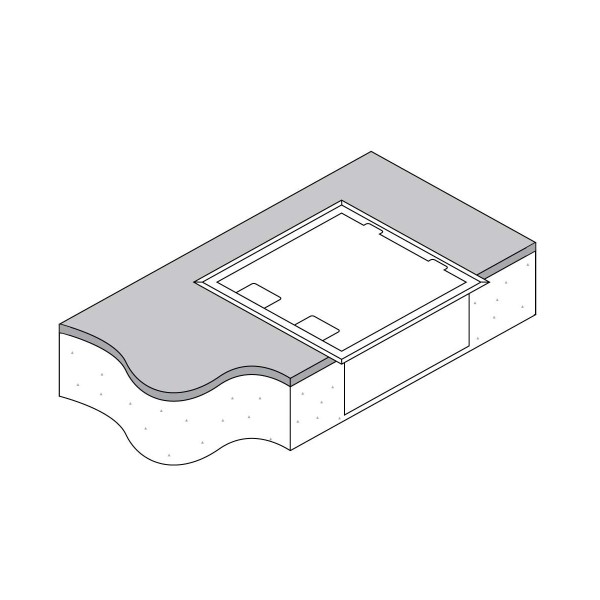

Temporary cover secures to the body during the concrete pour to prevent ingress of slurry
Steel box body, 228 x 227 x 110mm nominal depth
13 x combination 25/32mm conduit knockouts (10 side, 3 base)
Outlet bracket to suit 3 x Standard or Gangbusters Series style Power/Data/AV outlets
Provision for 1 x Quad GPO or DGPO plus up to 12 x Data outlets

Typical Applications

Commercial offices & open plan workspaces	Conference rooms & boardrooms
Retail & showroom fit-outs	Hospitality & hotels
Educational facilities	Residential installations

Ordering Information

FOBBRF3STDO-SE

FFOB-255B Flush Lid Floor Box, Brass, 1 x Quad GPO/DGPO + up to 12 x Data
