FOBBRR4P5DS80-SE - FFOB-250B/80 4 x AUTO SWITCHED GPO + 5 GANG DATA

Name: FOBBRR4P5DS80-SE - FFOB-250B/80 4 x AUTO SWITCHED GPO + 5 GANG DATA
Brand: Cableduct Systems
SKU: FOBBRR4P5DS80-SE

Complete with Brass 14mm Recessed lid, 4 x Auto Switched Outlets, 5 x Data Provisions, Square Edge Lid.

Reference: FOBBRR4P5DS80-SE

Secure Payments are easier than ever! Stripe's payment solutions

Delivery Option’s, you choose from our list of delivery partners

Manufactures warranty on all Cableaway sold products.

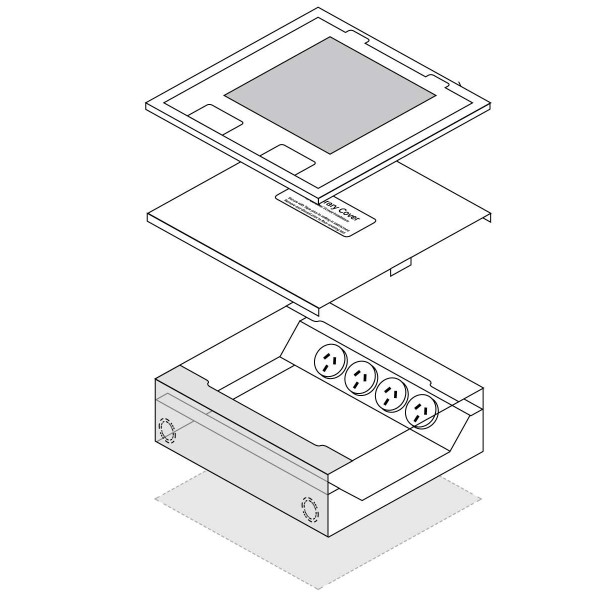

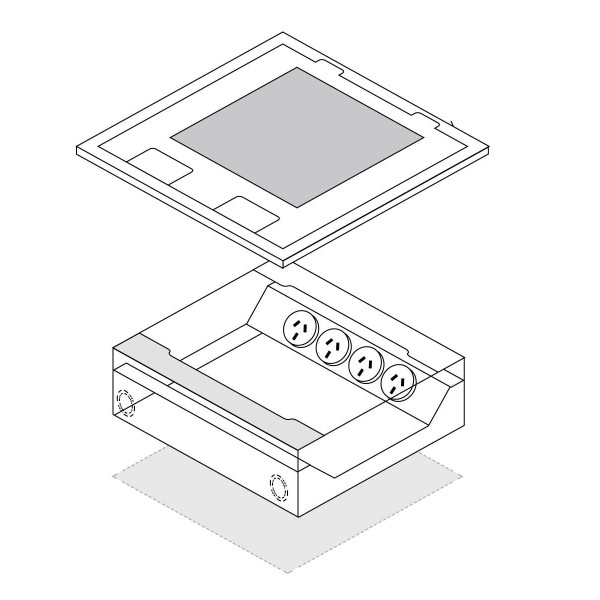

The FFOB-250B/80 recessed lid floor box features a 14mm Brass recessed lid, a Steel box body, and 4 x Auto Switched GPO Outlets plus 5 x Data Provisions.

Technical Specifications

Part Number	FOBBRR4P5DS80-SE
Series	FFOB-250B/80 Recessed Lid Floor Box
Lid Material	Brass, 14mm Recessed, Square Edge (245 x 245mm)
Body Material	Steel
Outlet Configuration	4 x 10 Amp Round Auto Switched Power Outlets + 5 x Data Outlet Clips

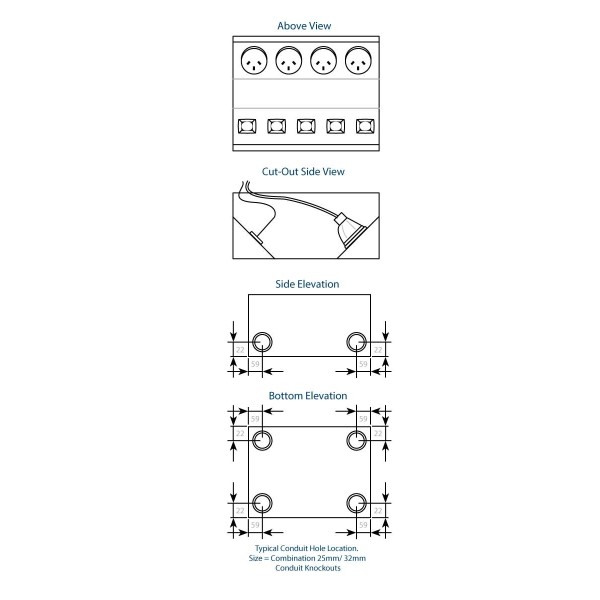

Conduit Entry	8 x Combination 25/32mm Knockouts (4 side, 4 base)
Weight	5.0 kg (approx.)

Dimensions

Box Body 230 x 227 x 79 mm	Block-out (Slab) 250 x 247 x 89 mm
Cut-out (Raised Floor) 232 x 229 mm

Key Features

Brass recessed lid (245 x 245mm, 14mm rebate, square edge) screw-fixes to the steel box body
2 x cord exit flaps allow cords out with the main cover closed

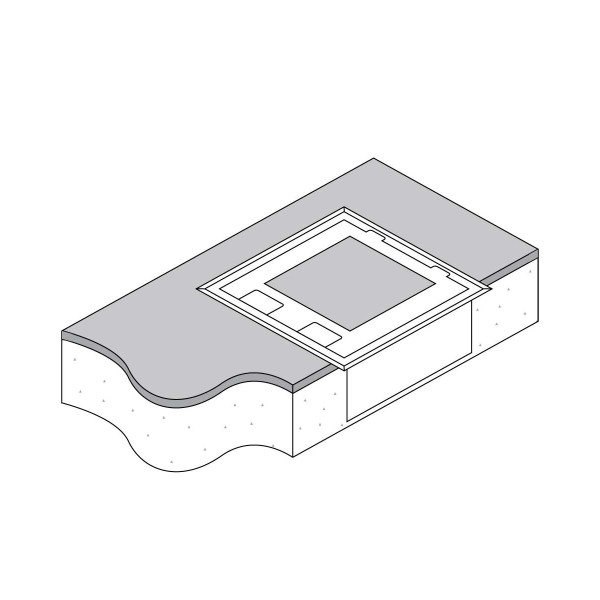

Temporary cover secures to the body during the concrete pour to prevent ingress of slurry
Steel box body, 230 x 227 x 79mm nominal depth
8 x combination 25/32mm conduit knockouts (4 on the outside of the box, 4 on the base)
4 x 10 Amp round auto switched power outlets
5 x single data outlet clips

Typical Applications

Commercial offices & open plan workspaces	Conference rooms & boardrooms
Retail & showroom fit-outs	Hospitality & hotels
Educational facilities	Residential installations

Ordering Information

Part Number	FOBBRR4P5DS80-SE
Series	FFOB-250B/80 Recessed Lid Floor Box, Brass, 4 x Auto Switched GPO + 5 x Data
Block-out in Concrete Slab	250 x 247 x 89mm nominal
Warranty	Manufacturer's warranty
