FOBSSR4P5DS80-SE - FFOB-255/80 4 x AUTO SWITCHED GPO + 5 GANG DATA

FOBSSR4P5DS80-SE - FFOB-250/80 4 x AUTO SWITCHED GPO + 5 GANG DATA

Name: FOBSSR4P5DS80-SE - FFOB-250/80 4 x AUTO SWITCHED GPO + 5 GANG DATA
Brand: Cableduct Systems
SKU: FOBSSR4P5DS80-SE

Complete with Stainless Steel 14mm Recessed Lid, 4 X Auto Switched Outlets, and 5 X Data Provisions.

Reference: FOBSSR4P5DS80-SE

Secure Payments are easier than ever! Stripe's payment solutions

Delivery Option’s, you choose from our list of delivery partners

Manufactures warranty on all Cableaway sold products.

The FFOB-250/80 flush lid floor box features a hinged, 14mm recessed Stainless Steel lid for a tile or carpet insert, a Steel box body, and 4 x 10Amp Round Auto Switched GPOs plus 5 x Single Data Outlet Clips for power and data connectivity.

Technical Specifications

Part Number	FOBSSR4P5DS80-SE
Series	FFOB-250/80 Flush Lid Floor Box
Lid Material	Stainless Steel, Hinged, 14mm Recessed (Tile/Carpet Insert)
Body Material	Steel
Outlet Configuration	4 x 10Amp Round Auto Switched GPOs + 5 x Single Data Outlet Clips
Conduit Entry	8 x Combination 25/32mm Knockouts (4 side, 4 base)
Weight	5.0 kg (approx.)

Dimensions

Lid Size 245 x 245 mm	Box Body 230 x 227 x 79 mm

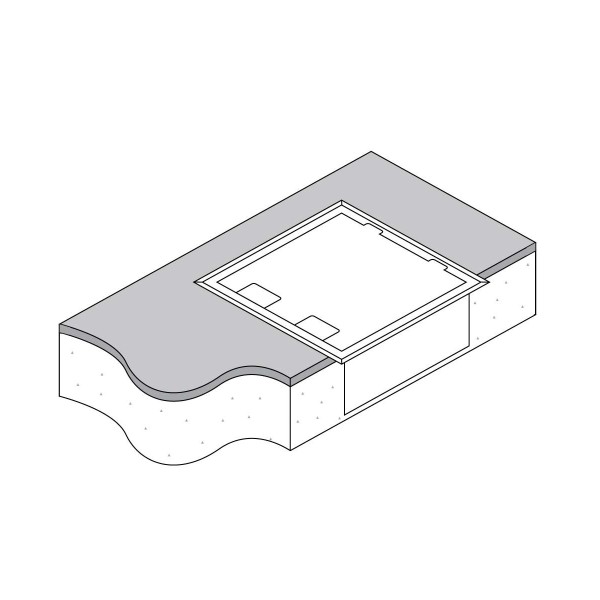

Block-out (Slab) 250 x 247 x 89 mm	Cut-out (Raised Floor) 232 x 229 mm

Key Features

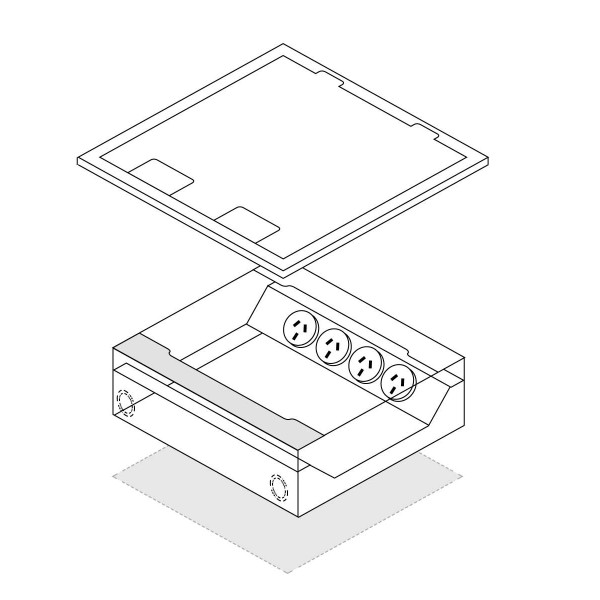

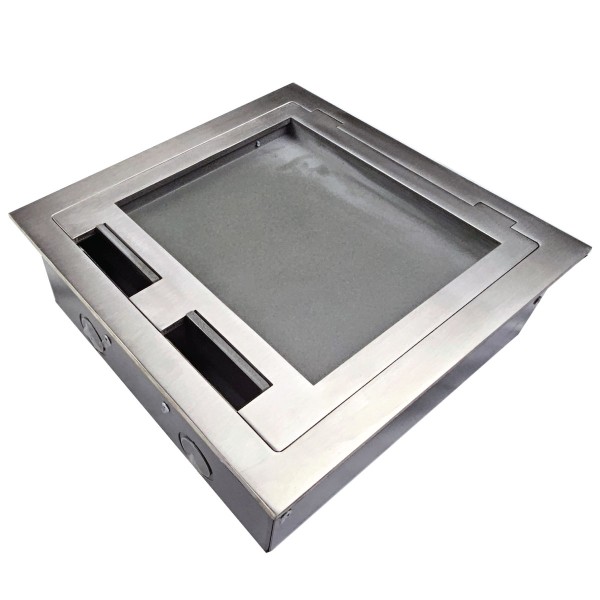

Hinged, Stainless Steel lid (245 x 245mm) with 14mm recessed insert for tile or carpet, screw-fixes to the steel box body

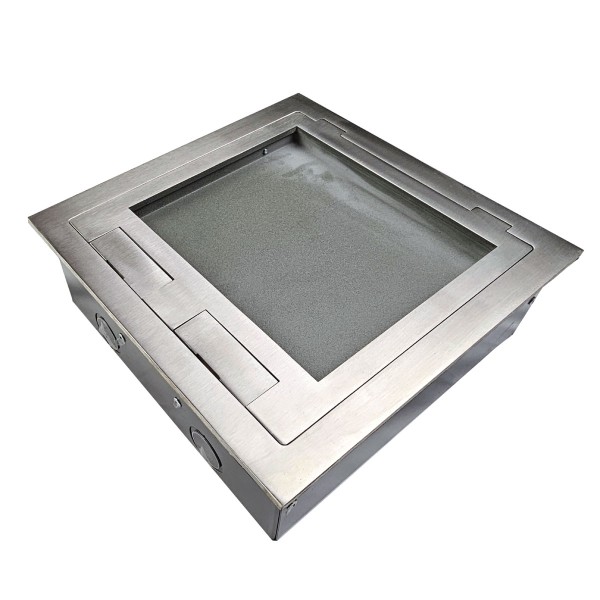

2 x cord exit flaps allow cords out with the main cover closed

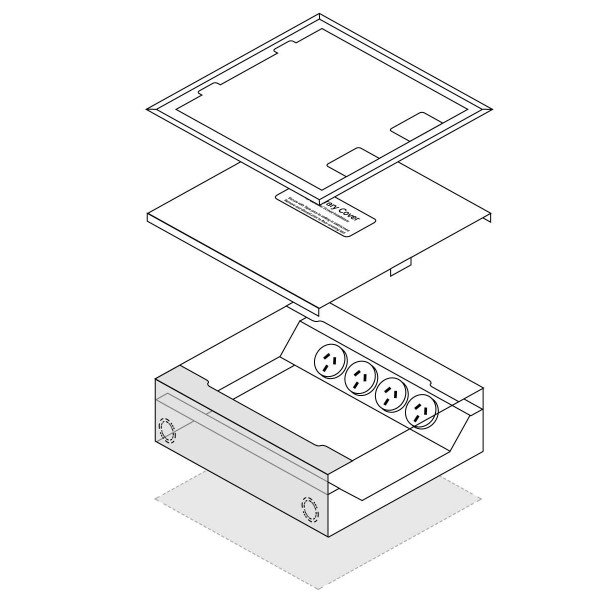

Temporary cover secures to the body during the concrete pour to prevent ingress of slurry
Steel box body, 230 x 227 x 79mm nominal depth

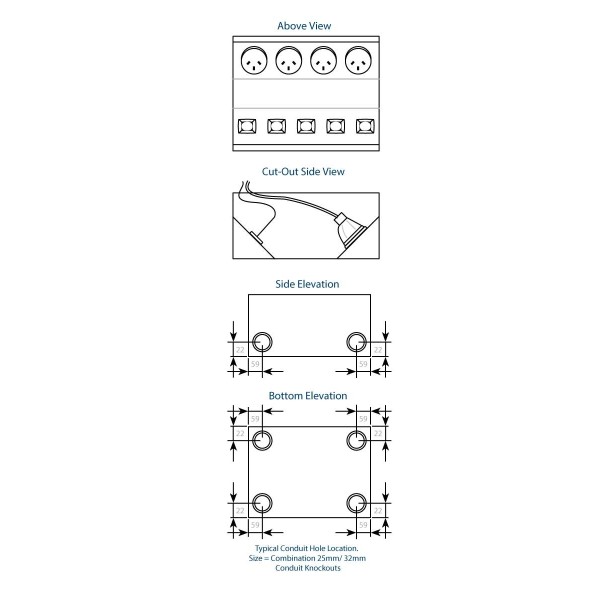

8 x combination 25/32mm conduit knockouts (4 side, 4 base)

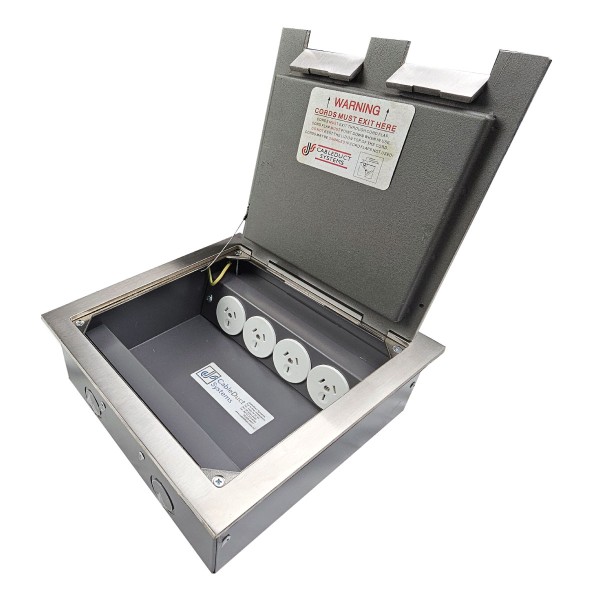

4 x 10Amp Round Auto Switched GPOs (supplied)
5 x Single Data Outlet Clips (supplied)

Typical Applications

Commercial offices & open plan workspaces	Conference rooms & boardrooms
Retail & showroom fit-outs	Hospitality & hotels
Educational facilities	Residential installations

Ordering Information

FOBSSR4P5DS80-SE

FFOB-250/80 Flush Lid Floor Box, Stainless Steel 14mm Recessed, 4 x Auto Switched GPO + 5 x Data
