FFOB-255/80 4 x AUTO SWITCHED GPO + 5 GANG DATA

FOBBRF4P5DS80-SE - FFOB-255B/80 4 x AUTO SWITCHED GPO + 5 GANG DATA

Complete with Brass Flush Lid, 4 x Auto Switched Outlets, and Provision 5 x Data, 80mm Shallow Carcass.

FOBBRF4P5DS80-SE


Secure Payments are easier than ever! Stripe's payment solutions



Delivery Option’s, you choose from our list of delivery partners



Manufactures warranty on all Cableaway sold products.

The FFOB-255B/80 flush lid floor box features a hinged Brass lid, a Steel box body, and 4 x 10Amp Round Auto Switched GPOs plus 5 x Single Data Outlet Clips for power and data connectivity.

Technical Specifications

Part Number FOBBRF4P5DS80-SE
Series FFOB-255B/80 Flush Lid Floor Box
Lid Material Brass, Hinged
Body Material Steel
Outlet Configuration 4 x 10Amp Round Auto Switched GPOs + 5 x Single Data Outlet Clips

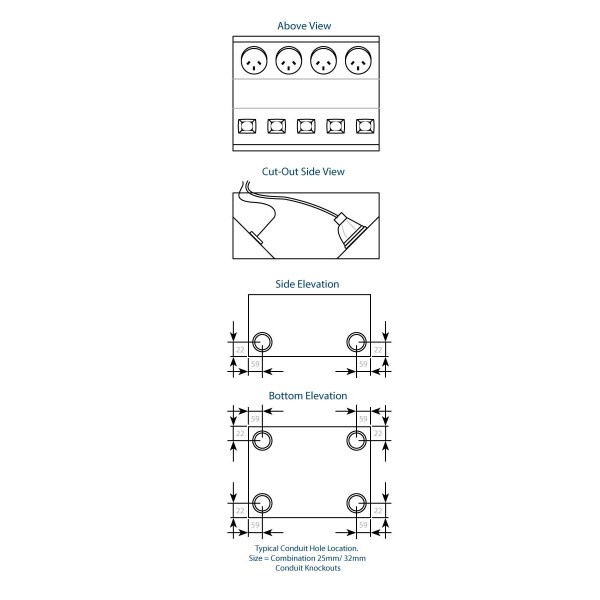

Conduit Entry 8 x Combination 25/32mm Knockouts (4 side, 4 base)
Weight 5.0 kg (approx.)

Dimensions

Lid Size
245 x 245 mm
Box Body
230 x 227 x 79 mm

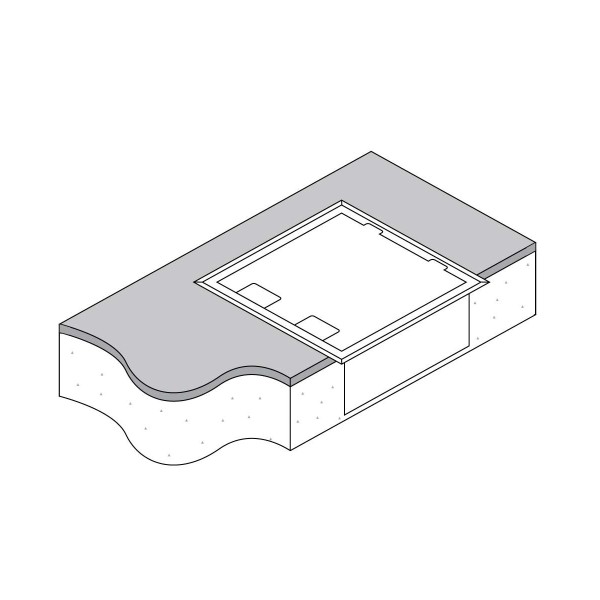

Block-out (Slab)
250 x 247 x 89 mm
Cut-out (Raised Floor)
232 x 229 mm

Key Features

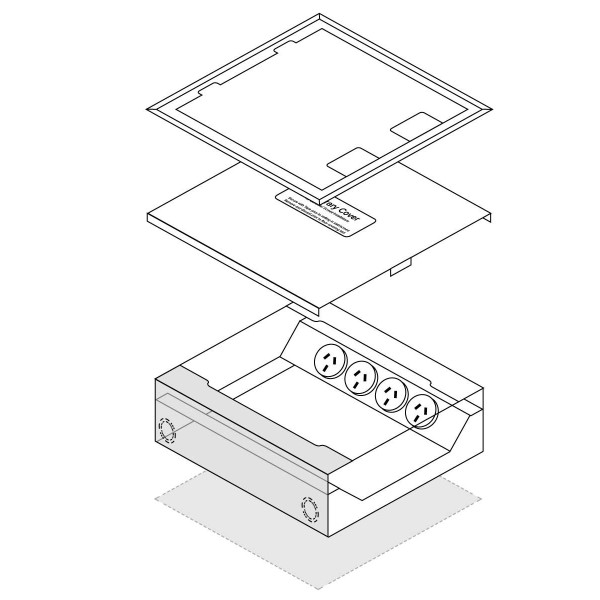

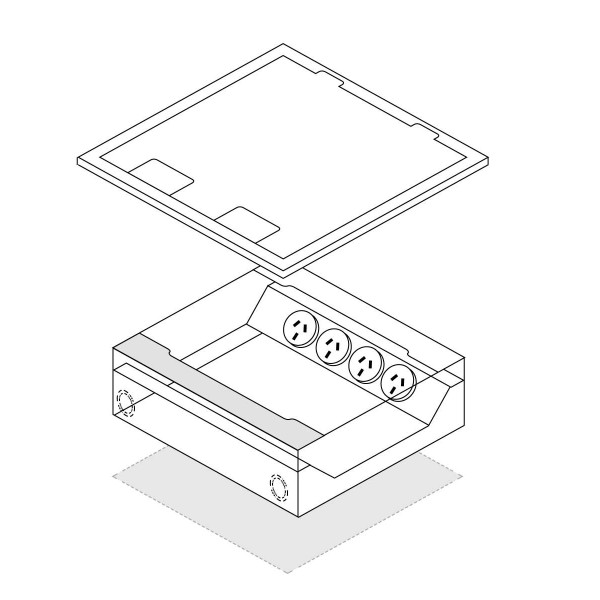

  • Hinged, Brass lid (245 x 245mm) screw-fixes to the steel box body
  • 2 x cord exit flaps allow cords out with the main cover closed
  • Temporary cover secures to the body during the concrete pour to prevent ingress of slurry
  • Steel box body, 230 x 227 x 79mm nominal depth
  • 8 x combination 25/32mm conduit knockouts (4 side, 4 base)
  • 4 x 10Amp Round Auto Switched GPOs (supplied)
  • 5 x Single Data Outlet Clips (supplied)

Typical Applications

Commercial offices & open plan workspaces
Conference rooms & boardrooms
Retail & showroom fit-outs
Hospitality & hotels
Educational facilities
Residential installations

Ordering Information

FOBBRF4P5DS80-SE FFOB-255B/80 Flush Lid Floor Box, Brass, 4 x Auto Switched GPO + 5 x Data
FOBBRF4P5DS80-SE
