FFOB-340 4 X DGPO Outlet 12 Single Data Outlets

FOBSSR6STDO - FFOB-340 4 X DGPO Outlet 12 Single Data Outlets

Complete with Stainless Steel 14mm Recessed Lid, Provisions 4 x Standard Outlets Power/Data/AV.

FOBSSR6STDO


Secure Payments are easier than ever! Stripe's payment solutions



Delivery Option’s, you choose from our list of delivery partners



Manufactures warranty on all Cableaway sold products.

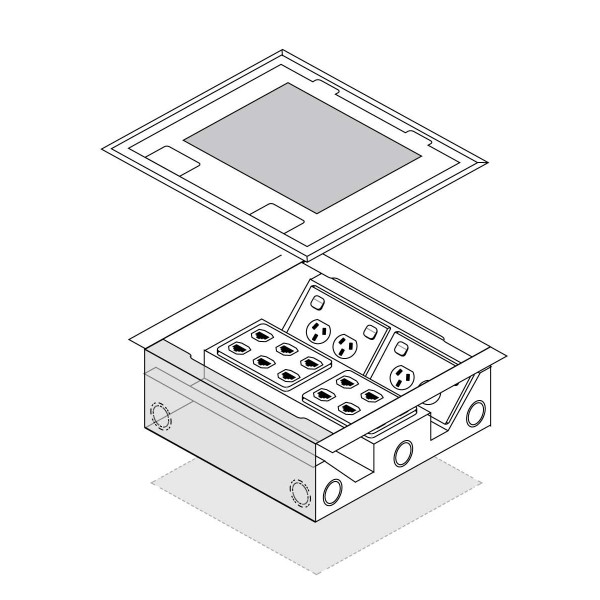

The FFOB-340 recessed lid floor box features a 14mm rebated Stainless Steel hinged lid, a Steel box body, and provisions for 4 x Double GPO Outlets plus 12 x Single Data Outlets.

Technical Specifications

Part Number FOBSSR6STDO
Series FFOB-340 Recessed Lid Floor Box
Lid Material Stainless Steel Hinged Lid, Rebated (241 x 340mm)
Body Material Steel
Outlet Configuration 4 x Double GPO Outlets + 12 x Single Data Outlets
Conduit Entry 10 x Combination 25/32mm Knockouts

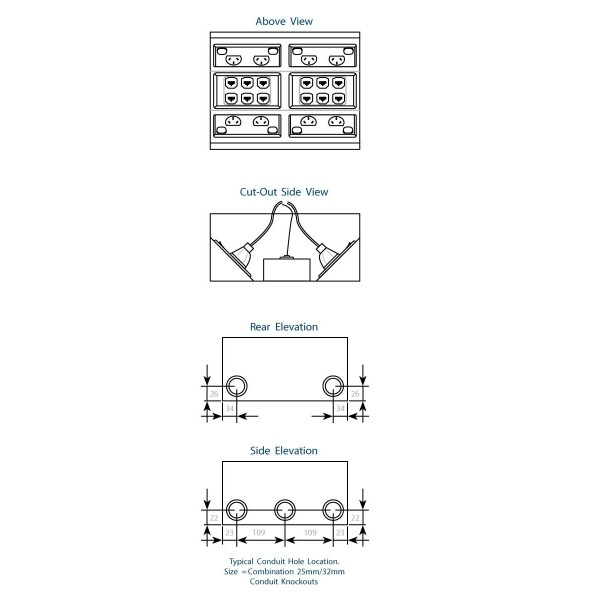

Dimensions

Box Body
322 x 265 x 110 mm

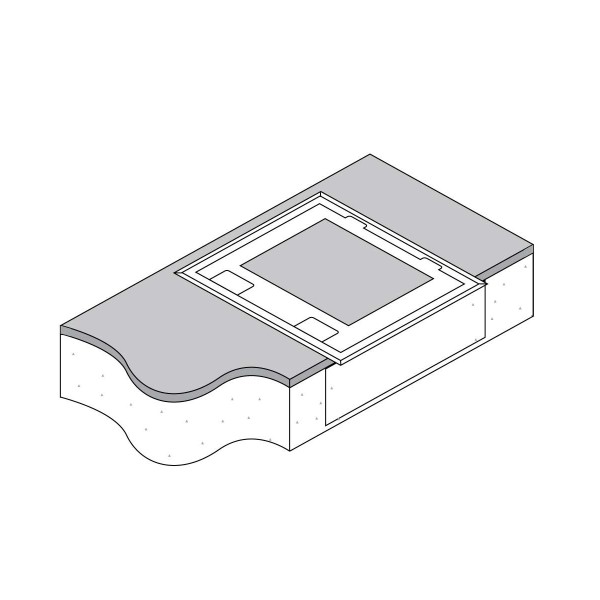

Block-out (Slab)
342 x 285 x 114 mm
Cut-out (Raised Floor)
324 x 267 mm

Key Features

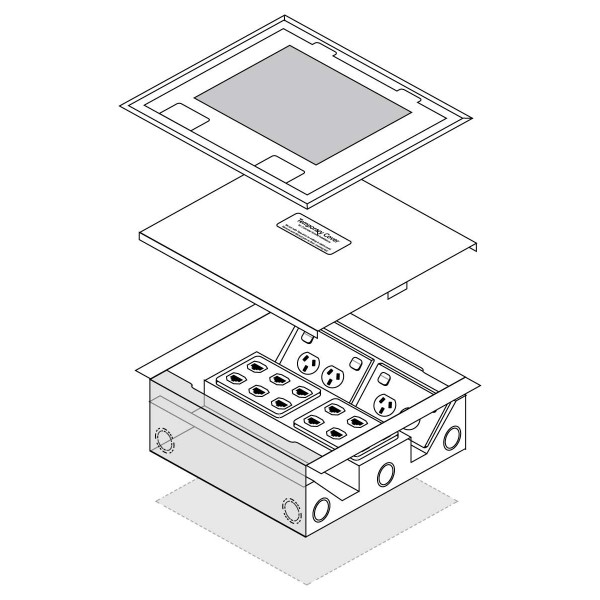

  • Stainless Steel hinged lid (241 x 340mm, rebated) screw-fixes to the steel box body
  • 2 x cord exit flaps allow cords out with the main cover closed
  • Temporary cover secures to the body during the concrete pour to prevent ingress of slurry
  • Steel box body, 322 x 265 x 110mm nominal depth
  • 10 x combination 25/32mm conduit knockouts
  • Outlet bracket to suit 6 x Clipsal 2000 Series style Power/Data/AV outlets
  • Provisions for 4 x Double GPO Outlets plus 12 x Single Data Outlets

Typical Applications

Commercial offices & open plan workspaces
Conference rooms & boardrooms
Retail & showroom fit-outs
Hospitality & hotels
Educational facilities
Residential installations

Ordering Information

Part Number FOBSSR6STDO
Series FFOB-340 Recessed Lid Floor Box, Stainless Steel, 4 x Double GPO + 12 x Data
Block-out in Concrete Slab 342 x 285 x 114mm nominal
Warranty Manufacturer's warranty
FOBSSR6STDO
