FFOB-340 2 X DGPO Outlet 12 Single Data Outlets

FOBSSR4STDO - FFOB-340/4P12D 4x STANDARD OUTLETS

Complete with Stainless Steel 14mm Recessed Lid, Provision for 4 x Standard Outlets.

FOBSSR4STDO


Secure Payments are easier than ever! Stripe's payment solutions



Delivery Option’s, you choose from our list of delivery partners



Manufactures warranty on all Cableaway sold products.

The FFOB-340/4P12D recessed lid floor box features a 14mm Stainless Steel hinged lid, a Steel box body, and an outlet bracket to suit 4 x Clipsal 2000 Series style Power/Data/AV outlets.

Technical Specifications

Part Number FOBSSR4STDO
Series FFOB-340/4P12D Recessed Lid Floor Box
Lid Material Stainless Steel Hinged Lid, 14mm Recessed (241 x 340mm)
Body Material Steel
Outlet Configuration 4 x Clipsal 2000 Series Style Power/Data/AV Outlets

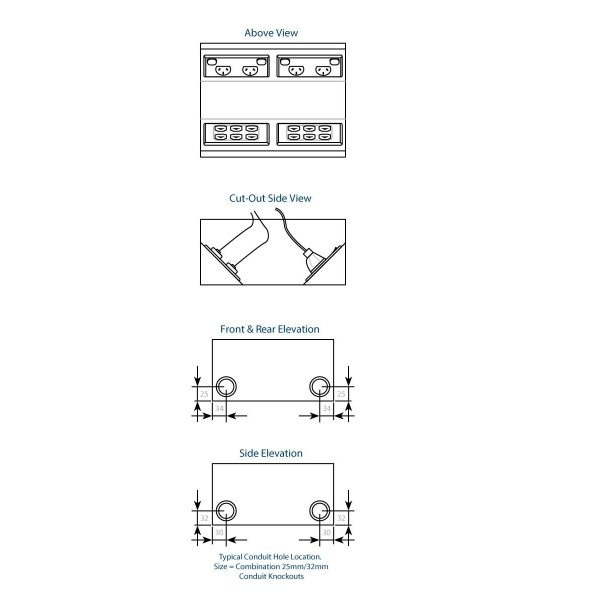

Conduit Entry 12 x 25mm Knockouts (2 per side, 4 base)

Dimensions

Box Body
320 x 220 x 108 mm

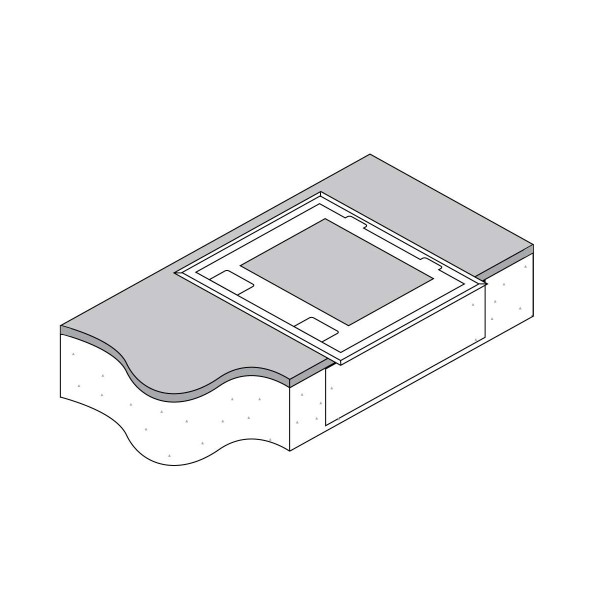

Block-out (Slab)
340 x 240 x 118 mm
Cut-out (Raised Floor)
322 x 222 mm

Key Features

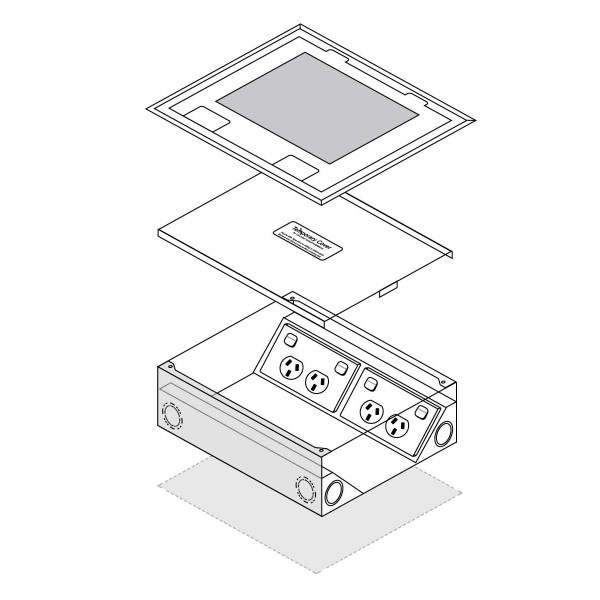

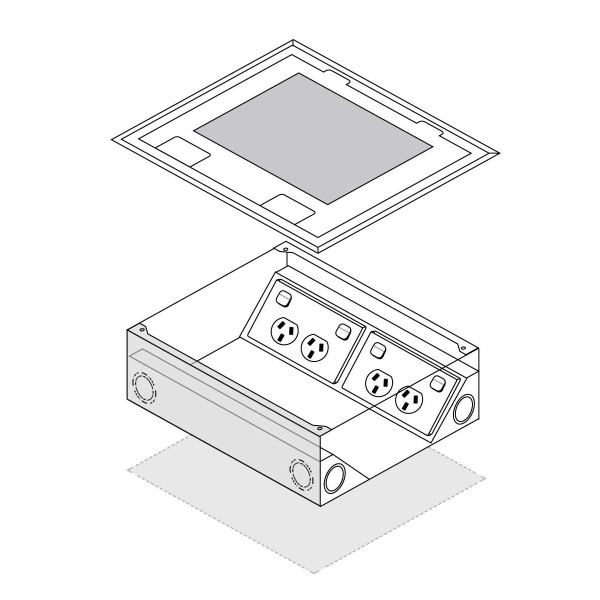

  • Stainless Steel hinged lid (241 x 340mm, 14mm recessed) screw-fixes to the steel box body
  • 2 x cord exit flaps allow cords out with the main cover closed
  • Temporary cover secures to the body during the concrete pour to prevent ingress of slurry
  • Steel box body, 320 x 220 x 108mm nominal depth
  • 12 x 25mm conduit knockouts (2 on each side of the box, 4 on the base)
  • Outlet bracket to suit 4 x Clipsal 2000 Series style Power/Data/AV outlets
  • Provisions for 4 x Standard Power/Data/AV Outlets

Typical Applications

Commercial offices & open plan workspaces
Conference rooms & boardrooms
Retail & showroom fit-outs
Hospitality & hotels
Educational facilities
Residential installations

Ordering Information

Part Number FOBSSR4STDO
Series FFOB-340/4P12D Recessed Lid Floor Box, Stainless Steel, 4 x Clipsal 2000 Series Outlets
Block-out in Concrete Slab 340 x 240 x 118mm nominal
Warranty Manufacturer's warranty
FOBSSR4STDO
