FFOB-340S 2 X DGPO Outlet 12 Single Data Outlets

FOBSSF4STDO - FFOB-340S/4P12D 4x STANDARD OUTLETS

Complete with Stainless Steel Flush Lid, Provision 4 x Standard Outlets.

FOBSSF4STDO


Secure Payments are easier than ever! Stripe's payment solutions



Delivery Option’s, you choose from our list of delivery partners



Manufactures warranty on all Cableaway sold products.

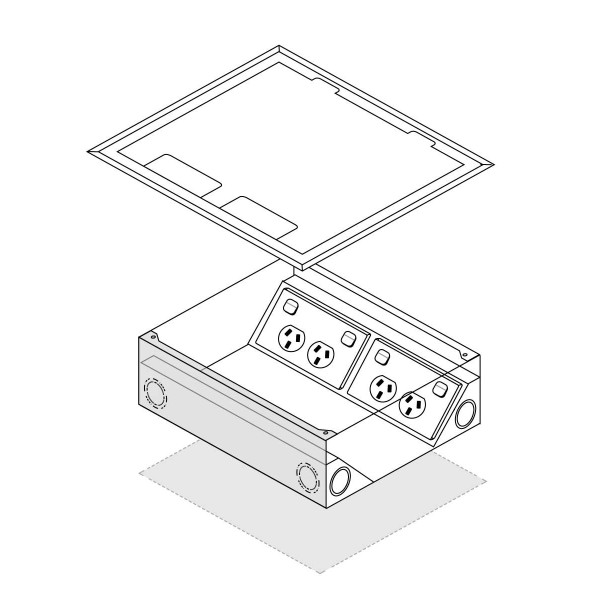

The FFOB-340S/4P12D flush lid floor box features a hinged Stainless Steel lid, a Steel box body, and an outlet bracket configuration provisioned with 4 x Standard Outlets.

Technical Specifications

Part Number FOBSSF4STDO
Series FFOB-340S/4P12D Flush Lid Floor Box
Lid Material Stainless Steel, Hinged
Body Material Steel
Outlet Configuration Outlet Bracket to suit 4 x Clipsal 2000 Series Power/Data/AV Outlets (4 x Standard Outlets)

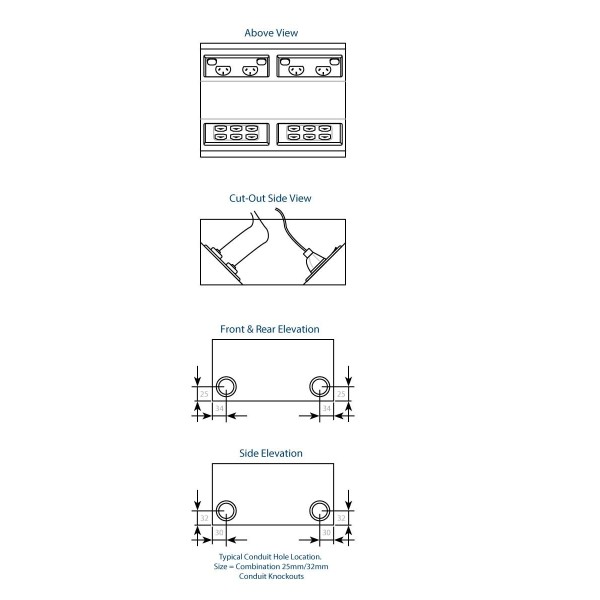

Conduit Entry 12 x 25mm Knockouts (2 each side, 4 on base)

Dimensions

Lid Size
241 x 340 mm
Box Body
320 x 220 x 108 mm

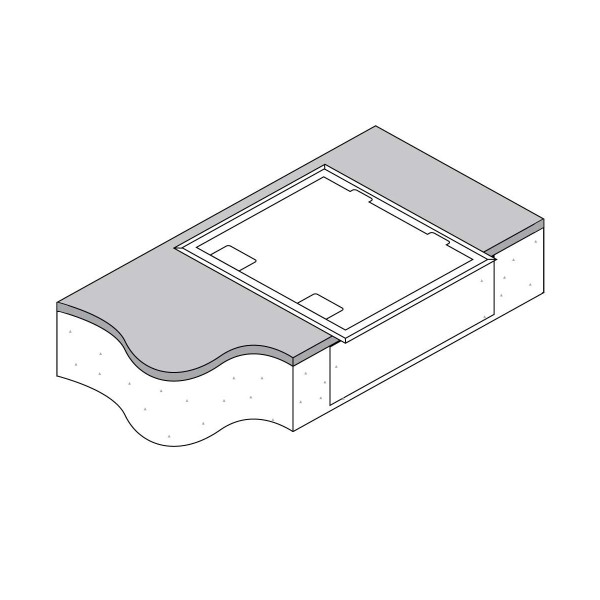

Block-out (Slab)
340 x 240 x 118 mm
Cut-out (Raised Floor)
322 x 222 mm

Key Features

  • Hinged, Stainless Steel lid (241 x 340mm) screw-fixes to the steel box body
  • 2 x cord exit flaps allow cords out with the main cover closed

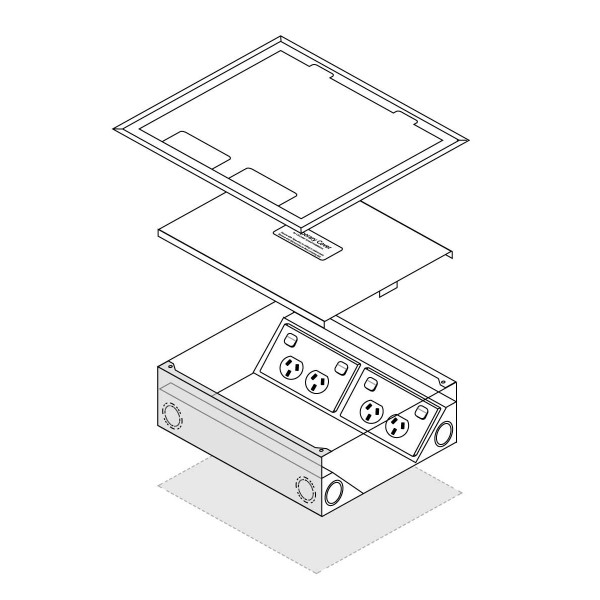

  • Temporary cover secures to the body during the concrete pour to prevent ingress of slurry
  • Steel box body, 320 x 220 x 108mm nominal depth
  • 12 x 25mm conduit knockouts (2 on each side of the box, 4 on the base)
  • Outlet bracket to suit 4 x Clipsal 2000 Series style Power/Data/AV outlets
  • 4 x Standard Outlets (supplied)

Typical Applications

Commercial offices & open plan workspaces
Conference rooms & boardrooms
Retail & showroom fit-outs
Hospitality & hotels
Educational facilities
Residential installations

Ordering Information

Part Number FOBSSF4STDO
Series FFOB-340S/4P12D Flush Lid Floor Box, Stainless Steel, 4 x Standard Outlets
Block-out in Concrete Slab 340 x 240 x 118mm nominal
Warranty Manufacturer's warranty
FOBSSF4STDO
