FOBPL6STDO - FFOB-538 4 X 10amp DGPO OUTLET 12 X SINGLE DATA

Name: FOBPL6STDO - FFOB-538 4 X 10amp DGPO OUTLET 12 X SINGLE DATA
Brand: Cableduct Systems
SKU: FOBPL6STDO

Complete with Moulded Polyamide Lid, Provisions 4 x Double GPO Outlet, and 12 x Data.

Reference: FOBPL6STDO

Secure Payments are easier than ever! Stripe's payment solutions

Delivery Option’s, you choose from our list of delivery partners

Manufactures warranty on all Cableaway sold products.

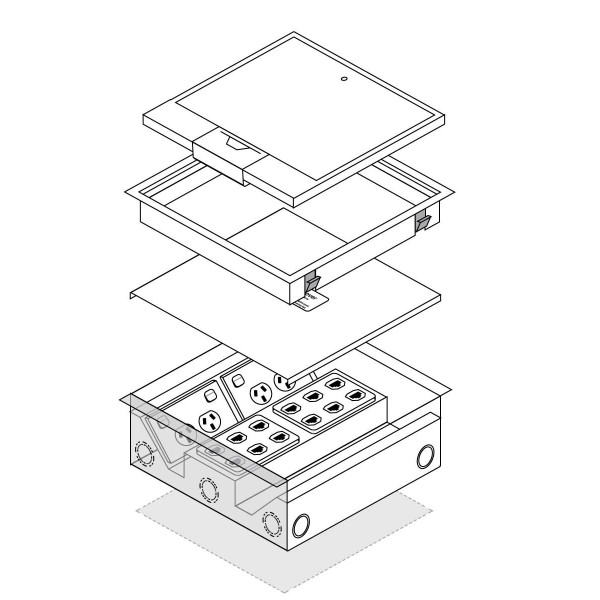

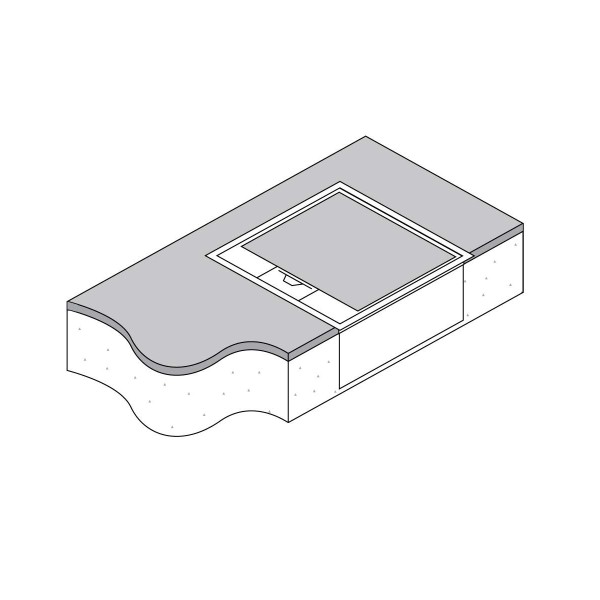

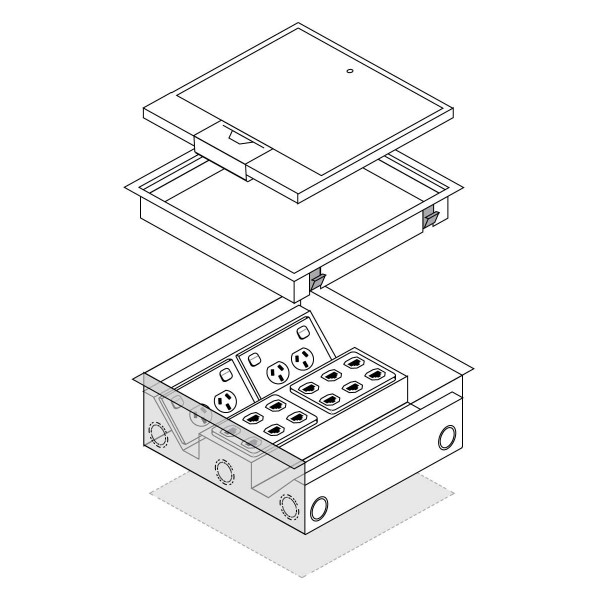

The FOBPL6STDO is a flush concrete floor outlet box from the Electraplan Series, fitted with a moulded polyamide lid and frame and configured with 4 x 10A DGPO power outlets and 12 x single data outlets. The lid includes an 8mm carpet recess for a flush, finished look, with a cord exit flap featuring dust guards and a recessed handle.

Technical Specifications

Part Number	FOBPL6STDO
Series	Electraplan Series Floor Boxes
Lid Material	Moulded Polyamide with Steel Insert Plate
Frame Material	Moulded Polyamide, Protective Side Edges
Body Material	Steel
Outlet Configuration	4 x 10A DGPO + 12 x Single Data

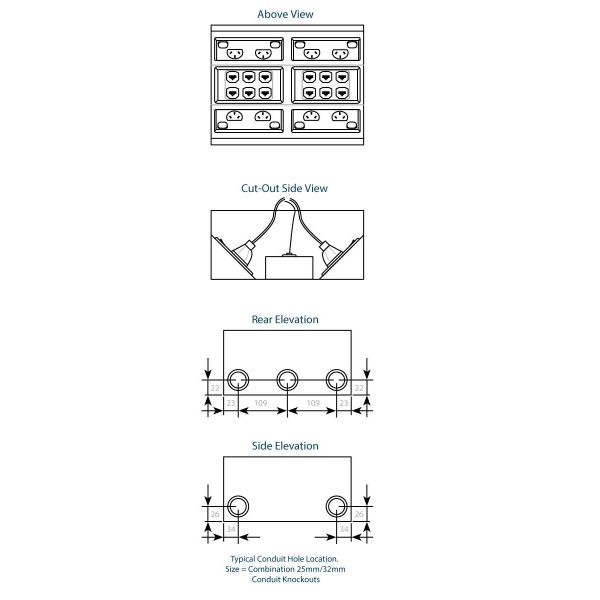

Conduit Entry	10 x Combination 25mm/32mm Knockouts (Side)
Weight	5.4 kg (approx.)

Dimensions

Frame Dims 265 × 310 mm	Body Dims 260 × 295 × 110 mm
Block-out (Slab) 280 × 315 × 120 mm	Carpet Recess 8 mm

Key Features

● Moulded polyamide lid with steel insert plate for added strength
● 8mm carpet recess for a flush, finished look
● Cord exit flap with dust guards and a recessed handle
● Protective frame side edges, secured to the body with fixing clamps
● Temporary lid protects the box during the concrete pour, preventing ingress of slurry
● 10 x combination 25mm/32mm conduit knockouts, all on the side of the box
● Outlet brackets configured for 4 x 10A DGPO power outlets and 12 x single data outlets

Typical Applications

Commercial offices & open plan workspaces	Conference rooms & boardrooms
Retail & showroom fit-outs	Hospitality & hotels
Educational facilities	Residential installations

Ordering Information

Part Number	FOBPL6STDO
Series	Electraplan Series Floor Boxes (Concrete Floor Box, 4 x Power + 12 x Data)
Warranty	Manufacturer's warranty
