FOBCCA2STDO - FFOB-560 ROUND CARCASS 1 X QUADGPO 6 X SINGLE DATA

Name: FOBCCA2STDO - FFOB-560 ROUND CARCASS 1 X QUADGPO 6 X SINGLE DATA
Brand: Cableduct Systems
SKU: FOBCCA2STDO

Complete with Cast Alloy 5mm Recess Lid, Provision 1 x QGPO or DGPO, and Up to 6 Data. Round Lid & Carcass.

Reference: FOBCCA2STDO

Secure Payments are easier than ever! Stripe's payment solutions

Delivery Option’s, you choose from our list of delivery partners

Manufactures warranty on all Cableaway sold products.

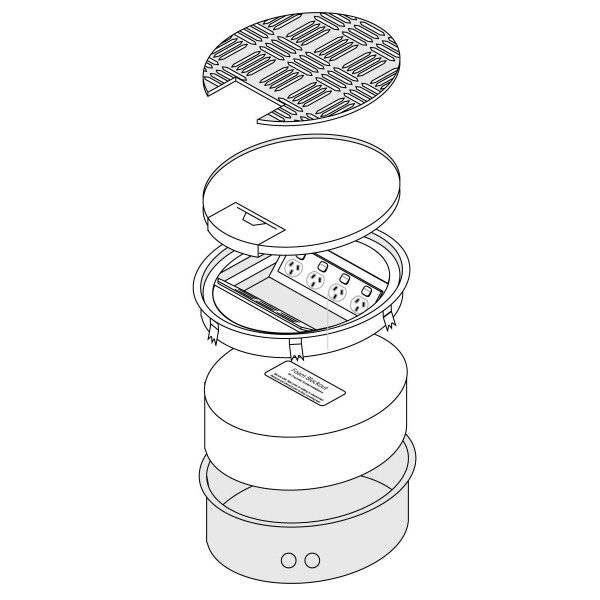

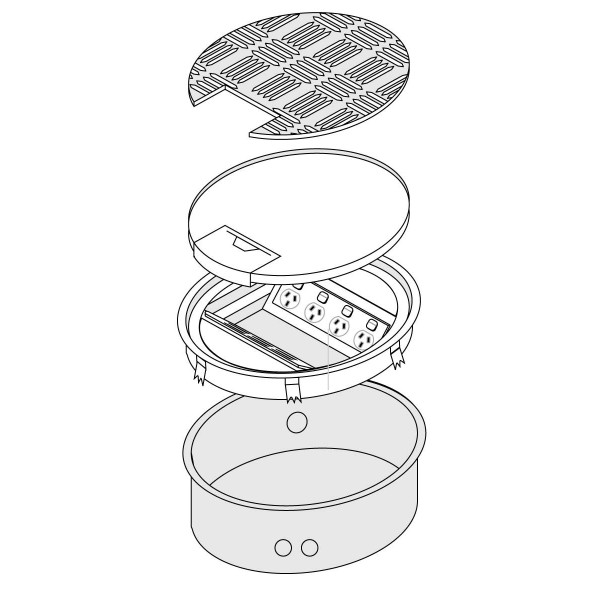

The FOBCCA2STDO is a round cast alloy floor outlet box from the Electraplan Series, fitted with a cast alloy lid and frame and configured with 1 x Quad GPO or DGPO power outlet and up to 6 x single data outlets. The lid features a 5mm rebate and hinges to the frame assembly, with an optional slip-resistant lid infill available in Satin Silver or Black/Silver Highlight.

Technical Specifications

Part Number	FOBCCA2STDO
Series	Electraplan Series Floor Boxes
Lid Material	Cast Alloy, 5mm Rebate
Lid Finish Options	Satin Silver or Black/Silver Highlight
Frame Material	Cast Alloy, 10mm Protective Side Edge
Body Material	Aluminium Canister
Outlet Configuration	1 x Quad GPO / DGPO + 6 x Single Data

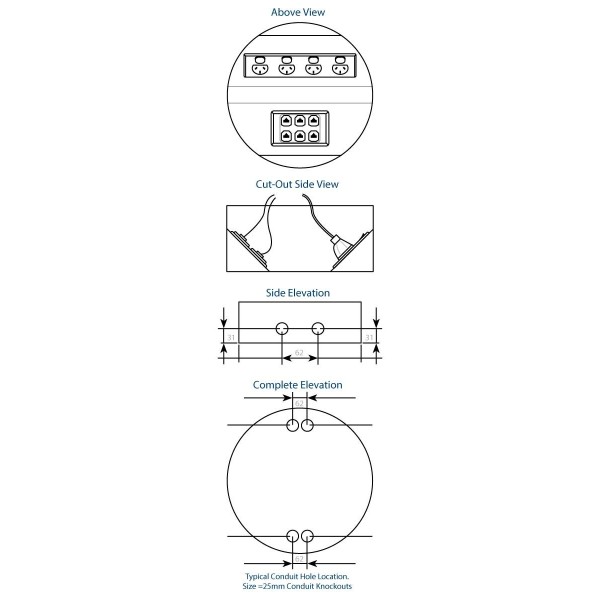

Conduit Entry	4 x 25mm Knockouts
Weight	2.2 kg (approx.)

Dimensions

Frame Diameter 260 mm	Canister Diameter 245 mm
Canister Depth 100 mm	Lid Rebate 5 mm

Key Features

● Optional cast alloy lid infill with slip-resistant tread, in Satin Silver or Black/Silver Highlight
● Cast alloy lid with 5mm rebate, hinges to the frame assembly
● Cast alloy frame assembly with 10mm protective side edge, 260mm diameter
● Aluminium canister, 245mm diameter x 100mm deep
● 4 x 25mm conduit knockouts for cable entry
● Foam blockout insert included, for use during the concrete pour only
● Outlet bracket configured for 1 x Quad GPO / DGPO power outlet and up to 6 x single data outlets

Typical Applications

Commercial offices & open plan workspaces	Conference rooms & boardrooms
Retail & showroom fit-outs	Hospitality & hotels
Educational facilities	Residential installations

Ordering Information

Part Number	FOBCCA2STDO
Series	Electraplan Series Floor Boxes (Round Floor Box, 1 x Power + 6 x Data)
Warranty	Manufacturer's warranty
