FOBPL4STDO - FFOB-568 4 x DGPO POWER OUTLETS

Name: FOBPL4STDO - FFOB-568 4 x DGPO POWER OUTLETS
Brand: Cableduct Systems
SKU: FOBPL4STDO

Complete with an 8mm Recessed Molded Polyamide Lid, Provisions for 2 x Double GPO Outlets, and Up to 12 Data.

Reference: FOBPL4STDO

Secure Payments are easier than ever! Stripe's payment solutions

Delivery Option’s, you choose from our list of delivery partners

Manufactures warranty on all Cableaway sold products.

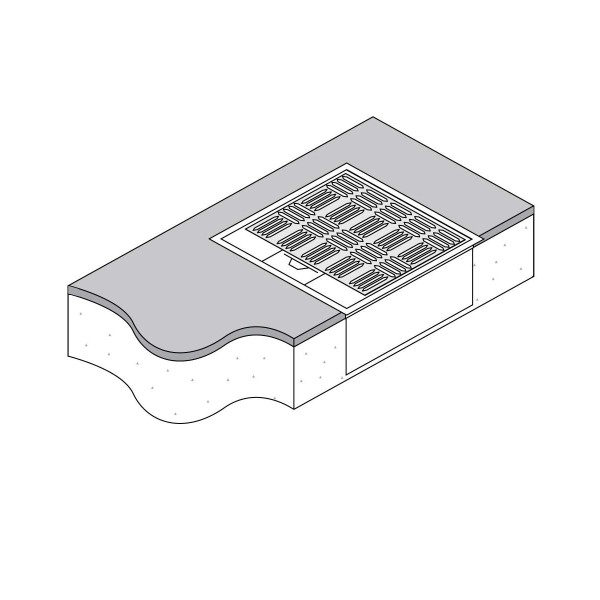

The FOBPL4STDO is a flush concrete floor outlet box from the Electraplan Series, fitted with a moulded polyamide lid and frame and configured with 2 x Double GPO power outlets and up to 12 x single data outlets. The lid includes an 8mm carpet recess for a flush, finished look, with a cord exit flap featuring dust guards and a recessed handle.

Technical Specifications

Part Number	FOBPL4STDO
Series	Electraplan Series Floor Boxes
Lid Material	Moulded Polyamide with Steel Insert Plate
Lid Finish Options	Optional Slip-Resistant Lid Infill
Frame Material	Moulded Polyamide, Protective Side Edges
Body Material	Steel
Outlet Configuration	2 x Double GPO + 12 x Single Data

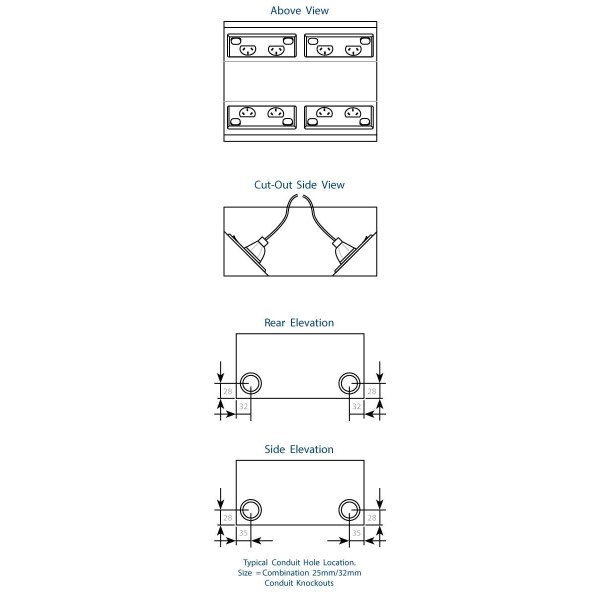

Conduit Entry	8 x Combination 25mm/32mm Knockouts
Weight	4.0 kg (approx.)

Dimensions

Frame Dims 242 × 242 mm	Body Dims 242 × 230 × 110 mm
Block-out (Slab) 262 × 250 × 120 mm	Carpet Recess 8 mm

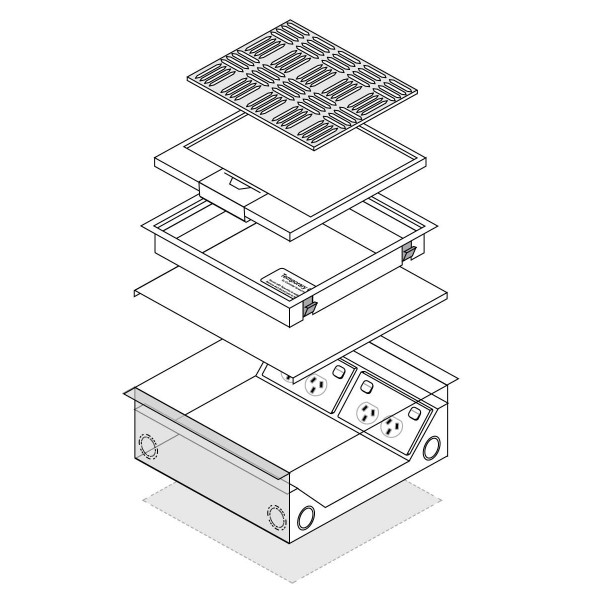

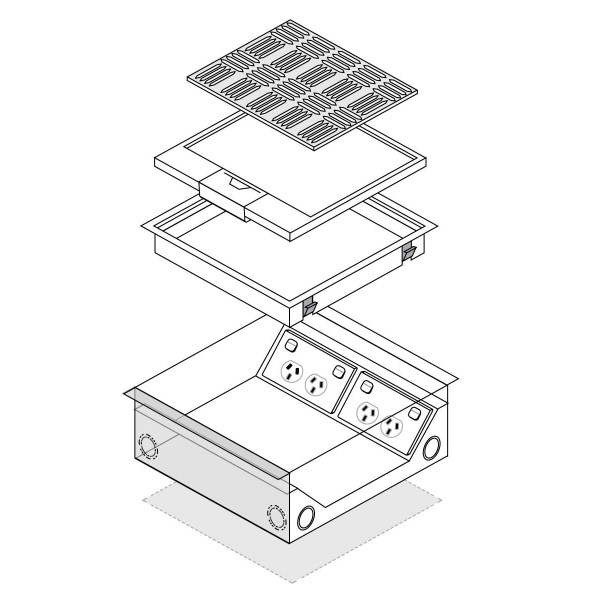

Key Features

● Optional polyamide lid infill with slip-resistant tread
● Moulded polyamide lid with steel insert plate and 8mm carpet recess
● Cord exit flap with dust guards and a recessed handle
● Moulded polyamide frame with protective side edges, secured with fixing clamps
● Temporary lid protects the box during the concrete pour, preventing ingress of slurry
● 8 x combination 25mm/32mm conduit knockouts, all on the outside of the box
● Outlet bracket configured for 2 x Double GPO power outlets and up to 12 x single data outlets

Typical Applications

Commercial offices & open plan workspaces	Conference rooms & boardrooms
Retail & showroom fit-outs	Hospitality & hotels
Educational facilities	Residential installations

Ordering Information

Part Number	FOBPL4STDO
Series	Electraplan Series Floor Boxes (Concrete Floor Box, 2 x Power + 12 x Data)
Warranty	Manufacturer's warranty
