FOBPL4P4D - FFOB-570 4 X 10amp AUTO SWITCHED OUTLET 4 x SINGLE DATA

Name: FOBPL4P4D - FFOB-570 4 X 10amp AUTO SWITCHED OUTLET 4 x SINGLE DATA
Brand: Cableduct Systems
SKU: FOBPL4P4D

Complete with an 8mm Recessed Molded Polyamide Lid, 4 x Auto Switched Outlets, and x 4 Data.

Reference: FOBPL4P4D

Secure Payments are easier than ever! Stripe's payment solutions

Delivery Option’s, you choose from our list of delivery partners

Manufactures warranty on all Cableaway sold products.

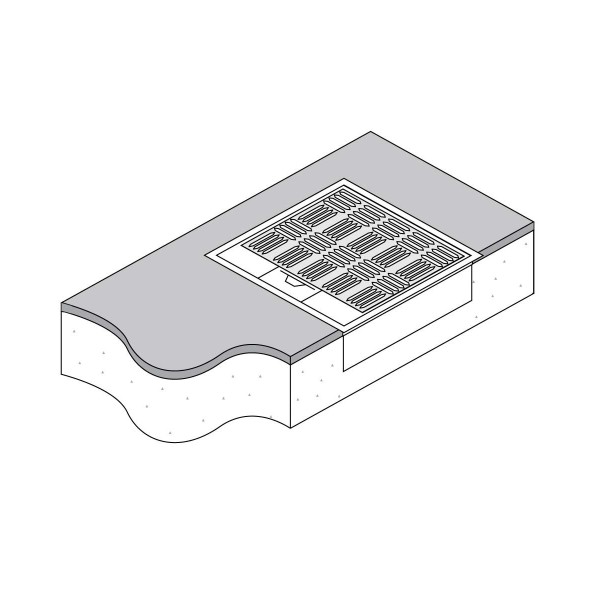

The FOBPL4P4D is a flush concrete floor outlet box from the Electraplan Series, fitted with a moulded polyamide lid and frame and configured with 4 x 10A auto-switched round GPO power outlets and 4 x single data outlets. The lid includes an 8mm carpet recess for a flush, finished look, with a cord exit flap featuring dust guards and a recessed handle.

Technical Specifications

Part Number	FOBPL4P4D
Series	Electraplan Series Floor Boxes
Lid Material	Moulded Polyamide with Steel Insert Plate
Lid Finish Options	Optional Slip-Resistant Lid Infill
Frame Material	Moulded Polyamide, Protective Side Edges
Body Material	Steel
Outlet Configuration	4 x 10A Auto-Switched Round GPO + 4 x Single Data

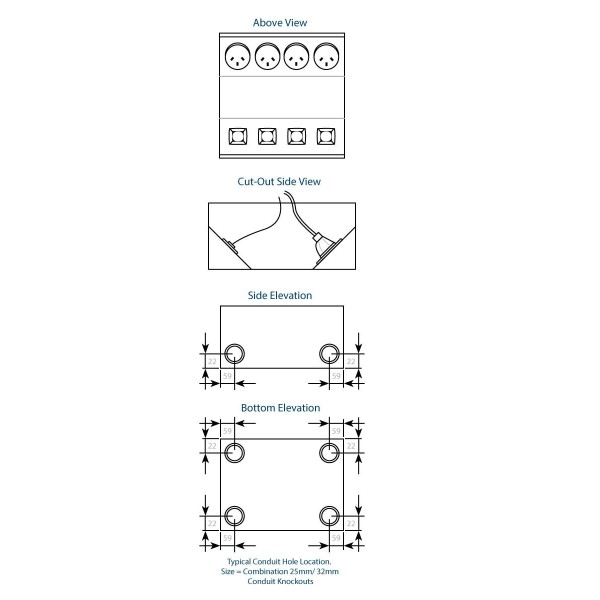

Conduit Entry	8 x Combination 25mm/32mm Knockouts
Weight	3.6 kg (approx.)

Dimensions

Frame Dims 242 × 242 mm	Body Dims 245 × 230 × 65 mm
Block-out (Slab) 265 × 250 × 75 mm	Carpet Recess 8 mm

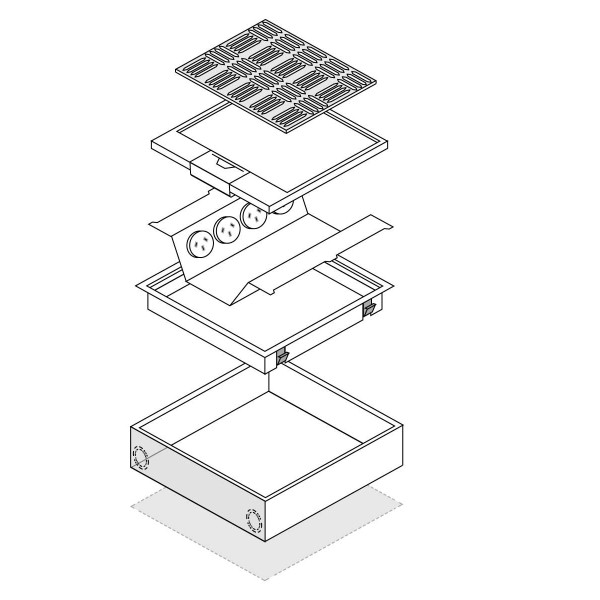

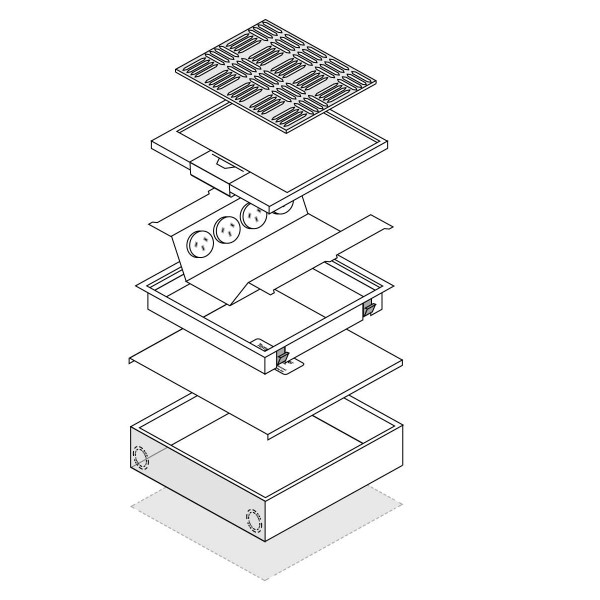

Key Features

● Optional polyamide lid infill with slip-resistant tread
● Moulded polyamide lid with steel insert plate and 8mm carpet recess
● Cord exit flap with dust guards and a recessed handle
● Outlet bracket configured for 4 x 10A auto-switched round GPOs and 4 x single data outlet clips
● Protective frame side edges, secured to the body with fixing clamps
● Temporary lid protects the box during the concrete pour, preventing ingress of slurry
● 8 x combination 25mm/32mm conduit knockouts (4 on the outside of the box, 4 on the base)

Typical Applications

Commercial offices & open plan workspaces	Conference rooms & boardrooms
Retail & showroom fit-outs	Hospitality & hotels
Educational facilities	Residential installations

Ordering Information

Part Number	FOBPL4P4D
Series	Electraplan Series Floor Boxes (Concrete Floor Box, 4 x Power + 4 x Data)
Warranty	Manufacturer's warranty
