FOBCCA4STDO - FFOB-590 ROUND CARCASS 4 X DGPO

Name: FOBCCA4STDO - FFOB-590 ROUND CARCASS 4 X DGPO
Brand: Cableduct Systems
SKU: FOBCCA4STDO

Complete with Cast Alloy 5mm Recessed Lid, Provisions for 2 x Double GPO Outlets, and Up to 12 x Data.

Reference: FOBCCA4STDO

Secure Payments are easier than ever! Stripe's payment solutions

Delivery Option’s, you choose from our list of delivery partners

Manufactures warranty on all Cableaway sold products.

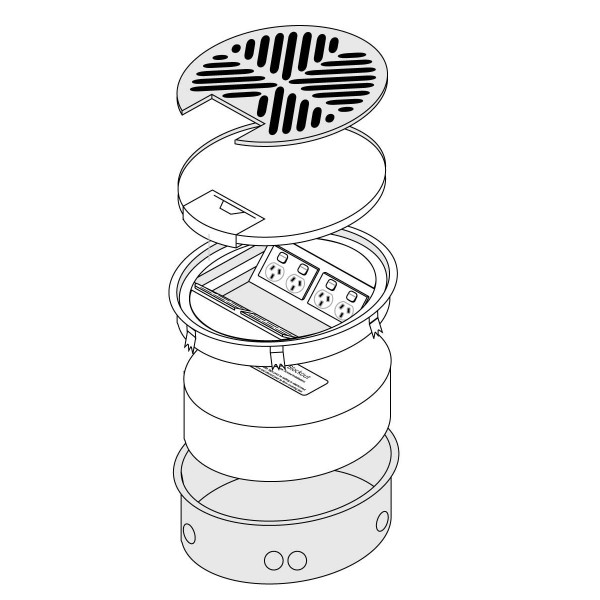

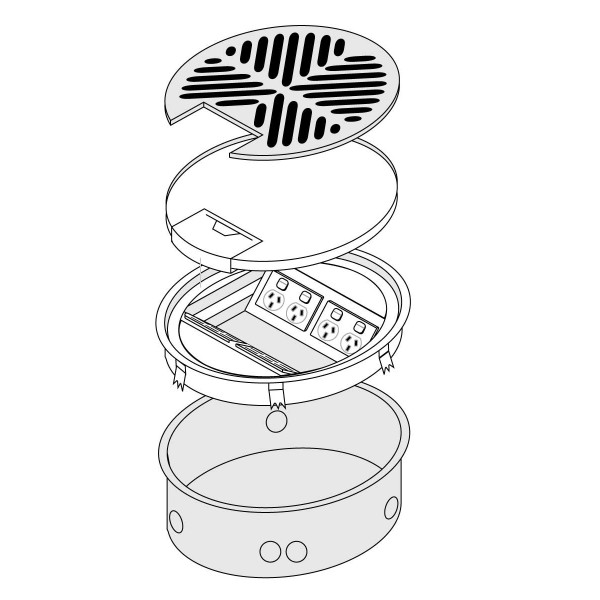

The FOBCCA4STDO round floor box features a Cast Alloy lid with a 5mm rebate hinged to the frame assembly, an Aluminium Canister body, and provisions for 2 x Double GPO Outlets plus up to 12 x Data outlets.

Technical Specifications

Part Number	FOBCCA4STDO
Series	Electraplan Series Floor Boxes
Lid Material	Cast Alloy, 5mm Rebate
Lid Finish Options	Satin Silver or Black/Silver Highlight
Frame Material	Cast Alloy, 10mm Protective Side Edge
Body Material	Aluminium Canister
Outlet Configuration	2 x Double GPO + 12 x Single Data
Conduit Entry	4 x 25mm Conduit Knockouts
Weight	2.2 kg (approx.)

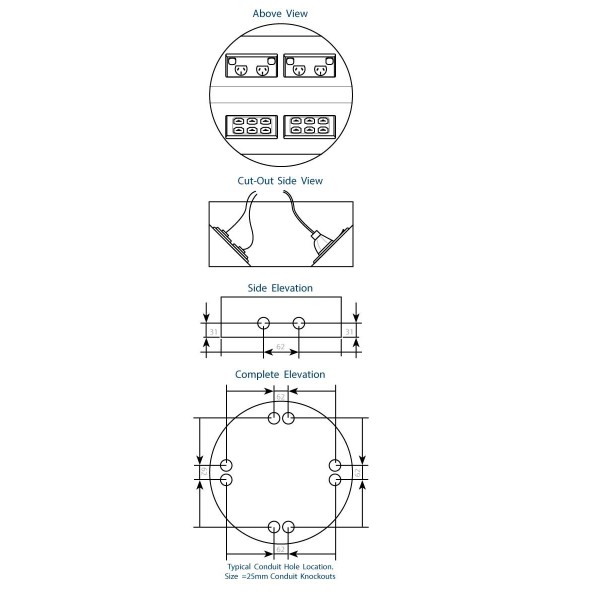

Dimensions

Frame Diameter 260 mm	Canister Diameter 245 mm
Canister Depth 100 mm	Lid Rebate 5 mm

Key Features

Optional Cast Alloy Lid Infill with slip-resistant tread, available in Satin Silver or Black/Silver Highlight
Cast Alloy Lid with 5mm rebate, hinges to the frame assembly
Cast Alloy Frame Assembly with 10mm protective side edge, 260mm diameter, attaches to body using fixing claws
Aluminium Canister, 245mm diameter x 100mm deep
4 x 25mm conduit knockouts for easy cable entry

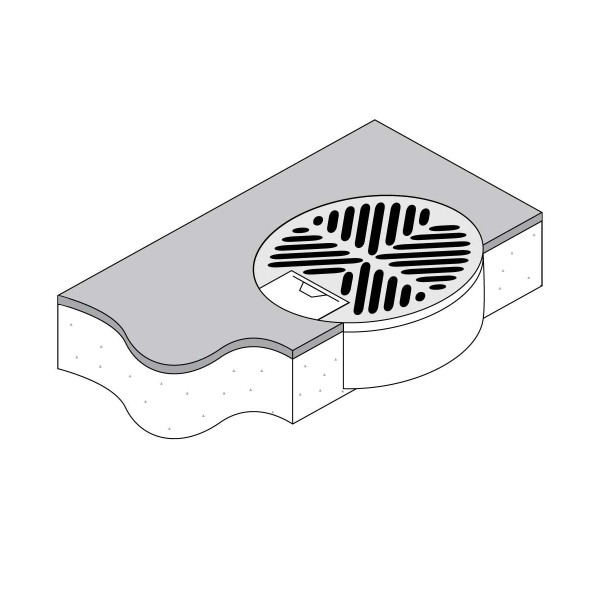

Includes foam blockout insert for use during concrete pour only
Outlet bracket configured for 2 x Double GPO Outlets plus up to 12 x Data outlets

Typical Applications

Commercial offices & open plan workspaces	Conference rooms & boardrooms
Retail & showroom fit-outs	Hospitality & hotels
Educational facilities	Residential installations

Ordering Information

Part Number	FOBCCA4STDO
Series	Electraplan Series Floor Boxes (Round Floor Box, 2 x Power + 12 x Data)
Warranty	Manufacturer's warranty
