FOBCCA6STDO - FFOB-599 PROVISION 4 x DGPO 12 x Single Data

Name: FOBCCA6STDO - FFOB-599 PROVISION 4 x DGPO 12 x Single Data
Brand: Cableduct Systems
SKU: FOBCCA6STDO

Complete with Cast Alloy 5mm Recessed Lid, Provision 4 x Double GPO Outlet, and Up to 12 Data.

Reference: FOBCCA6STDO

Secure Payments are easier than ever! Stripe's payment solutions

Delivery Option’s, you choose from our list of delivery partners

Manufactures warranty on all Cableaway sold products.

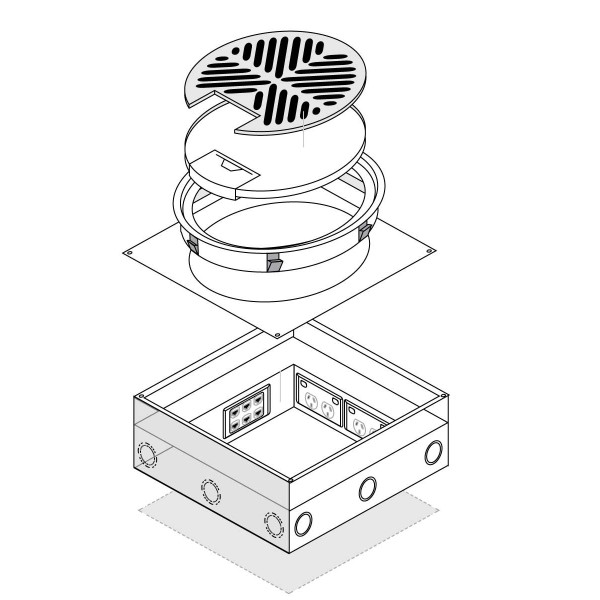

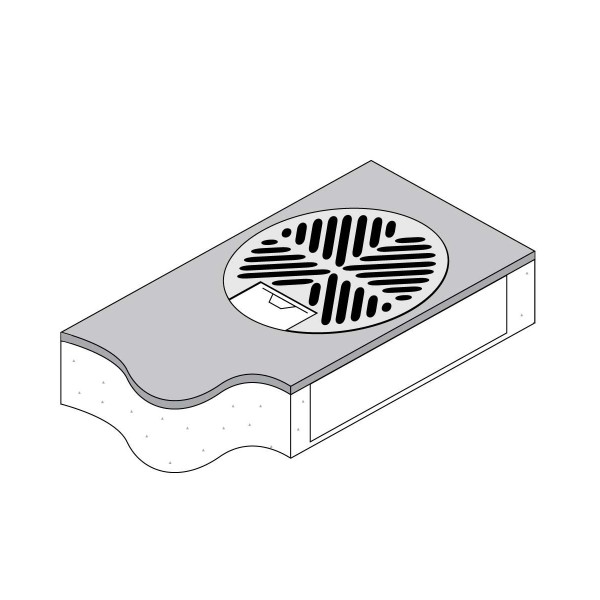

The FOBCCA6STDO is a large cast alloy floor outlet box from the Electraplan Series, fitted with a cast alloy lid and frame and configured with 4 x Double GPO power outlets and up to 12 x single data outlets. The lid features a 5mm rebate and hinges to the frame assembly, with an optional slip-resistant lid infill available in Satin Silver or Black/Silver Highlight.

Technical Specifications

Part Number	FOBCCA6STDO
Series	Electraplan Series Floor Boxes
Lid Material	Cast Alloy, 5mm Rebate
Lid Finish Options	Satin Silver or Black/Silver Highlight
Frame Material	Cast Alloy, 10mm Protective Side Edge
Body Material	Steel
Outlet Configuration	4 x Double GPO + 12 x Single Data
Conduit Entry	12 x Combination 25mm/32mm Knockouts
Weight	10.0 kg (approx.)

Dimensions

Frame Diameter 325 mm	Body Dims 350 × 350 × 115 mm
Block-out (Slab) 370 × 370 × 125 mm	Lid Rebate 5 mm

Key Features

● Optional cast alloy lid infill with slip-resistant tread, in Satin Silver or Black/Silver Highlight
● Cast alloy lid with 5mm rebate, hinges to the frame assembly
● Cord exit flap with dust guards and a recessed handle
● Cast alloy frame assembly with 10mm protective side edge, 325mm diameter

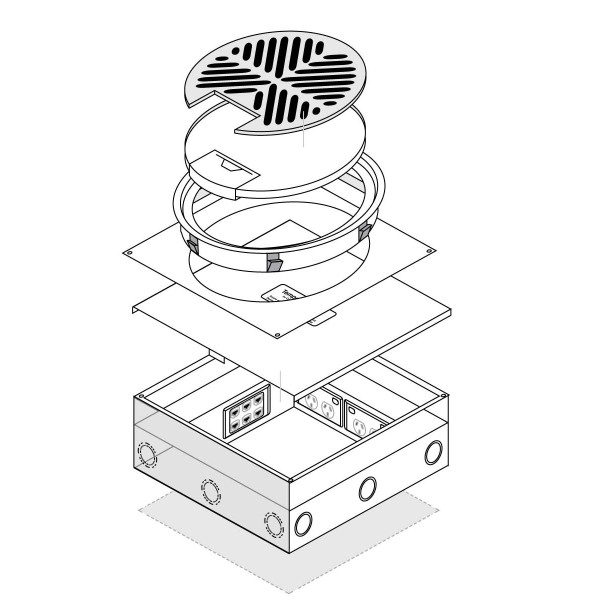

● Temporary lid protects the box during the concrete pour, preventing ingress of slurry

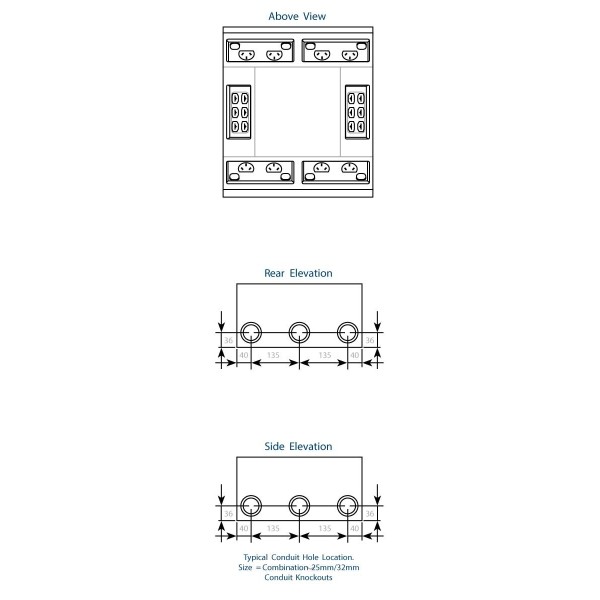

● 12 x combination 25mm/32mm conduit knockouts for cable entry
● Outlet bracket configured for 4 x Double GPO power outlets and up to 12 x single data outlets

Typical Applications

Commercial offices & open plan workspaces	Conference rooms & boardrooms
Retail & showroom fit-outs	Hospitality & hotels
Educational facilities	Residential installations

Ordering Information

Part Number	FOBCCA6STDO
Series	Electraplan Series Floor Boxes (Cast Alloy Floor Box, 4 x Power + 12 x Data)
Warranty	Manufacturer's warranty
