FOBSS19F6STDO - FFOB-430S-SS Floor Box 6 x STANDARD OUTLETS

FOBSS19F6STDO - FFOB-430S-SS Floor Box 6 x STANDARD OUTLETS

Complete with Stainless Steel Flush Lid, Provisions 6 x Standard Outlets.

FOBSS19F6STDO


Secure Payments are easier than ever! Stripe's payment solutions



Delivery Option’s, you choose from our list of delivery partners



Manufactures warranty on all Cableaway sold products.

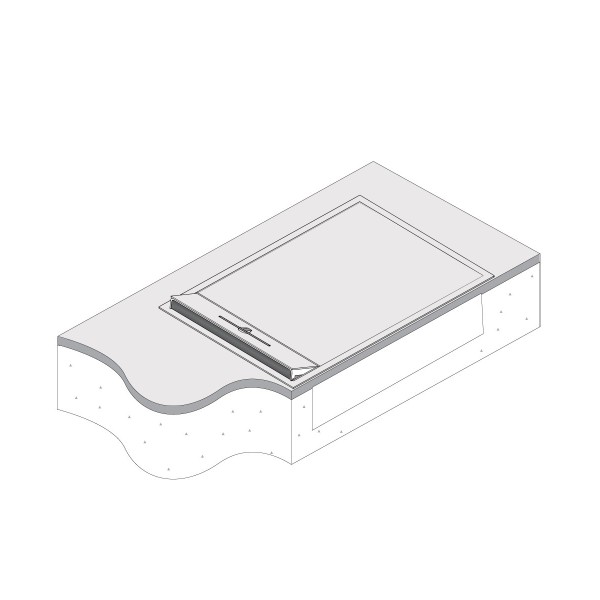

The FOBSS19F6STDO flush lid floor box features a 304 Grade Stainless Steel lid and frame with a flush finish, a Colorbond® Steel box body, and capacity for 6 x Standard Outlets (power or data, not supplied).

Technical Specifications

Part Number FOBSS19F6STDO
Series FFOB-430S-SS Flush Lid Floor Box
Lid & Frame Material 304 Grade Stainless Steel
Body Material Colorbond® Steel
Outlet Configuration 6 x Standard Outlets (Power or Data)
Conduit Entry 14 x 25/32mm Conduit Knockouts
Earth Lead 1 x M4 Earth Lead Included
Outlet Fixings 12 x Included
Weight 1.6 kg (approx.)

Dimensions

Lid & Frame
388 x 264 mm
Finish
Flush
Box Body
380x250x105 mm
Pre-formed Recess
400x270x115 mm

Key Features

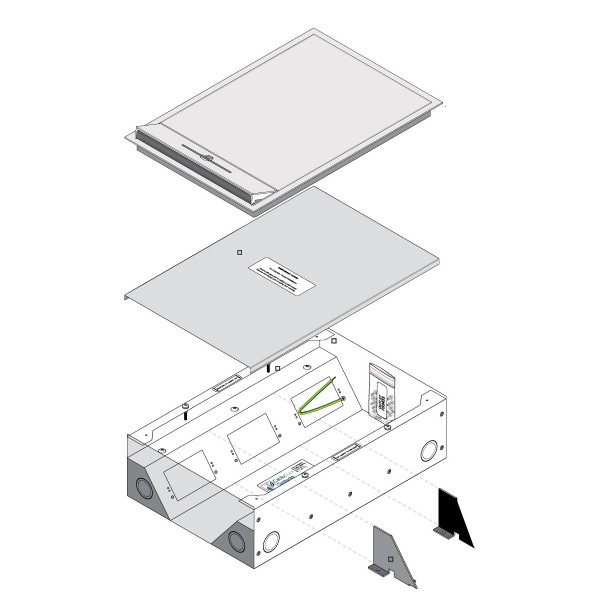

  • 304 Grade Stainless Steel lid & frame, 388 x 264 x 25mm, flush finish
  • Cord exit flap with foam dust guard and recessed handle, 4 x M3 lid-to-body fixings
  • Galvanised steel temporary cover, 378 x 252 x 10mm, tape in place prior to concrete pour
  • Colorbond® Steel box body, 380 x 250 x 105mm, with 4 x M5 lid levelling adjustment screws
  • Capacity for 6 x Standard Outlets (power or data, not supplied)

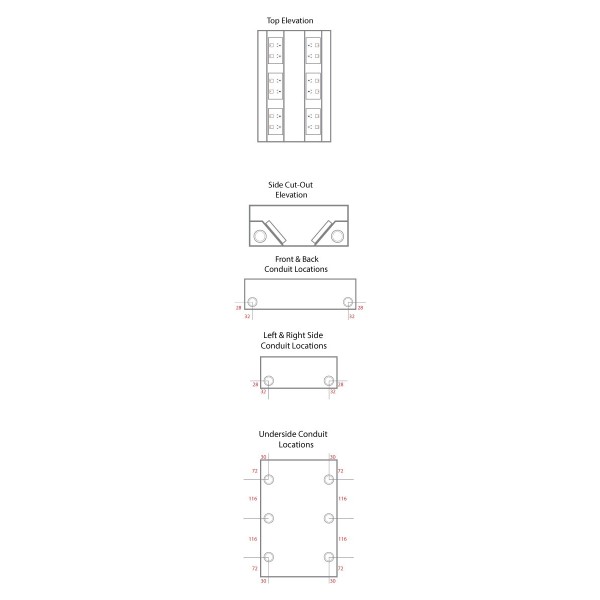

  • 14 x 25/32mm conduit knockouts, with entry points front, back and underside
  • Includes 1 x M4 earth lead and 12 x outlet fixings to attach standard outlets to brackets
  • Power/Data divider available separately

Typical Applications

Commercial offices & open plan workspaces
Conference rooms & boardrooms
Retail & showroom fit-outs
Hospitality & hotels
Educational facilities
Residential installations

Ordering Information

Part Number FOBSS19F6STDO
Series FFOB-430S-SS Flush Lid Floor Boxes (Stainless Steel, 6 x Standard Outlets)
Pre-formed Recess Required 400 x 270 x 115mm
Warranty Manufacturer's warranty
FOBSS19F6STDO
