FOBSS19R8P8DS80 - FFOB-430/80-SS Floor Box 8 X Auto Switched Outlets 8 x Data

FOBSS19R8P8DS80 - FFOB-430/80-SS Floor Box 8 X Auto Switched Outlets 8 x Data

Complete with Stainless Steel 19mm Recessed Lid, 8 x Auto Switched Outlets, and provisions for 8 Data



FOBSS19R8P8DS80


Secure Payments are easier than ever! Stripe's payment solutions



Delivery Option’s, you choose from our list of delivery partners



Manufactures warranty on all Cableaway sold products.

The FFOB-430/80-SS recessed lid floor box features a 19mm 304 Grade Stainless Steel recessed lid, a Colorbond® Steel box body, and capacity for 8 x Auto Switched Outlets plus provisions for 8 x Data (not supplied).

Technical Specifications

Part Number FOBSS19R8P8DS80
Series FFOB-430/80-SS Recessed Lid Floor Box
Lid Material 304 Grade Stainless Steel, 19mm Recessed
Body Material Colorbond® Steel
Outlet Configuration 8 x Auto Switched Outlets (Power) + Provisions for 8 x Data (not supplied)

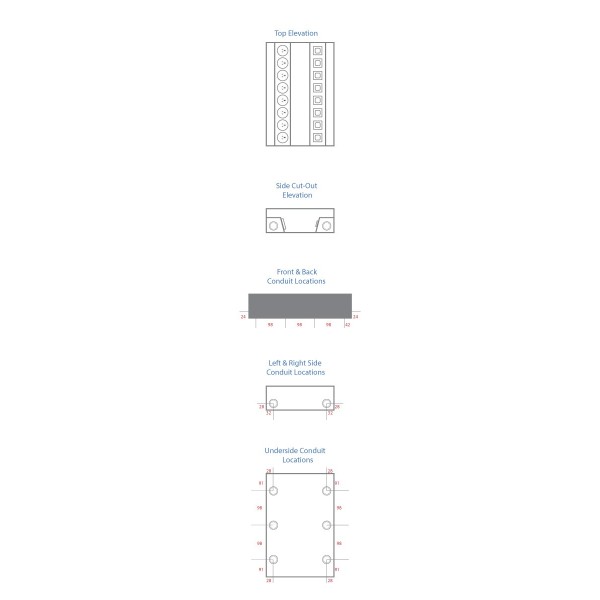

Conduit Entry 14 x 25/32mm Knockouts
Weight 1.6 kg (approx.)

Dimensions

Lid Size
388 x 264 x 25 mm
Box Body
380 x 250 x 105 mm
Block-out (Slab)
400 x 270 x 115 mm

Key Features

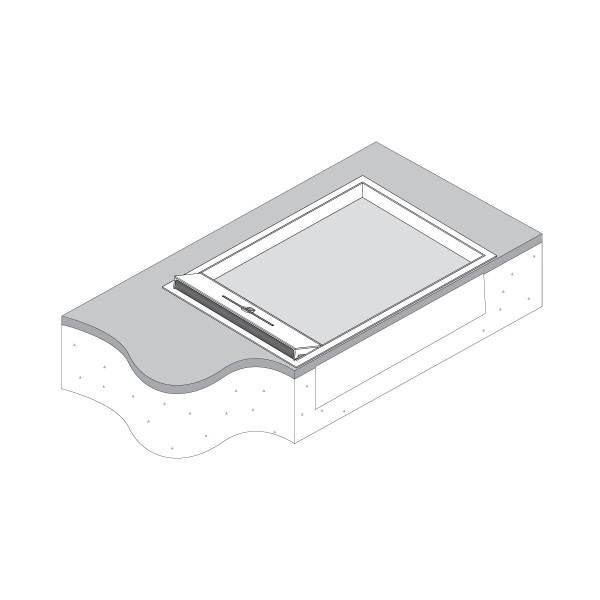

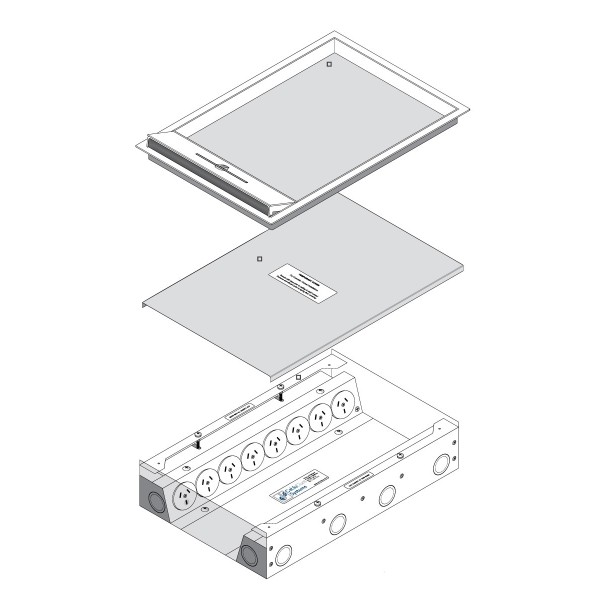

  • 304 Grade Stainless Steel lid and frame (388 x 264 x 25mm) with 19mm flooring rebate sits flush with the floor finish
  • Cord exit flap with foam dust guard and recessed handle; 4 x M3 lid-to-body fixings
  • Galvanised Steel temporary cover (378 x 252 x 10mm) tapes in place during the concrete pour to prevent ingress of slurry
  • Colorbond® Steel box body, 380 x 250 x 105mm nominal, with 4 x M5 lid levelling adjustment screws
  • 14 x 25/32mm conduit knockouts
  • Capacity for 8 x Auto Switched Outlets (power) plus provisions for 8 x Data outlets (not supplied); power/data divider available separately
  • Includes M4 earth lead and outlet fixing hardware

Typical Applications

Commercial offices & open plan workspaces
Conference rooms & boardrooms
Retail & showroom fit-outs
Hospitality & hotels
Educational facilities
Residential installations

Ordering Information

Part Number FOBSS19R8P8DS80
Series FFOB-430/80-SS Recessed Lid Floor Box, Stainless Steel, 8 x Auto Switched Outlets + 8 x Data
Block-out in Concrete Slab 400 x 270 x 115mm nominal
Warranty Manufacturer's warranty
