FOBSS19F8P8DS80 - FFOB-430S/80-SS Floor Box 8 X Auto Switched Outlets 8 x Data

FOBSS19F8P8DS80 - FFOB-430S/80-SS Floor Box 8 X Auto Switched Outlets 8 x Data

Complete with Stainless Steel Flush Lid, 8 x Auto Switched Outlets, and Provision 8 x Data.

FOBSS19F8P8DS80


Secure Payments are easier than ever! Stripe's payment solutions



Delivery Option’s, you choose from our list of delivery partners



Manufactures warranty on all Cableaway sold products.

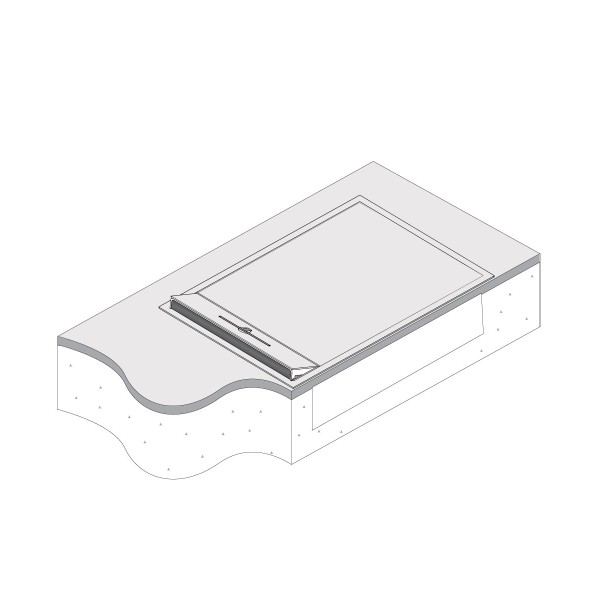

The FOBSS19F8P8DS80 flush lid floor box features a 304 Grade Stainless Steel lid and frame with a 19mm flooring rebate, a Colorbond® Steel box body, and capacity for 8 x Auto Switched Outlets plus 8 x Data provisions.

Technical Specifications

Part Number FOBSS19F8P8DS80
Series FFOB-430S/80-SS Flush Lid Floor Box
Lid & Frame Material 304 Grade Stainless Steel
Body Material Colorbond® Steel
Outlet Configuration 8 x Auto Switched Outlets + 8 x Data
Conduit Entry 14 x 25/32mm Conduit Knockouts
Earth Lead 1 x M4 Earth Lead Included
Outlet Fixings 12 x Included
Weight 1.6 kg (approx.)

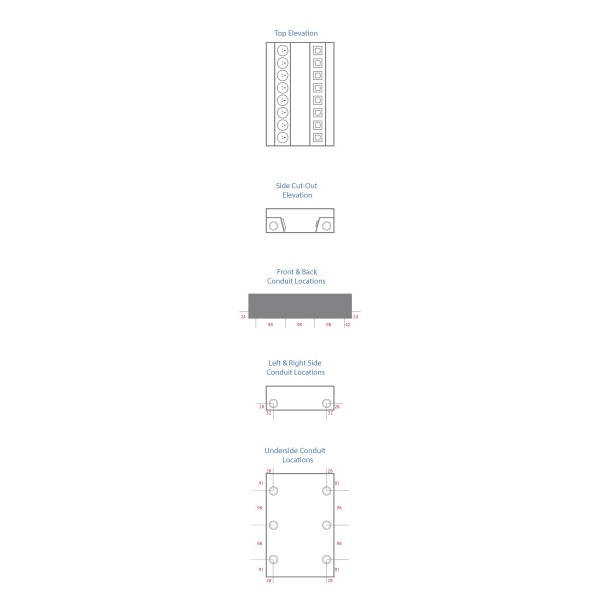

Dimensions

Lid & Frame
388 x 264 mm
Flooring Rebate
19 mm
Box Body
380x250x105 mm
Pre-formed Recess
400x270x115 mm

Key Features

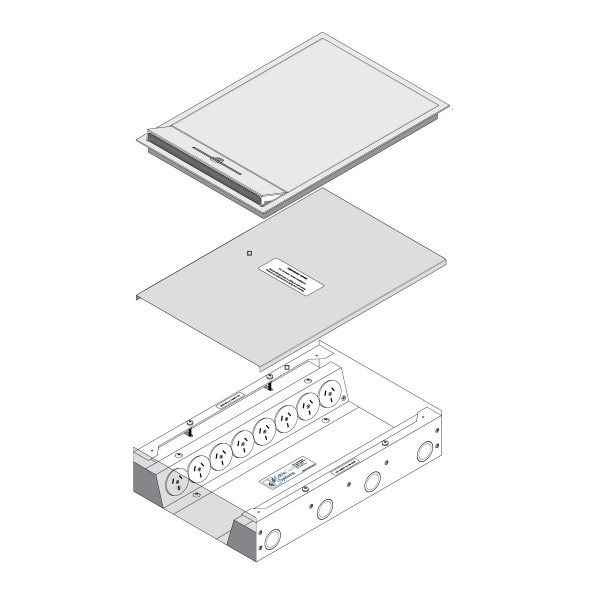

  • 304 Grade Stainless Steel lid & frame, 388 x 264 x 25mm, with 19mm flooring rebate
  • Cord exit flap with foam dust guard and recessed handle, 4 x M3 lid-to-body fixings
  • Galvanised steel temporary cover, 378 x 252 x 10mm, tape in place prior to concrete pour
  • Colorbond® Steel box body, 380 x 250 x 105mm, with 4 x M5 lid levelling adjustment screws
  • Capacity for 8 x Auto Switched Outlets plus 8 x Data provisions
  • 14 x 25/32mm conduit knockouts, with entry points front, back and underside
  • Includes 1 x M4 earth lead and 12 x outlet fixings to attach standard outlets to brackets
  • Power/Data divider available separately

Typical Applications

Commercial offices & open plan workspaces
Conference rooms & boardrooms
Retail & showroom fit-outs
Hospitality & hotels
Educational facilities
Residential installations

Ordering Information

Part Number FOBSS19F8P8DS80
Series FFOB-430S/80-SS Flush Lid Floor Boxes (Stainless Steel, 8 x Power + 8 x Data)
Pre-formed Recess Required 400 x 270 x 115mm
Warranty Manufacturer's warranty
FOBSS19F8P8DS80
