FD150 Flush Floor Duct

FD150 Flush Floor Duct

Flush floor duct 3m x 35mm x 150mm

FD150


Secure Payments are easier than ever! Stripe's payment solutions



Delivery Option’s, you choose from our list of delivery partners



Manufactures warranty on all Cableaway sold products.

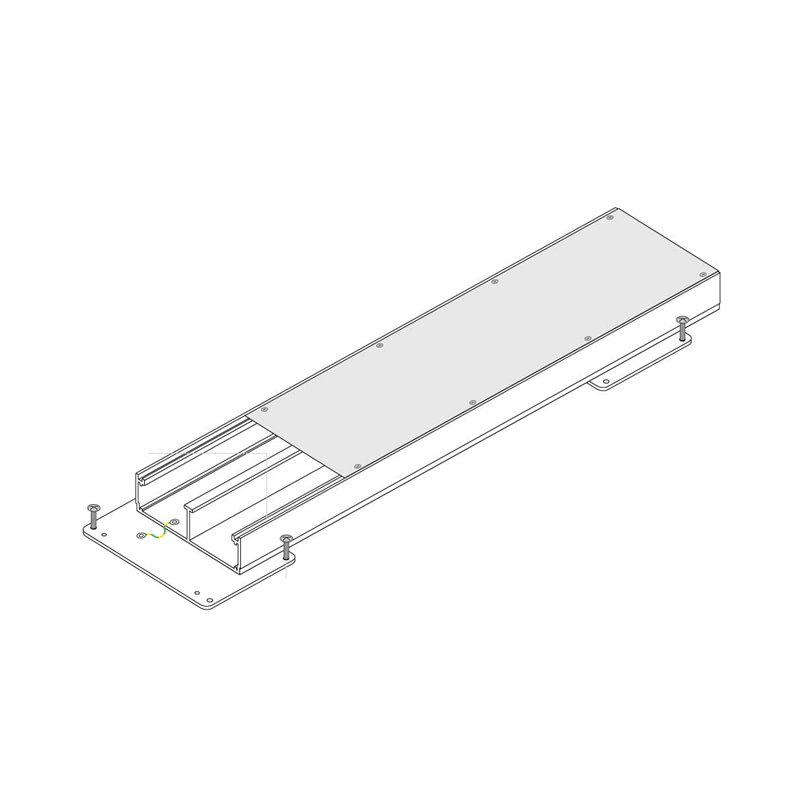

Cableduct's FD150 Flush Floor Duct is a cost-effective way of routing power, data and audio-visual cables under a finished floor. The aluminium body sits flush with the floor surface and is fitted with a galvanised steel lid, keeping the finished area clean and trip-free.

TECHNICAL SPECIFICATIONS

Type Flush Floor Duct, 2 division
Length 3m
Body Height 35mm
Width 150mm
Lid Finish Galvanised Steel
Reference FD150
Brand Cableduct

AVAILABLE PARTS & ACCESSORIES

  • ● Base Joiner (included)

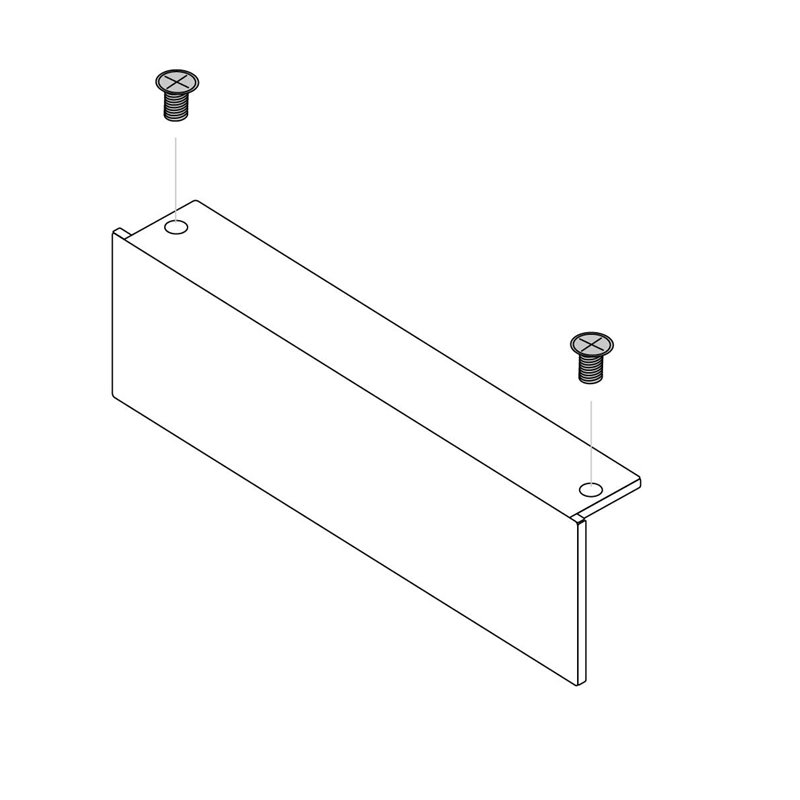

  • ● End Cap (complete with 2 x mounting screws)
  • ● Levelling Bolts
  • ● Levelling Foot / Joiner Plate (optional)

KEY FEATURES

  • ● Deeper 35mm body suits larger cable bundles than the FD120
  • ● Durable galvanised steel lid, flush with the finished floor

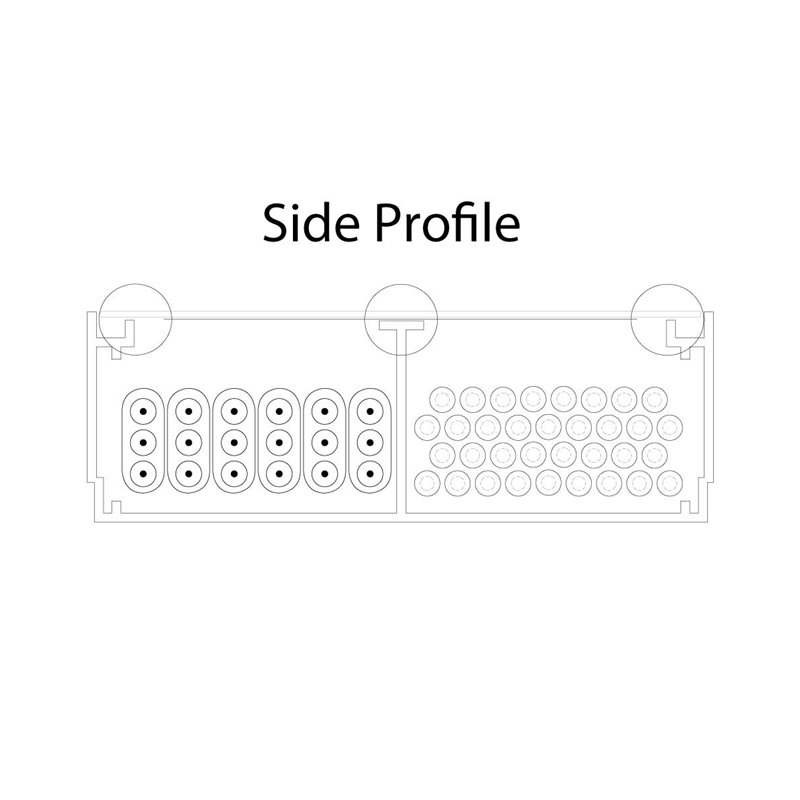

  • ● 2-division aluminium body for segregating services
  • ● Comes complete with base joiner for straightforward section-to-section jointing
  • ● Optional levelling foot / joiner plate for smooth transitions between duct sections
  • ● Keeps floors free of trailing cables, reducing trip hazards

TYPICAL APPLICATIONS

  • ● Offices and open-plan workstations
  • ● Retail stores and showrooms
  • ● Schools and educational facilities
  • ● Train stations, ferry wharves and transport hubs
  • ● Boardrooms and meeting spaces
  • ● Commercial and institutional buildings

INSTALLATION

Recommended Installer Qualified electrician, builder or licensed trade contractor, depending on the services being routed
Fit-Out Aluminium body set into the floor prior to the final floor finish; galvanised steel lid fitted flush
FD150
