AFD14SM Above Floor Duct

AFD14SM Above Floor Duct

Shallow above-floor duct 3m x 125mm x 143mm

AFD14SM


Secure Payments are easier than ever! Stripe's payment solutions



Delivery Option’s, you choose from our list of delivery partners



Manufactures warranty on all Cableaway sold products.

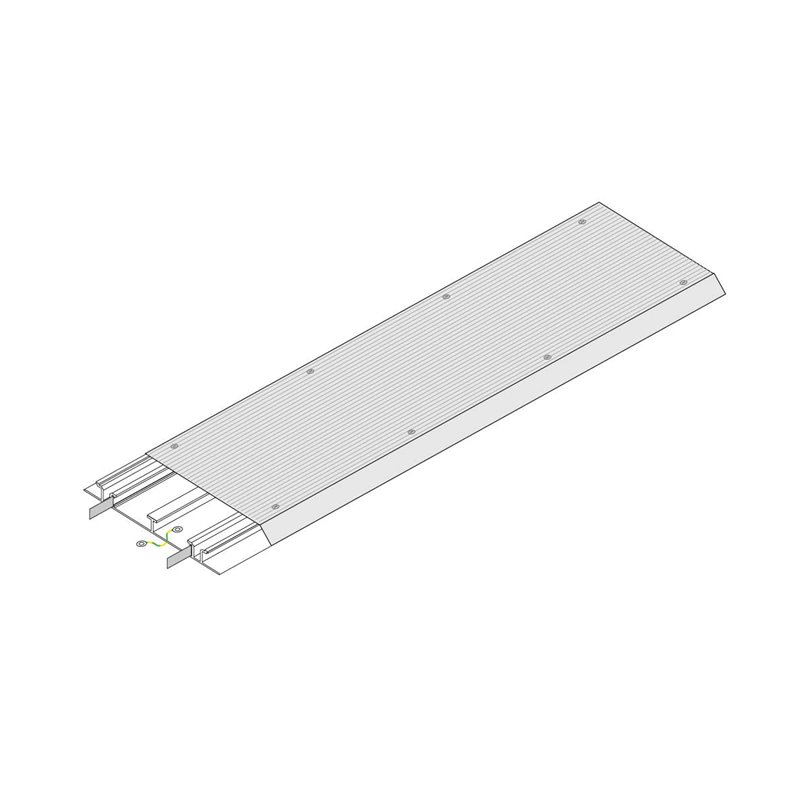

Cableduct's AFD14SM Above Floor Duct is a surface-mounted solution for routing power, data and audio-visual cables where cutting into the floor isn't practical. The aluminium body sits directly on the existing floor, with a ramped, anti-slip cover fitted over the top to reduce trip hazard.

TECHNICAL SPECIFICATIONS

Type Above Floor Duct, 2 division
Length 3m
Body Height 9.5mm
Overall Height (with cover) 12.5mm
Width 143mm
Cover Type Ramped, with anti-slip grooves
Reference AFD14SM
Brand Cableduct

AVAILABLE FINISHES

  • ● Mill Finish (standard)
  • ● Natural Anodised
  • ● Black Ripple
  • ● Powder-coated colours available on request

KEY FEATURES

  • ● Surface-mounted, no cutting into the floor slab required
  • ● Ramped cover with anti-slip grooves minimises trip hazard
  • ● Low-profile 12.5mm overall height
  • ● 2-division aluminium body for segregating services
  • ● Choice of mill, anodised or black ripple finish, with powder-coat option
  • ● Ideal for retrofits and temporary or semi-permanent cable runs

TYPICAL APPLICATIONS

  • ● Retrofit cable routing where cutting into the floor isn't practical
  • ● Office refurbishments and fit-outs
  • ● Events, exhibitions and temporary cabling
  • ● Schools and educational facilities
  • ● Retail stores and showrooms
  • ● Commercial and institutional buildings

INSTALLATION

Recommended Installer Qualified electrician, builder or licensed trade contractor, depending on the services being routed
Fit-Out Aluminium body fixed directly to the existing floor surface; ramped cover clips on over the top
