AFD14SR Above Floor Duct

AFD14SR Above Floor Duct

Semi-recessed floor duct with ramped aluminium lid section.

AFD14SR


Secure Payments are easier than ever! Stripe's payment solutions



Delivery Option’s, you choose from our list of delivery partners



Manufactures warranty on all Cableaway sold products.

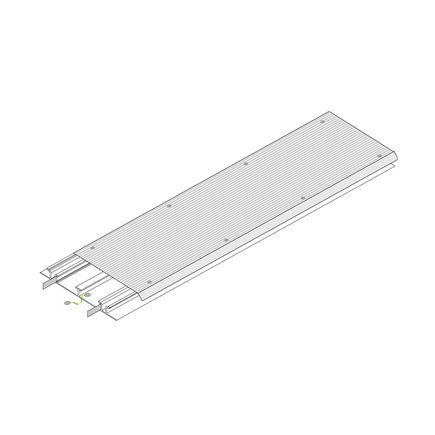

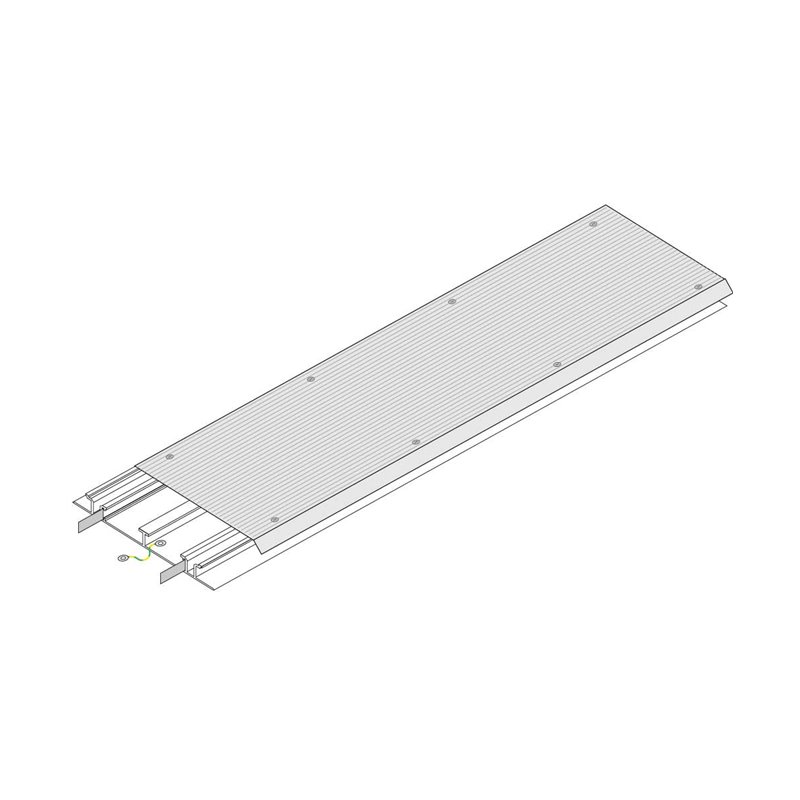

Cableduct's AFD14SR Above Floor Duct is a surface-mounted solution for routing power, data and audio-visual cables where cutting into the floor isn't practical. The aluminium body sits directly on the existing floor, with a semi-recessed, ramped anti-slip cover fitted over the top for a lower-profile transition than a standard above-floor duct.

TECHNICAL SPECIFICATIONS

Type Above Floor Duct, Semi-Recessed, 2 division
Length 3m
Body Height 9.5mm
Cover Height 6mm
Width 143mm
Cover Type Semi-recessed, ramped, with anti-slip grooves
Reference AFD14SR
Brand Cableduct

AVAILABLE FINISHES

  • ● Mill Finish (standard)
  • ● Natural Anodised
  • ● Black Ripple
  • ● Powder-coated colours available on request

KEY FEATURES

  • ● Surface-mounted, no cutting into the floor slab required
  • ● Semi-recessed cover gives a lower, less obtrusive profile than a standard above-floor duct
  • ● Ramped edges with anti-slip grooves minimise trip hazard
  • ● 2-division aluminium body for segregating services
  • ● Choice of mill, anodised or black ripple finish, with powder-coat option
  • ● Ideal for retrofits and temporary or semi-permanent cable runs

TYPICAL APPLICATIONS

  • ● Retrofit cable routing where cutting into the floor isn't practical
  • ● Office refurbishments and fit-outs
  • ● Events, exhibitions and temporary cabling
  • ● Schools and educational facilities
  • ● Retail stores and showrooms
  • ● Commercial and institutional buildings

INSTALLATION

Recommended Installer Qualified electrician, builder or licensed trade contractor, depending on the services being routed
Fit-Out Aluminium body fixed directly to the existing floor surface; semi-recessed ramped cover clips on over the top
AFD14SR
