AFD35 Above Floor Duct

AFD35 Above Floor Duct

Above floor duct 3m x 136mm x 150mm aluminium over cover.

AFD35


Secure Payments are easier than ever! Stripe's payment solutions



Delivery Option’s, you choose from our list of delivery partners



Manufactures warranty on all Cableaway sold products.

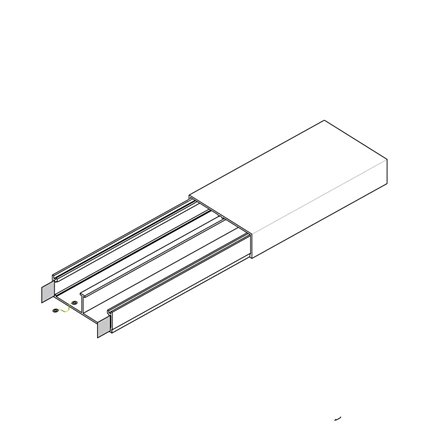

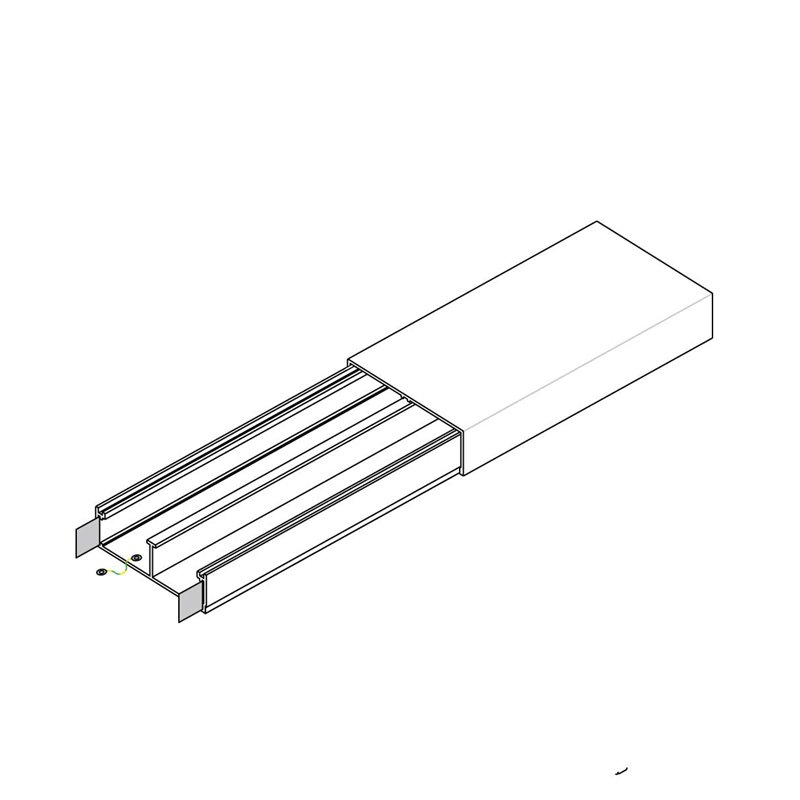

Cableduct's AFD35 Above Floor Duct is a surface-mounted solution for routing power, data and audio-visual cables where cutting into the floor isn't practical. The aluminium body sits directly on the existing floor, with a deeper ramped, anti-slip cover fitted over the top for larger cable bundles than the AFD14 range.

TECHNICAL SPECIFICATIONS

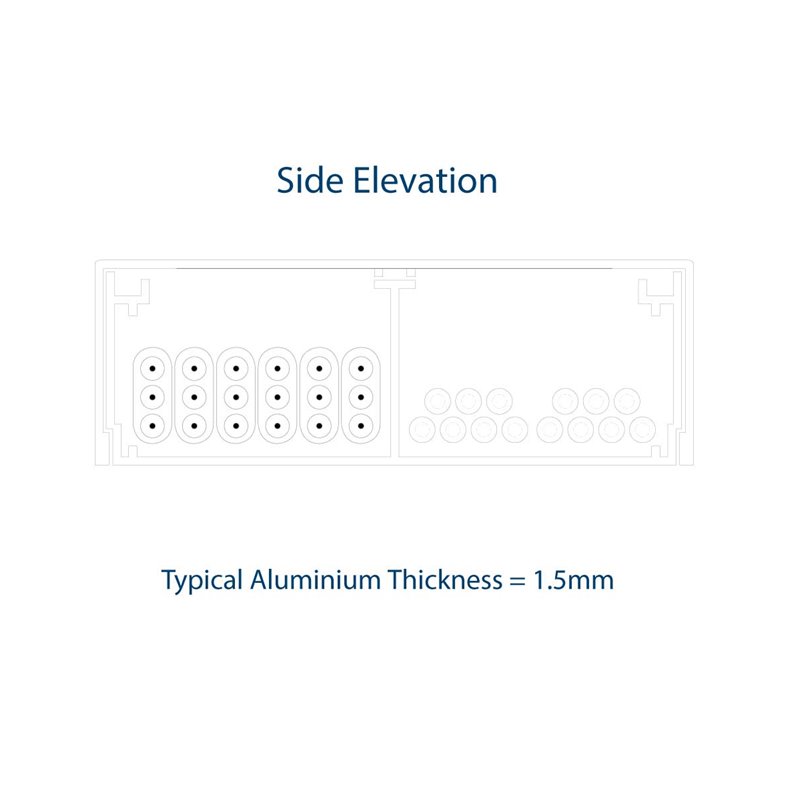

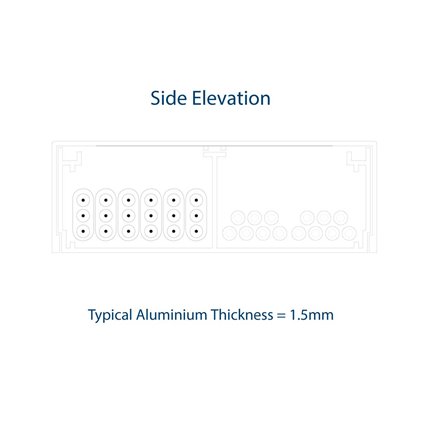

Type Above Floor Duct, 2 division
Length 3m
Body Height 32mm
Cover Height 34mm
Width 146-150mm
Cover Type Ramped, with anti-slip grooves
Reference AFD35
Brand Cableduct

AVAILABLE FINISHES

  • ● Mill Finish (standard)
  • ● Natural Anodised
  • ● Black Ripple
  • ● Powder-coated colours available on request

KEY FEATURES

  • ● Surface-mounted, no cutting into the floor slab required
  • ● Deeper body than the AFD14 range, suiting larger cable bundles
  • ● Ramped cover with anti-slip grooves minimises trip hazard
  • ● 2-division aluminium body for segregating services
  • ● Choice of mill, anodised or black ripple finish, with powder-coat option
  • ● Ideal for retrofits and temporary or semi-permanent cable runs

TYPICAL APPLICATIONS

  • ● Retrofit cable routing where cutting into the floor isn't practical
  • ● Office refurbishments and fit-outs
  • ● Events, exhibitions and temporary cabling
  • ● Schools and educational facilities
  • ● Retail stores and showrooms
  • ● Commercial and institutional buildings

INSTALLATION

Recommended Installer Qualified electrician, builder or licensed trade contractor, depending on the services being routed
Fit-Out Aluminium body fixed directly to the existing floor surface; ramped cover clips on over the top
