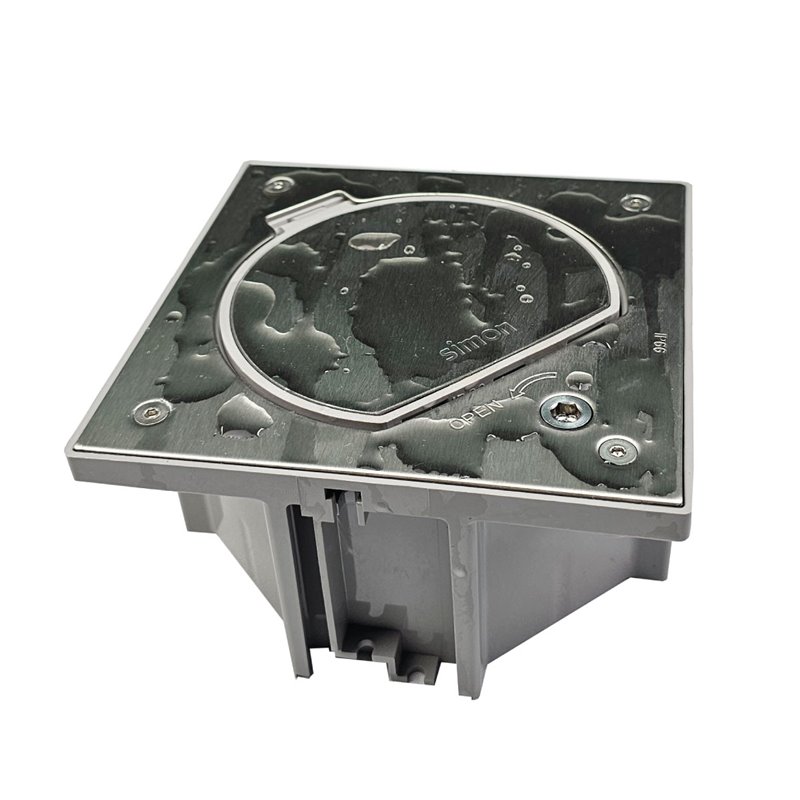

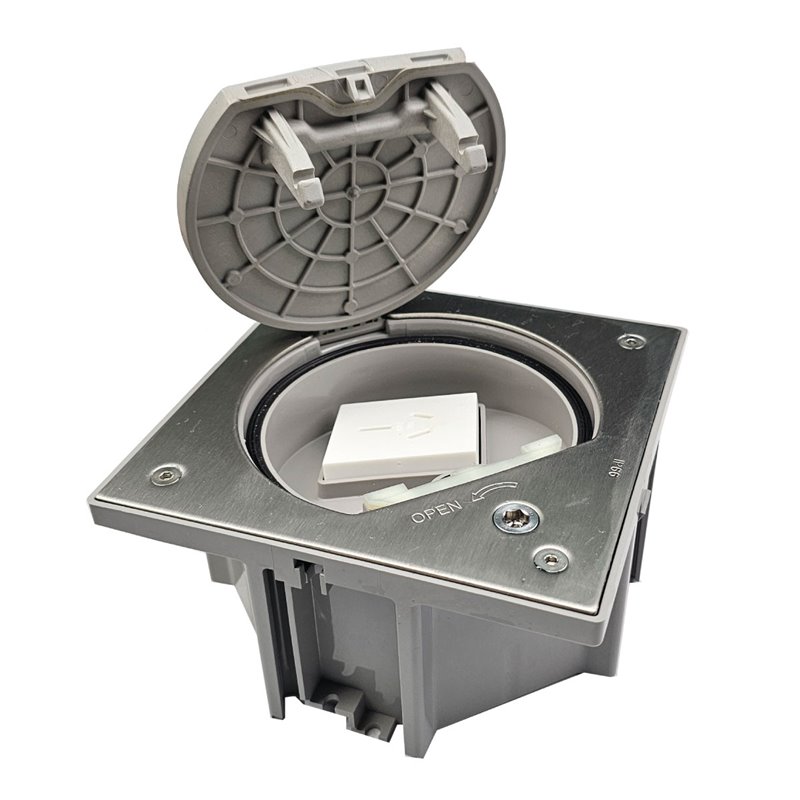

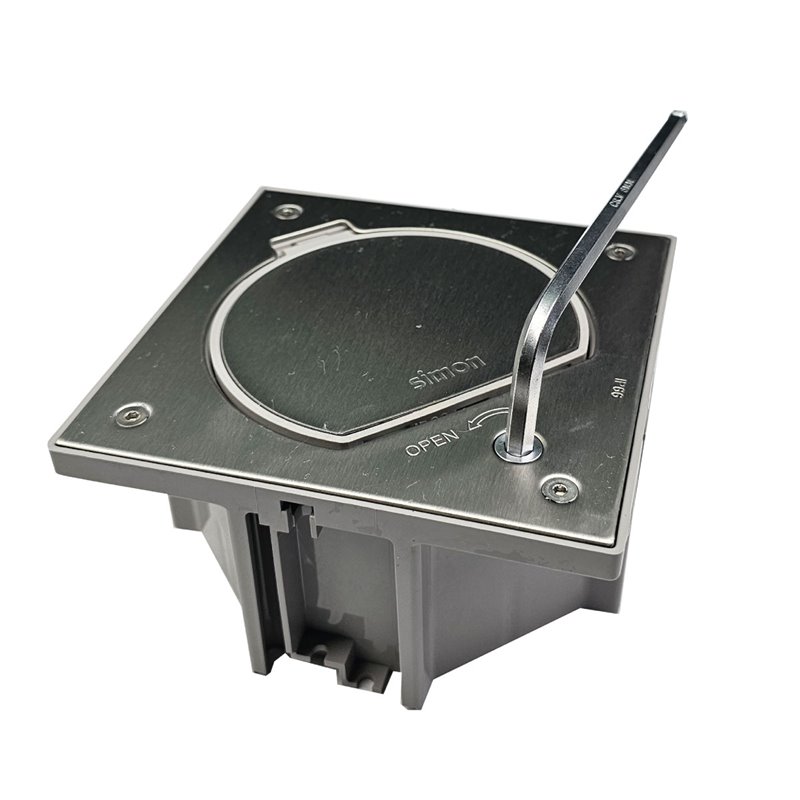

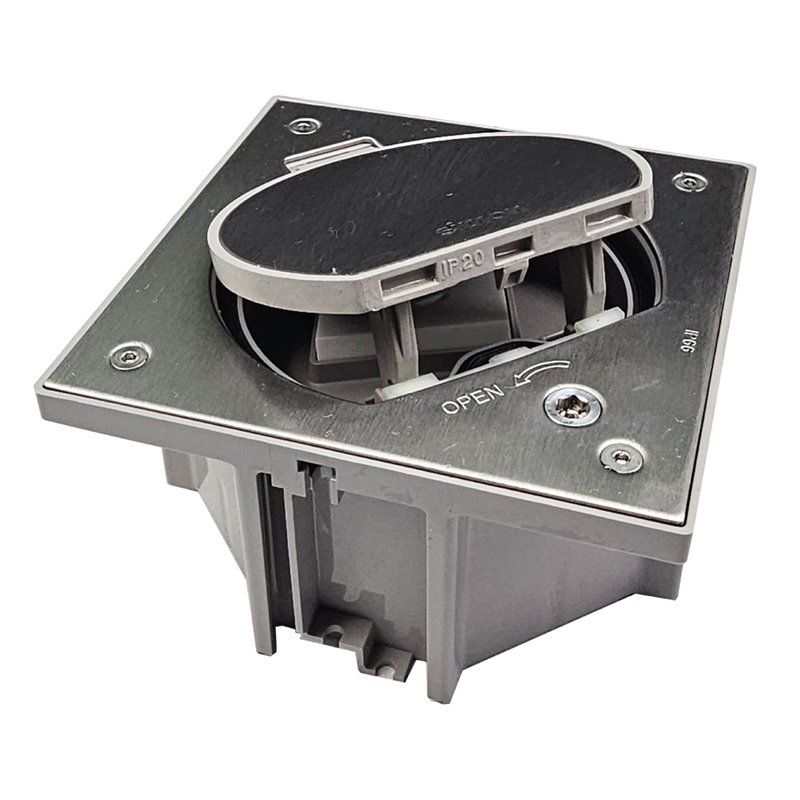

IP Rated Outlet Box Stainless Steel 10amp Auto Switched Outlet (ALLEN KEY LOCKABLE)

IP66 Rated Outlet Box Stainless Steel 10amp Auto Switched Outlet Complete with a Allen Key Lock

Complete with Stainless Steel Flush Lid, 1 x Auto Switched Outlet, IP66 Rated Floor Box (ALLEN KEY LOCKABLE).

FOBSS1P-IP66AK


Secure Payments are easier than ever! Stripe's payment solutions



Delivery Option’s, you choose from our list of delivery partners



Manufactures warranty on all Cableaway sold products.

The FOBSS1P-IP66AK is an IP66 rated in-floor outlet box with a Stainless Steel flush lid, holding 1 x 10A Auto Switched Outlet. Designed for installation in a poured concrete slab, it uses a fireproof thermoplastic box body with an MDF temporary lid that protects the unit from concrete slurry during the pour, and is fitted with an Allen key lock.

Technical Specifications

Part Number FOBSS1P-IP66AK
Component In-Floor Outlet Box
Lid Material Stainless Steel
Outlet Configuration 1 x 10A Auto Switched Outlet
Box Body Fireproof Thermoplastic
Lid Lock Allen Key Locking System
Ingress Protection IP66 Closed / IP20 In Use
Load Rating Up to 1000kg Closed / 170kg Open

Dimensions

Mechanism Holding Unit
130 x 130 mm
Box Body
135 x 135 x 69 mm
Concrete Block-Out (Cut-Out)
155 x 155 x 79 mm

Key Features

  • MDF temporary lid protects the unit from slurry during the concrete pour
  • Fireproof thermoplastic box body for in-slab installation
  • Stainless steel flush lid finish for a discreet, durable floor-level fitting
  • Allen key lock secures the lid against unauthorised access
  • IP66 sealed when closed, keeping the outlet protected from dust and water
  • Rated to carry foot and light wheeled traffic when closed

Typical Applications

Commercial offices & open-plan fit-outs
Retail & shopping centres
Airports & transport hubs
Conference & exhibition centres
Boardrooms & meeting rooms
Foyers & reception areas

Ordering Information

Part Number FOBSS1P-IP66AK
Series IP Rated Floor Outlet Box, Stainless Steel, 1 x 10A Auto Switched Outlet
Lid Lock Allen Key Locking System
Warranty Manufacturer's warranty
FOBSS1P-IP66AK

Data sheet

FLOOR BOX LID TYPE
FLUSH SQUARE EDGE FINISH LID SECTION
FLOOR BOX LID FINISH TYPE
IP RATED / WATER RESISTANT
POWER OUTLET CAPACITY
1 - 4 SINGLE AUTO SWITCHED POWER OUTLETS
