IP Rated Outlet Box Brassl 2 X Data OUTLET

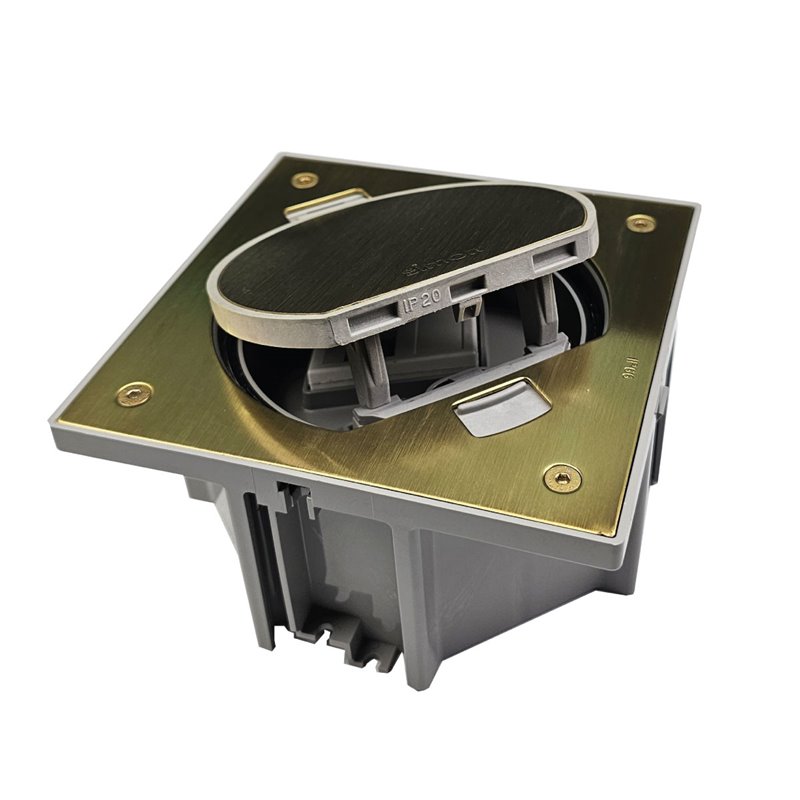

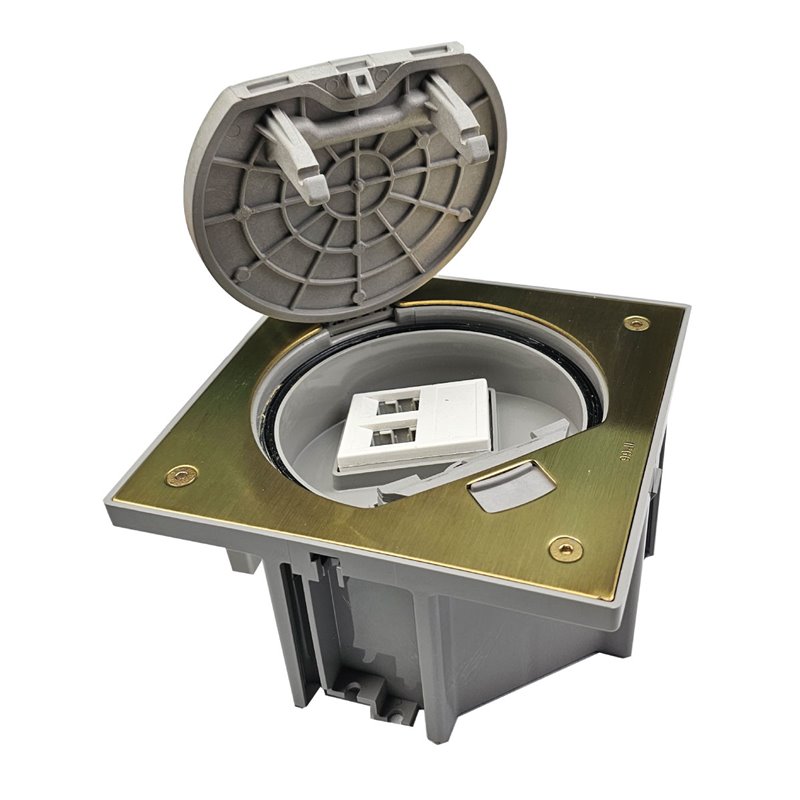

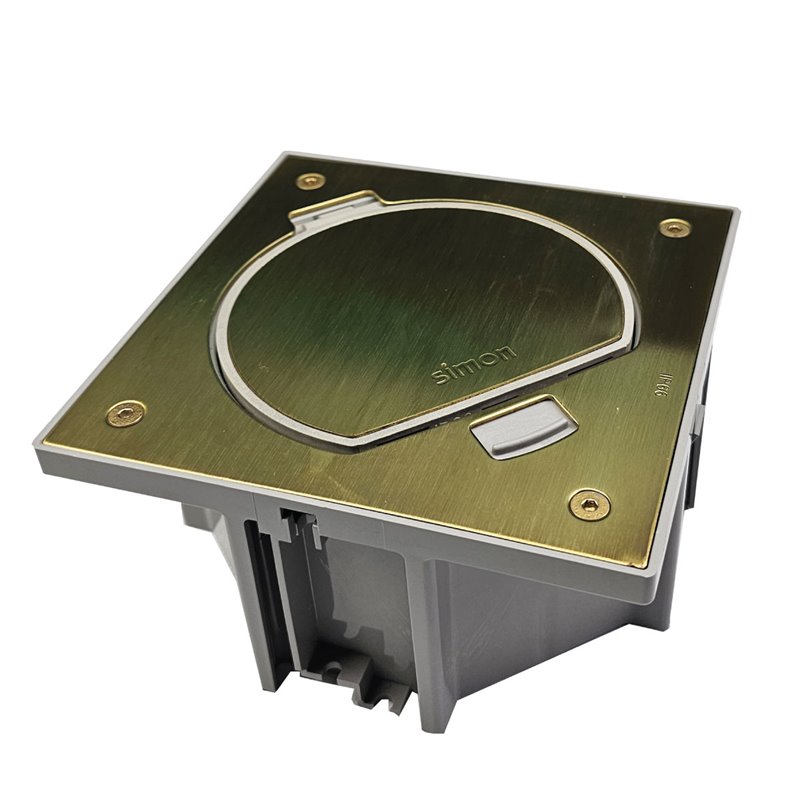

IP66 Rated Floor Outlet Box Brass Flush Lid 2 X Data Outlets

Complete with Brass Flush Lid, 2 x Data Outlets, IP66 Rated Floor Box.

Available on Request Mechanism Holding Unit (Allen Key Locking System)

FOBBR2D-IP66


Secure Payments are easier than ever! Stripe's payment solutions



Delivery Option’s, you choose from our list of delivery partners



Manufactures warranty on all Cableaway sold products.

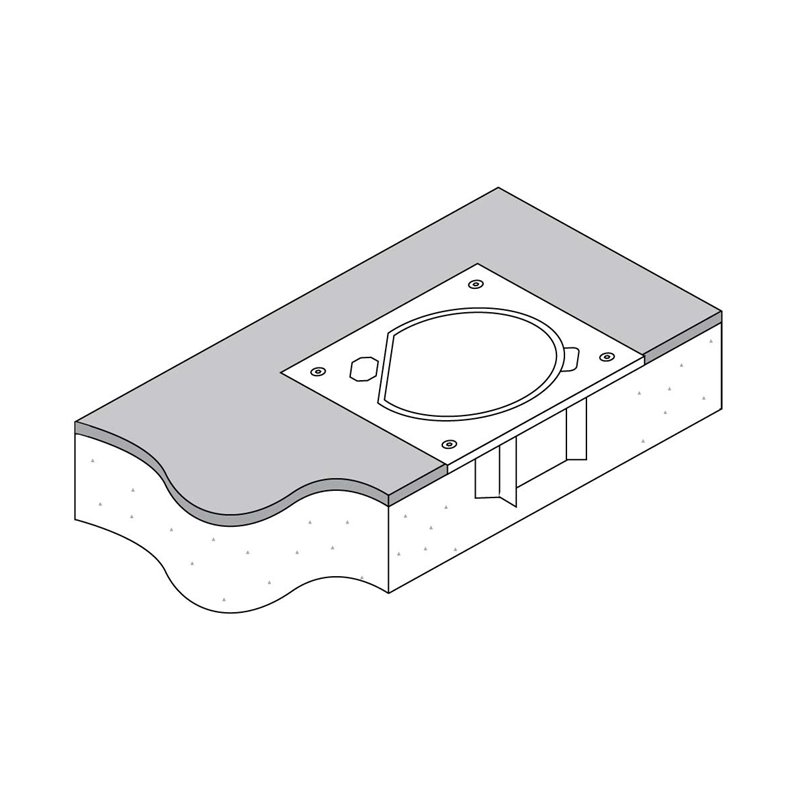

The FOBBR2D-IP66 is an IP66 rated in-floor outlet box with a Brass flush lid, holding 2 x Data Outlets. Designed for installation in a poured concrete slab, it uses a fireproof thermoplastic box body with an MDF temporary lid that protects the unit from concrete slurry during the pour, and is fitted with a standard (non-locking) lid.

Technical Specifications

Part Number FOBBR2D-IP66
Component In-Floor Outlet Box
Lid Material Brass
Outlet Configuration 2 x Data Outlets
Box Body Fireproof Thermoplastic
Lid Lock Standard (Non-Locking)
Ingress Protection IP66 Closed / IP20 In Use
Load Rating Up to 1000kg Closed / 170kg Open

Dimensions

Mechanism Holding Unit
130 x 130 mm
Box Body
135 x 135 x 69 mm
Concrete Block-Out (Cut-Out)
155 x 155 x 79 mm

Key Features

  • MDF temporary lid protects the unit from slurry during the concrete pour
  • Fireproof thermoplastic box body for in-slab installation
  • Brass flush lid finish for a discreet, durable floor-level fitting
  • Simple flush-fitting lid for everyday access

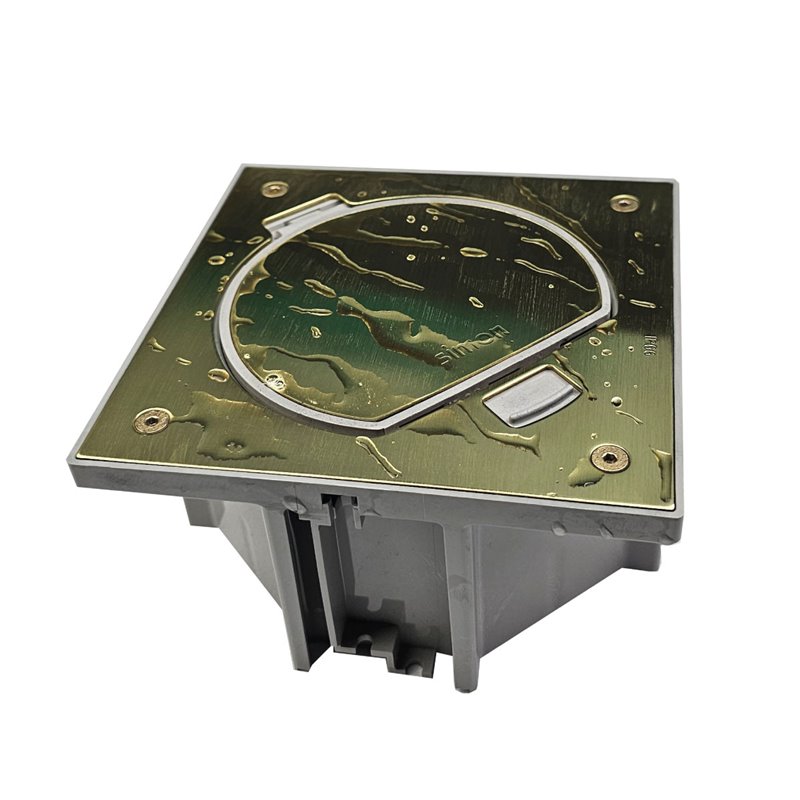

  • IP66 sealed when closed, keeping the outlet protected from dust and water
  • Rated to carry foot and light wheeled traffic when closed

Typical Applications

Commercial offices & open-plan fit-outs
Retail & shopping centres
Airports & transport hubs
Conference & exhibition centres
Boardrooms & meeting rooms
Foyers & reception areas

Ordering Information

Part Number FOBBR2D-IP66
Series IP Rated Floor Outlet Box, Brass, 2 x Data Outlets
Lid Lock Standard (Non-Locking)
Warranty Manufacturer's warranty
FOBBR2D-IP66

Data sheet

FLOOR BOX LID TYPE
FLUSH SQUARE EDGE FINISH LID SECTION
FLOOR BOX LID FINISH TYPE
IP RATED / WATER RESISTANT
DATA OUTLET CAPACITY
1 - 4 DATA OUTLET PROVISIONS
