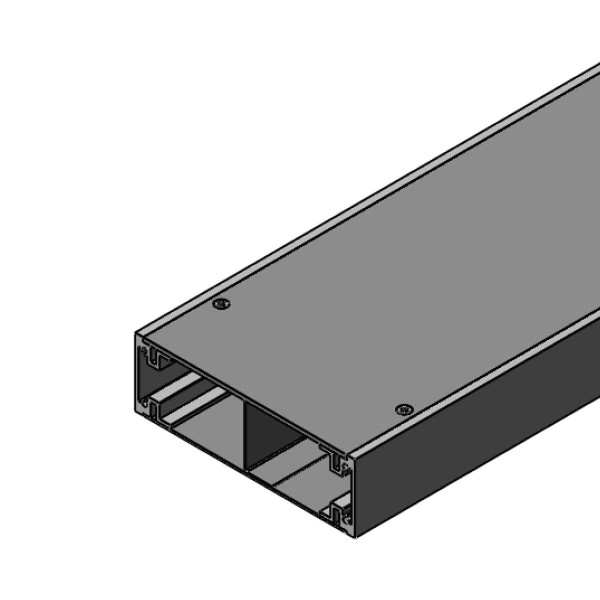

50mm Deep Aluminium sided In Floor Duct
In Floor Duct (50mm Aluminium Sided) is a cost effective way of distributing power, data and audio visual cables under your selected floor finish.
Secure Payments are easier than ever! Stripe's payment solutions
Delivery Option’s, you choose from our list of delivery partners
Manufactures warranty on all Cableaway sold products.
Cableduct's 50mm Aluminium Sided In Floor Duct is a cost-effective way of distributing power, data and audio-visual cables under your selected floor finish. Available in 2 and 3 channel configurations with a 3mm thick lid section, and can be manufactured to any size to suit your project.
TECHNICAL SPECIFICATIONS
| Body Depth | 50mm |
| Lid Thickness | 3mm |
| Channels | 2 or 3 channel |
| Standard Length | 2.4m |
| Reference | FDB Series In Floor Duct |
STANDARD SIZES
- • 50mm x 100mm x 2.4m
- • 50mm x 150mm x 2.4m
- • 50mm x 225mm x 2.4m
- • 50mm x 300mm x 2.4m
Custom made sizes are available on request.
AVAILABLE LID FINISHES
- • Galvanised steel
- • Aluminium chequer plate
- • Stainless steel
- • Stainless steel chequer plate
- • Brass
- • Perspex / acrylic
Custom lid types are also available on request.
TYPICAL APPLICATIONS
- • New-build and retrofit floor slabs
- • Commercial and institutional buildings
- • Office fit-outs and open-plan workspaces
- • Applications requiring a fully concealed, flush-with-floor duct
INSTALLATION
| Recommended Installer | Qualified electrician, builder or licensed trade contractor, depending on the services being routed |
| Fit-Out | Body set into the floor prior to the final floor finish; lid fitted flush with the finished surface |
FDB Series In Floor Duct
