Pathfinder Vertical Cable Management – Top Screw Mount, Weighted Base, 780mm

Pathfinder Vertical Cable Management – Top Screw Mount, Weighted Base, 780mm

Desk-to-floor cable management with no floor fixing required — screws neatly under the desk and stands on a weighted base, keeping power and data cables separated and protected all the way down.

135044
Colour: White


Secure Payments are easier than ever! Stripe's payment solutions



Delivery Option’s, you choose from our list of delivery partners



Manufactures warranty on all Cableaway sold products.

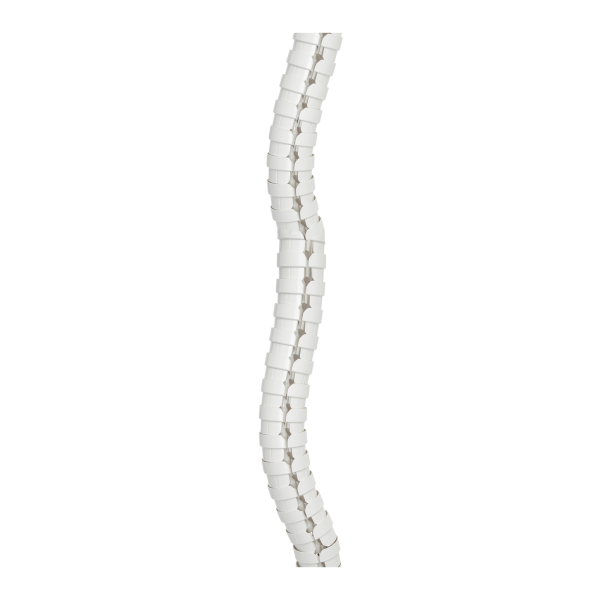

Pathfinder is a flexible vertical cable management system built from interlocking 77mm segments that form a protective, articulated spine for power and data cables. Each segment is internally divided into two channels, so power cabling stays physically separated from data and network cabling along the full run. Pathfinder is available in Black or White, with a range of top and bottom fixings to suit almost any office layout.

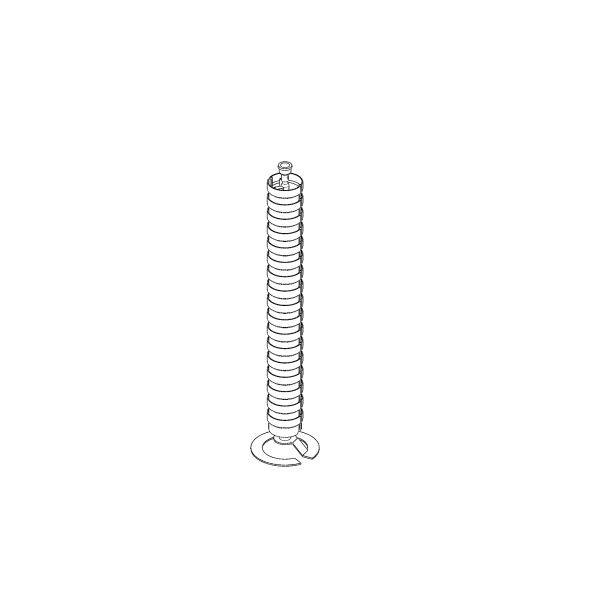

The TWB configuration is Pathfinder's desk-to-floor solution: a 780mm run that fixes to the underside of a desk or meeting table at the top, and stands freely on a weighted base at the bottom — no floor drilling or fixing required.

Technical Specifications

Configuration TWB — Top Screw Mount, Weighted Base
Length 780mm
Segment diameter 77mm

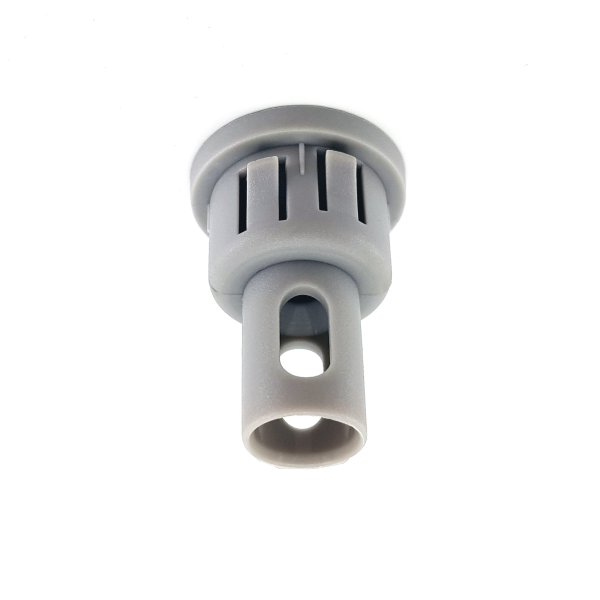

Top fixing Screw mount (underside of desk) or 25mm snap-in panel mount

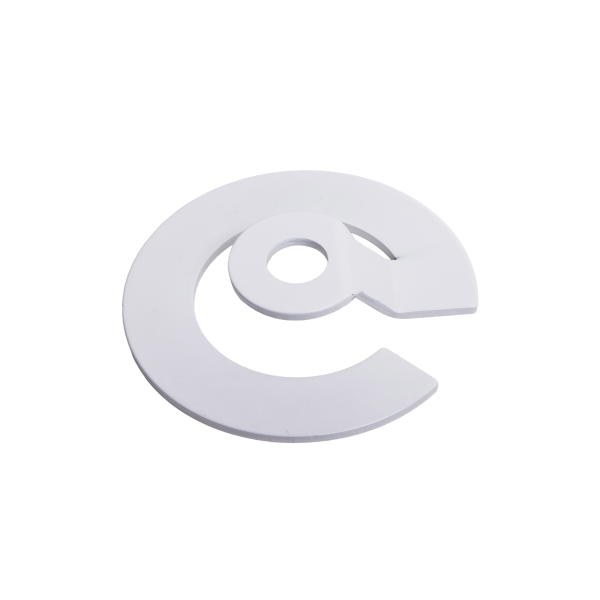

Bottom fixing Weighted floor base (freestanding, no floor fixing)
Cable segregation Yes — separate power and data channels
Colour Black / White

Dimensions

Segment Outer Diameter
77 mm
Panel Mount Hole
25 mm

Key Features

  • Segment OD: 77mm
  • Internal power/data segregation
  • Available in Black or White
  • Modular, articulated segments
  • Compatible with Pathway cable tray
  • Top fixing: screws to the underside of a desk, or snaps into a 25mm panel mounting hole
  • Bottom fixing: sits on the included weighted floor base — freestanding and relocatable

Typical Applications

Single desks & individual workstations
Meeting tables needing an under-desk cable run
Fit-outs where floor fixing isn't possible or permitted
Relocatable desk setups

Ordering Information

Configuration TWB — Top Screw Mount, Weighted Base
Length 780mm
Colour Options Black / White
Warranty Manufacturer's warranty
135044
