Pemsa Rejiband wire mesh cable tray is the fast, light and open way to carry large cable runs through ceilings, risers, comms rooms and plant areas. The open mesh keeps cables cool and visible, cuts and bends on site without special tools, and supports power and data runs of every size.
Cableduct supplies the Pemsa Rejiband range in a choice of widths and heights, with the brackets, wall supports, joiners and strut channel needed to hang, fix and connect it.
Need help sizing a tray run? Email sales@cableduct.com.au or call 1300 302 249.
The 67020111 is a 2000mm S-Plus Omega Channel with a universal connection system for Rejiband® and Pemsaband® trays. It can be used individually or with Omega S-Plus brackets to form wall or ceiling support structures, and has a Pre-Galvanised (PG) finish.
Light duty wall support for the wall installation of Rejiband® wire mesh tray with a height of 60 mm and widths of 60, 100 and 150 mm. With EZ protection system. Quick assembly thanks to the Click system of connection without the need of screws. Permissible working load up to 15 kg. Available in various Protection Systems.

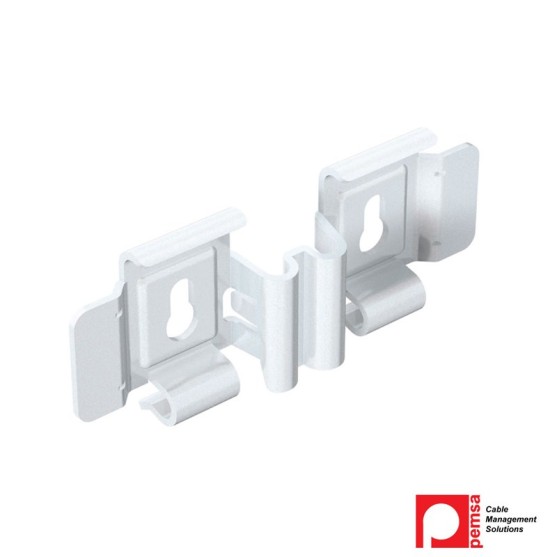

The 64010035 is a Fast Click Joint for joining sections of Rejiband® wire mesh tray using the Click quick-connect system, with an EZ protection system. The connecting piece fits between the sides of adjoining tray sections without tools, maintaining mechanical strength and electrical continuity.

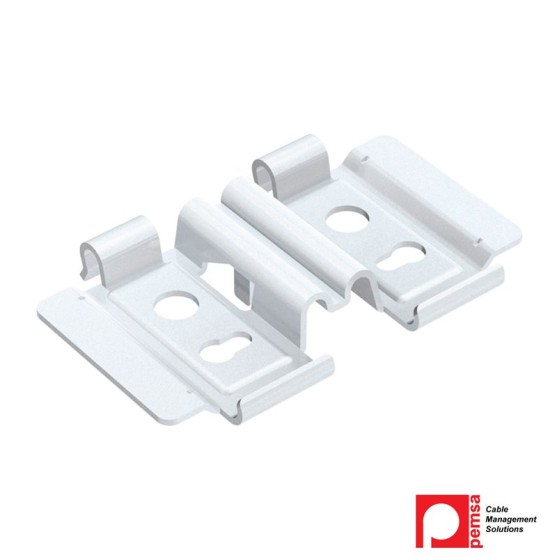

The 64010036 is a Fast Clip Base Joint for joining the base of Rejiband® wire mesh tray sections using the Click system, with an EZ protection system. It suits trays of 300 to 600mm width and 60 or 100mm height, assembling without tools while maintaining mechanical strength and electrical continuity.

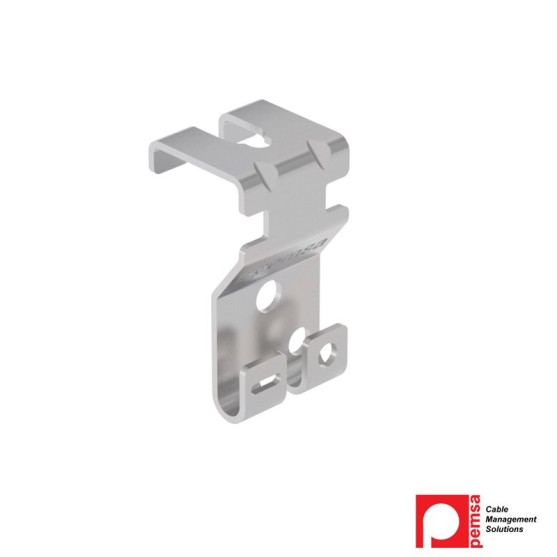

The 81000019 is an Edge Hanger, a side suspension support for ceiling installation of Rejiband® wire mesh tray using threaded rods, with a PG protection system. It suits tray heights of 35, 60 and 100mm and widths from 100 to 600mm, and installs quickly without screws.

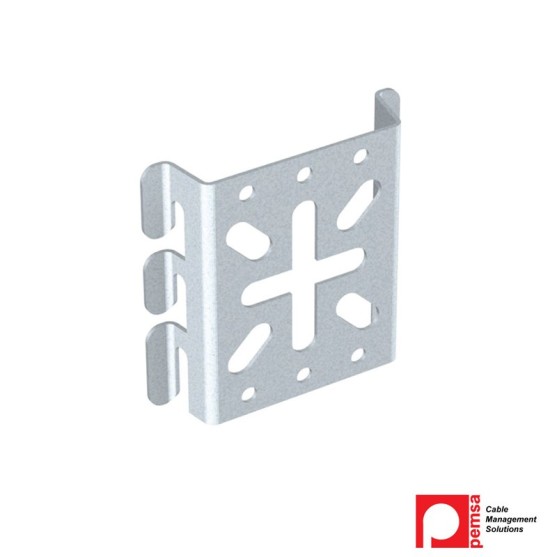

The 62026010 is a mini universal steel bracket for wall-mounting Rejiband® wire mesh tray, suiting 100mm and 150mm wide trays in either a horizontal or vertical position. It uses the fast Click connection system for screw-free assembly and has a PG protection system, PG3 finish.

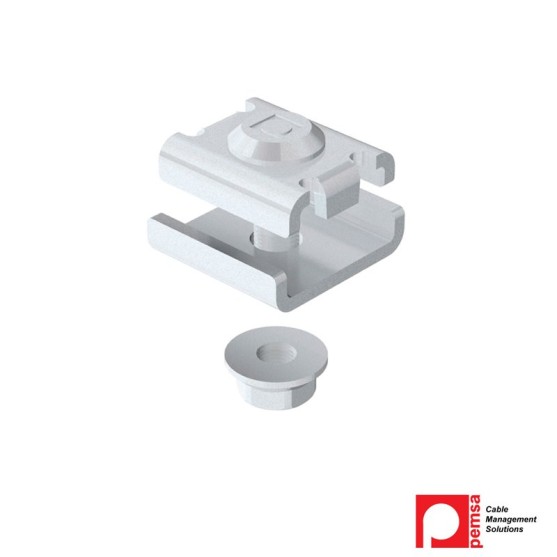

The 64010061 is a Reinforced Joint Clamp for joining sections of Rejiband® wire mesh tray, consisting of a captive screw, connecting plate and nut, with an EZ protection system, EZ3 finish. Its construction simplifies the joint between tray sections and increases mechanical strength, optimising the maximum load values of the joint.
The 64010060 is a Part Clamp for attaching supports or other accessories to Rejiband® wire mesh tray, with an EZ protection system, EZ3 finish. It consists of a 20mm wide plate with a captive M6 screw and nut, suiting trays of 35, 60 and 100mm height in all widths.

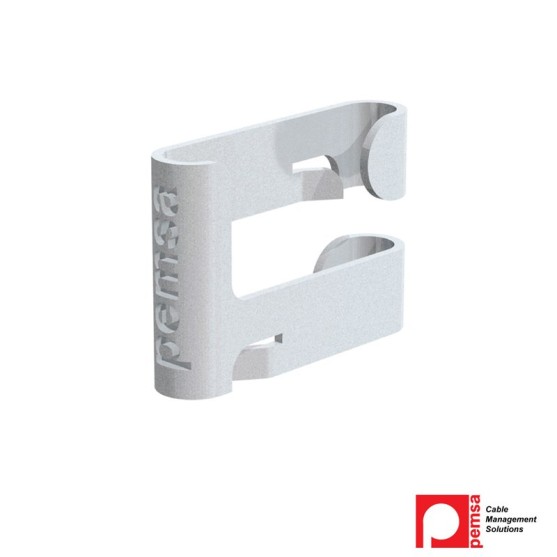

The 64010072 is a Rejiband® Bend Clip, a metal joining piece with a quick-connect Click system for forming bends in Rejiband® wire mesh tray, with an EZ protection system. It attaches without screws and is fitted to the inside of the bend to join sections without any special tools.

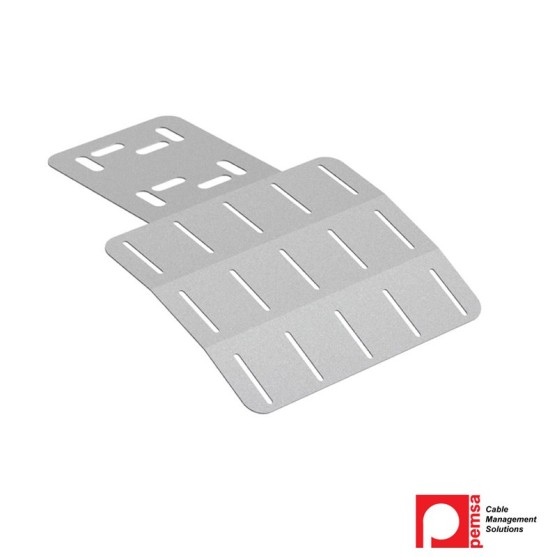

The 67010016 is a Waterfall Cable Dropout, an adjustable-angle accessory for the outlet of data and power cables from Rejiband® wire mesh tray, protecting cables as they leave the tray run. It is made of steel and available in GC and PG Protection Systems.

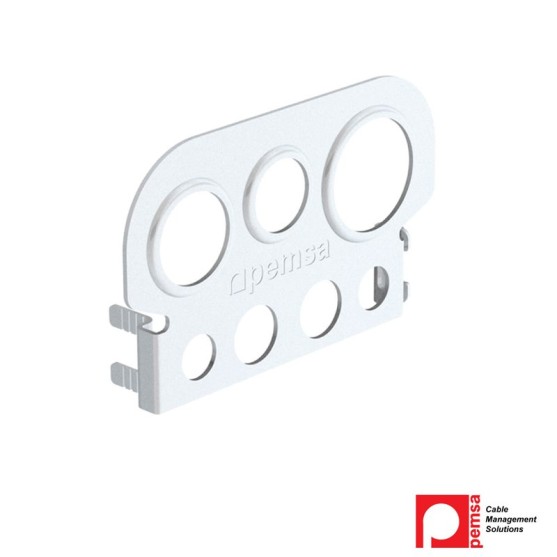

The 67010040 is a Conduit Gland Bracket (conduit outlet), a Rejiband® accessory used to protect the wiring output from the tray into rigid or flexible conduit up to DN16mm, with an EZ protection system. It allows connection of PG13, PG16, PG21, M20 and M25 fittings and installs with the quick-fit Click system without screws.

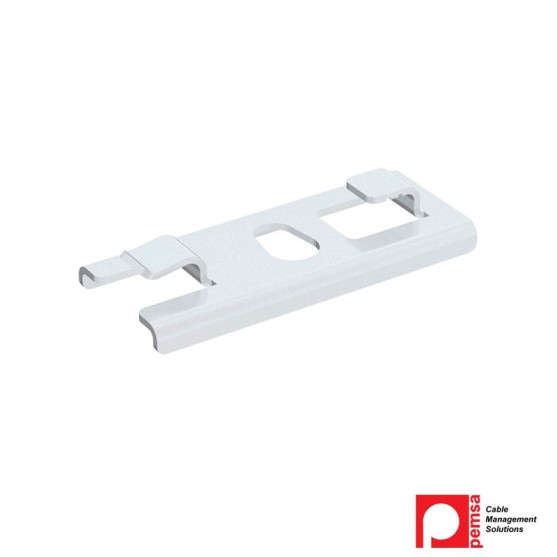

The 67010043 is a Click Central Suspension for M8 threaded rod, used to hang Rejiband® wire mesh tray centrally from the ceiling, with an EZ protection system, EZ3 finish. It uses the Click quick-connect system for fast, screw-free assembly to the tray.
