Above Floor Duct
Ramped aluminium duct that fixes straight onto an existing floor to carry power and data to desks away from the walls. Four profiles, from a 12.5mm shallow duct to a 214mm wide high-capacity duct, all in 3m lengths.
Secure Payments are easier than ever! Stripe's payment solutions
Delivery Option’s, you choose from our list of delivery partners
Manufactures warranty on all Cableaway sold products.
Cableduct above floor duct is the fastest way to get power and data to a desk in the middle of a room. It fixes straight onto the finished floor, so there is no cutting, chasing or lifting, and its ramped aluminium profile keeps cables protected and the trip edge low.
Four profiles cover everything from a single desk feed to a full run of workstations. Divided compartments keep power and data cabling apart inside the duct.
At a glance
| Part number | Profile | Length | Width | Height |
|---|---|---|---|---|
| AFD14SM | Shallow above floor duct | 3m | 143mm | 12.5mm |
| AFD14SR | Semi-recessed floor duct, ramped lid | 3m | 150mm | 32mm |
| AFD35 | Above floor duct, aluminium over cover | 3m | 150mm | 37mm |
| AFD35SM | Wide above floor duct | 3m | 214mm | 37mm |

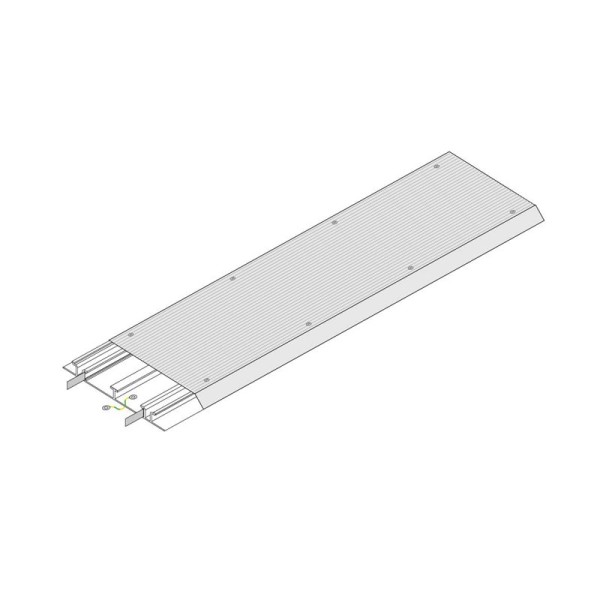

AFD14SM shallow above floor duct
  |
Our lowest profile duct at just 12.5mm high. Designed for light power and data runs where the lowest possible trip edge matters, such as walkways, meeting rooms and reception areas.
|

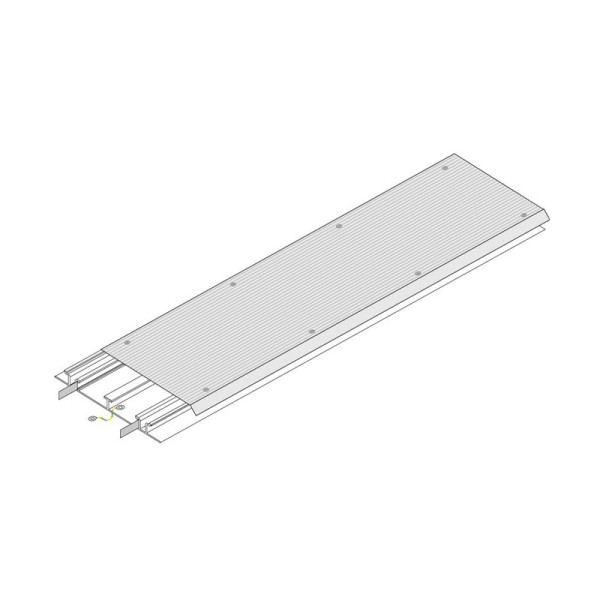

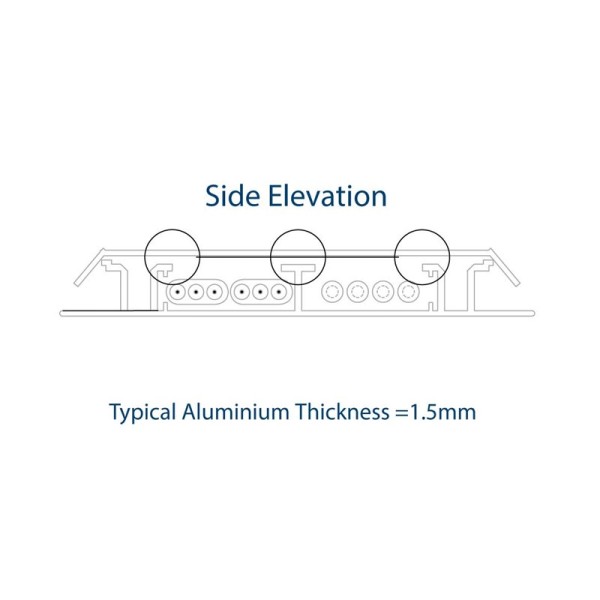

AFD14SR semi-recessed floor duct
  |
A semi-recessed duct with a ramped aluminium lid section, for sites where the duct can be partly set into the floor to reduce its height above the finished surface.
|

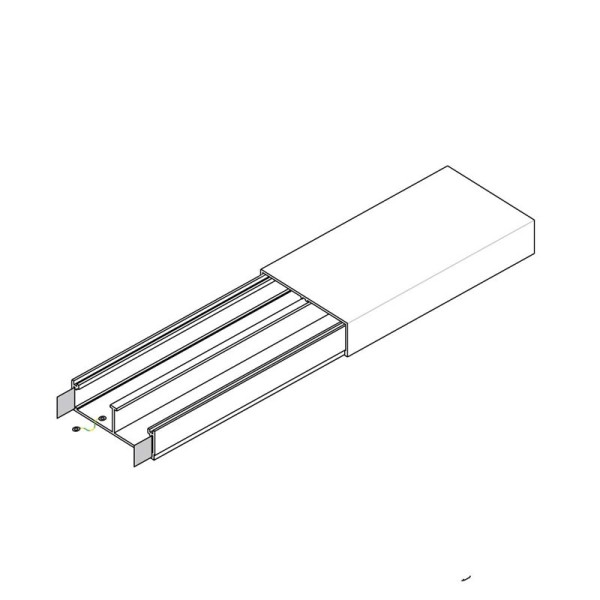

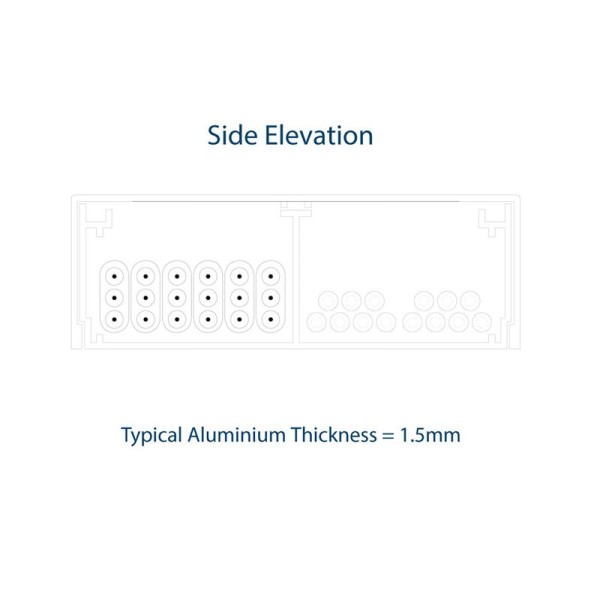

AFD35 above floor duct
  |
The everyday workhorse. A 37mm high duct with an aluminium over cover and room for a proper workstation feed of power, data and voice cabling.
|

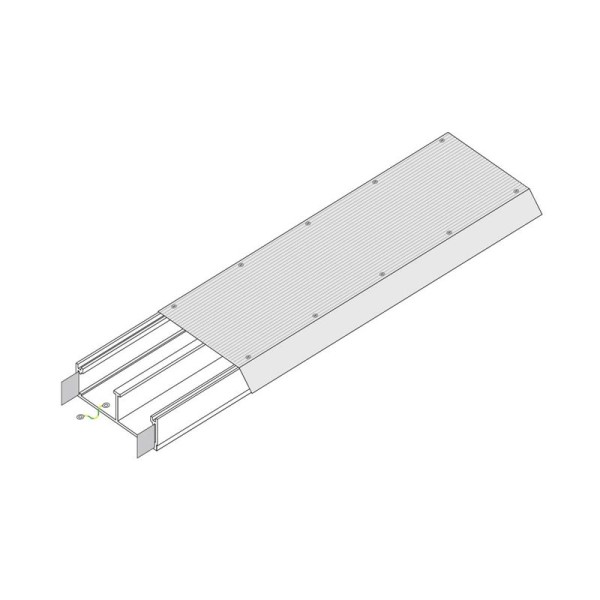

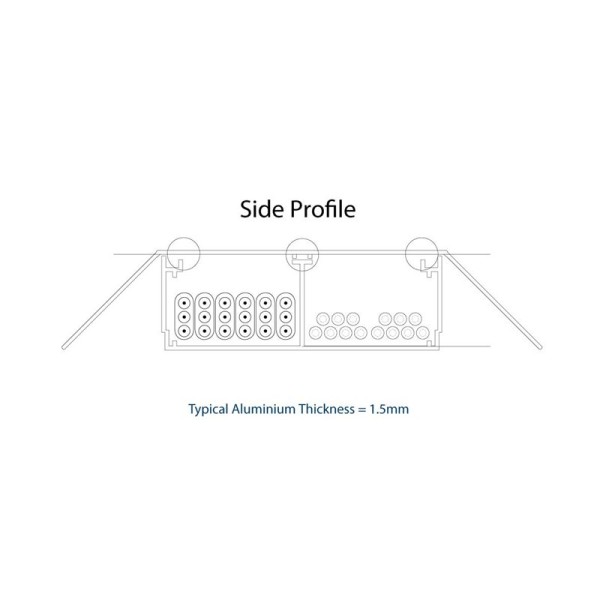

AFD35SM wide above floor duct
  |
The high-capacity option. At 214mm wide it carries the cabling for larger desk clusters and benching runs while keeping the same 37mm height as the AFD35.
|
 |

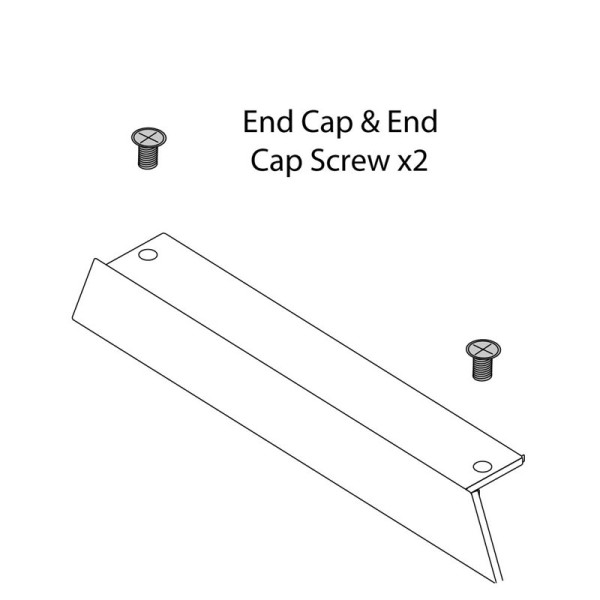

Finishing the runEach duct run is finished with end caps, fixed with two end cap screws, for a neat, safe edge where the duct meets the desk or wall. |
Tell us the floor finish, the run length and how many desks you are feeding, and we will recommend the right profile. Email sales@cableduct.com.au or call 1300 302 249.
