Flush Floor Duct

When the floor is being laid or refinished, flush floor duct is the neatest way to run services across a room. The duct is set into the floor so the lid finishes level with the surrounding surface: no ramp, no trip edge, and nothing for chairs or trolleys to catch on.

Choose the low-profile FD120 for shallow floor build-ups, or the deeper FD150 when you need to carry a full workstation load of power and data. Both have separate compartments to keep power and data cabling apart.

At a glance

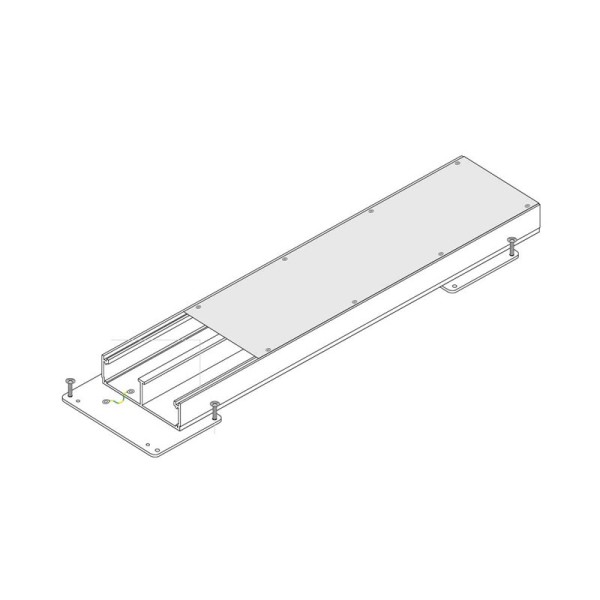

FD120 low-profile flush floor duct

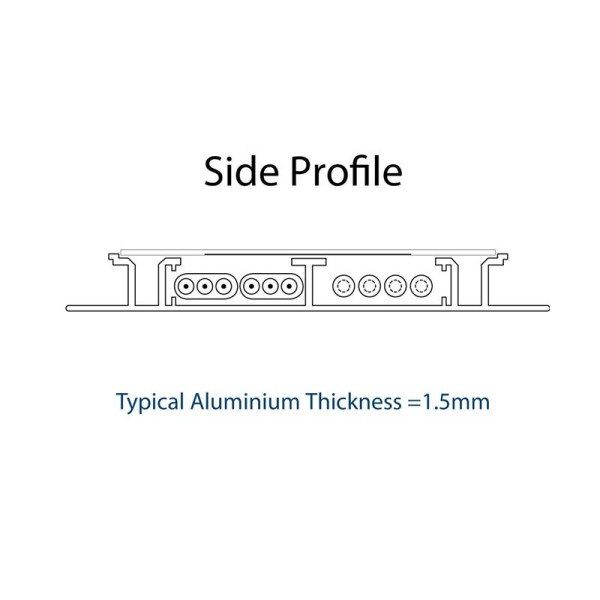

Just 12.5mm deep, the FD120 suits shallow floor build-ups such as carpet tiles and thin screeds. It carries power and data in separate compartments under a galvanised lid. Dimensions 3m x 143mm wide x 12.5mm high Material Aluminium, typical thickness 1.5mm Lid Galvanised lid Length 3m (3,000mm) Ends End caps with end cap screws

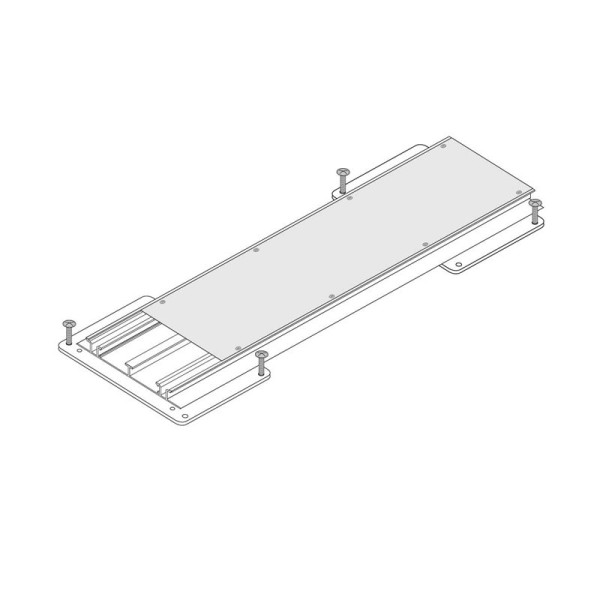

FD150 high-capacity flush floor duct

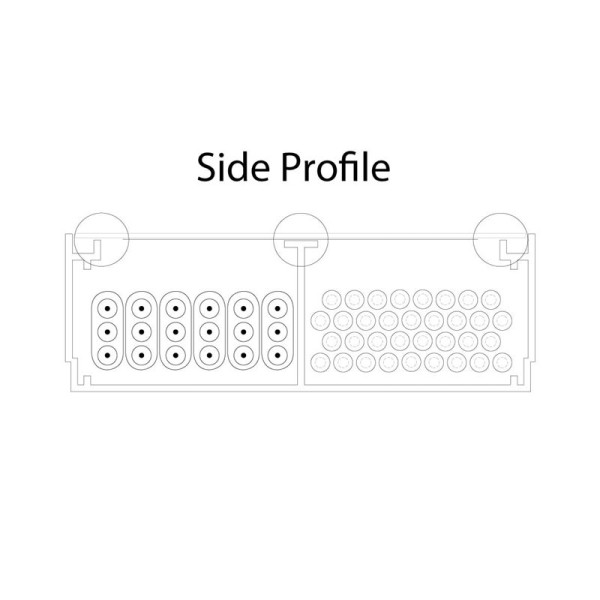

At 35mm deep and 150mm wide, the FD150 takes a full workstation load, with a divided body that keeps multiple power circuits on one side and data and voice cabling on the other. Dimensions 3m x 150mm wide x 35mm high Material Aluminium Configuration Two compartments for separate power and data Length 3m (3,000mm) Ends End caps with end cap screws

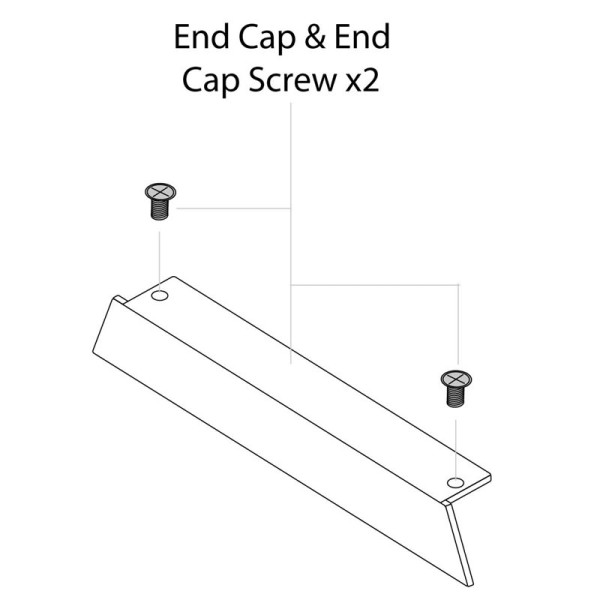

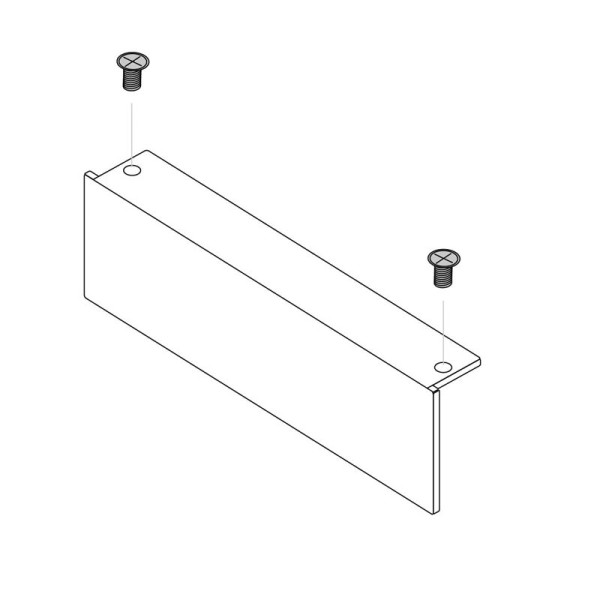

Finishing the run Each run is closed off with end caps and end cap screws, for a neat, safe finish where the duct meets a wall, floor box or desk position.

Tell us your floor build-up height, the run length and the services you need to carry, and we will recommend the right duct. Email sales@cableduct.com.au or call 1300 302 249.
