PACE Desktop Power Rail, AU Plug

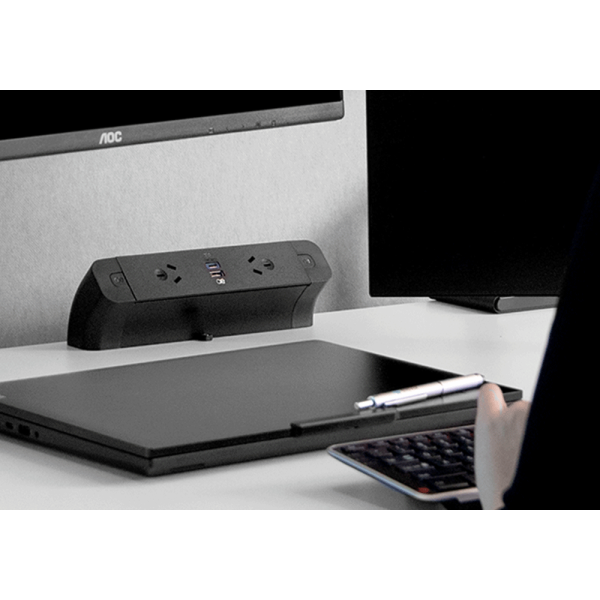

PACE is a compact, organically shaped desktop power rail that brings power, USB charging, data and AV to the desk. It clamps to desks from 5mm to 40mm thick with the top-fix brackets supplied, and a rear access opening makes data and AV connections easy.

This PACE range is mainly supplied with a 2.0m AU plug, with 72W models on an 800mm 3-pole inline splitter lead. Every available combination is listed below with its part number. PACE rails on an inline splitter lead only are listed as a separate product.

Colour reference

Colours are a guide only and will vary with screen settings.

At a glance

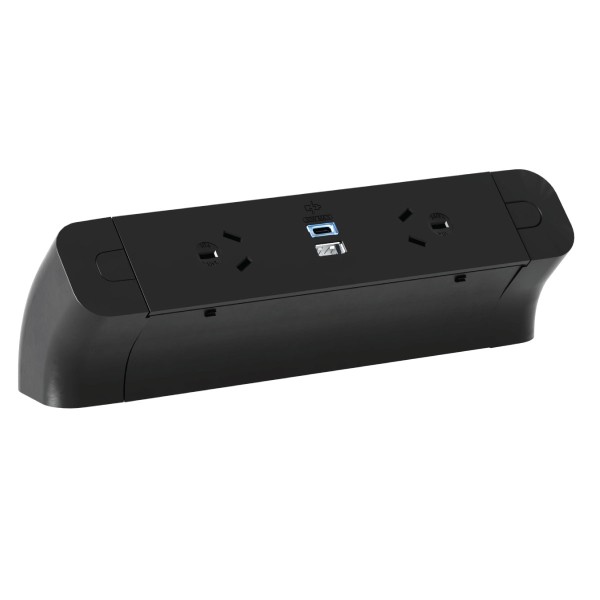

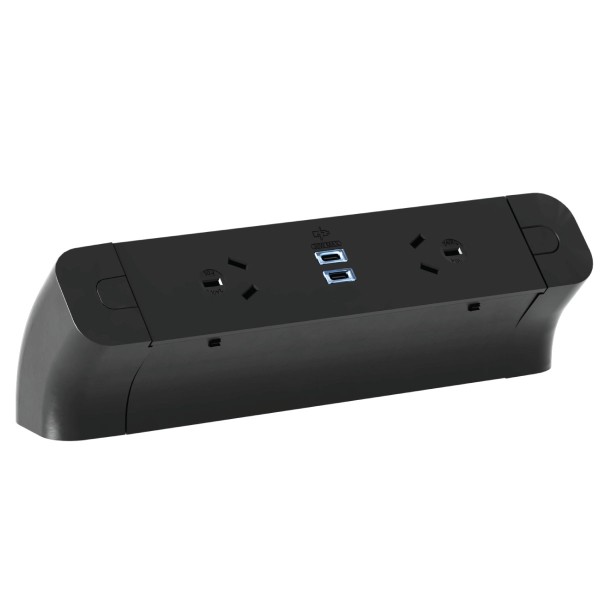

Black, USB-A/C

Choose the bracket and power options below. Desk Bracket Kit, 30W, AU plug 2.0m 920534 Desk Bracket Kit, 72W, Inline splitter 800mm 920554 Quick Release Bracket, 30W, AU plug 2.0m 920815

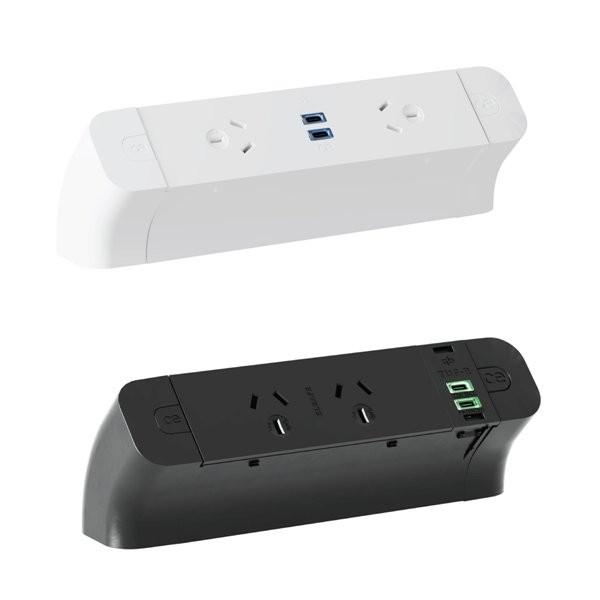

White, USB-A/C

Choose the bracket and power options below. Desk Bracket Kit, 30W, AU plug 2.0m 920533 Desk Bracket Kit, 72W, Inline splitter 800mm 920553 Quick Release Bracket, 30W, AU plug 2.0m 920803

Black, USB-C/C

Choose the bracket and power options below. Desk Bracket Kit, 30W, AU plug 2.0m 920962 Quick Release Bracket, 30W, AU plug 2.0m 920964

White, USB-C/C

Choose the bracket and power options below. Desk Bracket Kit, 30W, AU plug 2.0m 920965 Quick Release Bracket, 30W, AU plug 2.0m 920963

Specifications

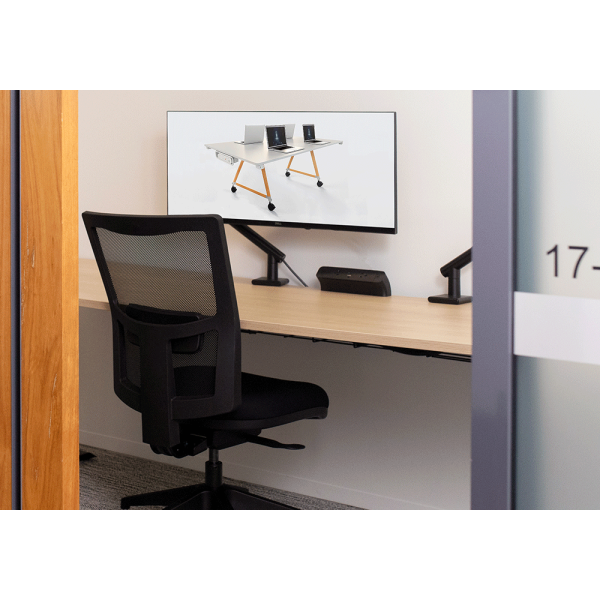

Must be installed by a licensed electrician in accordance with AS/NZS 3000. Mounting Top-fix brackets included Desk thickness 5mm to 40mm Brackets Desk bracket kit or quick release bracket USB USB-A/C or USB-C/C Power connection AU plug 2.0m or inline splitter 800mm Construction Extruded aluminium with moulded end caps and fascias Standards AS/NZS 3100 and AS/NZS 3105 Applications Open-plan offices, sit-stand desks, boardrooms, reception, co-working, trading floors

All PACE rails are available to order. Custom lengths are available on request. Contact Cableduct for pricing and stock. Email sales@cableduct.com.au or call 1300 302 249.
