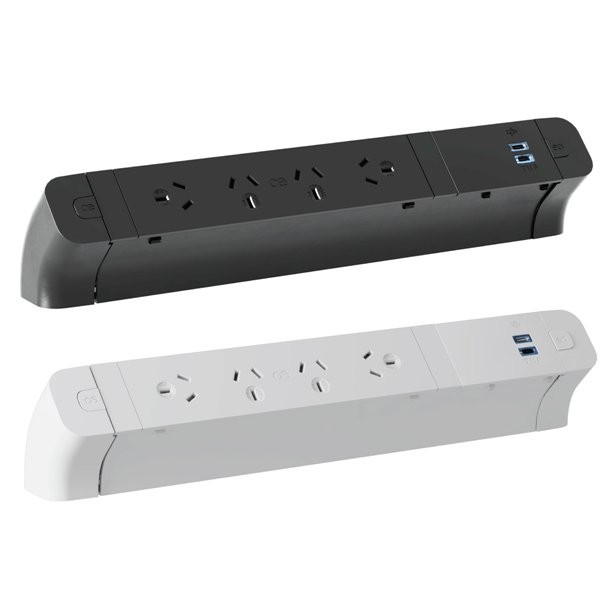

PACE Desktop Power Rail, Inline Splitter

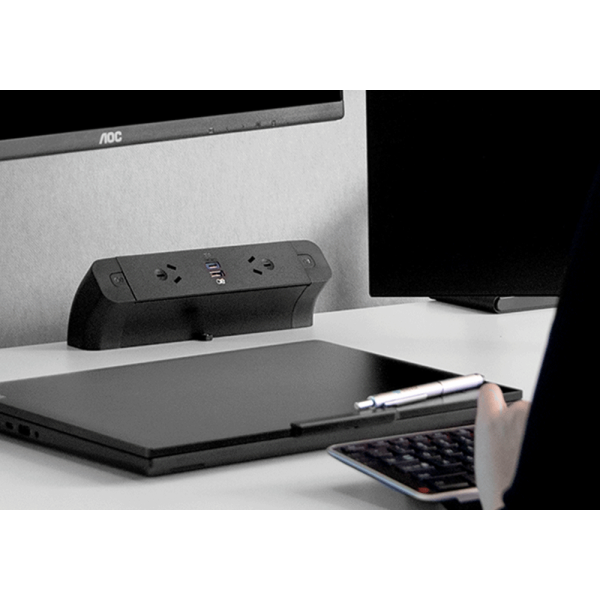

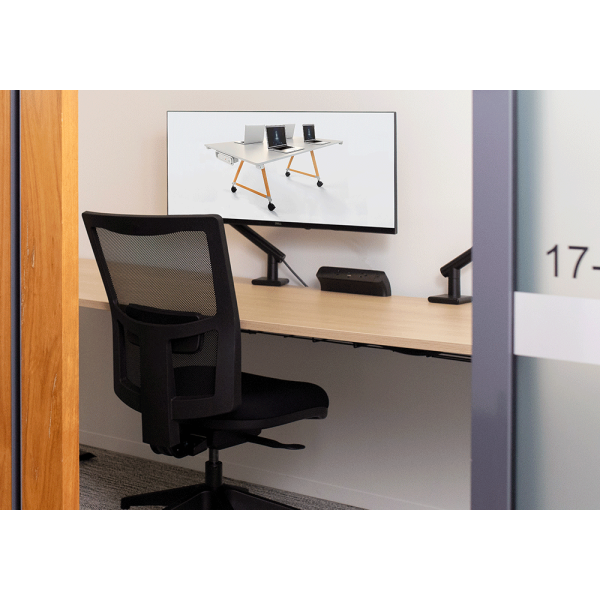

PACE is a compact, organically shaped desktop power rail that brings power, USB charging, data and AV to the desk. It clamps to desks from 5mm to 40mm thick with the top-fix brackets supplied, and a rear access opening makes data and AV connections easy.

This PACE range connects to a 3-pole soft wiring system with an 800mm inline splitter lead, so rails can be linked along a run of workstations. Every available combination is listed below with its part number.

Colour reference

Colours are a guide only and will vary with screen settings.

At a glance

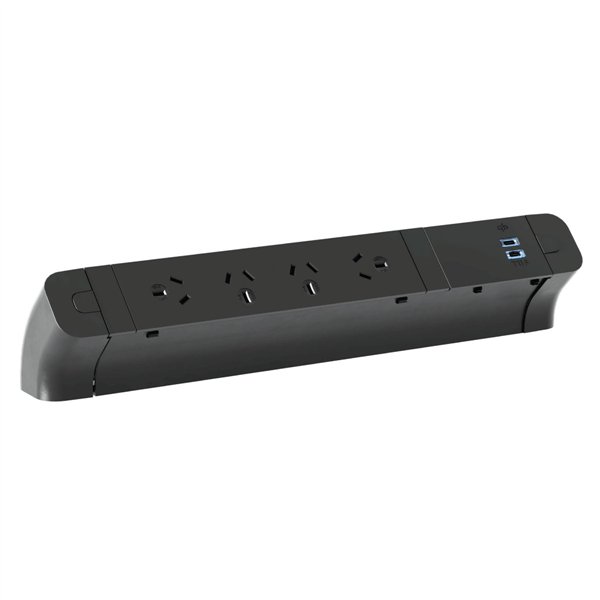

Black, USB-A/C

Choose a desk bracket kit or quick release bracket. Desk Bracket Kit, 30W, Inline splitter 800mm 920545 Quick Release Bracket, 30W, Inline splitter 800mm 920834

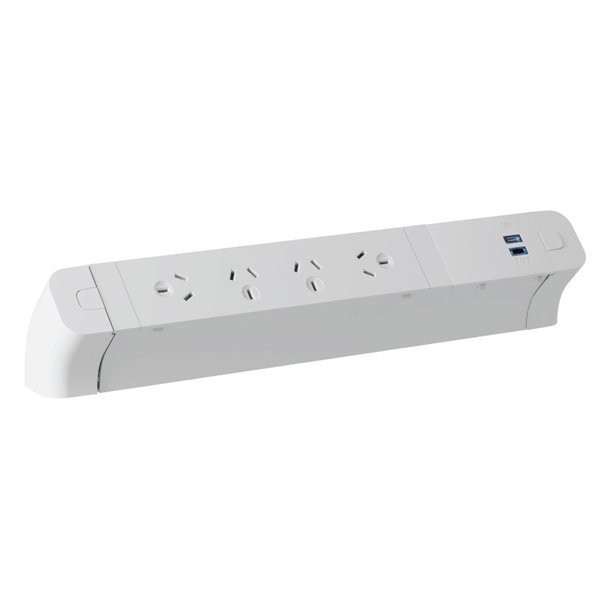

White, USB-A/C

Choose a desk bracket kit or quick release bracket. Desk Bracket Kit, 30W, Inline splitter 800mm 920546 Quick Release Bracket, 30W, Inline splitter 800mm 920814

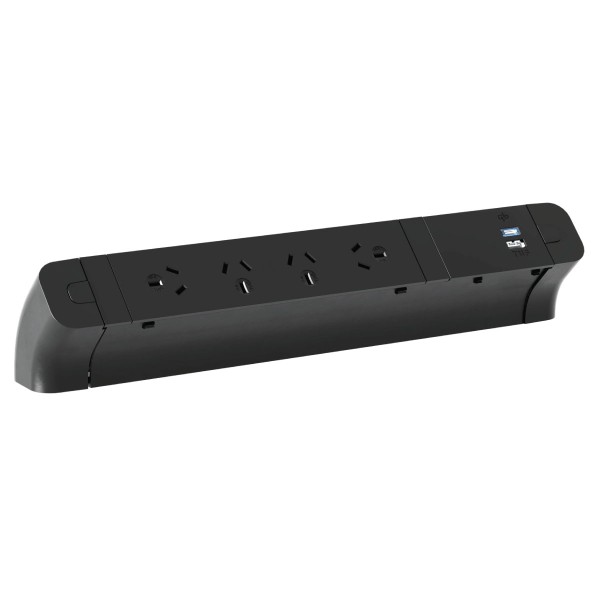

Black, USB-C/C

Choose a desk bracket kit or quick release bracket. Desk Bracket Kit, 30W, Inline splitter 800mm 920980 Quick Release Bracket, 30W, Inline splitter 800mm 920984

White, USB-C/C

Choose a desk bracket kit or quick release bracket. Desk Bracket Kit, 30W, Inline splitter 800mm 920981 Quick Release Bracket, 30W, Inline splitter 800mm 920985

Specifications

Must be installed by a licensed electrician in accordance with AS/NZS 3000. Sockets 4 x GPO Mounting Top-fix brackets included Desk thickness 5mm to 40mm Brackets Desk bracket kit or quick release bracket USB USB-A/C or USB-C/C, 30W Power connection 3-pole inline splitter, 800mm Construction Extruded aluminium with moulded end caps and fascias Standards AS/NZS 3100 and AS/NZS 3105

All PACE rails are available to order. Custom lengths are available on request. Contact Cableduct for pricing and stock. Email sales@cableduct.com.au or call 1300 302 249.
