PHASE Desktop Power Rail

PHASE is a compact, low-profile power unit that mounts on the rear edge of desks, benches and workstations. It comes as a 1 socket GPO with USB charging, or as a 2 socket power-only unit.

The 1 socket range is available with a 2.0m AU plug or an 800mm 3-pole inline splitter lead. The 2 socket range is supplied on the inline splitter lead only. Every available combination is listed below with its part number.

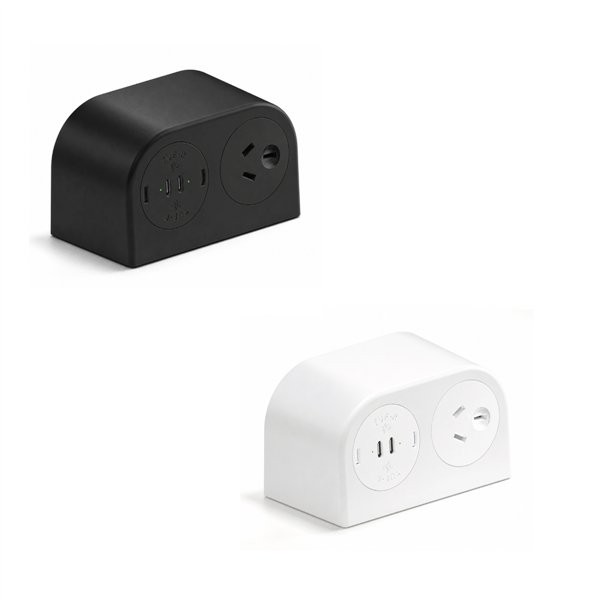

Colour reference

Colours are a guide only and will vary with screen settings.

At a glance

Power only

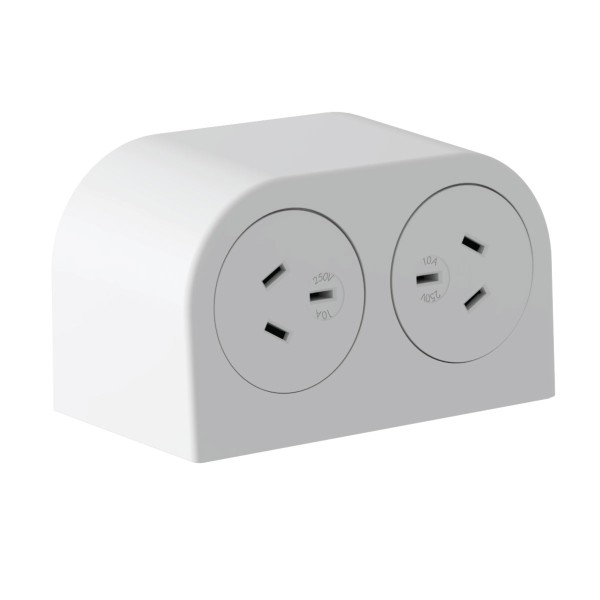

2 GPO sockets, power only, on an 800mm inline splitter lead. Black, Power only, Inline splitter 800mm, 2 Socket 979525 White, Power only, Inline splitter 800mm, 2 Socket 979526

USB-A/C

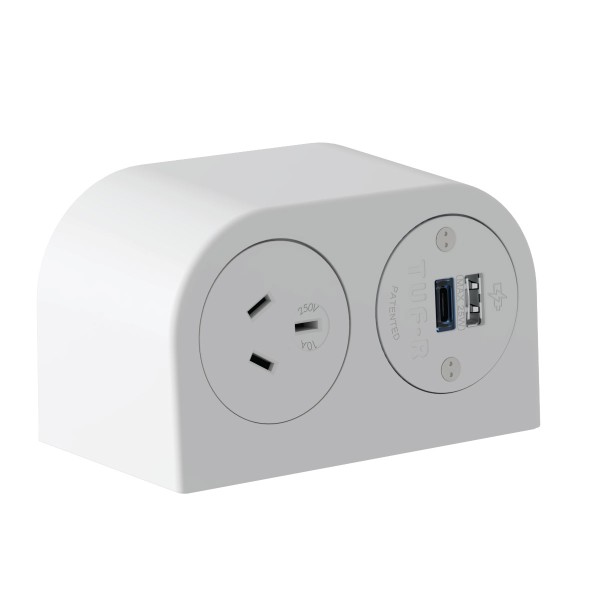

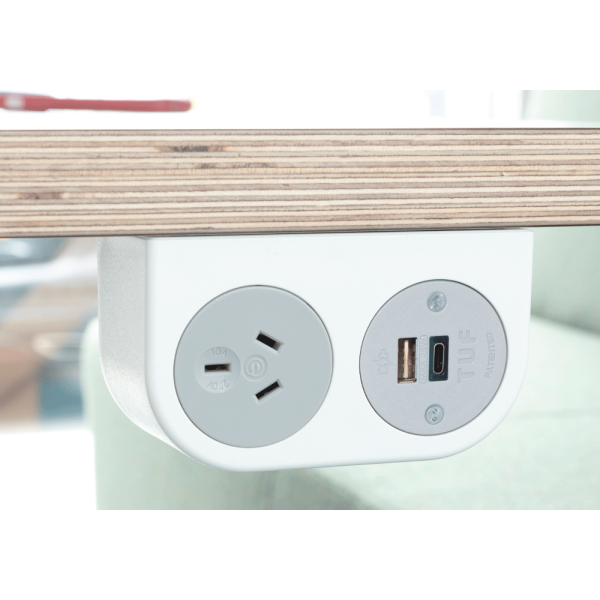

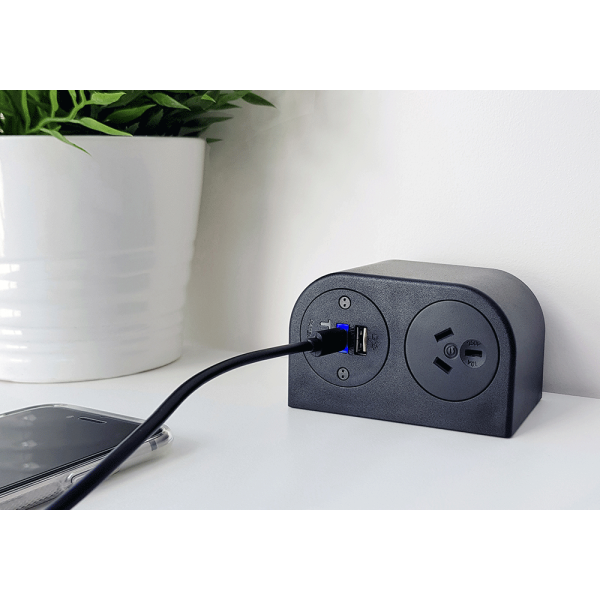

1 GPO socket with a USB-A/C 25W charging port. Black, 25W, AU plug 2.0m, 1 Socket 527400 Black, 25W, Inline splitter 800mm, 1 Socket 527401 White, 25W, AU plug 2.0m, 1 Socket 527000 White, 25W, Inline splitter 800mm, 1 Socket 527001

USB-C/C

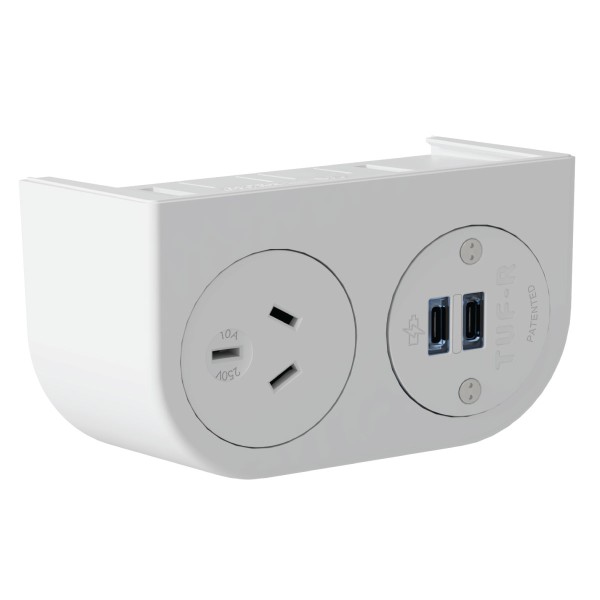

1 GPO socket with a USB-C/C 30W charging port. Black, 30W, AU plug 2.0m, 1 Socket 527413 White, 30W, AU plug 2.0m, 1 Socket 527025

Specifications

Must be installed by a licensed electrician in accordance with AS/NZS 3000. Mounting Rear entry, fixed Sockets 1 GPO with USB, or 2 GPO power only USB USB-A/C 25W or USB-C/C 30W (1 socket range) Power connection AU plug 2.0m (1 socket only) or inline splitter 800mm Colours White or black Standards AS/NZS 3100 and AS/NZS 3105 Applications Workstations, hot desks, meeting rooms, home offices, education, co-working

PHASE units are available to order. Contact Cableduct for pricing and stock. Email sales@cableduct.com.au or call 1300 302 249.
