Strut Channel, Pre-Galvanised
Pre-galvanised steel strut channel for hanging and supporting cable tray, ladder and building services. 41 x 21mm and 41 x 41mm profiles, slotted or non-slotted, in 3m lengths.
Secure Payments are easier than ever! Stripe's payment solutions
Delivery Option’s, you choose from our list of delivery partners
Manufactures warranty on all Cableaway sold products.
Strut channel is the backbone of a cable tray installation. Cut to length and fixed to walls, slabs or threaded rod, it gives a strong, adjustable support for wire mesh tray, cable ladder, conduit and other services.
Cableduct supplies pre-galvanised strut in two profiles: the 41 x 21mm channel for light and medium duty supports, and the 41 x 41mm channel for heavy duty runs. Choose slotted channel, with M14 x 35mm slots, for fast bolt-through fixing anywhere along its length, or non-slotted channel for a clean, solid section.
At a glance
| Part number | Profile | Thickness | Type | Duty | Length |
|---|---|---|---|---|---|
| SC4121PGN3.0M | 41 x 21mm | 2.0mm | Non-slotted | Light duty | 3.0m |
| SC4121PGS3.0M | 41 x 21mm | 2.0mm | Slotted, M14 x 35mm slots | Medium duty | 3.0m |
| SC4141PGN3.0M | 41 x 41mm | 2.5mm | Non-slotted | Heavy duty | 3.0m |
| SC4141PGS3.0M | 41 x 41mm | 2.5mm | Slotted, M14 x 35mm slots | Heavy duty | 3.0m |

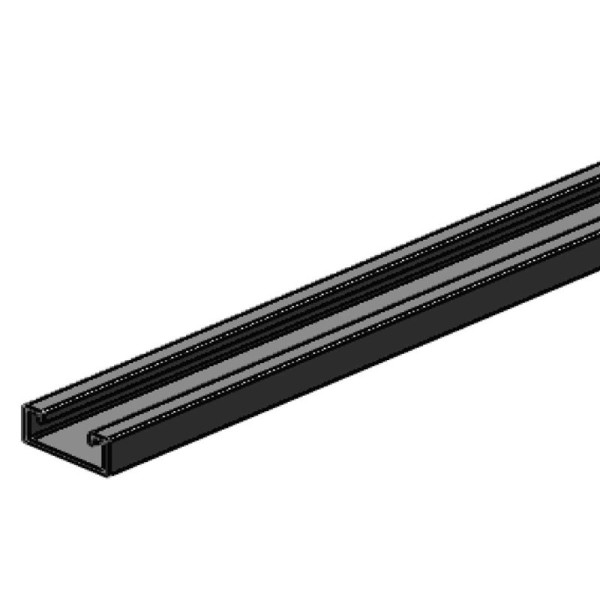

41 x 21mm strut channel
   |
A shallow 41 x 21mm channel in 2.0mm pre-galvanised steel, for light and medium duty supports, brackets and short spans.
|

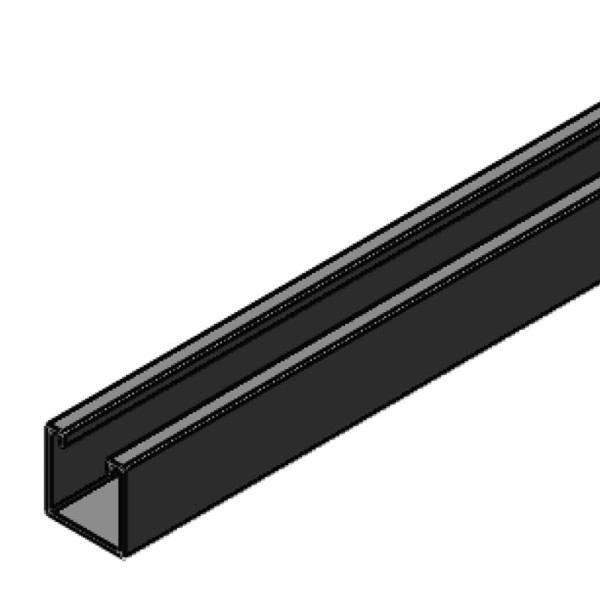

41 x 41mm strut channel
   |
A full-depth 41 x 41mm channel in 2.5mm pre-galvanised steel, for heavy duty supports, trapeze hangers and longer spans.
|
Tell us the tray size, span and loading, and we will recommend the right strut and fixings. Email sales@cableduct.com.au or call 1300 302 249.
